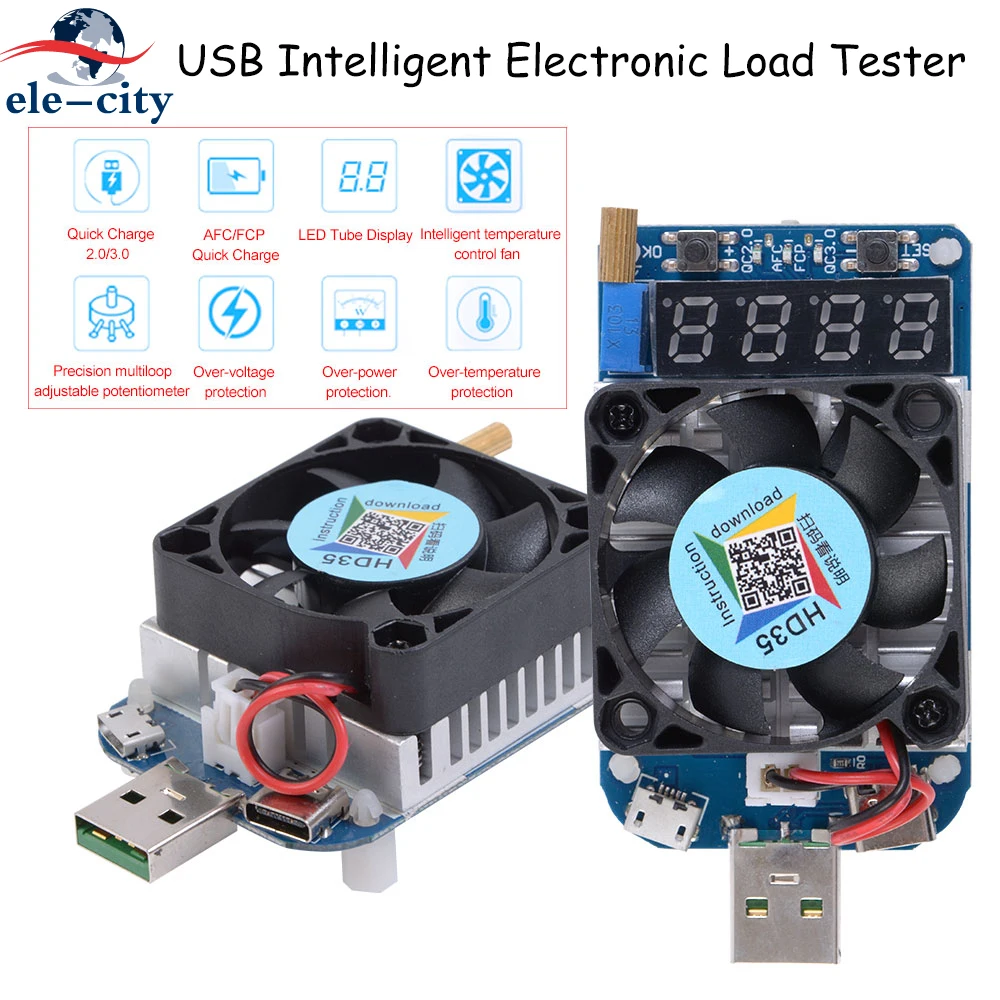

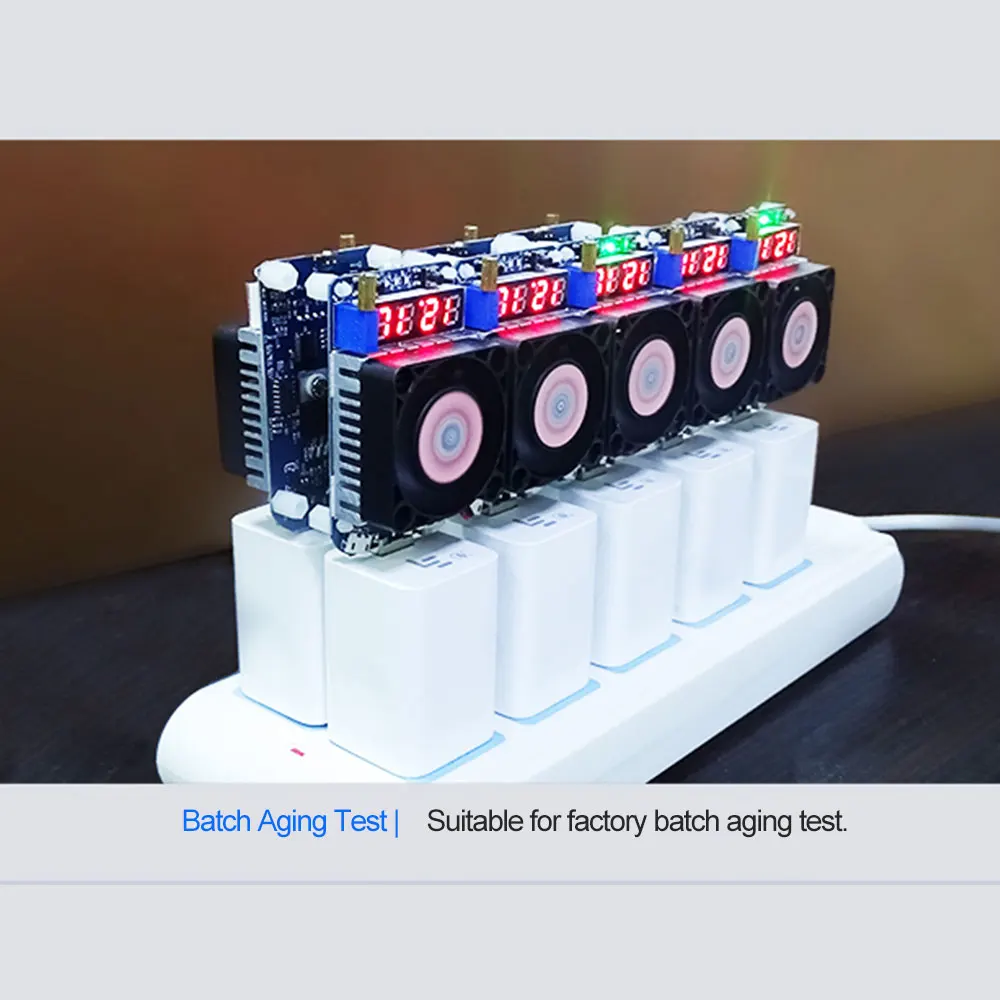

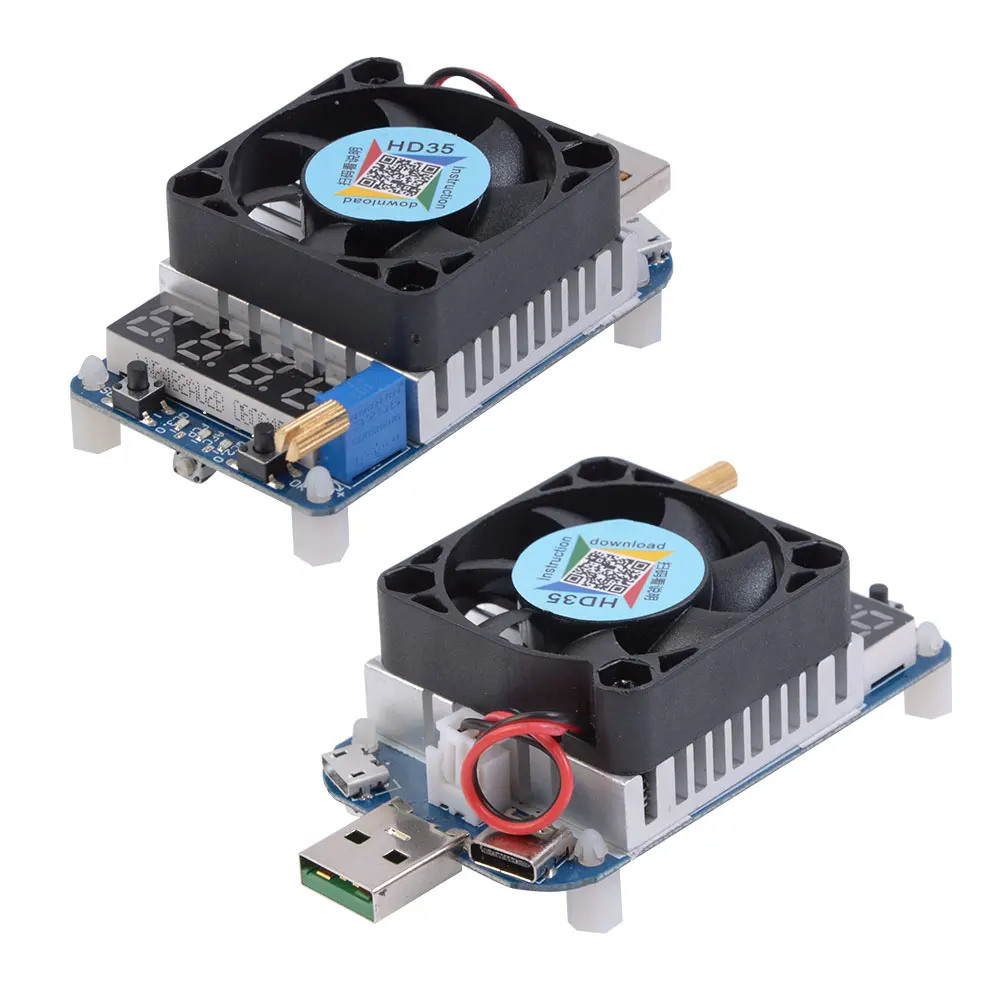

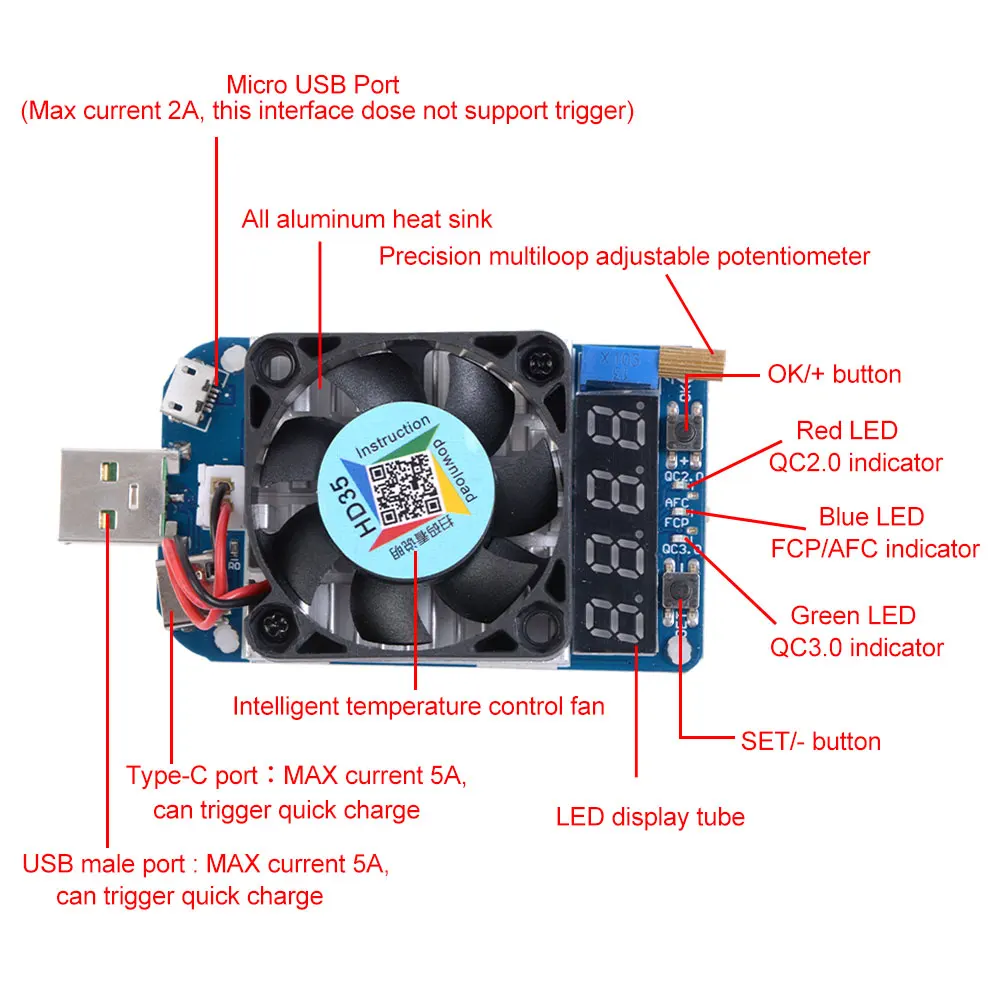

●Equipped with practical parts, such as 4-bit LED display tube, all aluminum heat sink, intelligent temperature control fan, precision multiloop adjustable potentiometer and so on, the high quality brand new electronic load tester is so multifunctional that it supports QC2.0, QC3.0, AFC, FCP quick charging protocol, which can trigger 5V/9V/12V/20V and other quick charging voltage and make it convenient for digital products players to test the performance of quick charging appliances, data cables and other products, as well as the factory to conduct batch aging test for products.

●In contrast to ordinary electronic load tester, the item can be used to test the quality of Micro USB Cable&Type-C Cable for its expansion Micro USB port&Type-C ports.

●Over-voltage protection, Over-temperature protection and Over-power protection.

Note:

●This product has no reverse connection protection, the input polarity cannot be

reversed, otherwise the product is permanently damaged and cannot be repaired.

●Please take care of the rated value and do not exceed it when using the teater.

Specifications:

●Product Model: HD35

●Rated operational voltage: DC4-25.0V

●Max discharging power: 35W

●Rated operational current: 0.25-5.00A (when fan don’t work, adjust current from 0.05A )

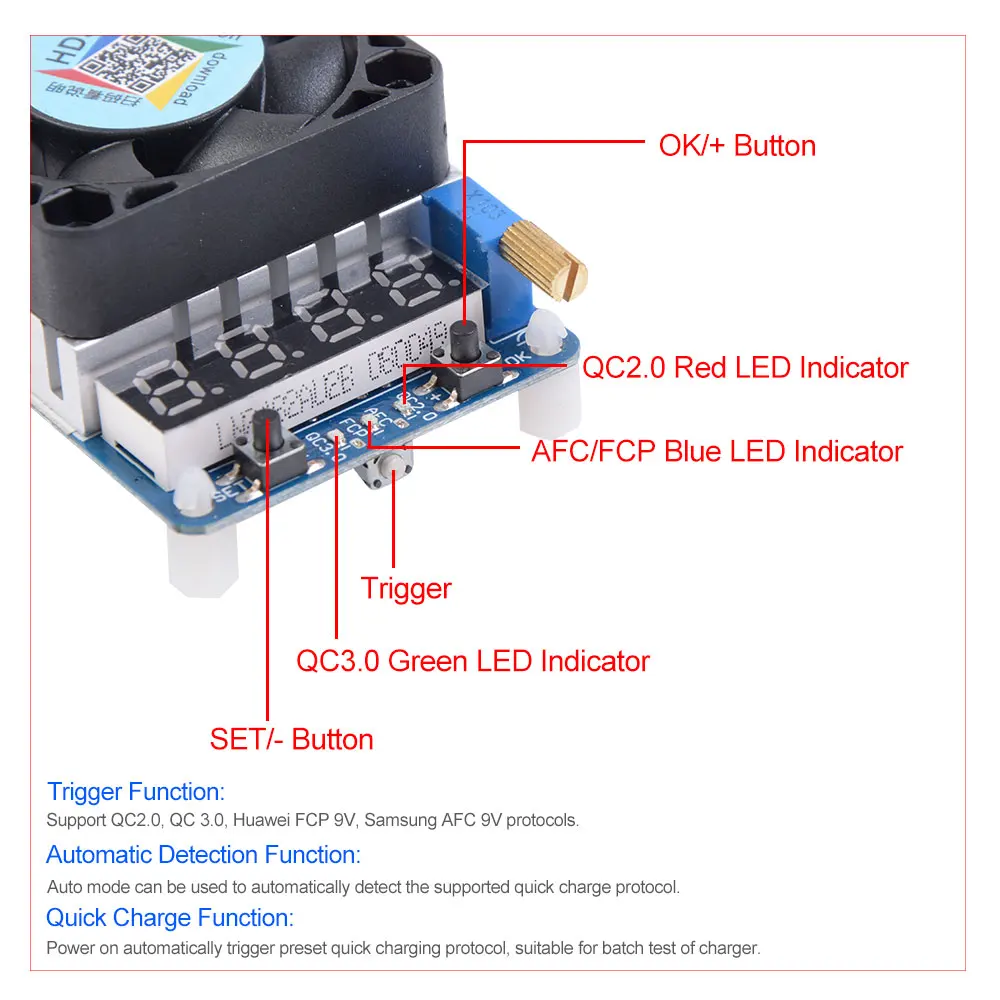

●Quick charge trigger mode: QC2.0 5V、9V、12V、20V, QC3.0, FCP, AFC9V

●Heat dispatch method: Intelligent temperature control fan + all aluminum heat sink

●Working temperature: -10℃-40℃

●Display mode: 4 digit LED tube

●Expansion port: Micro USB port & Type-C port

●Net Weight: 51g

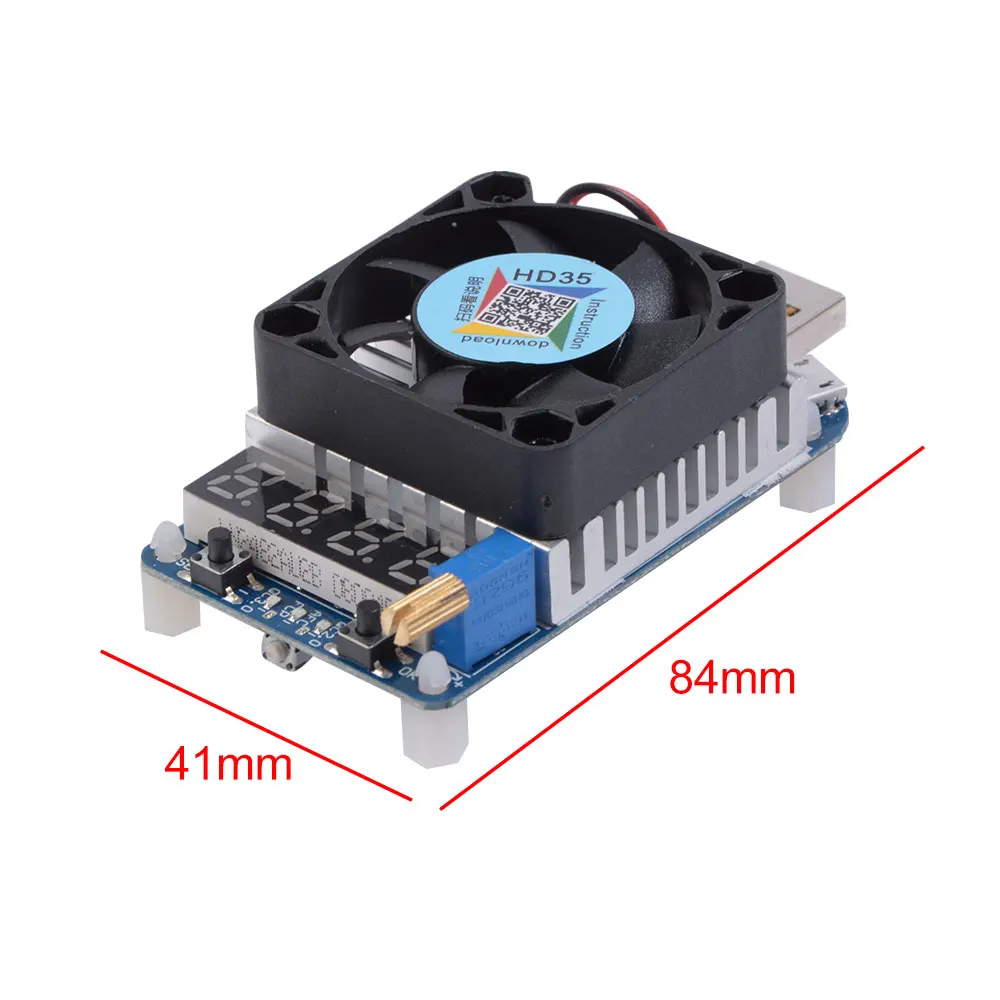

●Product Size: 84*41*28mm

●Gross Weight: 81g

●Packing Size: 91*62*35mm
