Injection molding machine inverter 11kw 380v injection asynchronous servo energy saving retrofit power saver Обустройство дома - купить
Специальная цена от US $475.00 руб.*
Категория товара: Inverters Converters
История изменения цены
*Внимание! Указанная цена US $475.00 уже могла изменится, перед тем как купить данный товар перейдите на страницу продавца и проверьте актуальную стоимость.
| Месяц | Мин. | Макс. | Цена |
|---|---|---|---|
| 17.02.2026 | 603.67 | 615.15 | 609 руб. |
| 17.01.2026 | 489.74 | 499.3 | 494 руб. |
| 17.12.2025 | 594.46 | 606.45 | 600 руб. |
| 17.11.2025 | 589.55 | 601.58 | 595 руб. |
| 17.10.2025 | 470.88 | 479.48 | 474.5 руб. |
| 17.09.2025 | 580.71 | 592.12 | 586 руб. |
| 17.08.2025 | 575.97 | 587.88 | 581 руб. |
| 17.07.2025 | 570.90 | 581.75 | 575.5 руб. |
Купить Injection molding machine inverter 11kw 380v injection asynchronous servo energy saving retrofit power saver | Обустройство дома

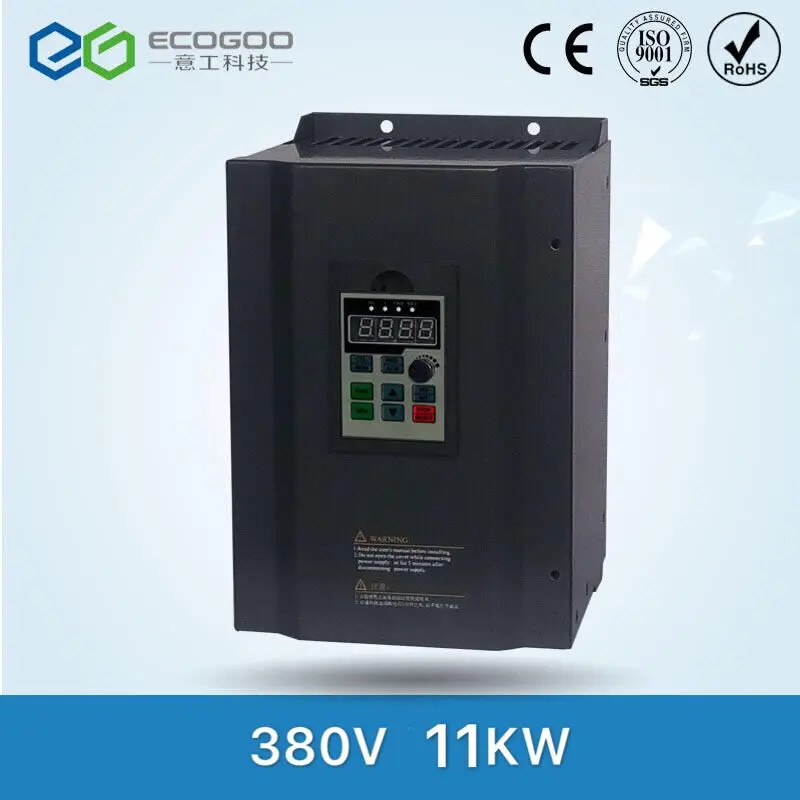

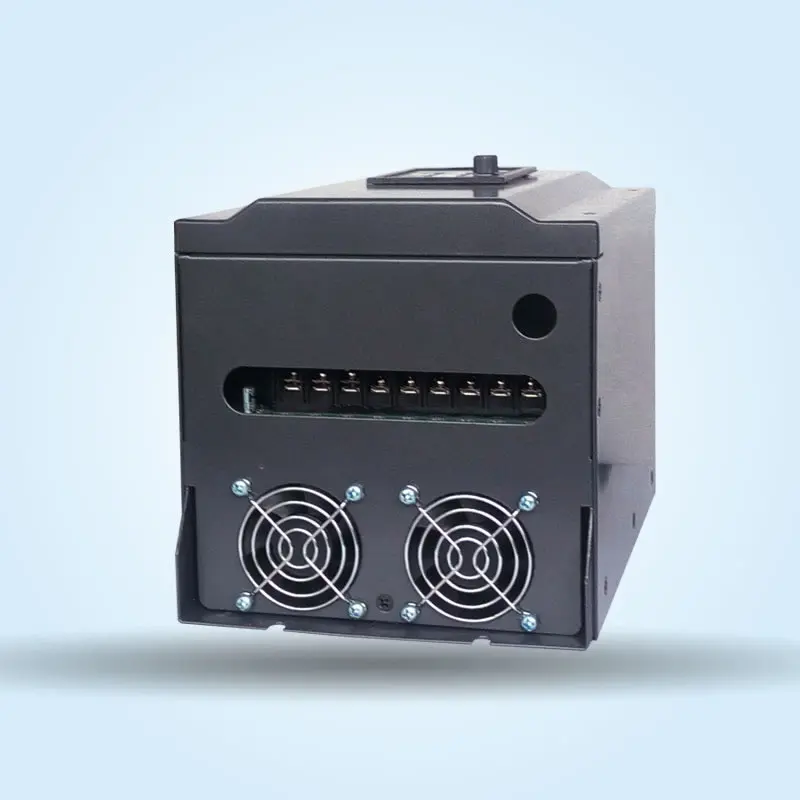

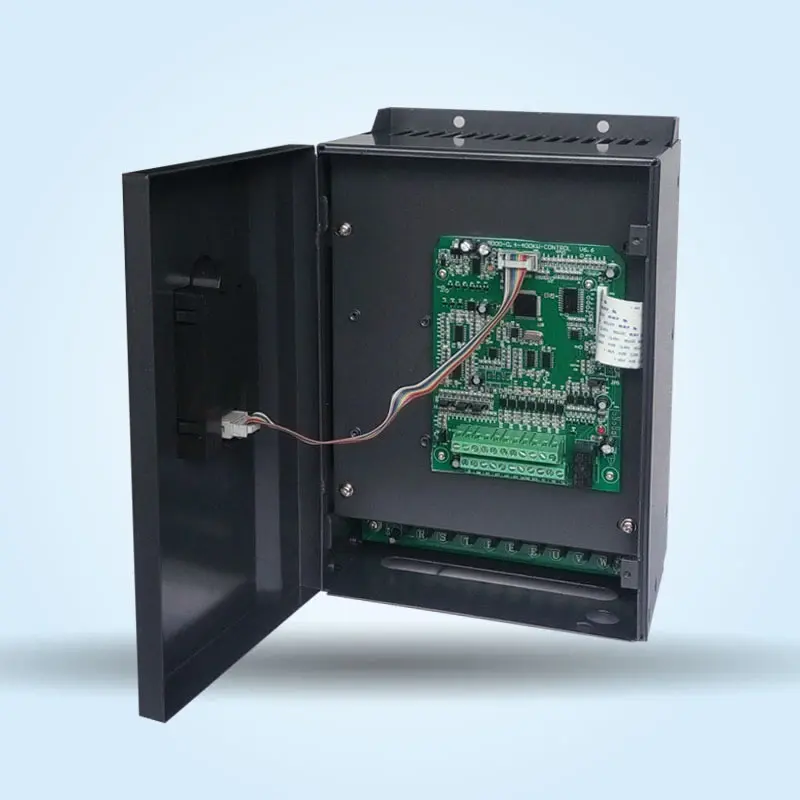

Injection molding machine inverter 11kw 380v injection molding machine asynchronous servo energy saving retrofit power saver
1.Output Power:11kw
2.Rated current:25A
2.Rated Frequency :50hz/60hz
3.Output Frequency Range:0~650Hz
4.Input Voltage Range:3 phase 380V±15%
5.Output Voltage Range:3 phase 380V±15%
6.Control way: Open loop vector control(SVC)
Q: What is the power saving rate after installing the power saver of the injection molding machine? A: According to the working time flow of a mold on the injection molding machine, the longer the cooling time, the better the power saving effect, each machine
The working conditions are different, and the power saving rate is also different, generally between 10% and 60%.
Q: How to choose the injection molding machine inverter?
Answer: The injection molding machine motor is 4 poles (speed 1440 rpm) and the injection molding machine is a proportional valve. Choose our special inverter for injection molding machine.
Gradation. If the motor is 6 pole (speed 970 rpm) or on/off valve, it is recommended that you select a large inverter for the injection molding machine.
The switching valve is distinguished from the proportional valve: the injection molding machine has a computer, there is a proportional valve, and there is no switching valve.
Q: Does the injection molding machine need to add braking resistors for power saving retrofit?
A: No, it has nothing to do with the power saving effect.
Q: Can the injection molding machine oil pressure be modified in a closed loop?
A: Yes, you need to buy a pressure sensor, wire and set the parameters according to the wiring diagram. Closed loop control can be achieved.
Q: What should I do if there is interference after the power saver of the injection molding machine is installed?
A: Under normal circumstances, the injection molding machine saver does not interfere, if you encounter, at the input and output of the power saver
Adding a magnetic ring (around three turns) or purchasing a filter can solve it.
