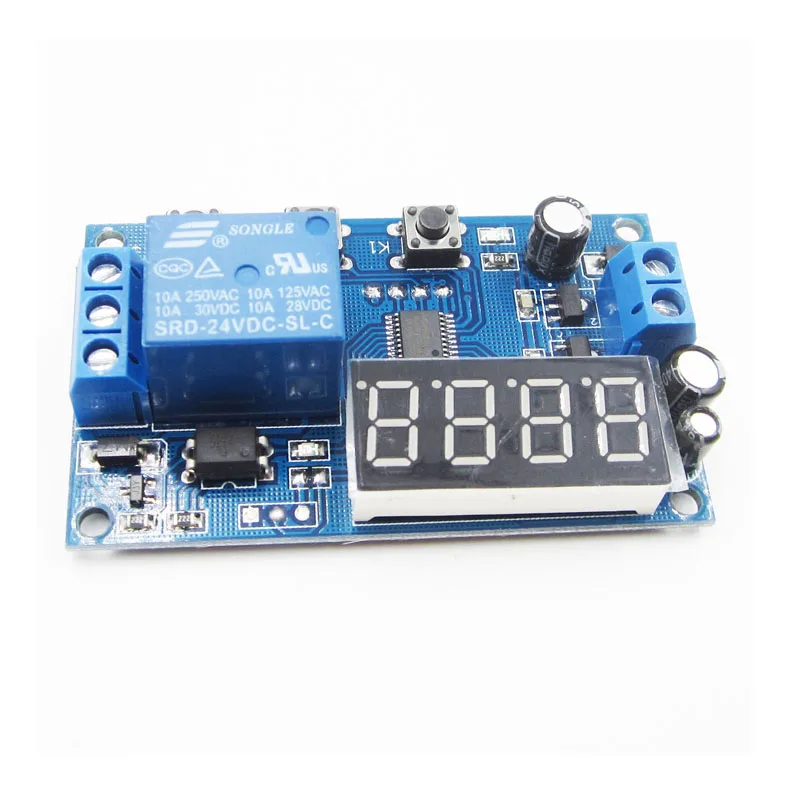

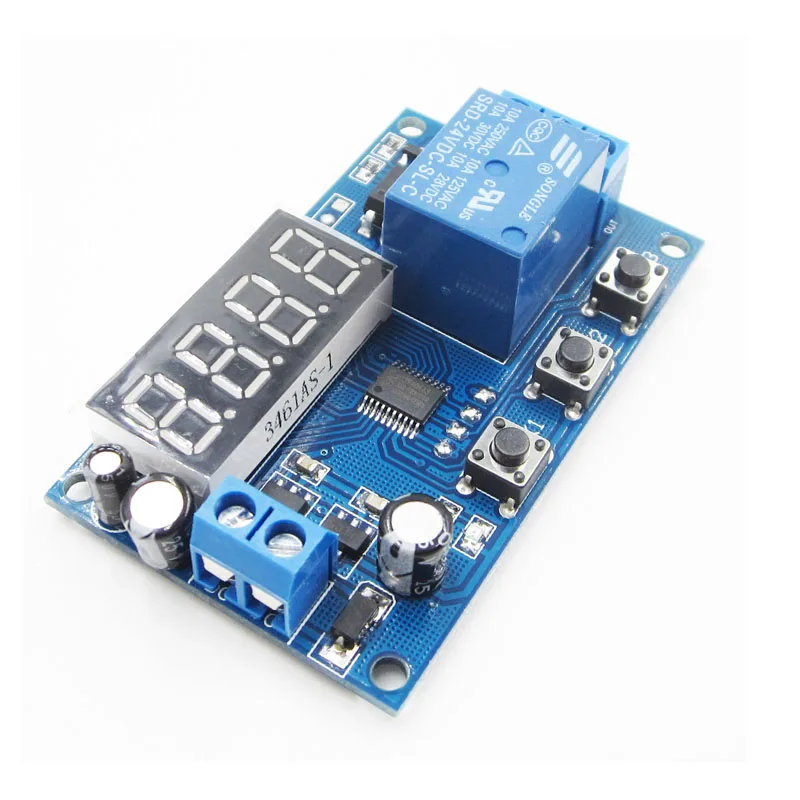

DC 24V Adjustable NE555 Delay Timer Time Relay Switch Module LED Display Relays - купить

This is a delay timer module with high performance, which is convenient and practical for users.

Features:
New upgrades to simplify, meeting the users' needs.
Increase the power supply anti-reverse function.
LED digits display, intelligent control, time relay/delay function.
The use of opto isolated input and output, enhanced anti-jamming capability and consumption.
The last setting parameters can be memorized after power off.
Power saving function, one-key switch, can turn off the display.

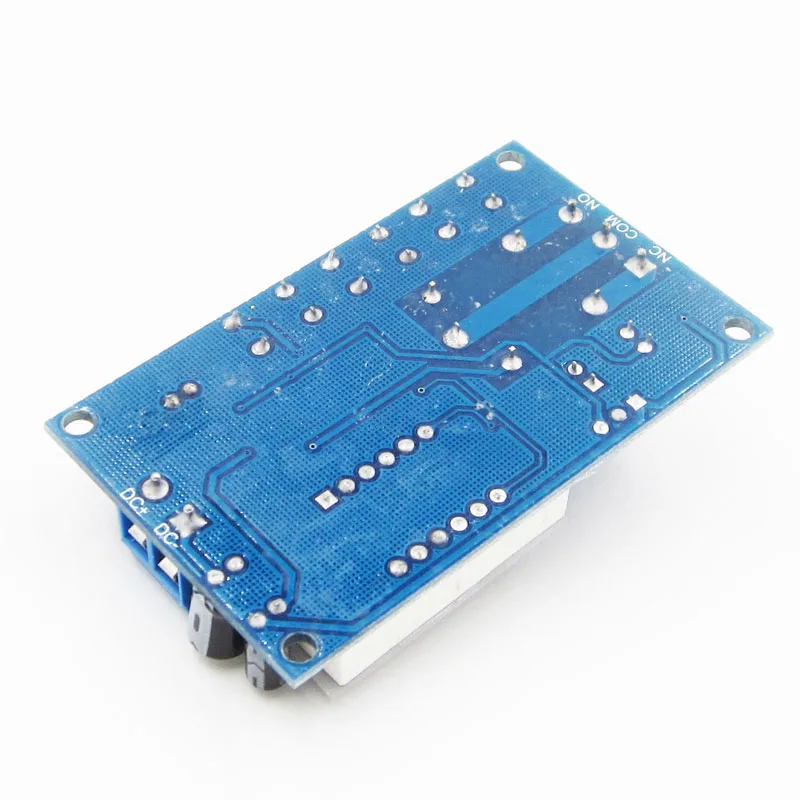

To ensure stability, industrial grade PCB board.

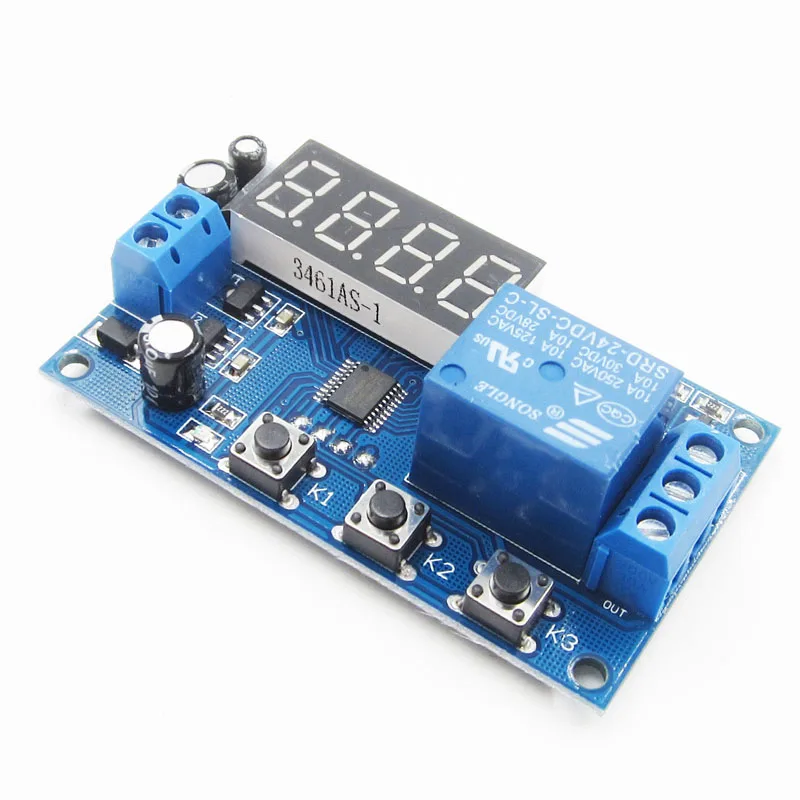

Working modes selection: after power on, long press K1 for 2s, later into the selection of modes: P1~3.
P-1: Monostable trigger delay, a signal to trigger relay, time is up, the relay disconnect;
P-2: A signal trigger and countdown begins, T1 seconds after, the relay open T2 seconds, then close;
P-3: Open T1 seconds, disconnect T2 seconds, infinite loop. Users can set the relay time T1 and T2;

Specifications:
Display: LED Digital Display
Voltage: DC 24V
Timing Range(Settable): 0~999.9 seconds; 0~9999 seconds; 0~9999 minutes
Relay Specification: DC 5~30V 10A or AC 220V 10A
Static Current: 20mA
Working Current: 50mA
Working Temperature: -40-85°C
PCB Size: 65 * 38 * 18mm / 2.56 * 1.5 * 0.7in (L * W * H)
PCB Weight: 26g / 0.93oz
Package Size: 11.5 * 7.5 * 2cm / 4.53 * 2.95 * 0.8in (L * W * H)
