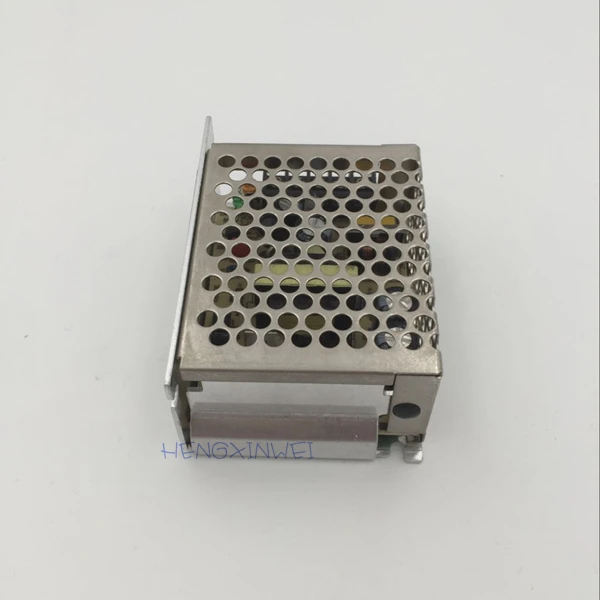

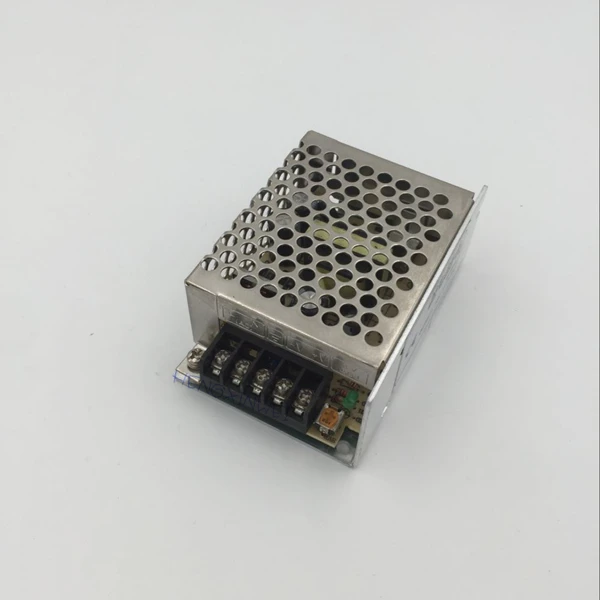

Small Volume Single Output mini size Switching power supply MS-35 35W ac dc converter Обустройство дома - купить

Model

MS-35-5

MS-35-12

MS-35-15

MS-35-24

output

DC voltage

5V

12V

15V

24V

Voltage tolerance

±2%

±1%

±1%

±1%

Rated current

7A

3A

2.4A

1.5A

Current range

0~7A

0~3A

0~2.4A

0~1.5A

Rated power

25W

36W

36W

36W

Ripple&noise

80mvp-p

120mvp-p

120mvp-p

120mvp-p

DCvoltage ADJ.range

-9%~+10%

±10%

±10%

±10%

input

Voltage range

100~240VAC,150~373VDC

frequency

47~63HZ

AC current

0.45A/230VAC

efficiency

76%

78%

78%

80%

Inrush current

Cold start current  30A/230VAC

Leakage current

< 1mA/240VAC

protection

overload

Rated output power115%~135%  start over load protection

protection type:hiccup mode,auto-recovery after fault condition is removed

over voltage

Rated output power145%~170%

protection type:hiccup mode,auto-recovery after fault condition is removed

over temp

When temperature of transistor inner node is over 150°C,Start over temp protection

protection type:hiccup mode,auto-recovery after temperature become normal

environment

Working temp,humidity

-10°C~+60°C,20%~90%RH

Storagetemp,humidity

-20°C~+85°C,10%~95%RH non-condensing

Withstand vibration

10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes

safety

Withstand voltage

I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

Isolated resistance

I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC

Fitstandard

Safety standard

Fit UL1012

EMC standard

Comply with EN55022,CLASSA

others

Dimension

84*58*38mm (L*W*H)
