120 degree Mini Outdoor Adjustable Auto PIR Infrared Motion Sensor Detector For LED Light Strip Switch lighting  DC 5-24V 5A

Specifications:

Color: White, Black (Optional)

Operating voltage: 5V-24VDC (wide voltage)

Working temperature: -20 °C ~ +38 °C

Quiescent current: < 50uA

Output current: 5A

Trigger mode: Continuous trigger

Output Mode: Inductive Output

Delay range: Default setting 15S (2-360 seconds adjustable)

Induction mode: passive

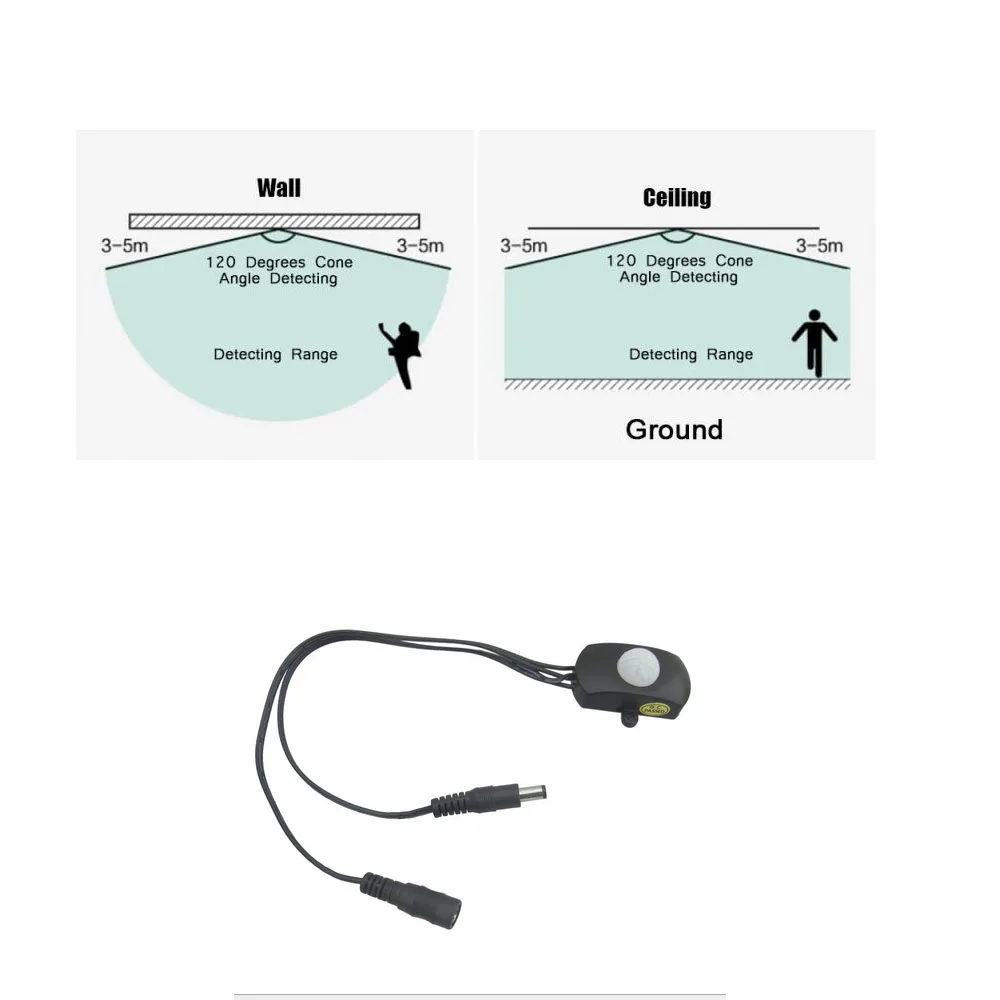

Sensing angle: 120 degree cone angle

Sensing distance: 5-7m

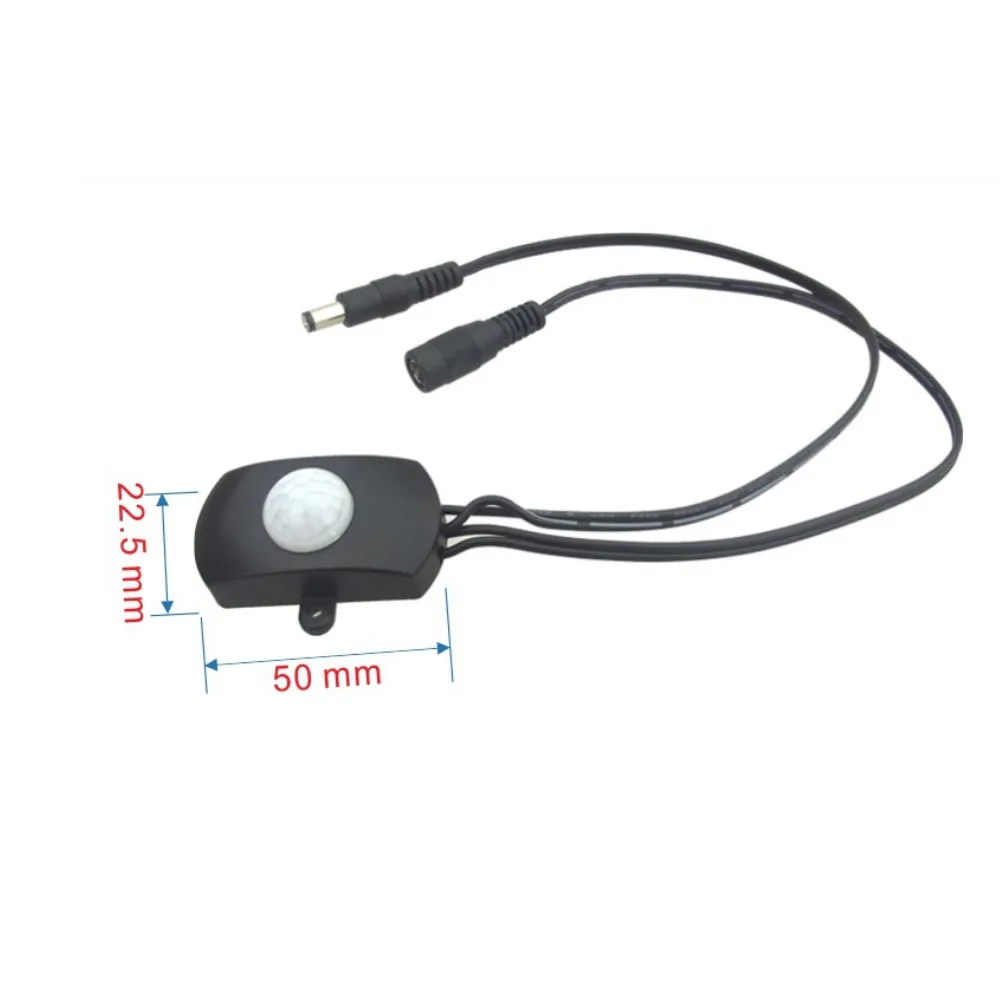

Size: 50*40*22.5mm/1.97*1.57*0.87inch

 Description:

This switch with PIR Infrared Motion sensor detector, can be used in corridors, bathrooms, basements, warehouses, garages and other places to achieve electrical automatic control functions. High and stable sensitivity, effectively save energy and money for you.

Features:
    PIR motion sensor can detect human movement by detecting infrared ray emitted by human body.
    120 degrees cone angle detecting range and detecting distance is up to 5-7m. High and stable sensitivity, effectively save energy and improve efficiency.

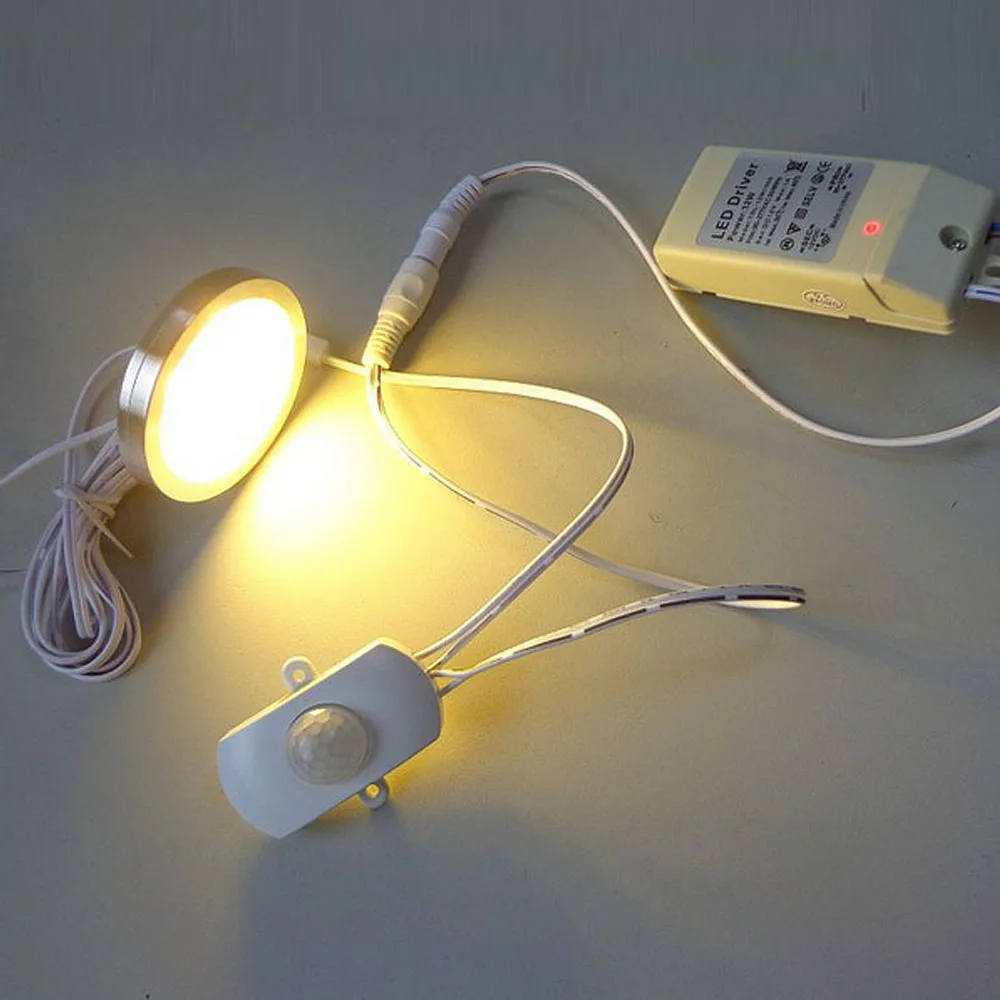

    Widely used on the motion-activated lighting, LED strips security system, automatic sensory device and more.
    2-360 seconds adjustable delay range for you to choose a suitable time, more humance.
    Output voltage is equal to input voltage, low power consumption.
    Mini and compact so as to put it without destroying home decoration.

Package List:

1 * PIR Motion Sensor Switch

1 * Screw
