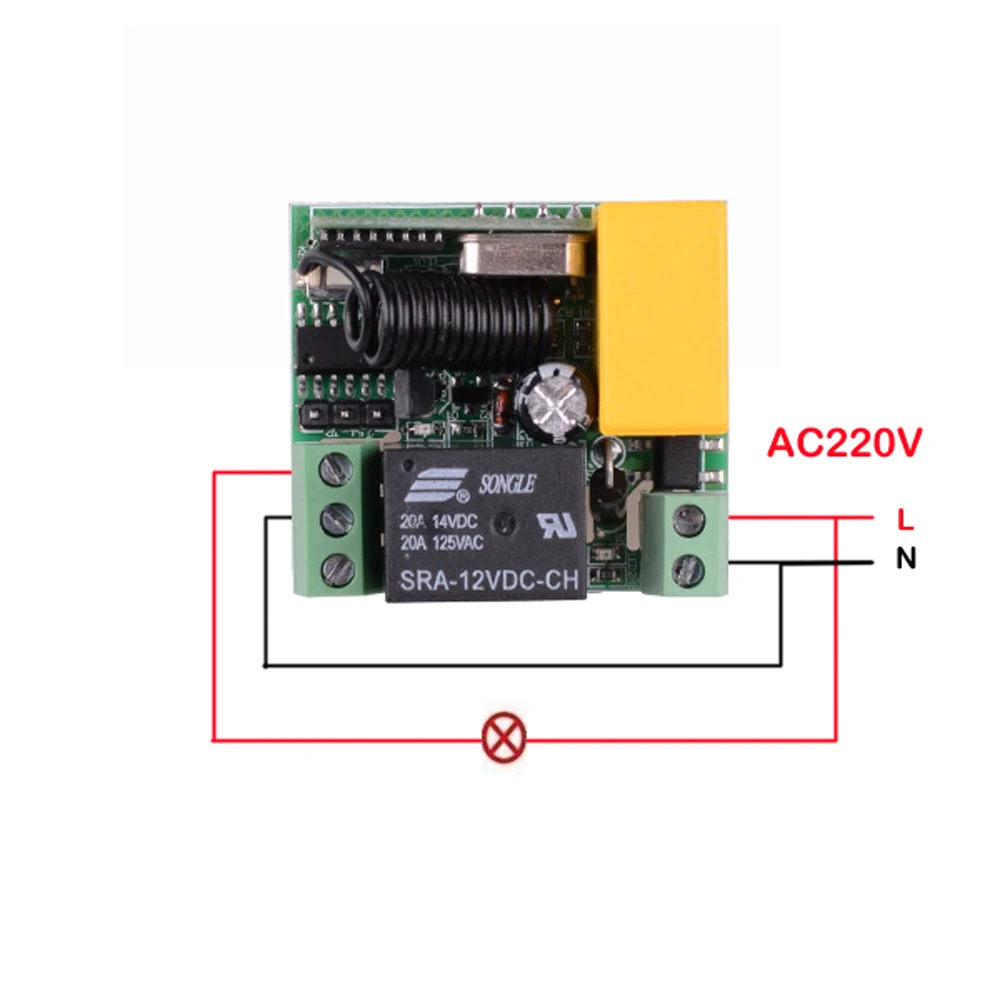

1. Working Voltage: AC220V

2.Max Current: 10A (have better lower than 7A )

3.Channel: 1CH

4.Working Frequency : 315MHZ/433MHZ

5.Receiver sensitivity: : -105Db

6.Working temperature : -10\'C - +60\'C

7.Output way : Momentary. Toggle .Latched Adjustable

8.Code type: Learning code Add Controller by the Learning Button on the receiver

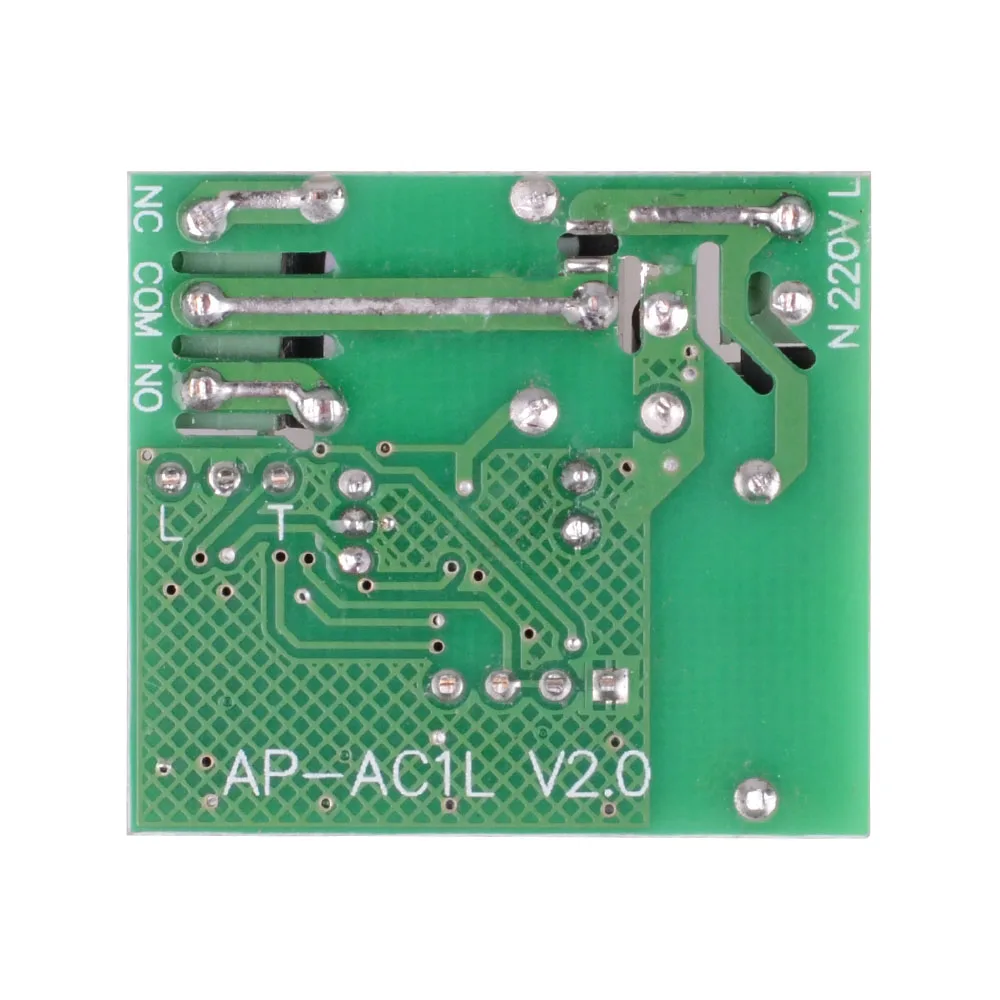

A: Momentary-----------No connection is Momentary.

B: Toggle------------Connect "T& Mid Dot "is Toggle.

C: Latched------------- Connect "L& Mid Dot" is Latched.

Momentary------------Press the Transmitter button , the receiver relay is ON, release button; the receiver relay is OFF,

Toggle---------------Press transmitter button for 1 time , the receiver relay is ON, press button again, the receiver relay is OFF,

Latched------------Press transmitter button A, the receiver relay is ON, Press the transmitter button B, the relay is OFF.

Learning Method:

Press the learning button for one time, the indicator light turns on to off.  Press any key on the remote controller, the indicator flashes two times and off. It means you learn it successfully.

Remove code:

Keep pressing the learning button for about 8 seconds, the indicator light turns on to off, then the code you learned before will be deleted.

Transmitter:

Buttons: 4Buttons

Working Voltage:12V

Operating frequency :315/433MHz

Remote Control Distance: 20-500m

Encode:  EV1527 OR 2260

package include:
