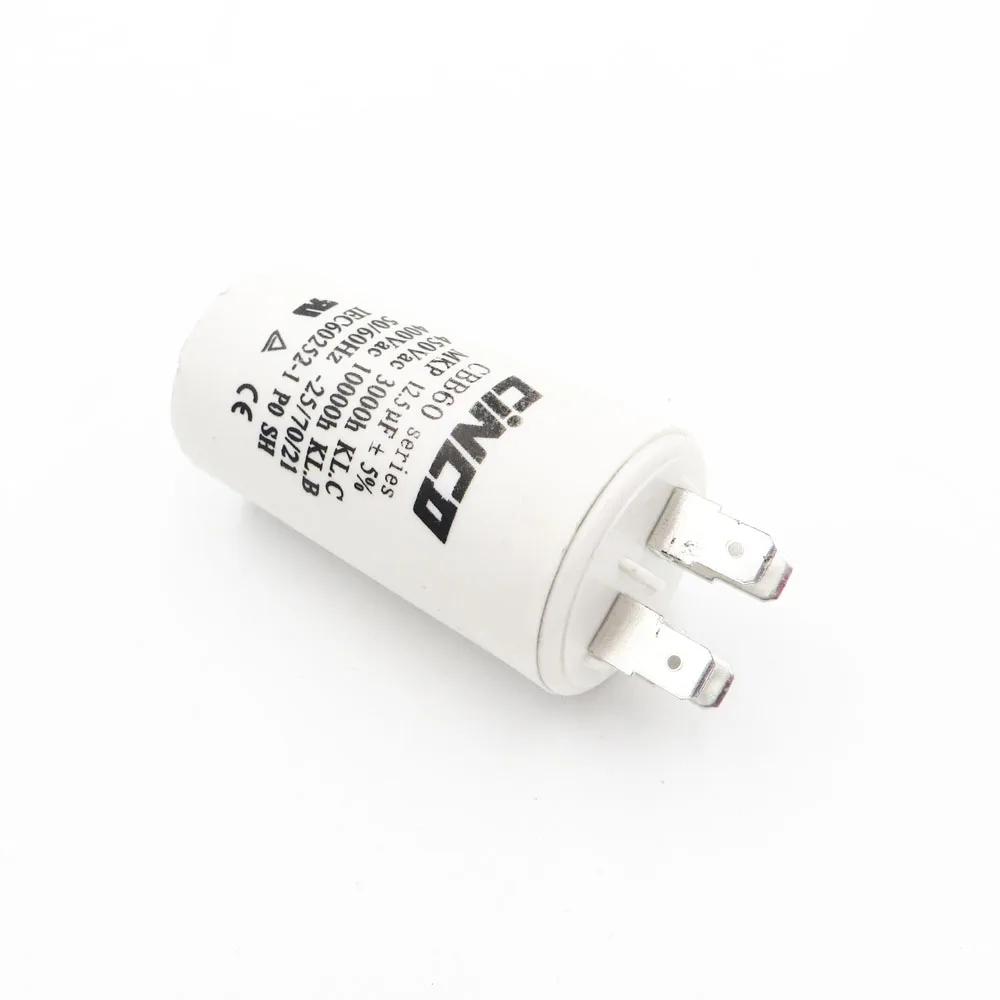

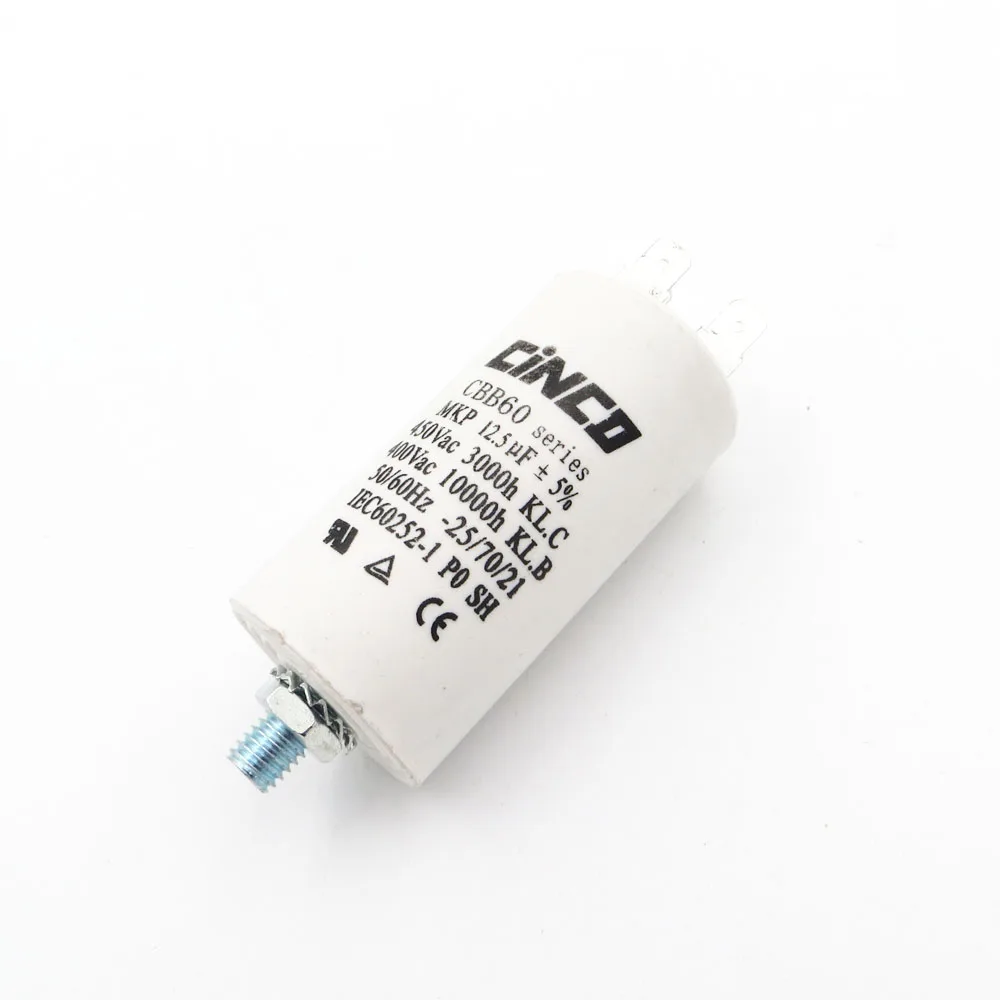

12.5UF 400V 450V CBB60 Motor Run Capacitor wire SH DB Polypropylene Film Ac 450VAC Water Pump electrical engine 12.5mfd 12.5mf - купить

Купить 12.5UF 400V 450V CBB60 Motor Run Capacitor wire SH DB Polypropylene Film Ac 450VAC Water Pump electrical engine 12.5mfd 12.5mf |





  Feature:

CBB60 Capacitors takes heavy-edge metallized Al/Zn PP film or web-like fuse film as dielectric. Its components are sealed with flame-retardant epoxy resin. It has cylindric outline with high reliability and stability.CBB60 capacitor has features of small size, light weight, small tangent in waste angle, and good self-concrescence. Applicable to startand operation with 50/60Hz. A. C single motor, specially suit for micro pump, baric pump, micro motor and so on.

1) Very small dissipation factor,small inheterent temperature rise.
2) High insulation resistance.
3) Good capacitance stability.
4) Excellent self-healigh property.
5) Safety and hight reliability due to flame reatardant plastic or metal case enclosure,flame retardant opoxy resin endfill.
6) It is applicable for the starting and running of AC single-way motor with 50~60Hz frequency.
7) Special requirment can be made at the request of customers.



Capacitance Range	1μF—150μF
Capacitance Tolerance	±5% , ±10%
Rated Alternate Voltage	250VAC, 350AC, 370AC, 400VAC, 440VAC, 450VAC,500VAC
Rated Frequency	50/60 Hz
Dissipation Factors	≤0.002(1KHz,20℃)
Operating Temp.	-40℃ ~ +85℃ or -40℃ ~ +70℃
Case Material	PBT, PP, Aluminium, Flammability Class – UL 94 V -2, 750C (RTI)
Dielectric	Polypropylene with self healing SH
Insulation Resistance	≥3000S
Weather Category	40/85/21, 25/70/21
Withstand voltage(Terminal to Terminal)	2 X Rated Voltage
Withstand voltage(Terminal to Case)	Minimum 2000 V AC for 1 Min.
Ref. Standard	IEC60252-1:2001,GB/T3667.1-2005,UL810
Quality System	ISO 9001：2008
Approvals	CQC,CE,VDE,UL,RoHS
Application	Electrical motor, pump, washing machine, Power saver







 Packing:

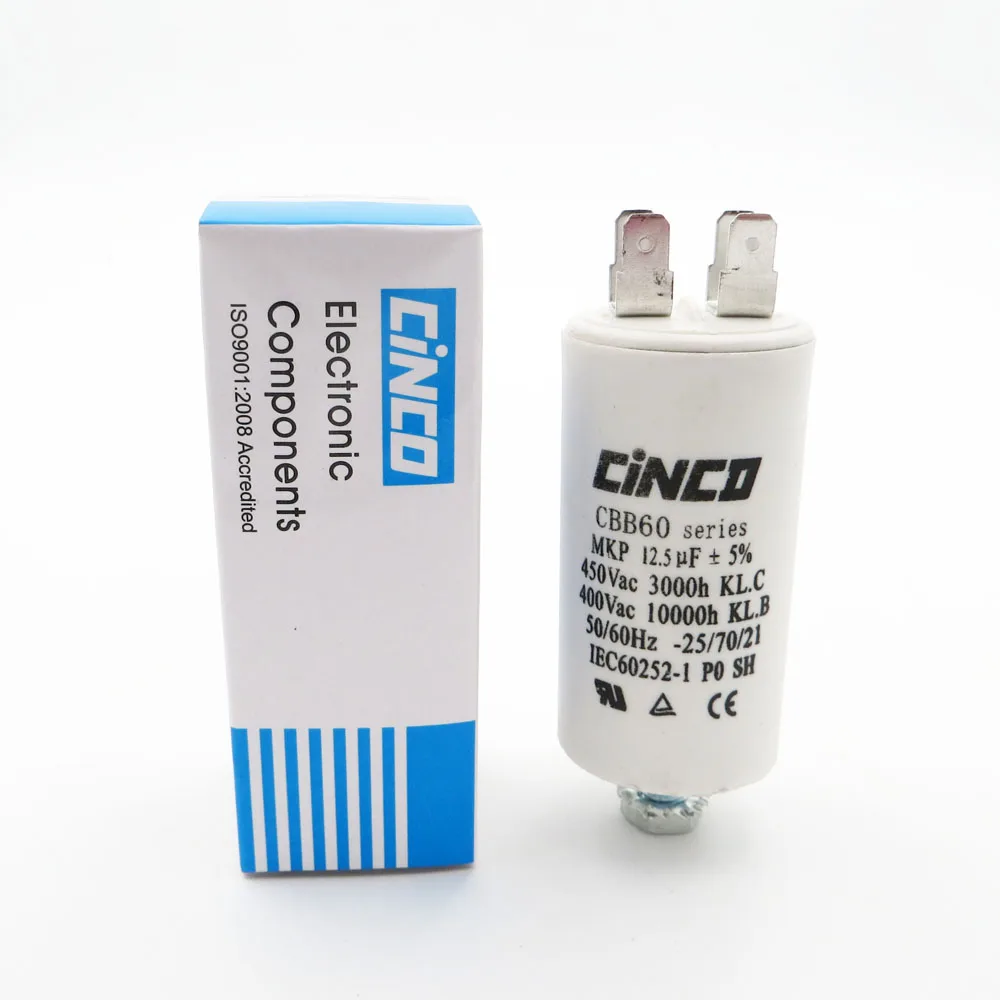

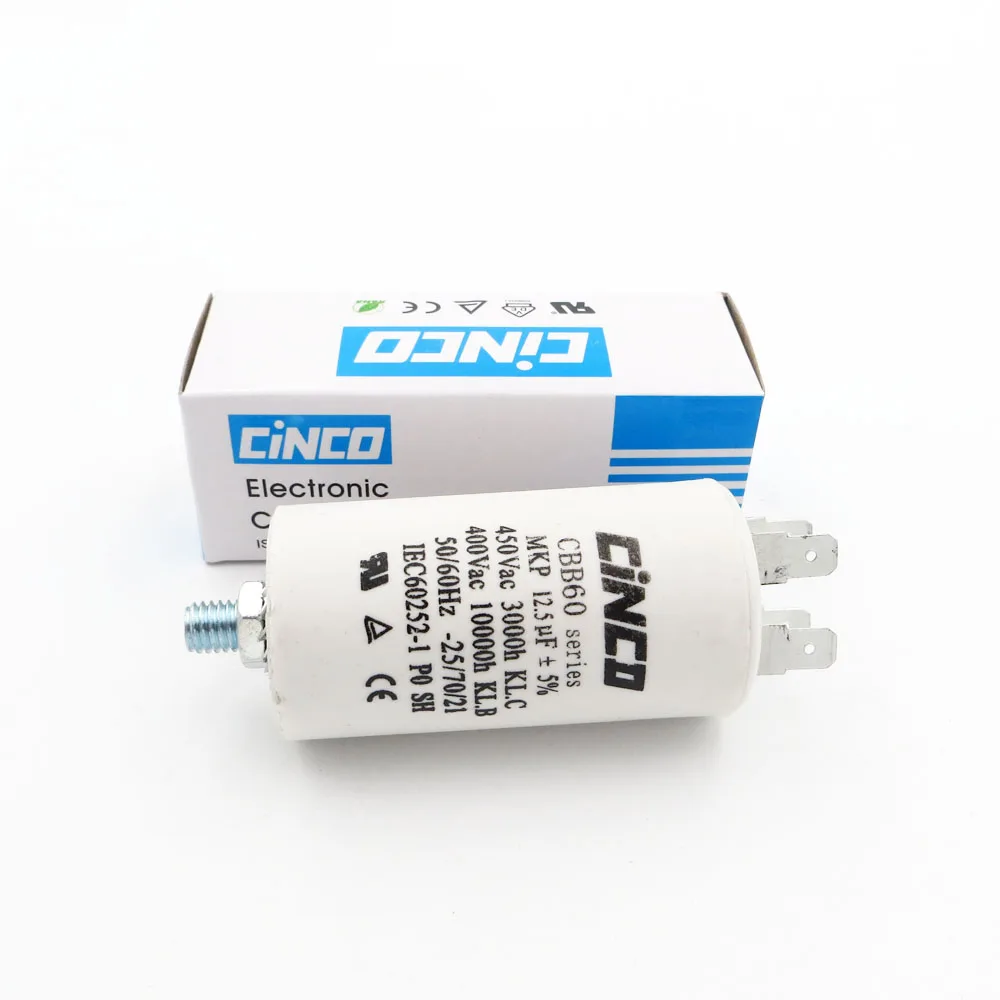

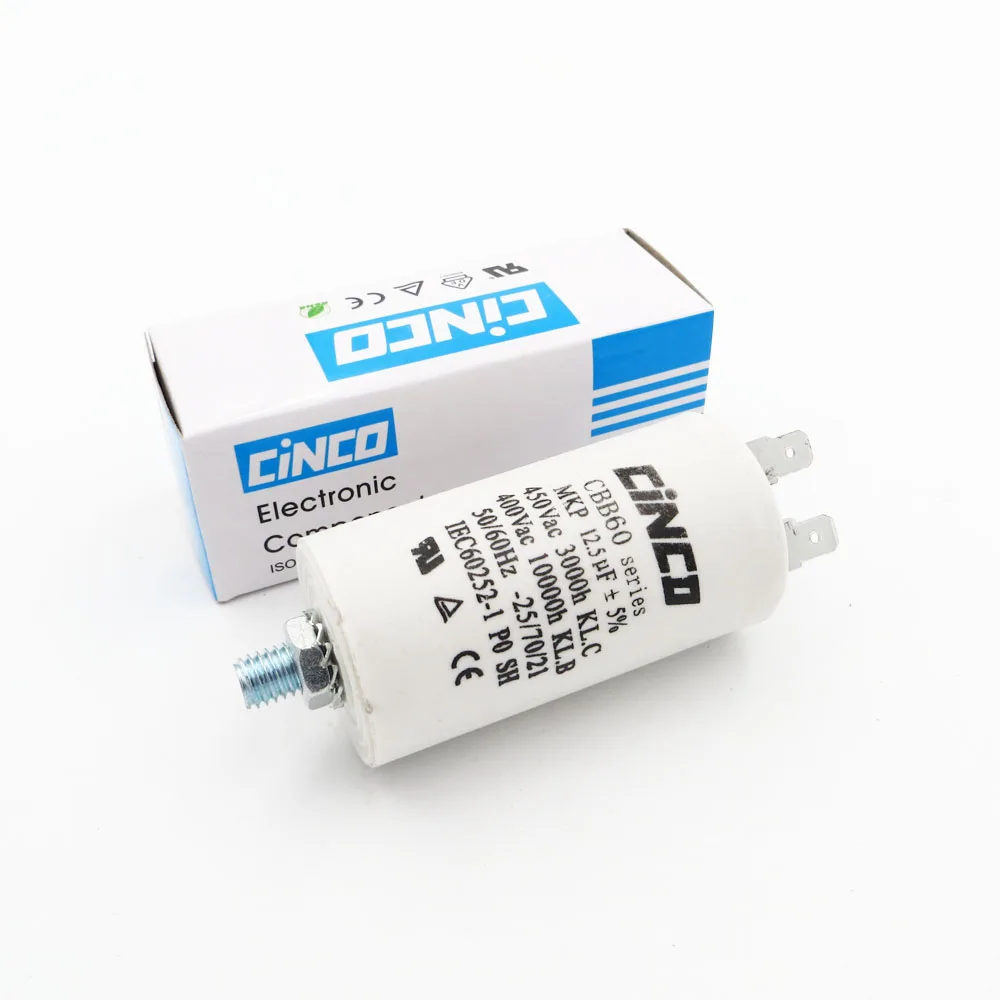

1pc x 12UF 450V CBB60 Capacitor with color box

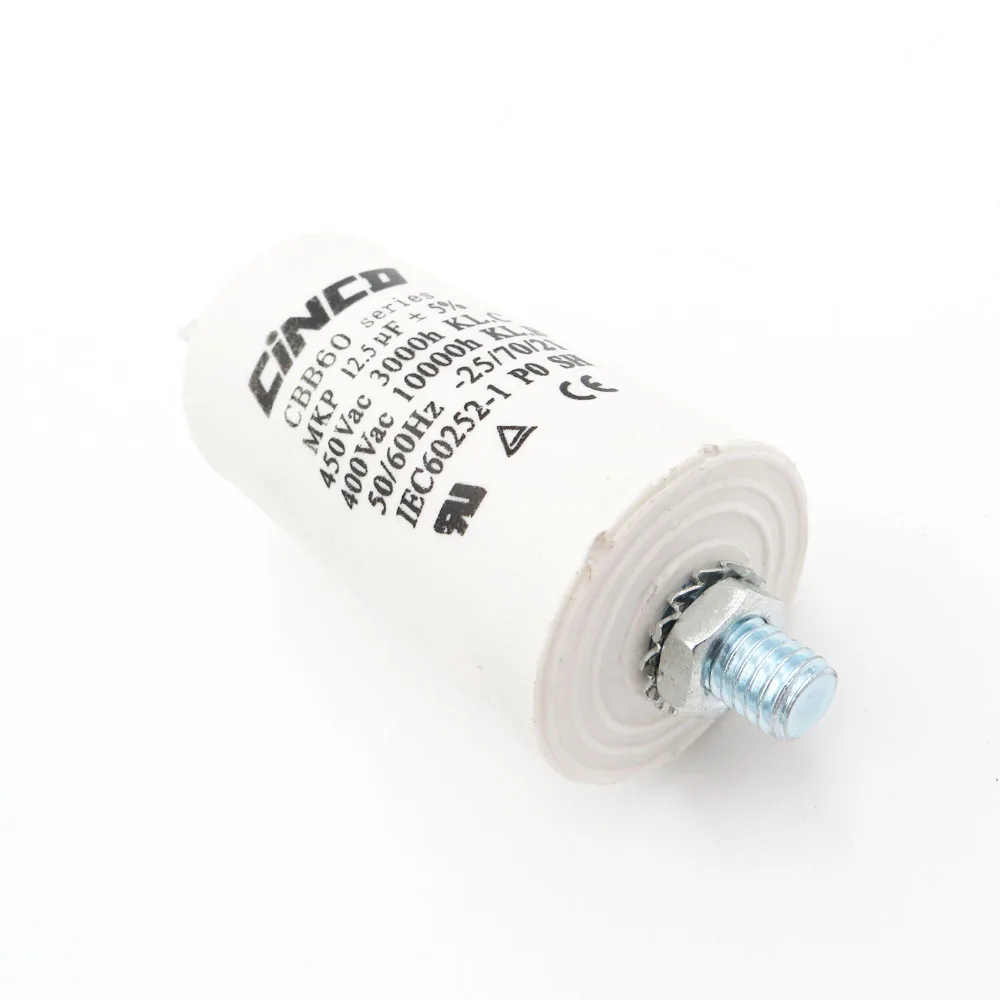

1pc x M8 Screw

1pc x Washer
