All in one stepper motor means the motor inclouds Motor and driver，

do not need extra drive any more.

This item includes:

You can choose the quantity you want，Divided into 1, 3, 5

Please check the specification carefully!

Please confirm the shipping cost and method before payment!

Any question, feel free to contact me!

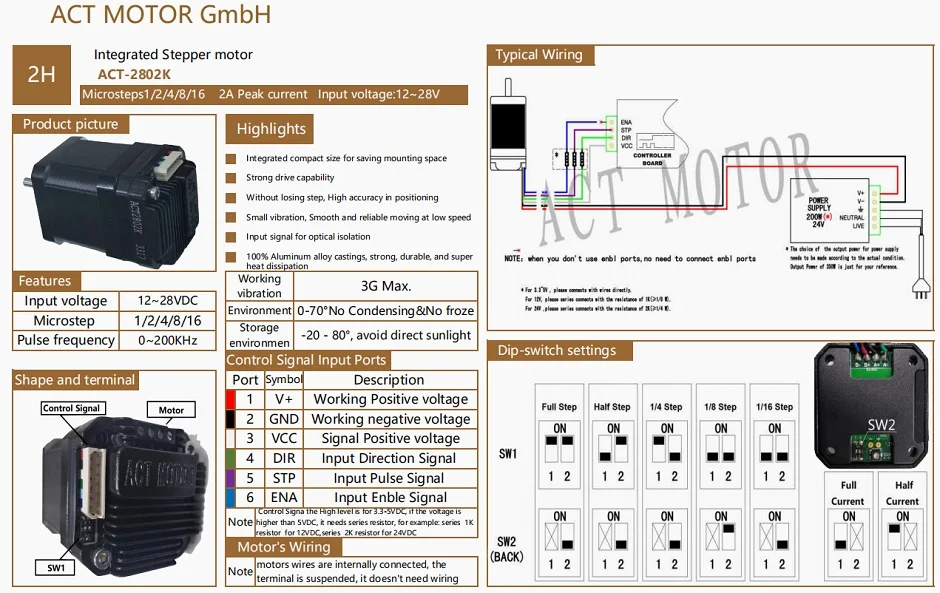

About the all in one motor:

Electrical Specification:

- Model No: 17HS5417-K

- Motor Type: Nema 42 Hybrid all in one Stepper Motor

- Step Angel: 1.8°

- Rate Voltage: 3.1(V)

- Rate Current: 1.7(A)

- Phase Resistance: 1.8±10%(ohms)

- Phase Inductance: 3.2±20%(mH)

- Holding Torque: 52(N.cm.Min)

- Detent Torque: 2.6(N.cm Max)

- Lead Wire(No.) : 4

- Rotor Inertia: 35(g.cm2)

- Motor Weight: 0.45(kg)

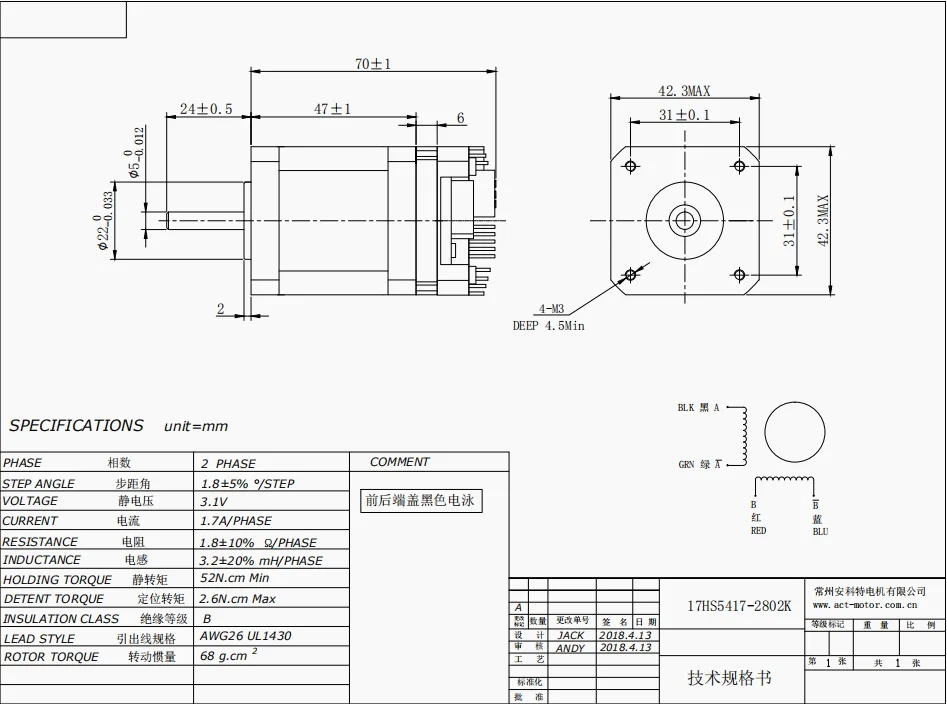

Mechanical Dimensions:

- Frame Size: 42mmX42 mm

- Body Length: 70 mm

- Shaft Diameter: 5 mm

- Shaft Length: 24 mm

- Lead: 4wires

Connection:

- Black(A+), Green(A-), Red(B+), Blue(B-)

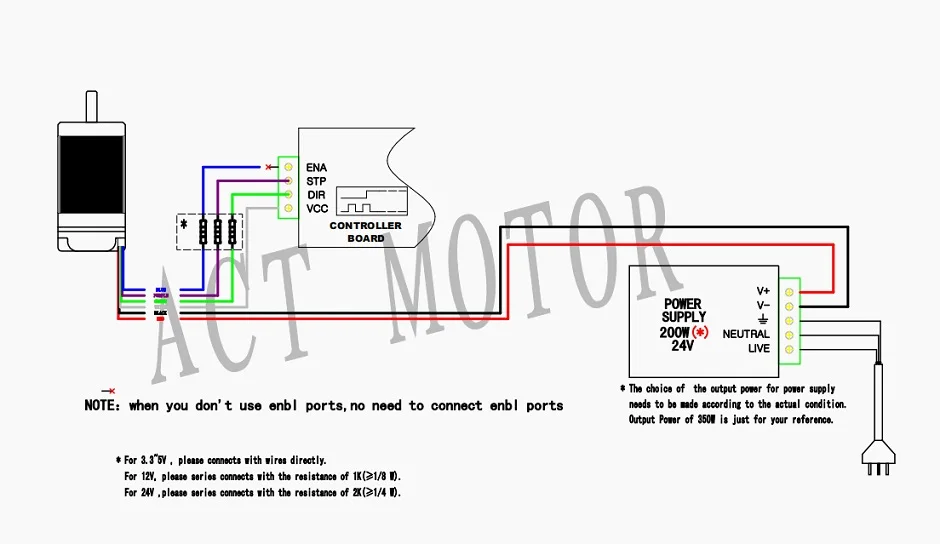

Wiring:

Adaptation power supply:220W-24V

About the ACT MOTOR company:

Changzhou ACT Motor Co., Ltd is a high-tech enterprise that specializes in designing and producing stepper motors, brushless motors, servo motors and drivers.

ACT Motor always adhere to people-oriented, innovative driving force for development, adhering to the "credibility first, quality first " business philosophy, striving for market-leading brands.

ACT Motor has strong technical force, mature production technology, complete testing equipment and has obtained ISO9001: 2008 quality management system certification and CE certification, compliance with the EU RoHS standards.

ACT Motor team has high aspirations, forge ahead, and will continue to search, ready to work with all partners to move forward, the future success and build a cause under the opportunities and challenges

Shipping:

We ship to wordwide expect Iraq.

We ship by DHL,EMS ,Fedex,UPS or China Post Airmail.

There is online tracking number after the item shipped.

Promblem and feedback:

Please give us the opportunity to resolve any problem when you have ,provide pictures or video to e-mail:becky@act-motor.com

We have a strong technical team and after-sales team to help you.
Your satisfaction is very important for us,so please contact us before you want to leave a negative feedback.

Return:

If you are not satisfied with the package,please tell us the reason.

Delivery cost must be paid by the buyer.
