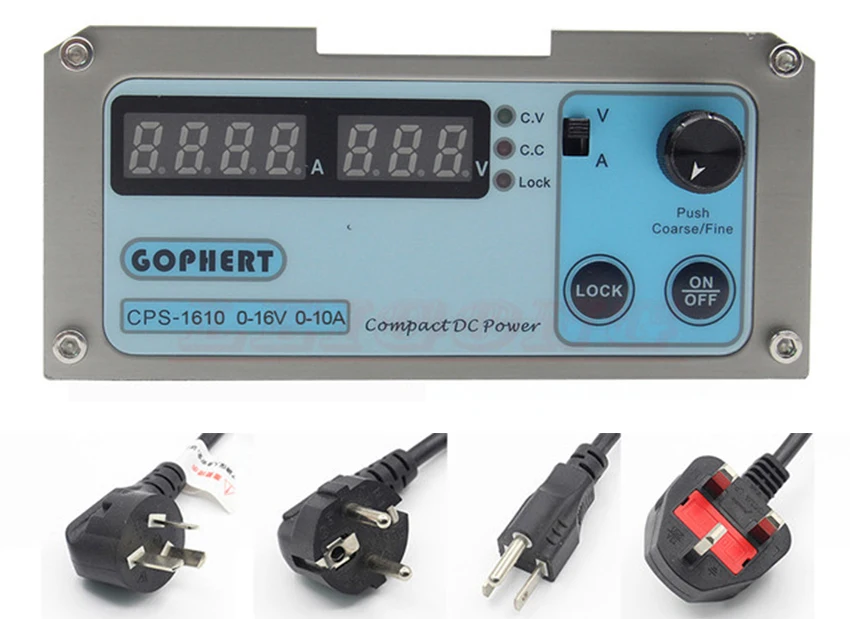

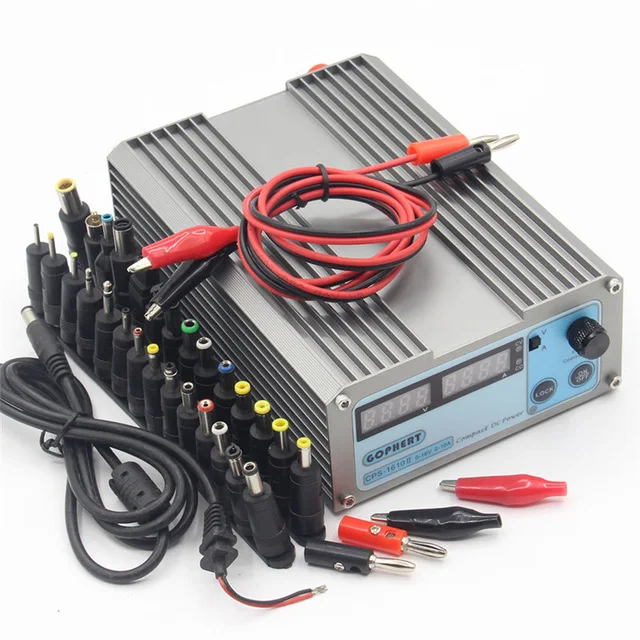

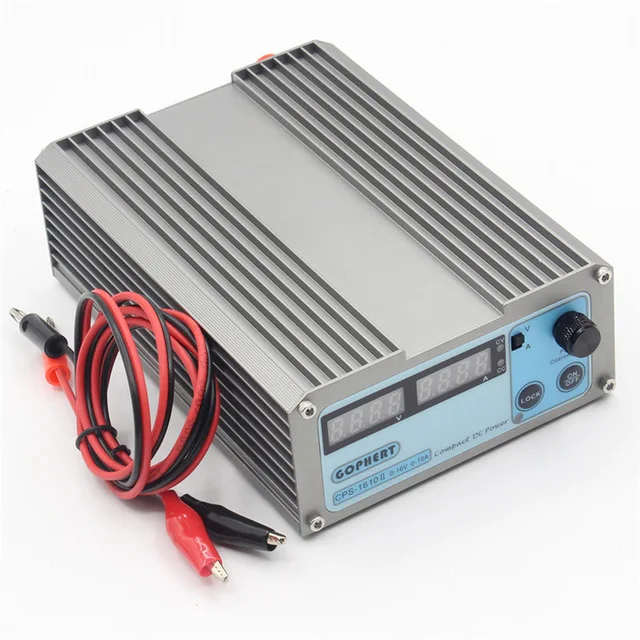

CPS-1610 Digital Adjustable Switching DC Power Supply OVP/OCP/OTP low power 0- 16V 0-10A 20A 110V-220V Обустройство дома - купить

Купить CPS-1610 Digital Adjustable Switching DC Power Supply OVP/OCP/OTP low power 0- 16V 0-10A 20A 110V-220V | Обустройство дома

Specification parameters:
Working voltage range 198 -- 264Vac
Work frequency range 45-65hz
Output voltage range 0-16v
Output current range 0-20a(CPS1620) 0-10A(CPS1610)
Efficiency (220Vac, full load) is greater than 87%
Full load input current (220Vac) is less than or equal to 2.5a
The no-load input current (220Vac) is less than or 120mA
The accuracy of the voltmeter is less than 0.3% + 1 digits
The current meter accuracy is less than 0.3% + 2 digit

Constant pressure condition:
The load regulation rate (0-100) is less than 50mV
Input voltage regulation rate (198-264vac) is less than 10mV
Peak-Peak is less than or equal to 30mV
Ripple noise (R.M.S) is less than 30mV
Set the accuracy to be less than 0.3 percent + 10 mv
Transient response time (50-100 rated Load) is less than or equal to 1.0ms

Constant current state:
Load regulation rate (90%-10% Rated Voltage) is less than 50mA
The input voltage regulation rate (198-264vac) is less than 10mA
Ripple current noise (peak - peak) is less than or equal to 30map-p
The set accuracy is less than 0.3% + 20mA
Dimensions (wide x height x depth) 120 x 55 x 240mm
Net weight 1.2 KG
