Угловой датчик для сварочного угла линейка контроля автоматический сварочный - купить

Купить Угловой датчик для сварочного угла линейка контроля автоматический сварочный

DIY Supplies: Woodworking

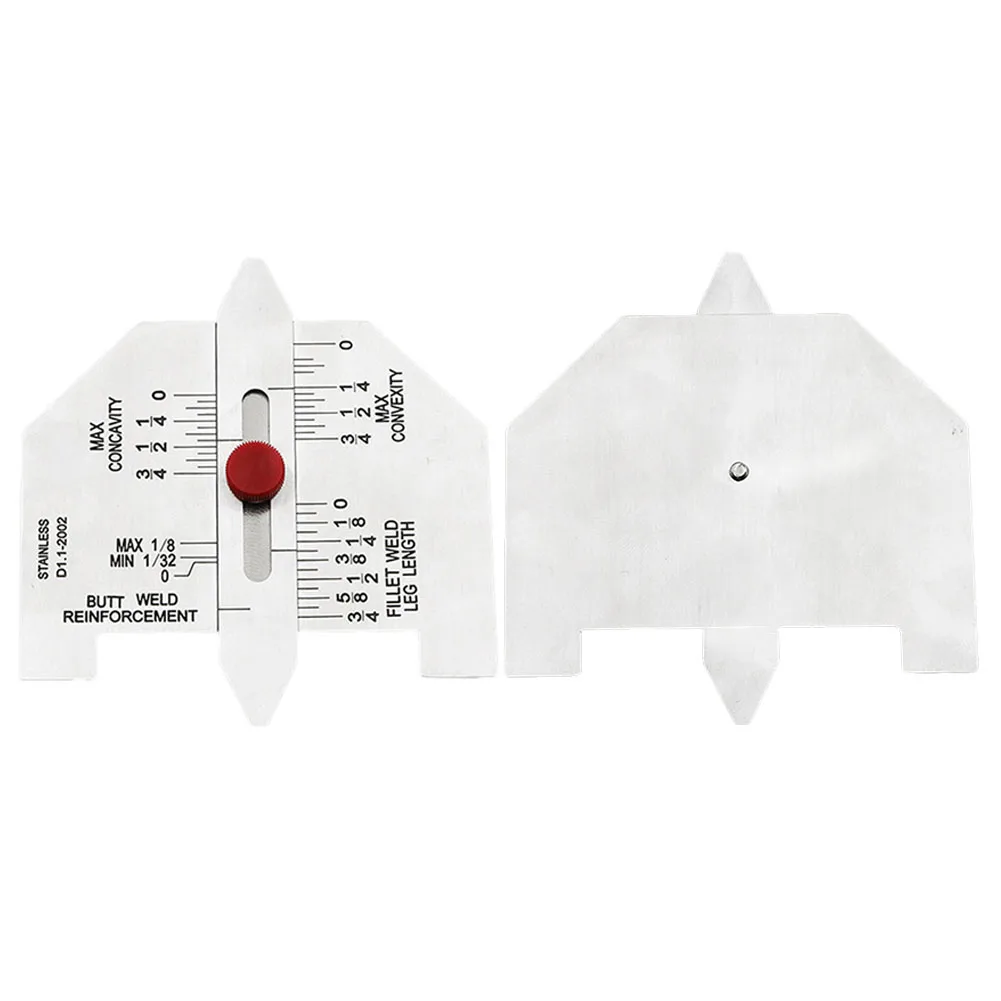

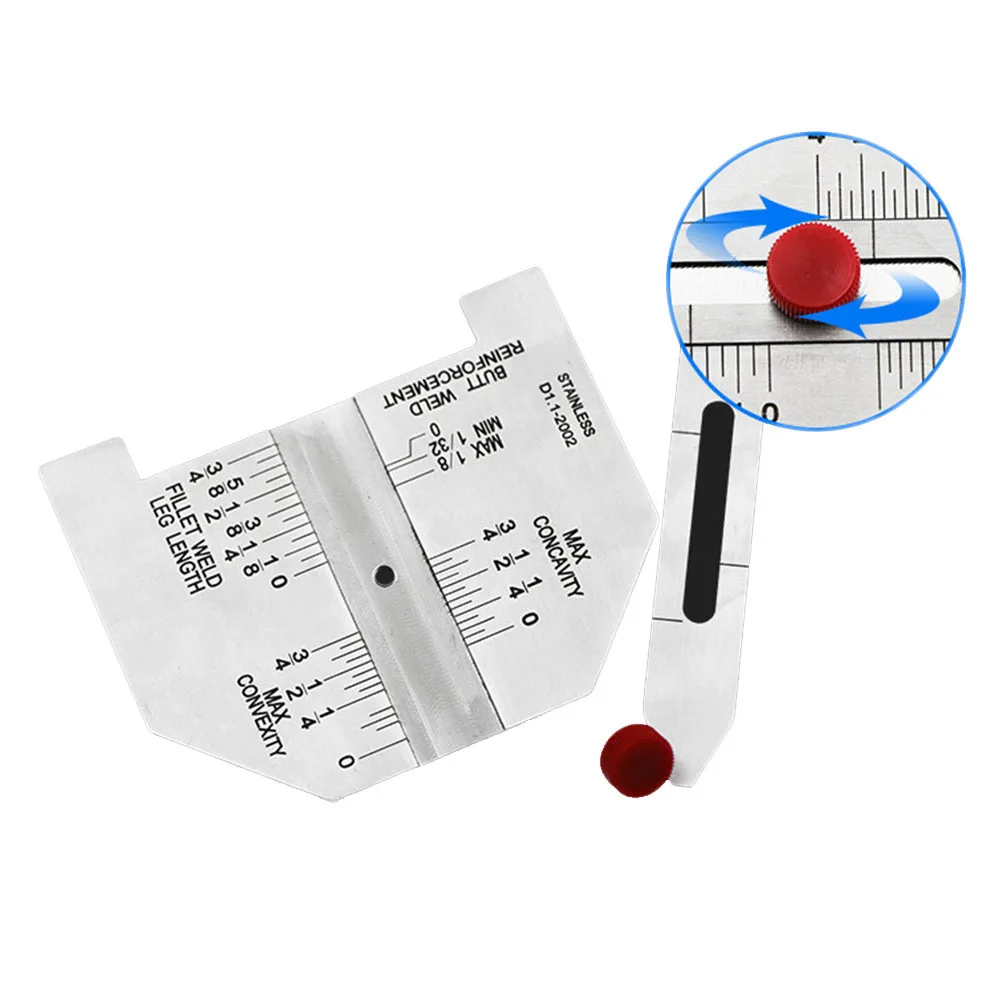

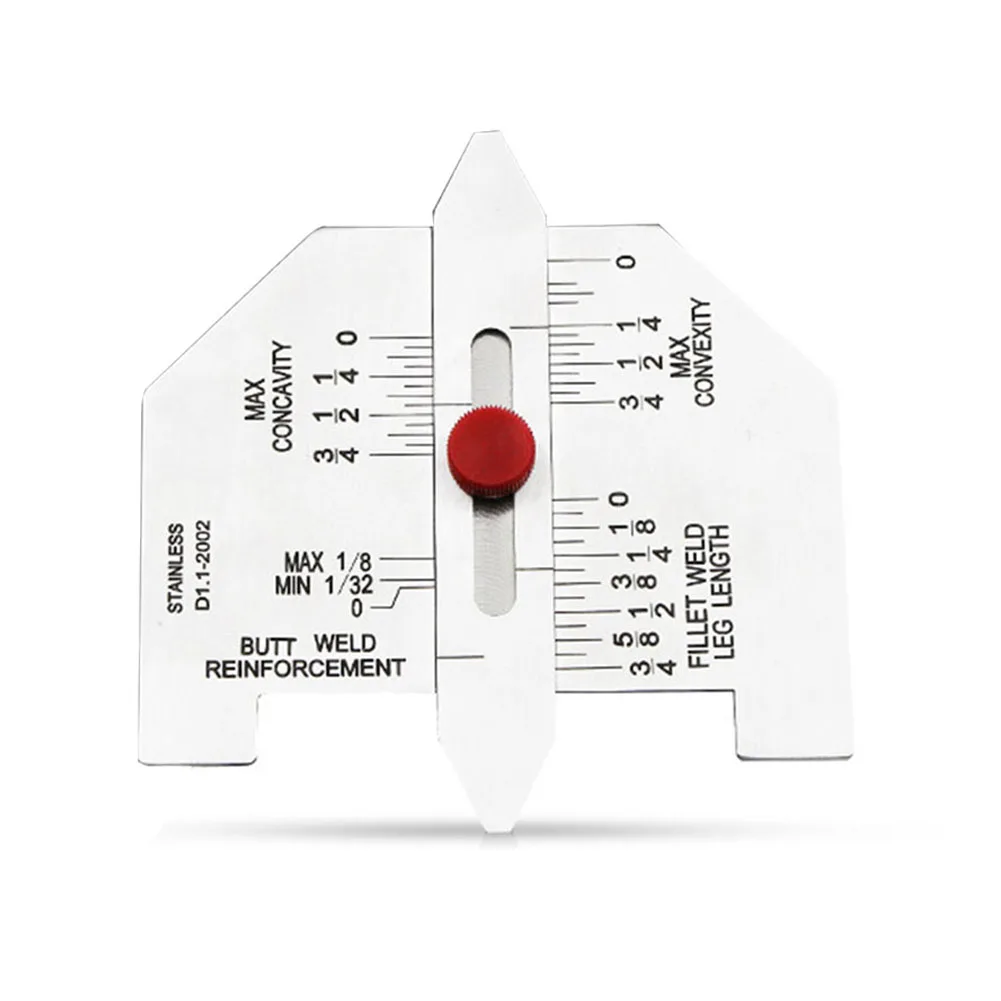

high hardness, good wear resistance, clear scale, long service life, not easy to rust; nut design, rotating nut can be adjusted elastic, fixed measurement,waterproof and anti-fouling.
Application:
Suitable for measuring butt weld and fillet weld.
Scale process: laser scale
Weight: about 75g
colour:Silver
Material:steel

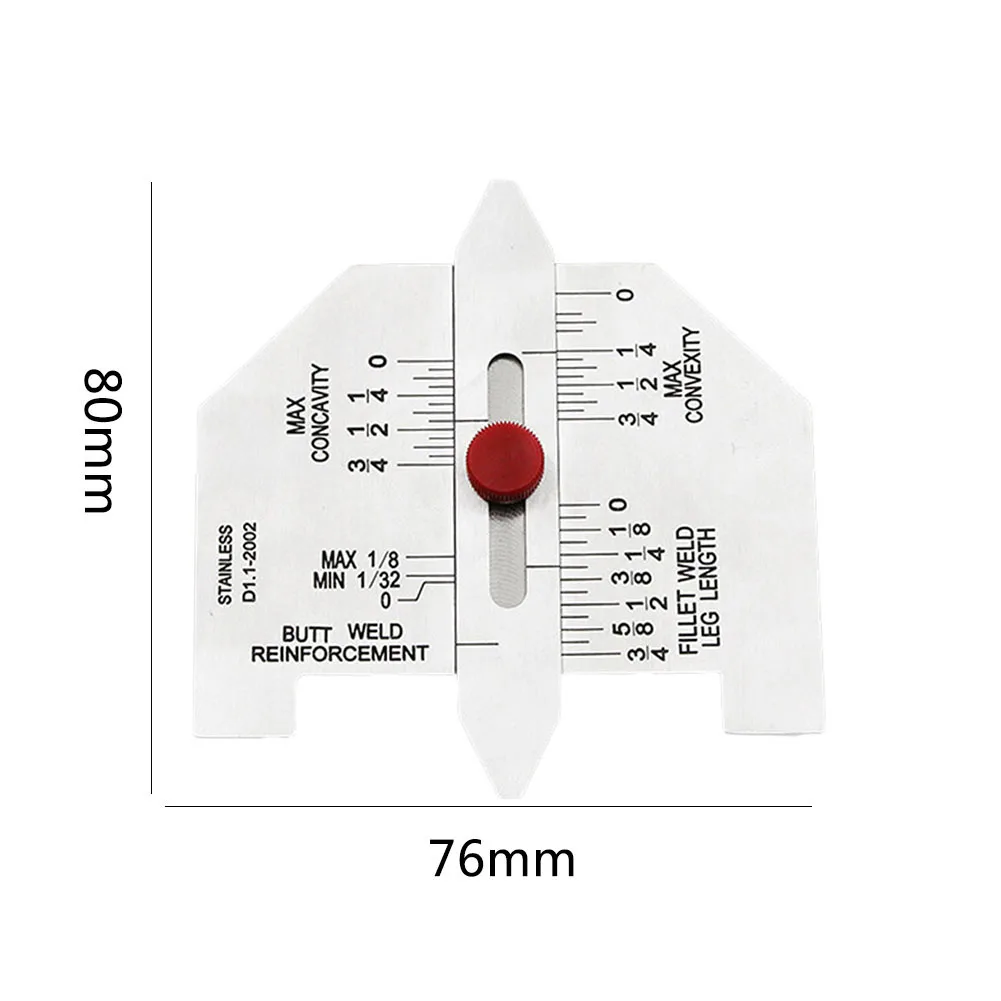

size:Product size: 8*7.6cm
Maximum convex value (Approx.): 0, 1/4 (6.35mm/0.25in), 1/2 (12.7mm/0.5in), 3/4 (19mm/0.75in)
Maximum concave value (Approx.): 0, 1/4 (6.35mm/0.25in), 1/2 (12.7mm/0.5in), 3/4 (19mm/0.75in)
Fillet weld length (Approx.): 0, 1/8 (3.17mm/0.12in), 1/4 (6.35mm/0.25in), 3/8 (9.52mm/0.37in), 1/2 (12.7mm/0.5in), 5/8 (15.9mm/0.63), 3/4 (19mm/0.75in)
Butt weld: 1/8 (3.17mm/0.12in), 1/32 (0.79mm/0.03in)

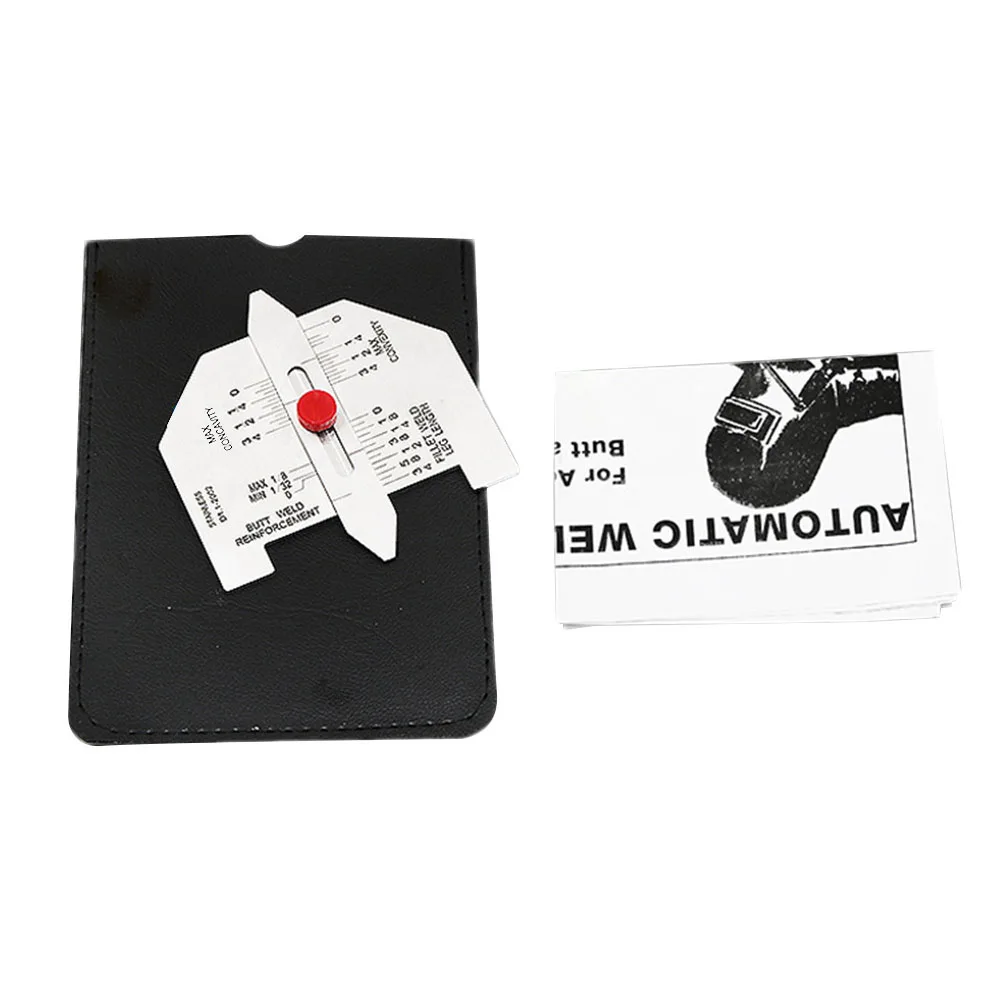

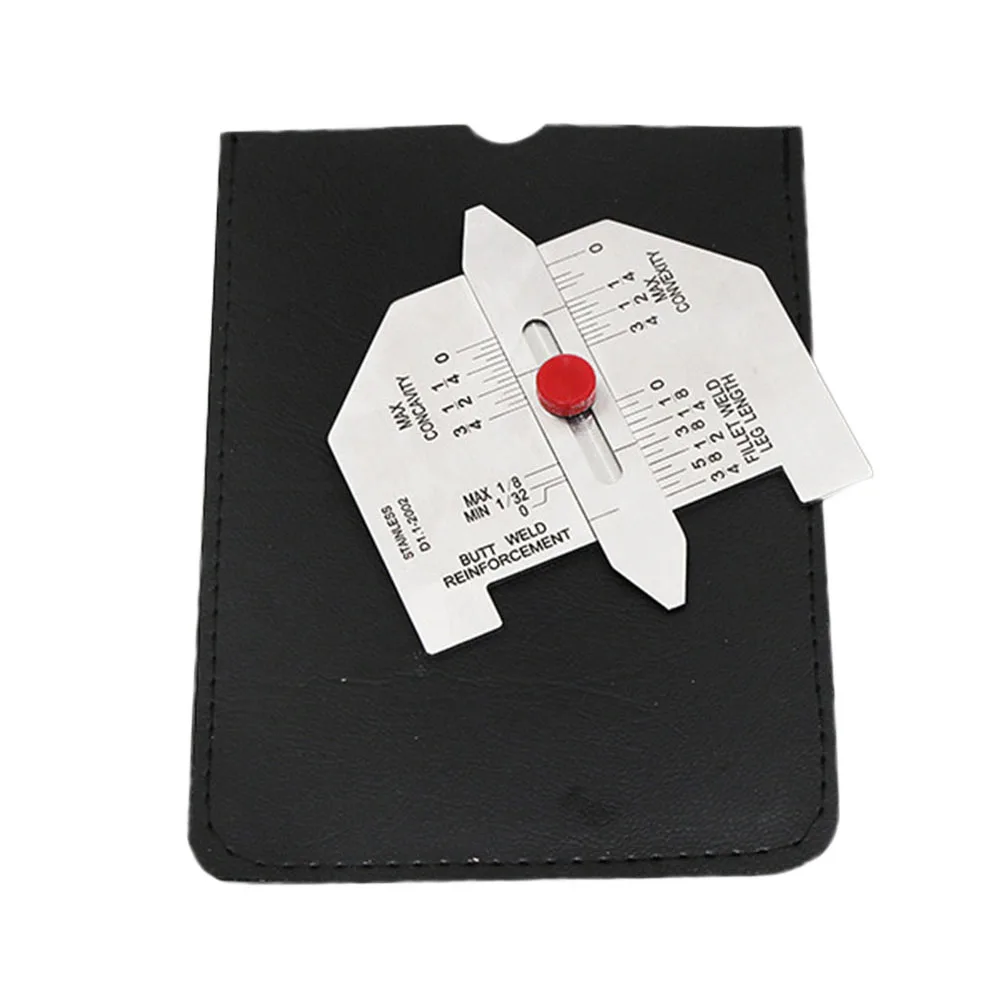

Package Contents:
1* welding ruler
1* leather bag
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
