High Flow DC24V 216W 3.5inch Built-in MPPT Solar Water Submersible Pump

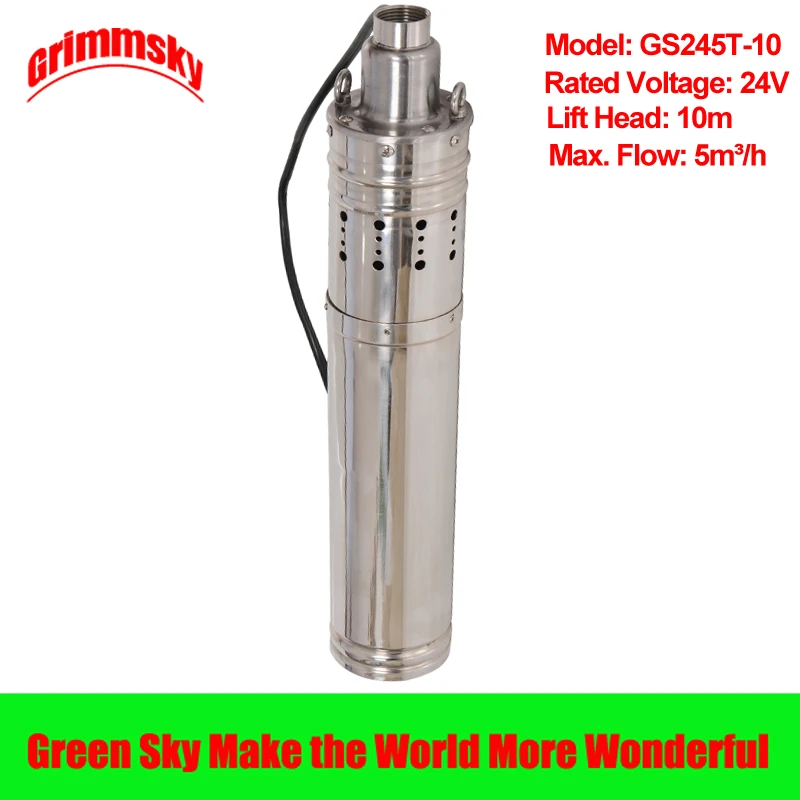

This Model Technical Data as Follows       Model: GS245T-10 Rated Voltage: 24V Wide Operate Voltage Range: 18V-45V Ideal Working Voltage: 36V Rated Motor Power: 216W Inlet Dia.: 89mm(3.5'') Outlet Dia.: 32mm(1.25'') Flow (MAX): 5m³/h Lift Head: 10m Net Weight: 5.10KG Protection Class: IP68 Match Solar Panel Reference: 350W-450W Pump Demension: 89 x 480mm (W*H) Packing Size: 12*12*550mm





Notice: At present,this series solar pump is already updated , using the patented oil-water separation technology to separate the motor and the controller, which has a good heat dissipation effect. The motor is highly sealed and not easy to leak oil. The controller can run for a long time in the water.More durable than before.





Updated Solar Pump(marked position on pump is different with before)









Former One Showing







Installation Drawing of Built-in MPPT DC Solar Water Pump









How to Calculate Lift Head









Right and Wrong Installation







Application Case









Advantage of Built-in MPPT DC Solar Water Pump



  1. Made of stainless steel, non-sensor shielding motor, motor efficiency over 90%.   2. Permanent magnet, brushless DC motor for long lifetime   3. Powered by solar panel directly, fully automatic operation, remote operation safeguards   4. Advanced controller with MPPT technology for maximum solar power   5. Prevent frequent start up of low solar power, the controller prolong the motor lifetime   6. The pump include Over-voltage protection / Under-voltage protection / Over-current protection / Over-load protection / Lightning protection   7.DC input, wide working voltage range(18v-45v)   8.The controller is internal which means the pump can be directly connected to solar panel



Applications of Built-in MPPT DC Solar Water Pump



  Tank/Cistern filling Village or family water supply Water supply for farm Garden/courtyard irrigation system Livestock watering Swimming pool filling Fountains Water supply for bivouac or camping car Solar water circulating system Renewable energy projects     Installation of Built-in Mppt DC Solar Water Pump



  1.This pump is a solar powered water pump, 36v is ideal input voltage. The solar panels' power should be about 2 times bigger than the pump. 2 or 3 pcs 12 volts batteries connected in series also can be power source.   2. Connect the pump to solar panels directly, if the total length of the cable between pump and solar panel is longer than 100fts, we strongly recommend 9 or 8AWG wire.   3. Safety rope or wire is very important for deep well pumps, because the safety rope or cable will be the only way to retrieve the pump from the bottom of the well, we recommend a good stainless steel cable rather than rope.   4. If your solar panel kit is not powerful enough and you don't want to add more, a couple of 12v batteries is a good option, they can help to hold the input voltage above the "low voltage cut off point", however, sufficient solar panels is still the best power source.       FAQ of Built-in MPPT DC Solar Water Pump



  Q. How to choose a proper size pump for my well?   A. The diameter of the well casing at least should be  bigger than the pump’s diameter.   Q. What's the difference between max lift and working lift?   A. Max lift means the flow rate will be 0 at that height because the pump's actual flow rate will be less and less as the working lift increases; recommended working lift is the reasonable height to get sufficient water.    Q. Can I test the pump without water?   A.The submersible pump’s motor and internal controller are immersion, the motor and controller will be overheating if there is no water go through them, therefore the pump should be fully submerged in water.   Q. How to extend the pump’s service life?   A. 1) Put the pump in proper depth range, make sure the pump isn’t overloaded. 2) Make sure the pump is fully submerged in water. 3) Make a sleeve for the pump as an extra strainer if the water contains too much impurities. 4) Check the pump’s intake and outlet regularly if the water is not very clean.   Q. What is your after-sales service?   A. If the pump fails because of quality problem, Please take some actual pictures and record a detailed  video and send to us. We will deliver a new pump free after we verify, the shipping cost is shared by both buyer.
