P3 Outdoor Smd Rgb Full Color 192x192mm Waterproof Led Screen Board High Brightness Panel Электронные компоненты и - купить
Специальная цена от US $39.00 руб.*
Категория товара: LED Displays
История изменения цены
*Внимание! Указанная цена US $39.00 уже могла изменится, перед тем как купить данный товар перейдите на страницу продавца и проверьте актуальную стоимость.
| Месяц | Мин. | Макс. | Цена |
|---|---|---|---|
| 17.02.2026 | 50.17 | 51.27 | 50.5 руб. |
| 17.01.2026 | 40.47 | 41.10 | 40.5 руб. |
| 17.12.2025 | 49.3 | 50.29 | 49.5 руб. |
| 17.11.2025 | 48.82 | 49.77 | 48.5 руб. |
| 17.10.2025 | 39.74 | 40.49 | 39.5 руб. |
| 17.09.2025 | 48.48 | 49.99 | 48.5 руб. |
| 17.08.2025 | 47.99 | 48.83 | 47.5 руб. |
| 17.07.2025 | 47.51 | 48.43 | 47.5 руб. |
Купить P3 Outdoor Smd Rgb Full Color 192x192mm Waterproof Led Screen Board High Brightness Panel | Электронные компоненты и
Welcome to Yao Caixing Electronic store!1. We are professional product and sale LED display2. We are provide low price and high quality3. Welcome to our factory for inspection in Chinawww.ledycx.com
Our Advantage
1.CCC,CE&Rosh,ISO9001,FC,
2.Life span:more than 100000h
3.Excellent after-sales services with free repair whole life
4.MOQ: 1pcs
5.Prompt delivery: 3 working days
Specification

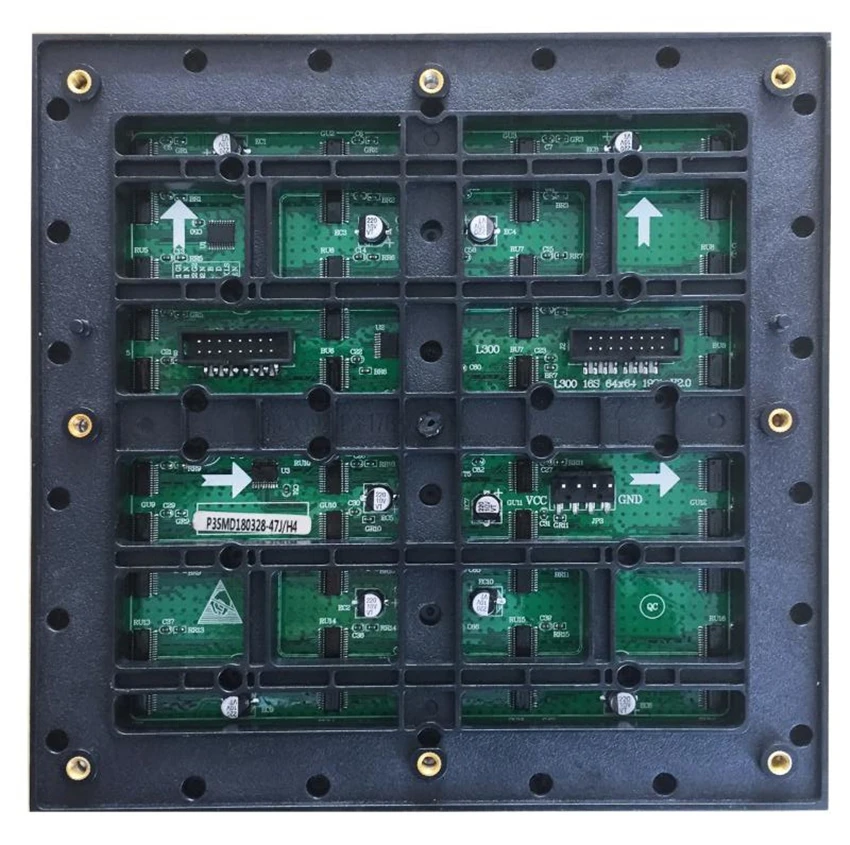

Module Back View | |
Resolution64 | 64(H)×64(W) |
Pitch | 3mm |
Density | 111.111pixels/m² |
LED Arrangement | SMD1921 |
Driver Mode | 16scan(constant current drive) |
Size | 192mm×192mm |
Electricity Parameter | |
Optical Ratings | |
Brightness | ≥5500cd/m² |
View Angle | 140 degree ( horizontal) 140degree(vertical) |
View Distance | 3m-200m |
Gray Scale | 8bits input, correction with 16bits |
Display Color | 16.7M |
Brightness Adjustment | 100 levels |
Power Supply | |
Operation Power | AC100-240V 50-60HZ Switch-able |
Maxim Power Consumption | 1500 w/m² |
Average Power Consumption | 800 w/m² |
Control System | |
Correction Scale Level | 16bits |
Frame Update Frequency | 60Hz |
Screen Refresh Frequency | 1920Hz |
Gamma Correction | -5.0—5.0 |
Support Input | Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI |
Control Distance | Ethernet cable 100m, optical fiber 5km |
Support VGA Mode | 1024×768,1280×1024,1600×1200,1920×1080 |
Color Temperature | 5000-9300 adjustable |
Brightness Correction | dot by dot, module by module, cabinet by cabinet |
Reliability | |
Operating Temp. | -20℃ - +60℃ Celsius degree |
Operating Humidity | 10-95% RH |
Operating Life | 100,000 hours |
MTBF | 5000 hours |
Continuous Working Time | ≥72hours |
Protection Level | IP43 |
Out of Control Pixel Rate | 0.01% |
Module details
- SMD1921 outdoor lamps ensure screen brightness reach 5500cd/sqm
- full glue filled make panel surface waterproof
-The data interface use standard hub75 interface
-5v input , signal and power cable include
- Good driving IC ensure high refresh and low shadows
- Standard hub75 interface,16pin flat cable suitable- Magnets and screws install available
- Smaller pitch module(blow P3) without mask
-The thickness of the PCB plate is two to three times that of the conventional module.
- You can use screws or magnets fix module
- Modules not waterproof ,keep it dry
- Keep far away from fire
-Convenient power outlet, safety and quickly
- Flat cable and power line send free
ATTENTION!!!Different batch or different company's led module , they can't be used together because the color ,brightness,signal direction of PCB board are different.(Different batch screw holes position on the housing might be different with the picture, confirm with us before order.)All the series modules are 5V power ,make sure switch power supply suitable.About UsShenzhen Yao Caixing Electronic Co.,LTD is founded in 2010 which locate in the world LED display manufacturing center-Shenzhen, China.The cover area is about 20000square meters,nearly 400 employees.We are specialized in the development,production,sales and services of the LED display and focus on providing customers with a full range of product solutions.It is a integrated operation service private enterprise in photoelectric LED display filed.Several years of study and unremitting efforts,company gathered a large number of talents and has accumulated rich experience.Owned the first-class automated production equipment and standard production work ship.Also established a systematic and professional display screen production process and provide a powerful guarantee for the quantity of the LED display to improve the the stability and product cost performance.Main products:Inside or outside SMD full color modules/panels and cabinet display.Our main production :P1.667,P1.923,P2,P2.5,P3,P3.91,P4,P4.81,P5,P6,P7.62,P10 indoor; P2.5,P3,P3.91,P4,P4.81,P5,P6,P6.67,PH8,P10,P16 outdoor full color.Certificate
