Please note that this product has two versions: “Without USB interface” and “With USB interface”. The USB interface is the output interface, and the output is DC 5V (global standard), which can be used for charging digital products, such as mobile phones. MP3 and so on.
Product parameters:
Input: DC20-30V
Output: Ac220V 50HZ; USB: DC5V
Power: 1000W
Peak power: 2000W
Stable power: 600W
Dimensions: 190*95*55MM
Gross weight: 800g (including accessories)

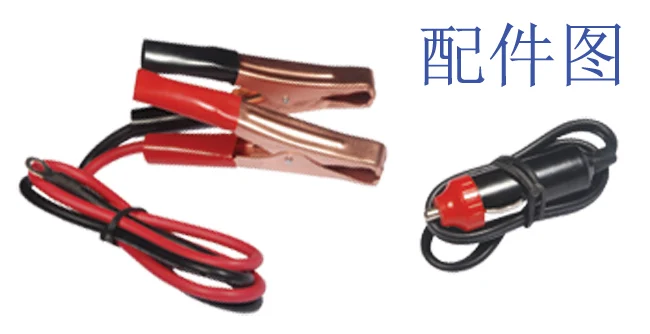

Accessories: a pair of clip power cords, a cigarette lighter plug.

Product characteristics:
OneContinuous power output
TwoComplete isolation of input and output
ThreePower: Transformer Isolation
FourSignal: optocoupler isolation
FiveBuilt-in fuse
SixHigh efficiency, maximum 93%
SevenConstant (Limited) Power Output, Really Short Circuit Protection
EightPrecision SMT patch technology, reliable quality, stable output
NinePrecise PWM regulated power, output voltage (+3%)
TenMultiple Protection Functions (Short Circuit Protection, Overload Protection)
ElevenAutomatic alarm and protection of low and high input voltage
TwelveHeat Dissipator with Fan

Installation and use method:
1. Put the switch of the converter in the OFF position, and then insert the cigarette head into the 24V cigarette lighter socket in the car.

2. Confirm that the power of all electrical appliances can be used below the  nominal power. Insert the 220 V plug of the electrical appliances directly into the 220 V socket at one end of the converter, and ensure that the sum of the power of the electrical appliances connected by the two sockets is within the  nominal power.

3. Turn on the switch of the converter, and the green indicator is on, indicating that it is working normally.

4 Red indicator lights up, indicating that the converter is turned off due to overvoltage/undervoltage/overload/overtemperature.

In many cases, due to the limited output of the vehicle cigarette lighter socket, the converter alarms or shuts down in normal use. At this time, as long as the vehicle is started or the power consumption is reduced, it can return to normal.

Three points for attention:

1 In the process of household use, TV sets, monitors, motors and other household appliances reach peak power at startup. Although the converter can withstand peak power twice the nominal power, the peak power of some appliances with the required power may exceed the peak output power of the converter, resulting in overload protection and current switching off. At the same time, multiple appliances are driven. This may happen. It is necessary to turn off the electrical switch first, turn on the converter switch, then turn on the electrical switch one by one, and first turn on the electrical appliance with the highest peak value.

2. Vehicles should be started in time to charge batteries to prevent power failure and affect vehicle start-up and battery life.
