Купить ESP8266 Relay with ESP-01S Serial WIFI Wireless Transceiver Module for Arduino UNO R3 Mega2560 Nano Raspberry Pi | Электроника
 |
|||
 |
 |
 |
 |
 |
 |
 |
 |

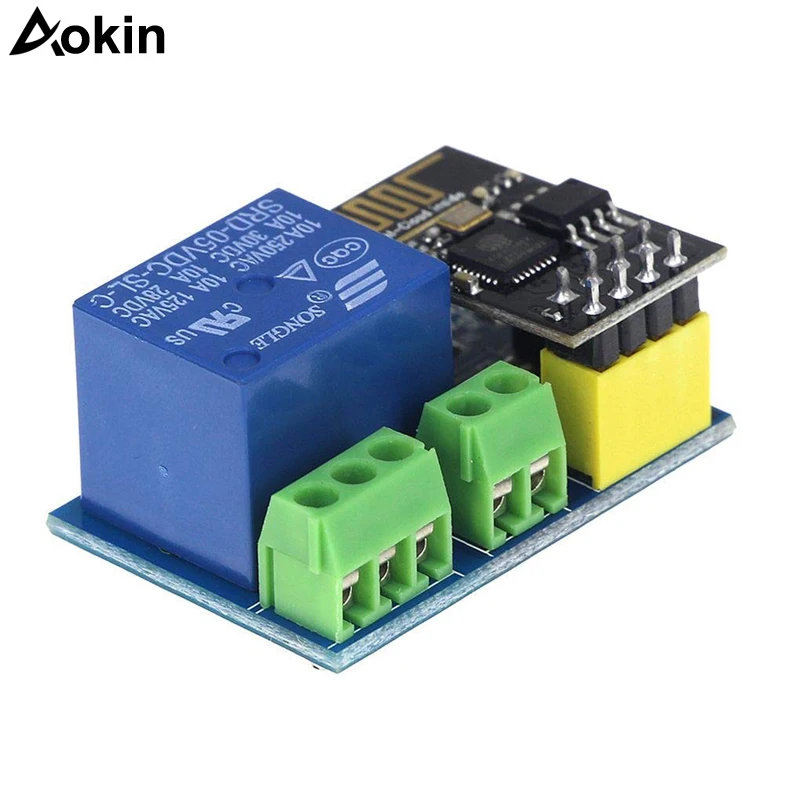

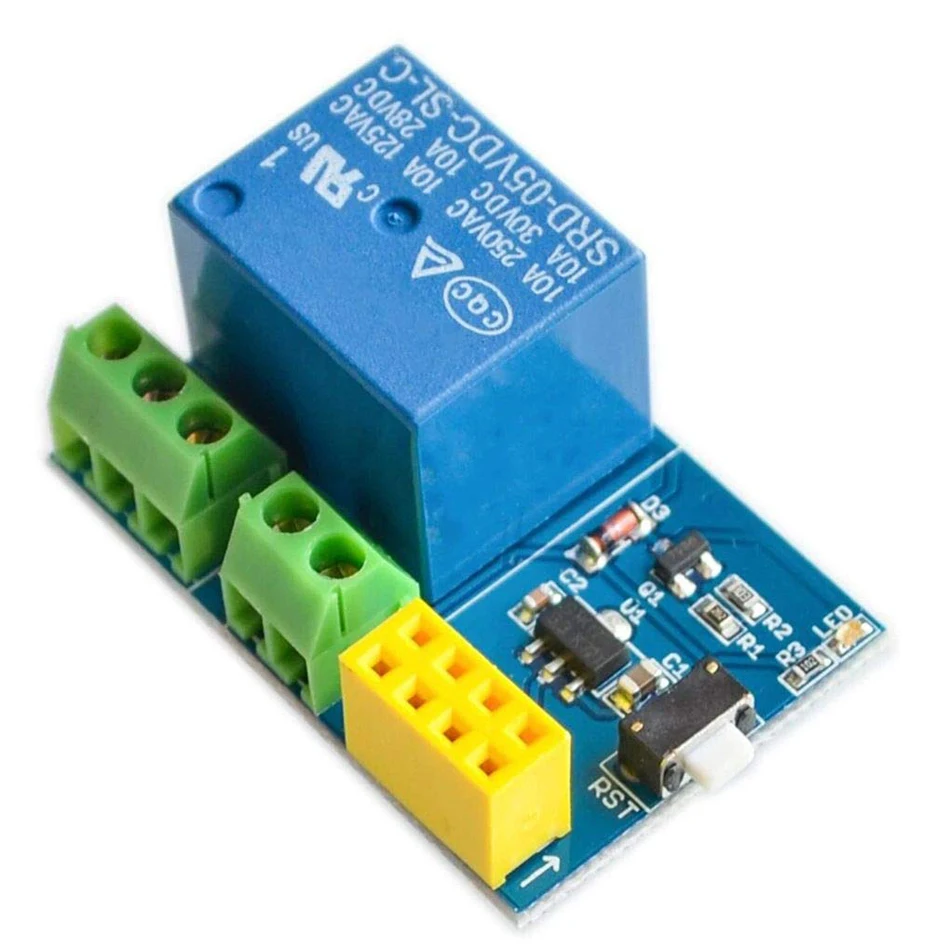

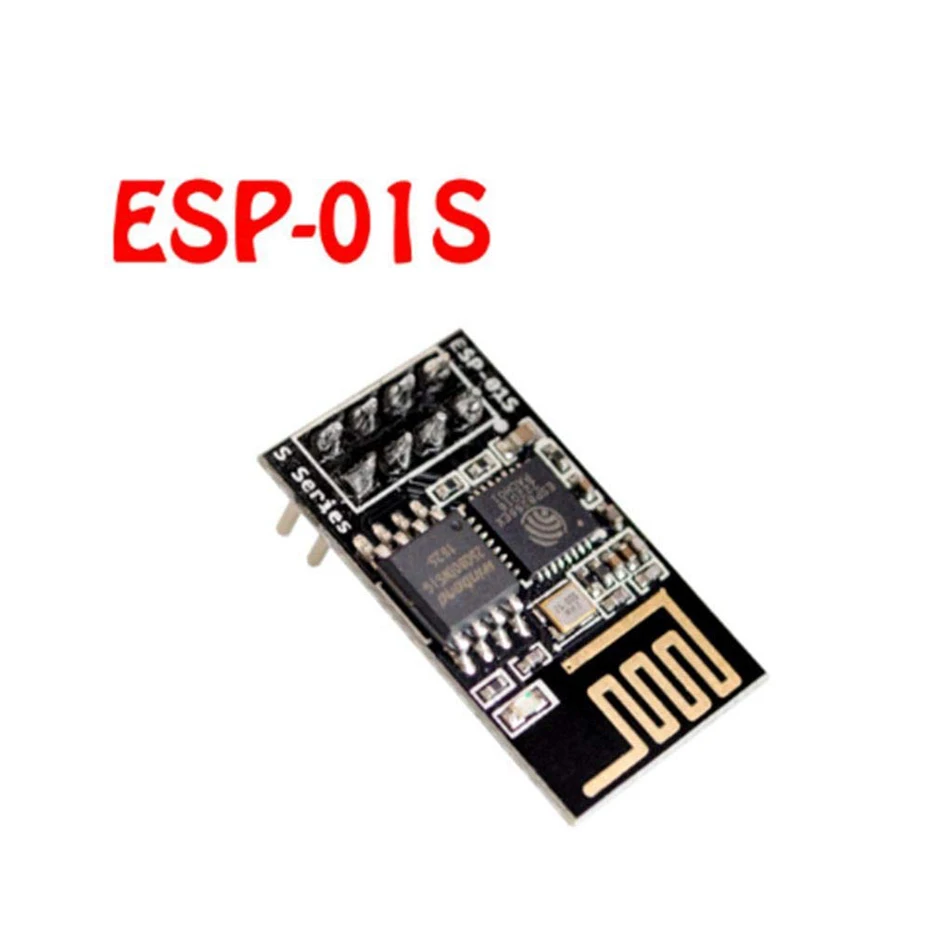

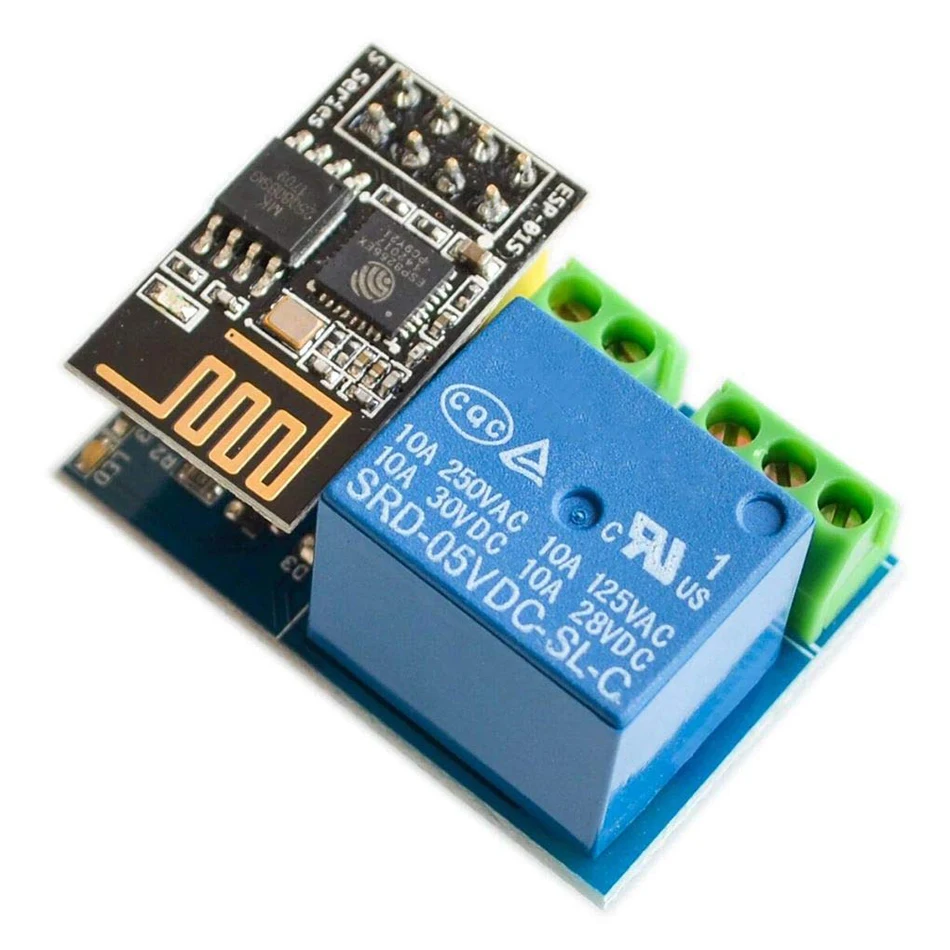

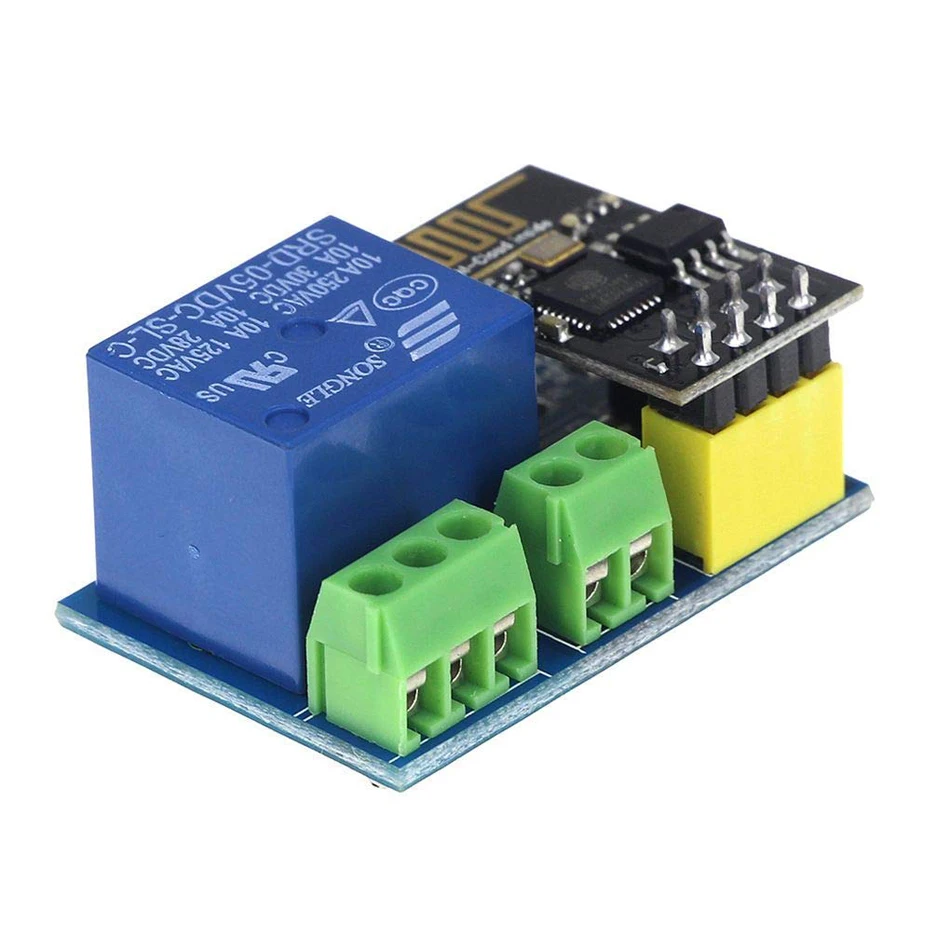

ESP8266 Relay with ESP8266 ESP-01S Serial WIFI Wireless Transceiver Module for Arduino UNO R3 Mega2560 Nano Raspberry Pi
This ESP-01/01S Relay based on ESP-01/01S WIFI module. It is designed for smart home, internet and other DIY projects. With this smart relay, it is easy to DIY your smart switch to control any device by your phone anywhere. Product size: 37 * 25mm Operating voltage: DC5V-9V Transmission distance: the maximum transmission distance of 400m (open environment, mobile phone equipped with WIFI module) Contents：1pc ESP8266 ESP-01S Module, 1pc ESP8266 Relais Adapter.Parameter
1.Working voltage: DC5V-9V
2.Working current: ≥250mA
3.Transmission distance: the maximum distance of 400m (open environment)
4.Load: 10A/250VAC 10A/30VDC, the relay pulls 100,000 times
5.GPIO0 of ESP-01/01S to Control the Relay by Low level active 6.Product size: 37 * 25mm
How to use

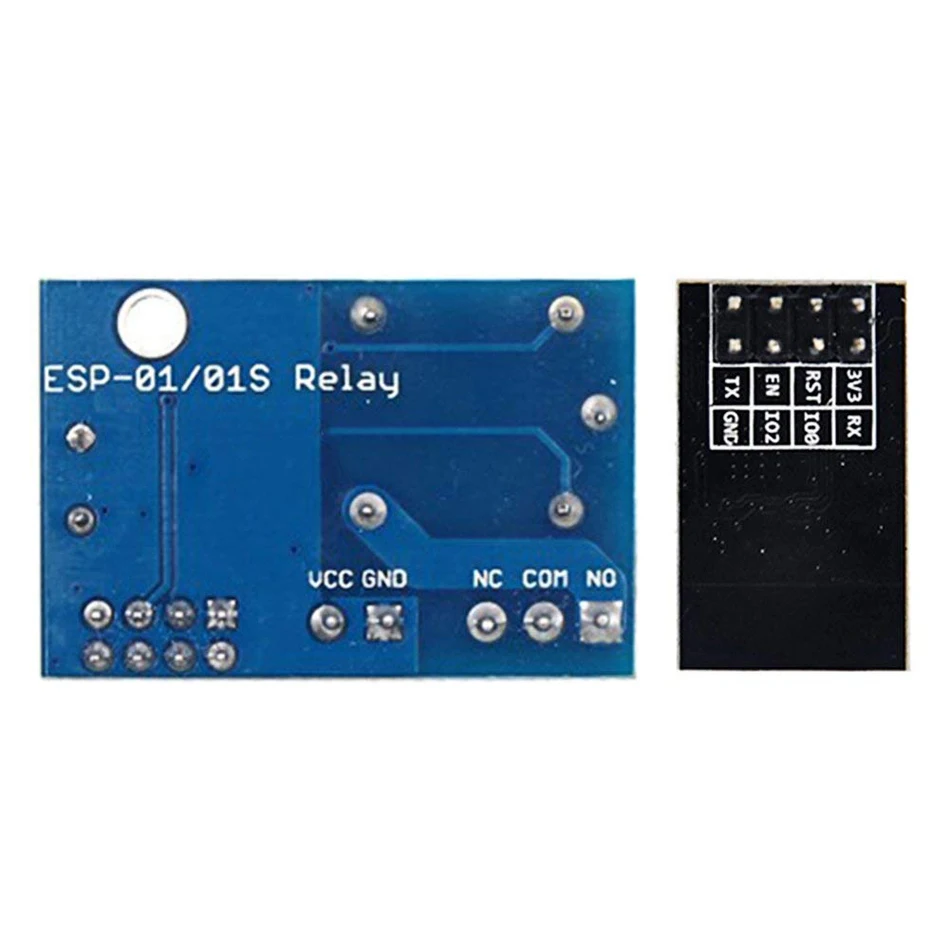

1. Hardware connection
Just plug the ESP-01S module to the 2*4 pin header after download the code to ESP-01/01S.
2. Power supply
Connect a DC 5V-9V power to the GND and VCC.
3. Open your phone WLAN then connect the WiFi ESP8266-XXXX, Power word: 12345678
4. Open the ESP8266 Controller.app (Installed it in your android phone before)
5. Set IP Address: 192.168.1.1 than you can control your device via the WiFi relay module.
Package Included:
1 x ESP8266 Relais Adapter
1 x ESP8266 ESP-01S Modul
