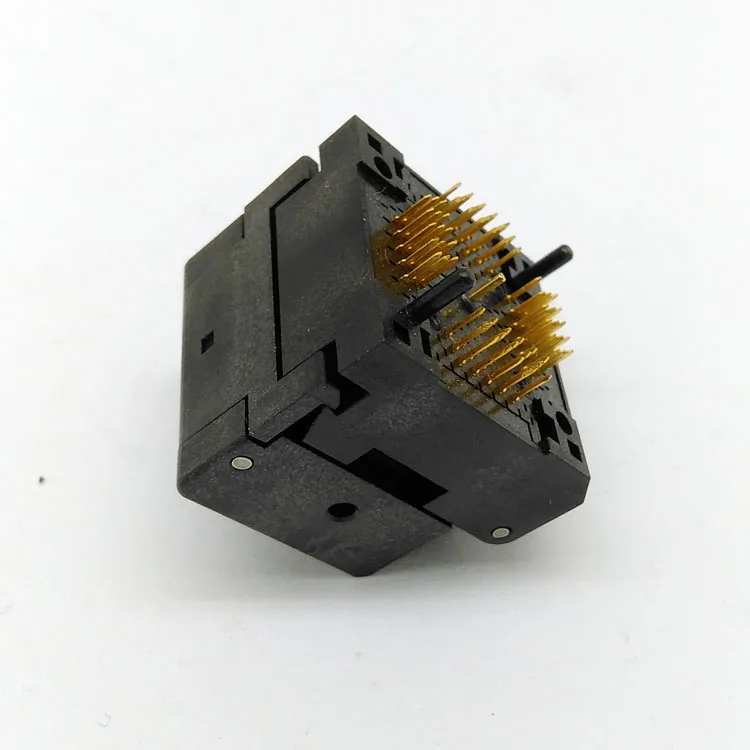

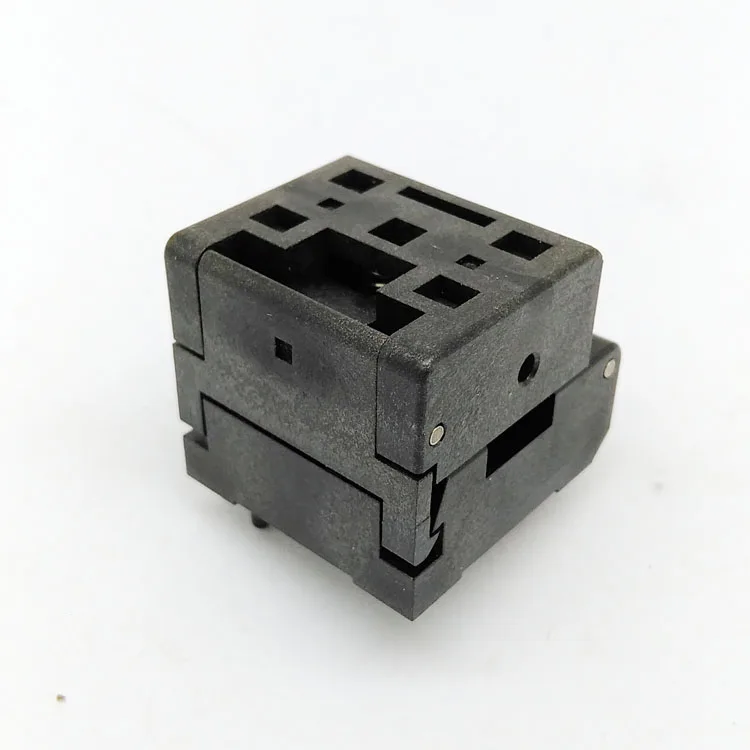

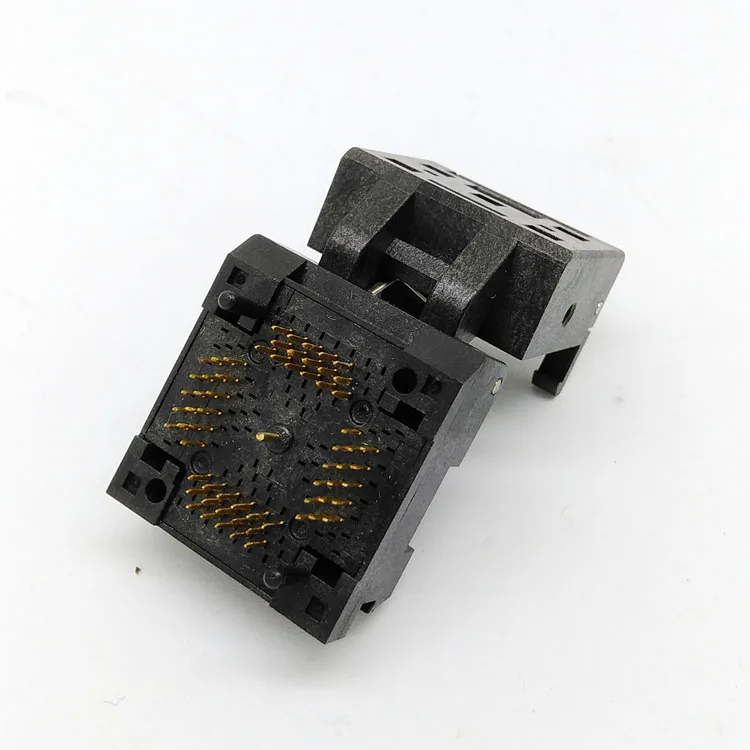

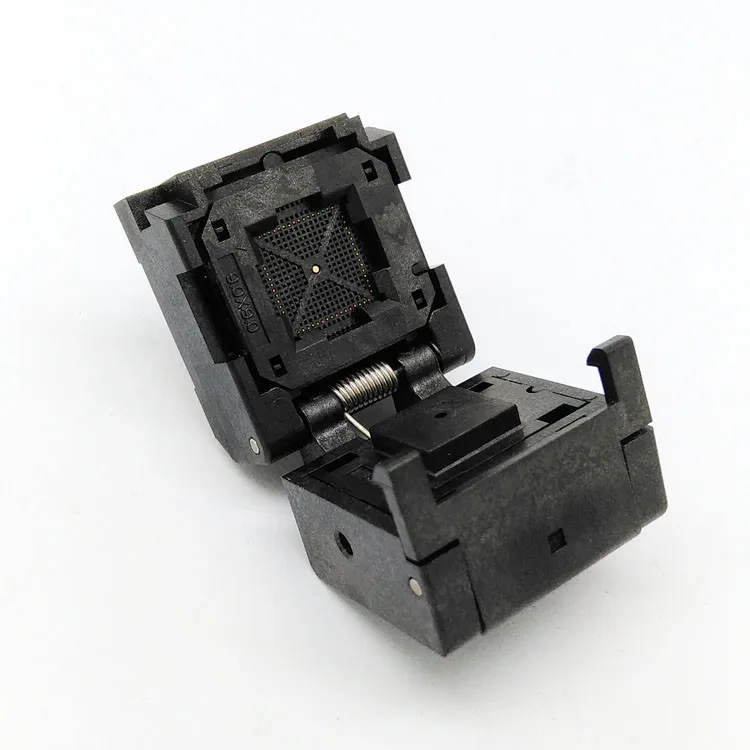

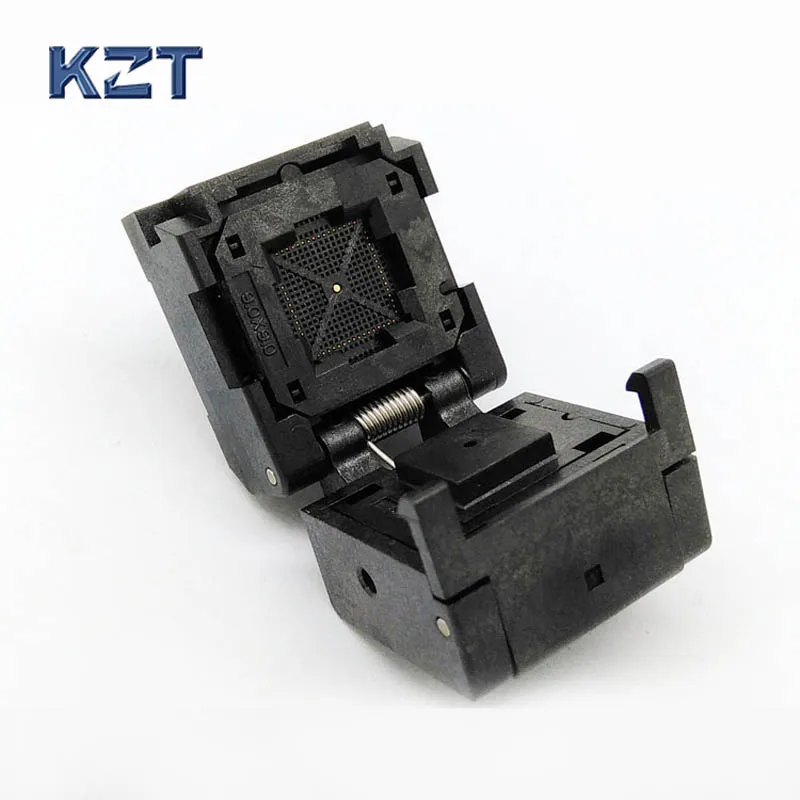

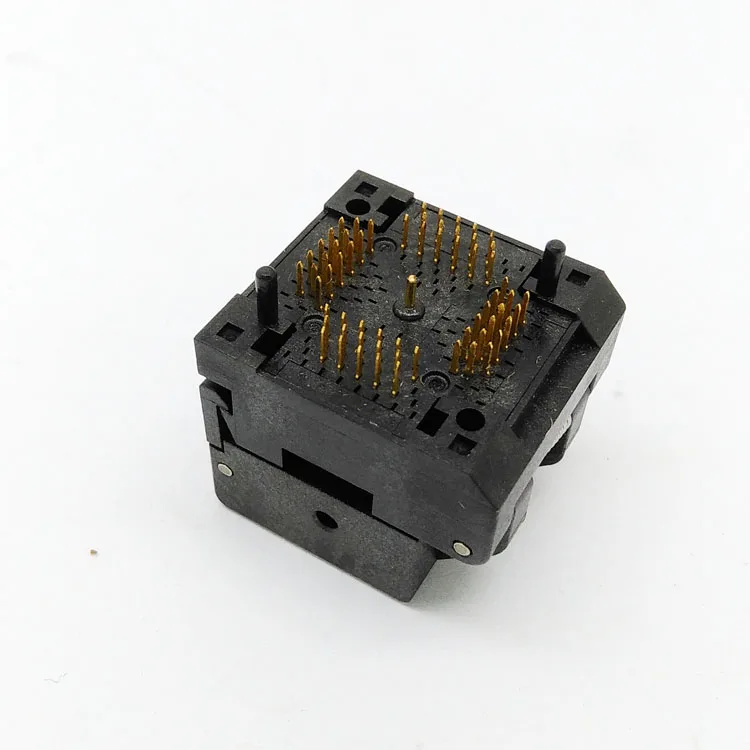

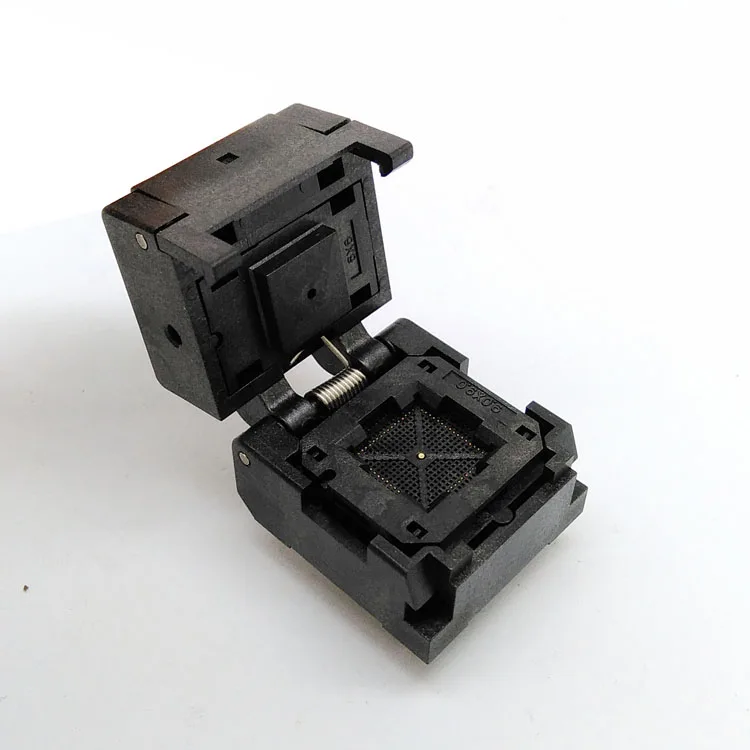

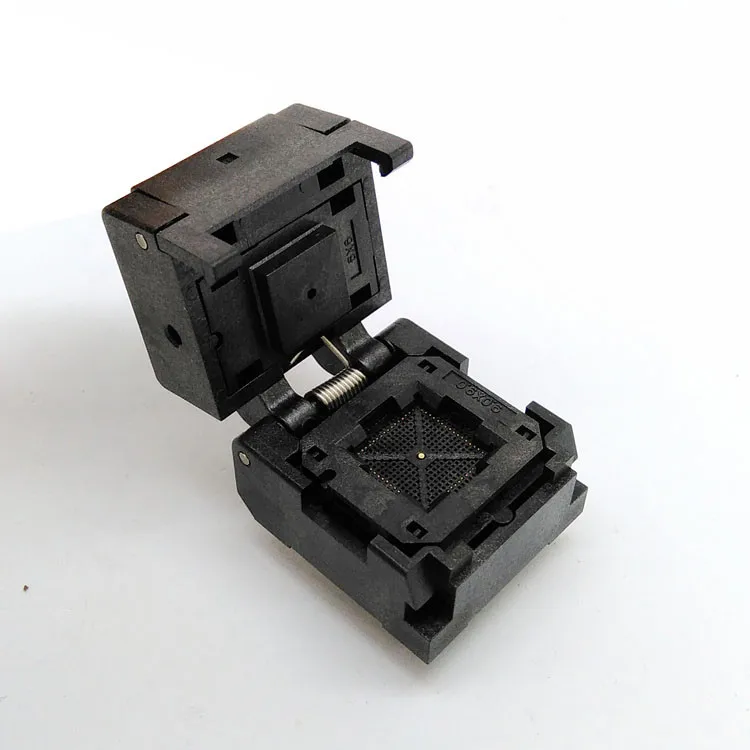

QFN64 MLF64 Burn in Socket IC Test Socket IC550-0644-006-G Pitch 0.5mm Chip Size 9*9 Flash Adapter Clamshell Programming Socket



Product Features:

a.Clamshell structure burn in socket

b.Adopting engineering material for socket structure,

Strength is high ,lifetime is long

c.Adopting import BeCu material for socket contact

Spring ,thickening gold-plating surface ,impedance is small elasticity is good

d.For 0.5mm pitch package

e.Thru hole design



Material & Performance:

Ø socket Body: PEI

Ø Contacts:Beryllium Copper Alloy

Ø Contact Plating:Gold over Nickel

Ø Operation Force:2.0KG min, the more PINs the greater force.

Ø Contact Resistance:50mΩ max

Ø Dielectric:700V AC for 1 minute

Ø Insulation Resistance:1,000MΩ500V DC

Ø Max Current Capacity : 1A

Ø Temperature Rating:-55℃~+175 ℃

Ø Life Span 15,000 Times (Mechanical)





2. Specification and Dimension :

a) Type : QFN64-0.5

b) Pin pitch : 0.5 mm

c) Pin Count : 64

d) Applicable IC Body Dimension : 9*9 mm



We\\\\\\\'re the original manufacturer , we have the lowest competitive prices , the shortest processing time guaranteed . If you have want batch purchase , please contact us for inquiry , we can offer you a cheaper bulk price !
