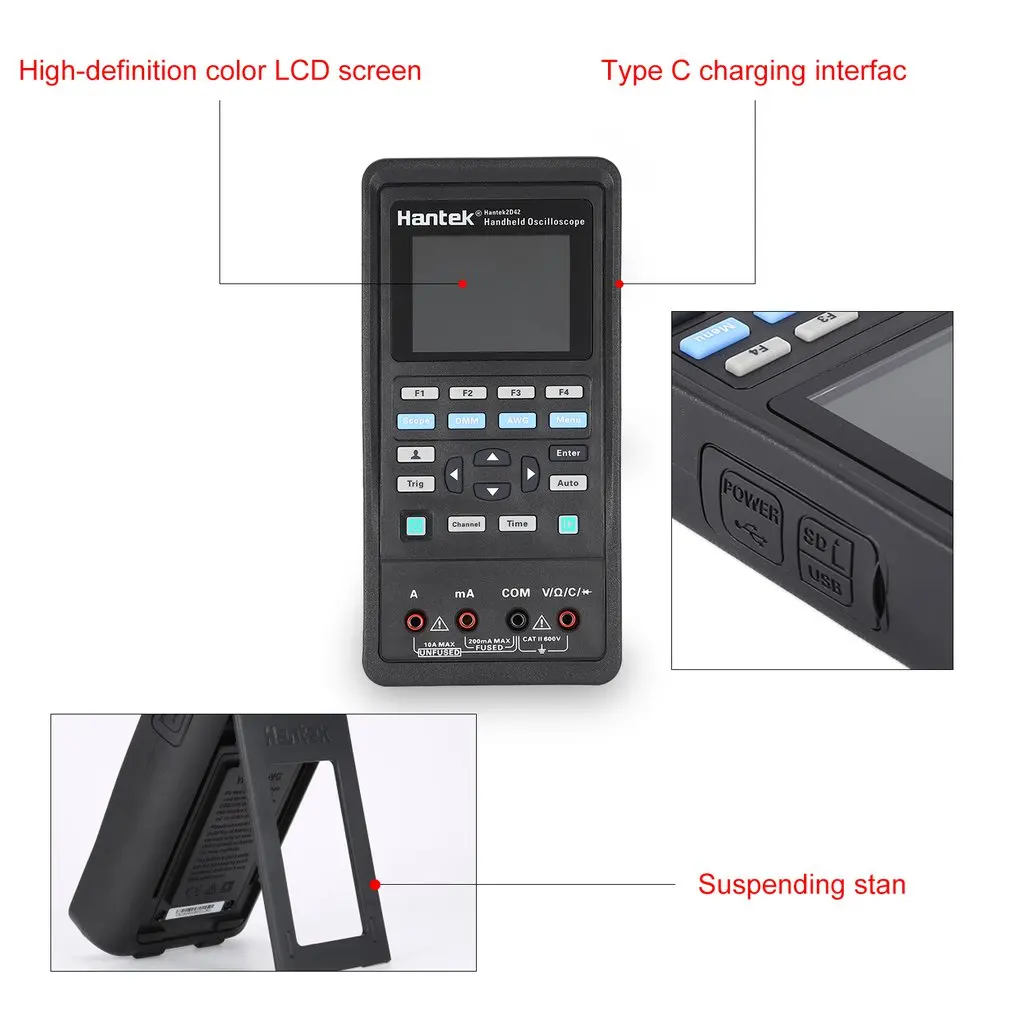

Features:

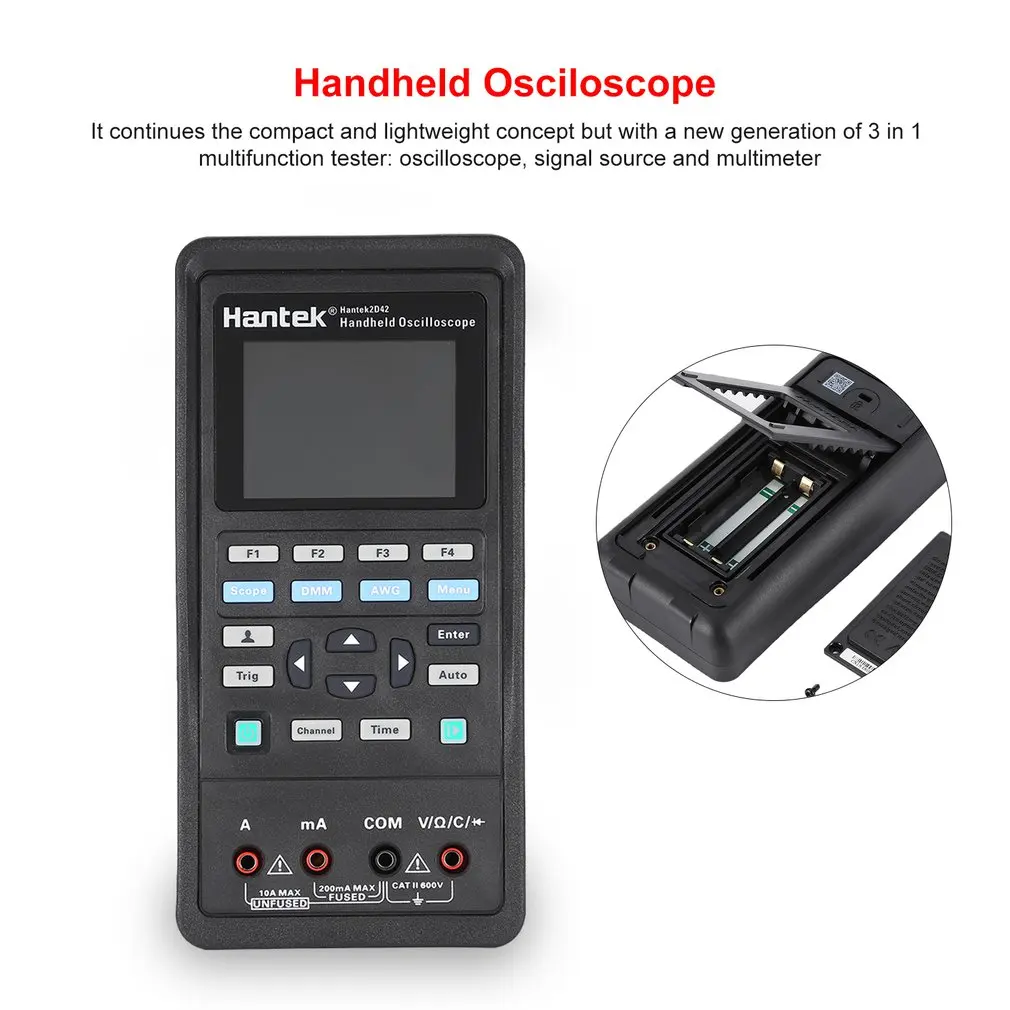

1.3 in 1 multifunction tester: oscilloscope, signal source and multimeter.

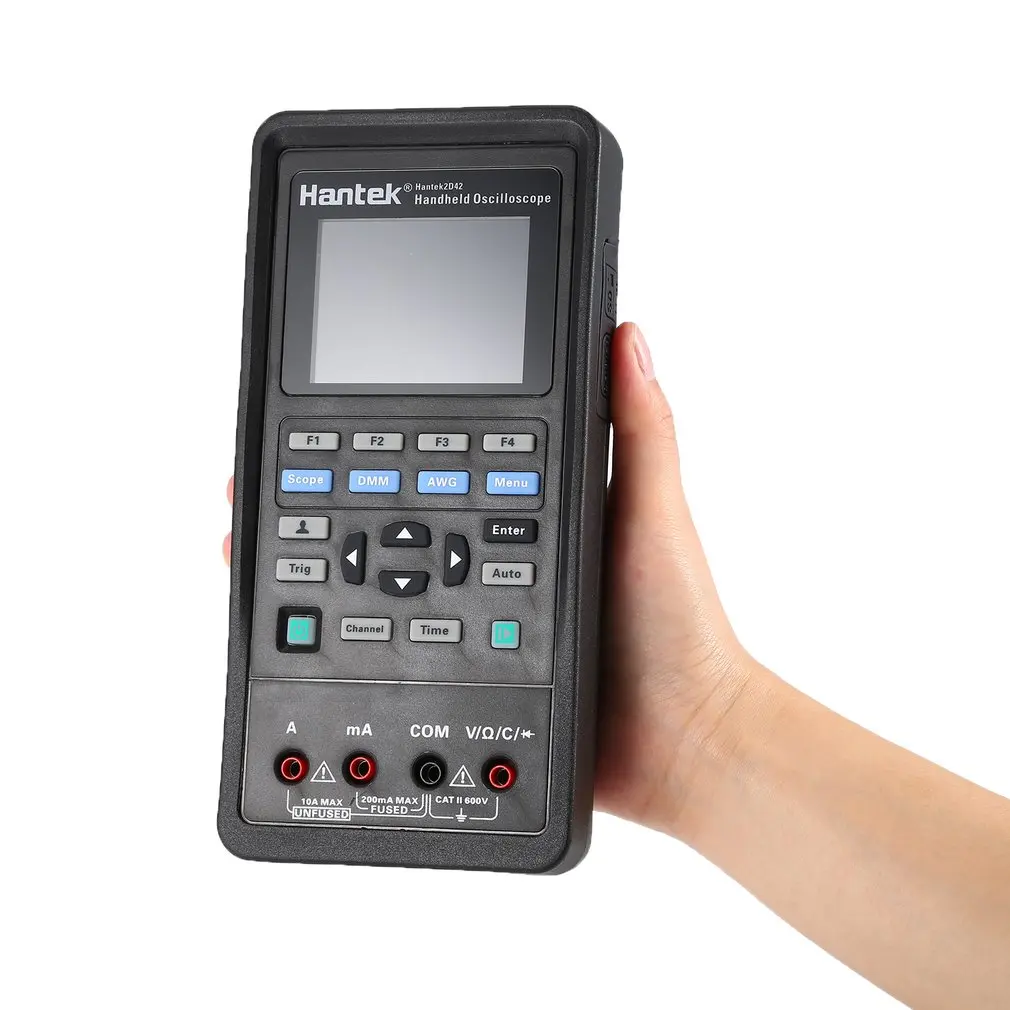

2.A small volume of the non-profit grip by a single hand.
3.The suspending stand was designed to support multi-angle adjustment.
4.High-definition color LCD screen display clear and delicate.
5.Ultra-low-power, Type C charging interface, each 2 hours battery charge allow working one full day or standbytwo months.

Descriptions:
1.Minimalist keyboard design simplifyoperation, easy to use.
2.Widely used in electronic circuit debugging, circuit testing, design and manufacture,
education and training, automobile maintenance and testing.

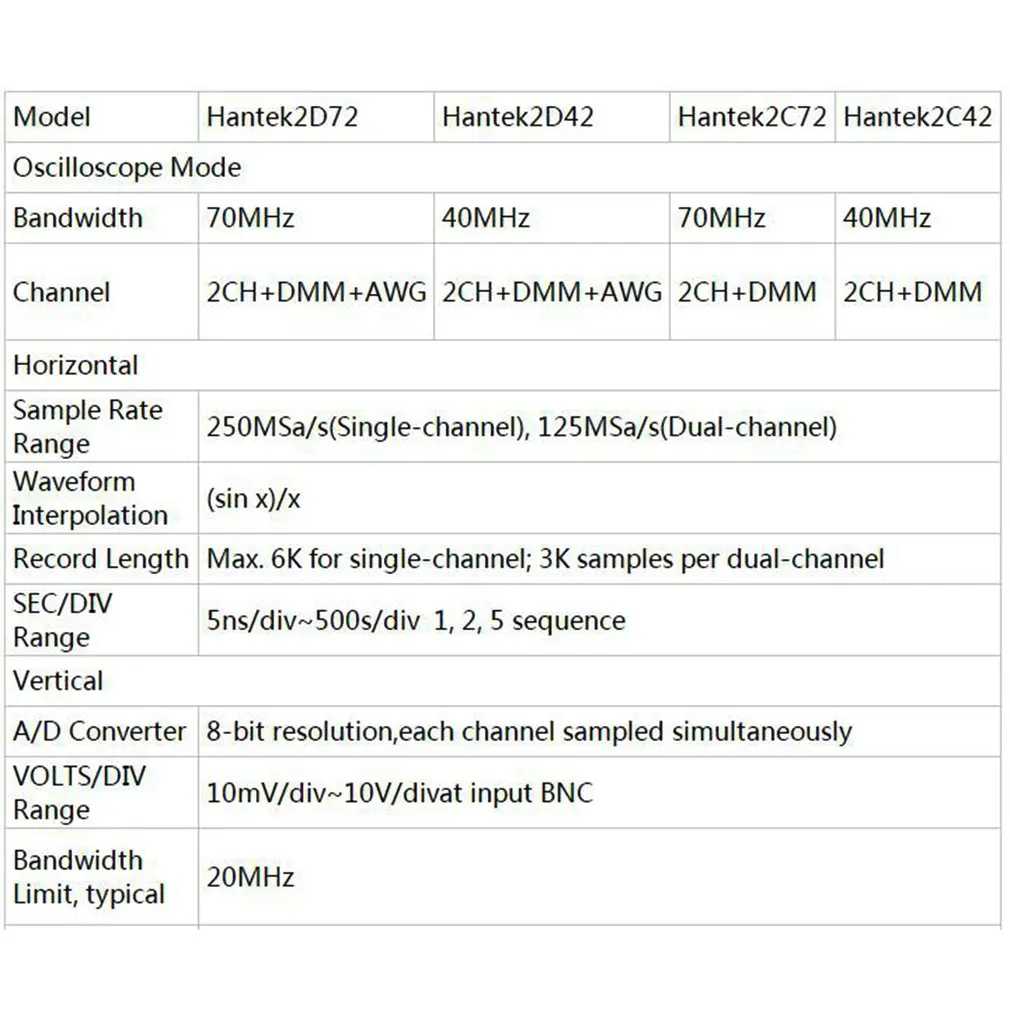

Specifications:
Brand:Hantek
Model:2D42
Color:black
Type:EU
Bandwidth:40MHz
Channels:2CH+AWG+DMM

Horizontal
Sample Rate Range:250MSA/s(single-channel), 125MSA/s(dual-channel)
Waveform Interpolation:(sin ×)/x
Record Length: Max 6K for single-channel;3K samples per dual-channel
SEC/DIV Range:5ns/div-500s/div 1, 2, 5 sequence

Vertical
A/D Converter: 8-bit resolution each channel sampled simultaneously
VOLTS/DMV Range:10mv/div-10v/divat input BNC
Bandwidth Limit, typical:20MHz
Low Frequency Response(-3db):≤10 Hz at BNC
Rise Time atBNC, typical: ≤5ns
DC Gain Accuracy:+3% for Normal or Average acquisition mode, 10V/div to 10mv/div
Note: Bandwidth reduced to 6MHZ when using a 1X probe

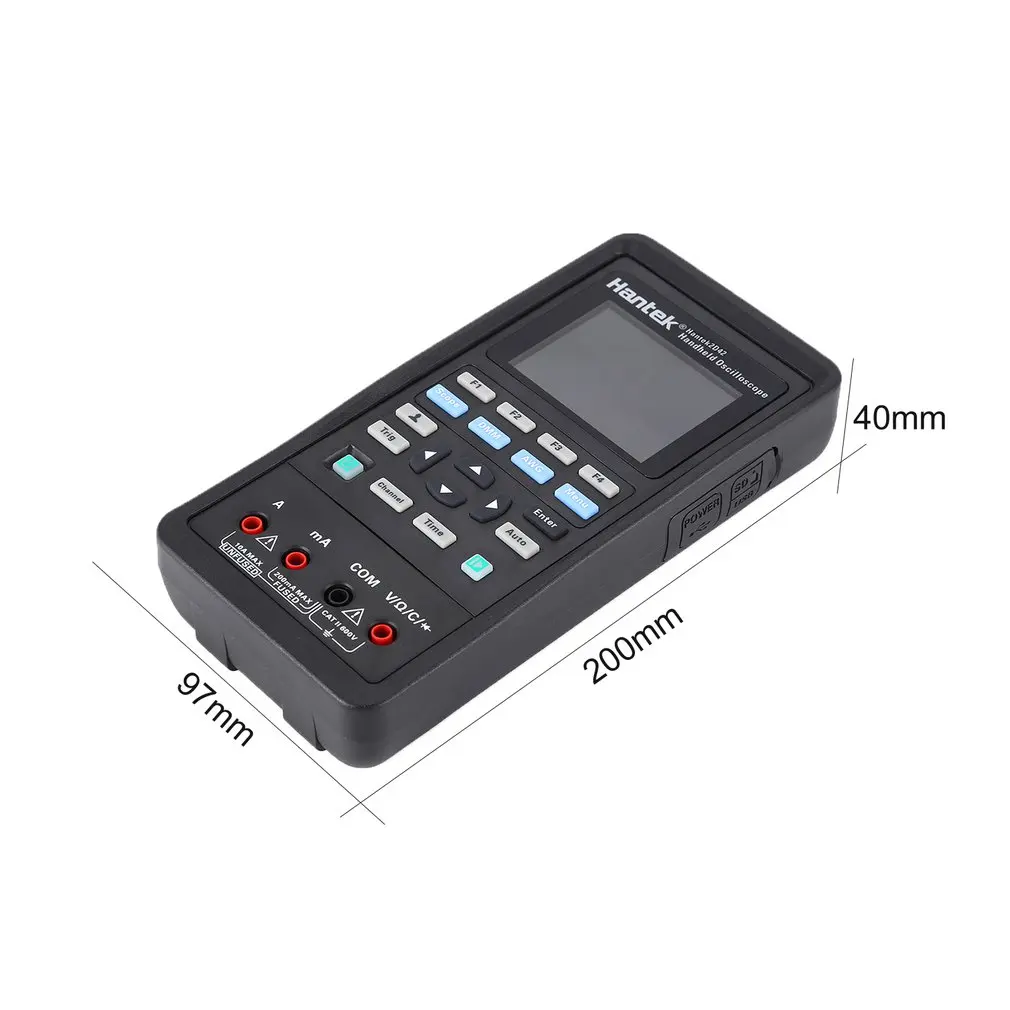

Item size:200 x 97 x 40mm
Item weight:616g

Package Informations:
Package Size: 250 x 195 x 110mm/9.84 x 7.68 x 4.33in
Package Weight: 1336g/2.95lb
General Box Package

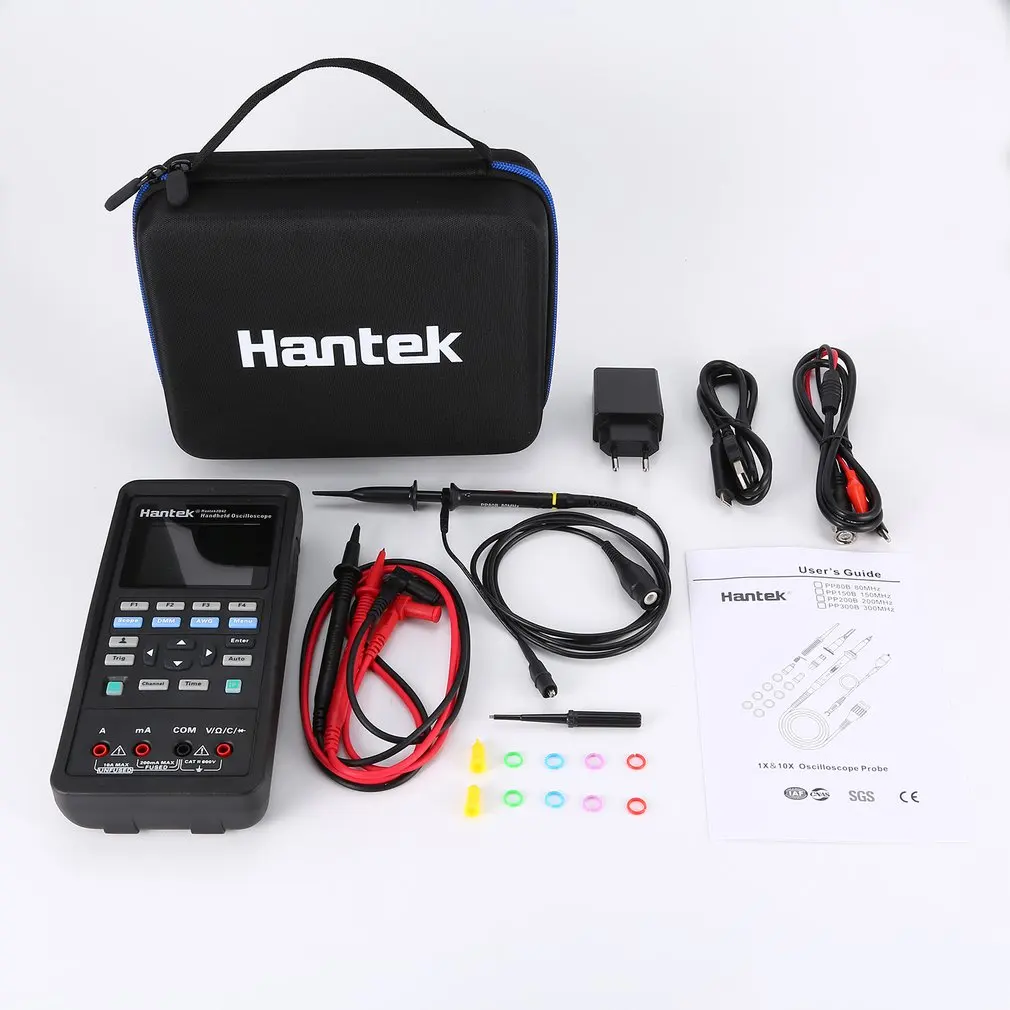

Package Included:
1 x Osciloscope
1 x set of Accessories
