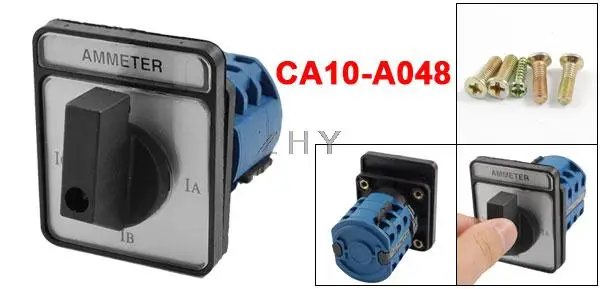

CA10-A048 4 Position Rotary Cam Universal Changeover Ammeter Switch

Specification:

Product Name	Ammeter Switch
Model No.	CA10-A048
Voltage	AC380-440V, AC660V, DC220-240V
AC21 Ith	20A
AC1	16A/AC 380V, 12A/AC 660V
Installing Holes Dia	3.5mm/0.14''
Installing Size	37 x 37mm / 1.417" x 1.417"(L*W)
Overall Size	61 x 50 x 81mm/2.4'' x 2'' x 3.2'' (L*W*H)
External Material	Plastic
Color	Blue, Black
Net Weight	107g
Package Content	1 x Ammeter Switch 4 x Installing Screws

Description:

Please Pay attention to the Voltage before ordering to make sure the Universal Switch work successfully. When installing  this Universal Changeover Switch, professional technique is required. 12 screw terminals , 3 layers, four holes for installing. 4 Positions: O-IA-IB-IC, 90 degree rotation. Function: monitor and measure current. Used widely to change position of ammeter to control the direction of motor and other circuits.
