| M.NT68676.2A(HDMI+DVI+VGA+Audio)LCD Screen Controller Board Kit for 17.1" LP171WX2(A4)(K9) 1440X900 This is a great set of easy-reassembling LCD controller kit which is used to turn a bare LCD panel into a desktop/PC monitor. It will be a surprise that your bare LCD will be of good use, and no longer be a waste. Or it is a very insteresting things that we make a monitor successfully by ourselves. Giving your laptop lcd a new life. Plug&play kit, no need soldering. Notice: if you want to buy this kit, please make sure that your lcd model number is LP171WX2(A4)(K9). Necessary Accessories for turning a bare LCD to desktop monitor: 1. LCD Controller board
2. Inverter
3. LVDS cable
4. Keypad
5. VGA cable/DVI Cable/HDMI cable (Not included)

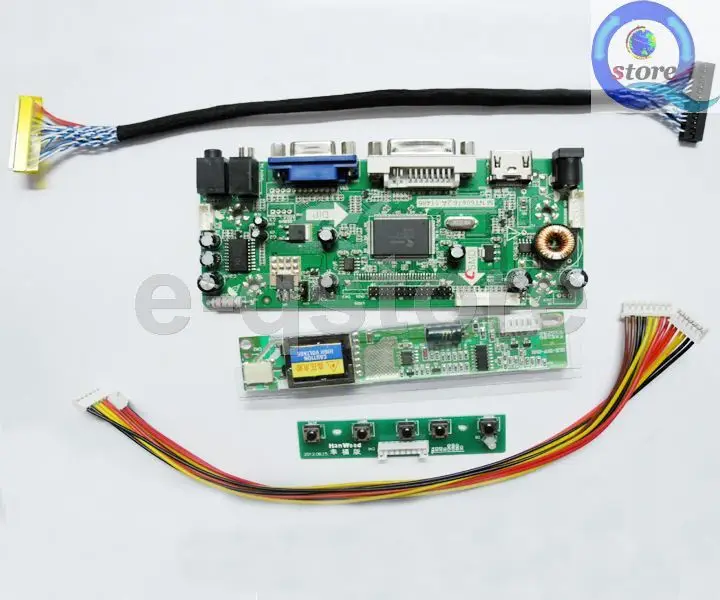

6. Power Adapter (Not included) If you have already had a VGA cable/DVI cable/HDMI cable and a power adapter (Ouput 12V,4A -- it is for small size lcd from 10.1inch to 22inch), this kit is a great choice for you, else there are some other kind of kits for options, please feel free to contact us for suggestion. LCD Controller Board M.NT68676.2A: ![]()
M.NT68676.2A is a monitor control board, which can support LED/LCD panels. It can support resolution up to 2048X1152.
