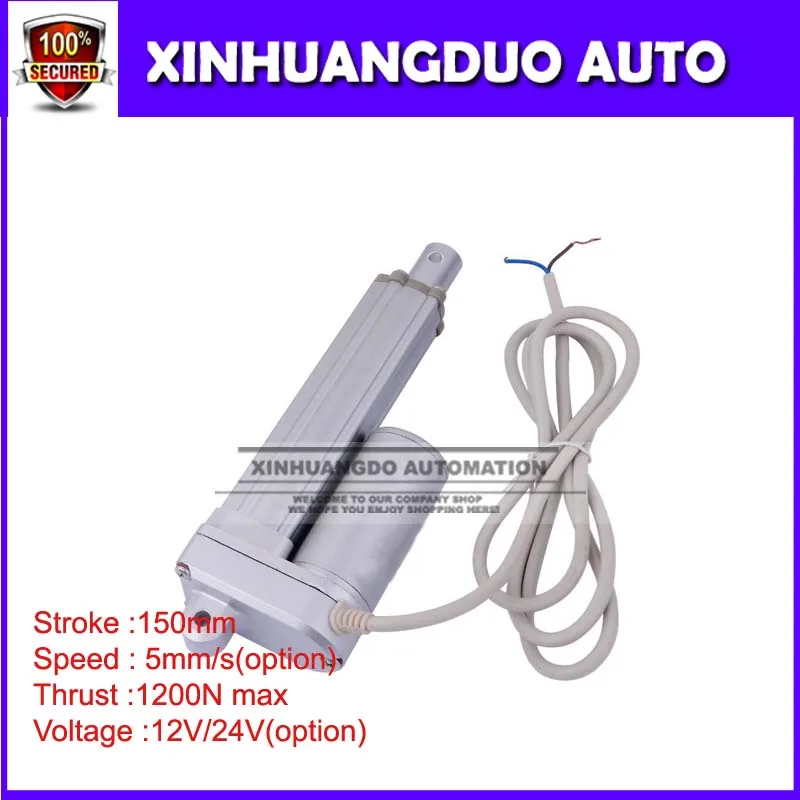

Dear customer: if you placed an order don't tell us that you need the product type. such as : Voltage ,stroke ,thrust, speed We will be delivery 12v  150mm 1200N  5mm/s linear actuator! Qty:1pcs linear actuator if you want other parameter ,you can choose the following parameters: 12V   150MM   1200N      5MM/S 12V   150MM   750N    10MM/S 12V   150MM   500N    20MM/S 12V   150MM   400N    30MM/S 12V   150MM   300N    40MM/S 12V   150MM   200N    50MM/S 12V   150MM   100N    60MM/S 12V   150MM    50N    70MM/S (Leave message which speed you need) Product parameters: Drive voltage: 12VDC  or 24VDC (it can choose) Maximum Thrust: 120KG/1200N Minimum installation size (fully retracted around in the middle of the distance between the two holes):      L1= Stroke+105 mm Maximum installation size (fully extended around the middle of the distance of the two holes):                       L = 2xS(stroke)+105mm Ambient temperature :-26  to +65 degree Protection class: IP 54 Built-in limit switches(When completed stroke, linear actuator automatically stops!) Low noise design, noise levels below 70 db Work rule: 10%. Loading rated thrust need 10% work rule. In 20 minutes, 2minutes work 18minutes rest.            If lower load can extend work time. Maximum self-locking force 2300N

We have matched  linear actuator Mounting Brackets

If you need it ,please click on the following diagram

The linear actuator is auxiliary driving device, widely used in medical, Medical bed, massage chair,   electric foot sofa,  fitness equipment,  care bed, window open, ELECTRIC furniture,household, machinery, metallurgy, mine, petroleum, chemical industry, transportation, lifting, transportation, construction, food and feed processing industry. Widly application in line, massage armchair, automobile, the ventilation window open, military, stage, textile, sewage treatment and other industries equipment.
