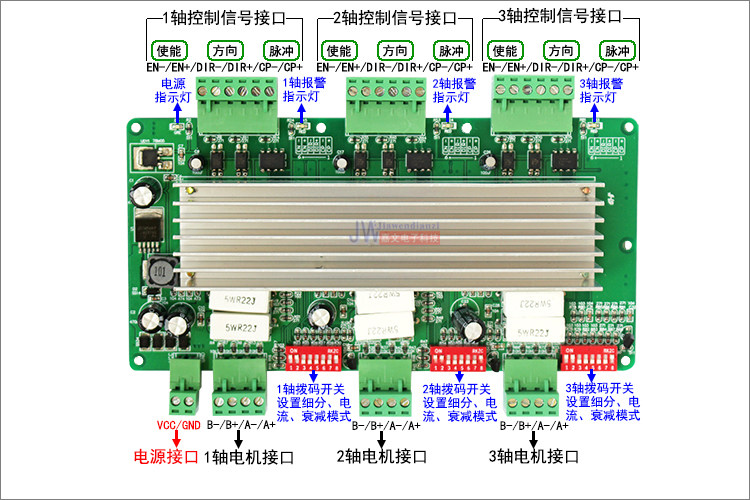

Description: The THB6064AH is a professional two-phase hybrid stepper motor driver that can drive three stepper motors simultaneously. It is suitable for 4-wire, 6-wire and 8-wire two-phase hybrid stepping motors with various current and domestic brands, current phase 4.0A and below diameter 42-57mm. Suitable for all kinds of small and medium-sized automation equipment and instruments, such as: engraving machine, marking machine, cutting machine, laser phototypesetting, plotter, CNC machine tool, pick and place device. It works especially well in devices where users expect low-cost, low-noise, low- and medium-speed operation.   Features: 1. Original imported chip, can drive three stepper motors 2. Subdivision optional (2, 8, 10, 16, 20, 32, 40, 64) 3. Output current 0.5A---4.0A (suitable for 1.8NM and below 57, 42 motors) 4. Working voltage DC 9---32V 5. Signal interface is isolated by optocoupler to ensure high speed without losing step 6. Large heat sink, good heat dissipation performance 7. Strong anti-high frequency interference ability 8.4 attenuation modes are available (20%, 40%, 60%, 80%) 9. Low noise, low vibration and stable operation Electrical environment: Cooling method: Natural cooling or forced air cooling. Occasion: Do not place it next to other heat-generating equipment. Avoid dust, oil, corrosive gas, humidity and strong earthquakes. It is forbidden to have flammable gas and conductive dust. Humidity: 40-90% RH Vibration: 10-55Hz/0.15mm Storage temperature: -20-65 °C Weight: 0.4KG ​     Subdivision settings:

细分数	S3	S2	S1
2	ON	ON	ON
8	OFF	ON	ON
10	ON	OFF	ON
16	OFF	OFF	ON
20	ON	ON	OFF
32	OFF	ON	OFF
40	ON	OFF	OFF
64	OFF	OFF	OFF

Current setting:

电流	S8	S7	S6
0.5	ON	ON	ON
1.0	ON	ON	OFF
1.5	ON	OFF	ON
2.0	ON	OFF	OFF
2.5	OFF	ON	ON
3.0	OFF	ON	OFF
3.5	OFF	OFF	ON
4.0	OFF	OFF	OFF
