Купить Sensorless Motor Controller DC 6.5~24V 12A Brushless Module high-speed high-power brushless motors Driver | Обустройство дома

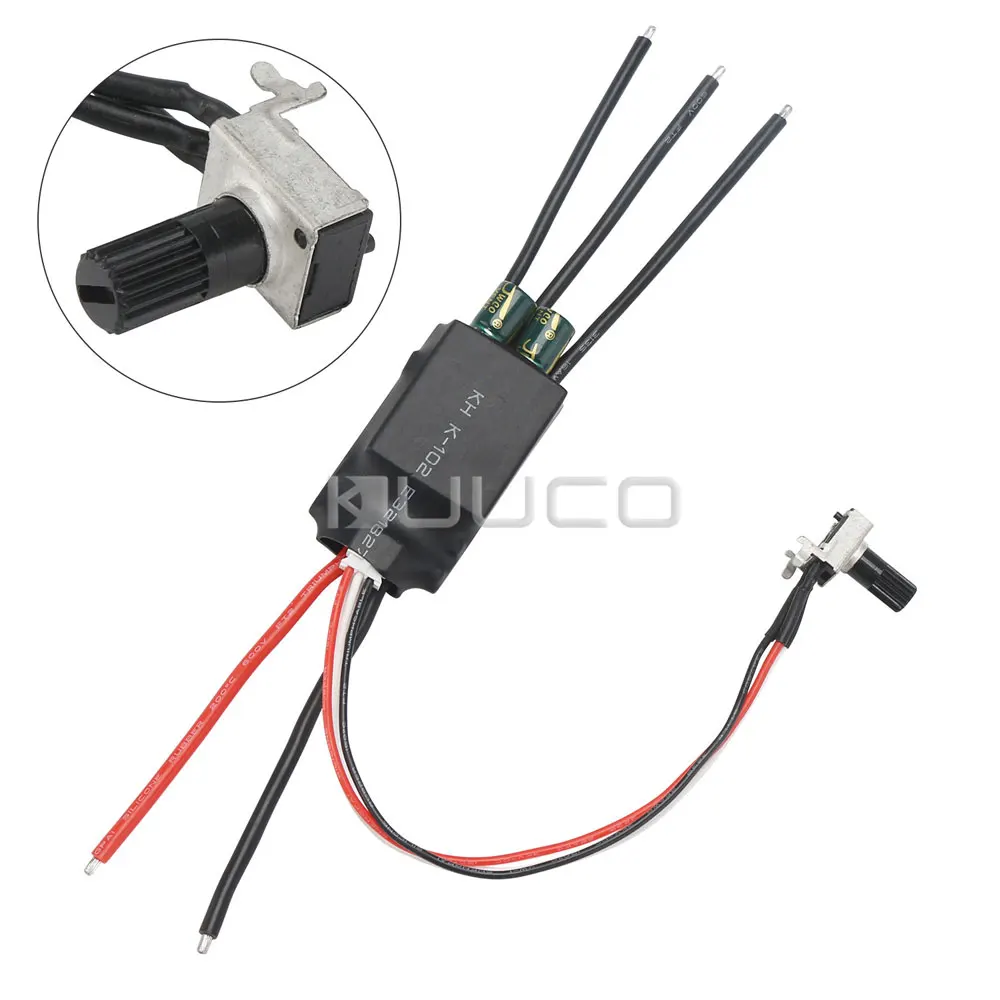

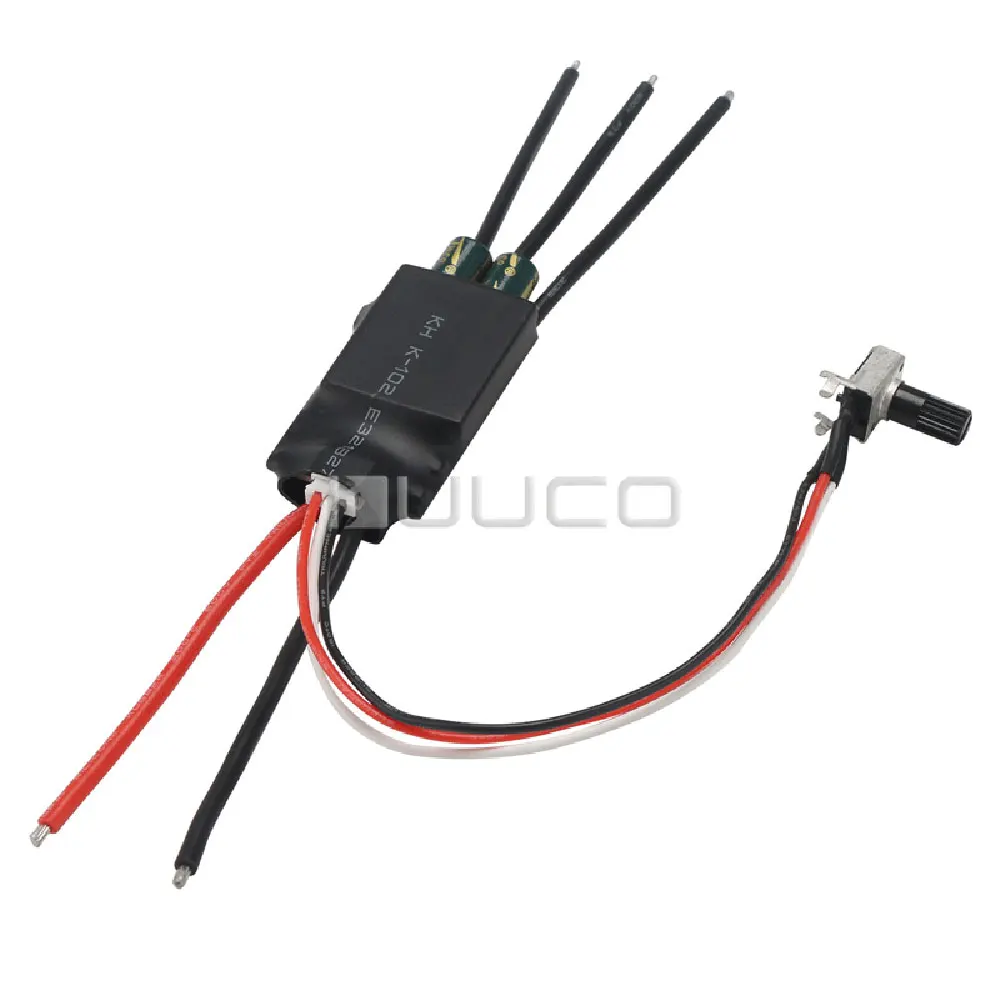

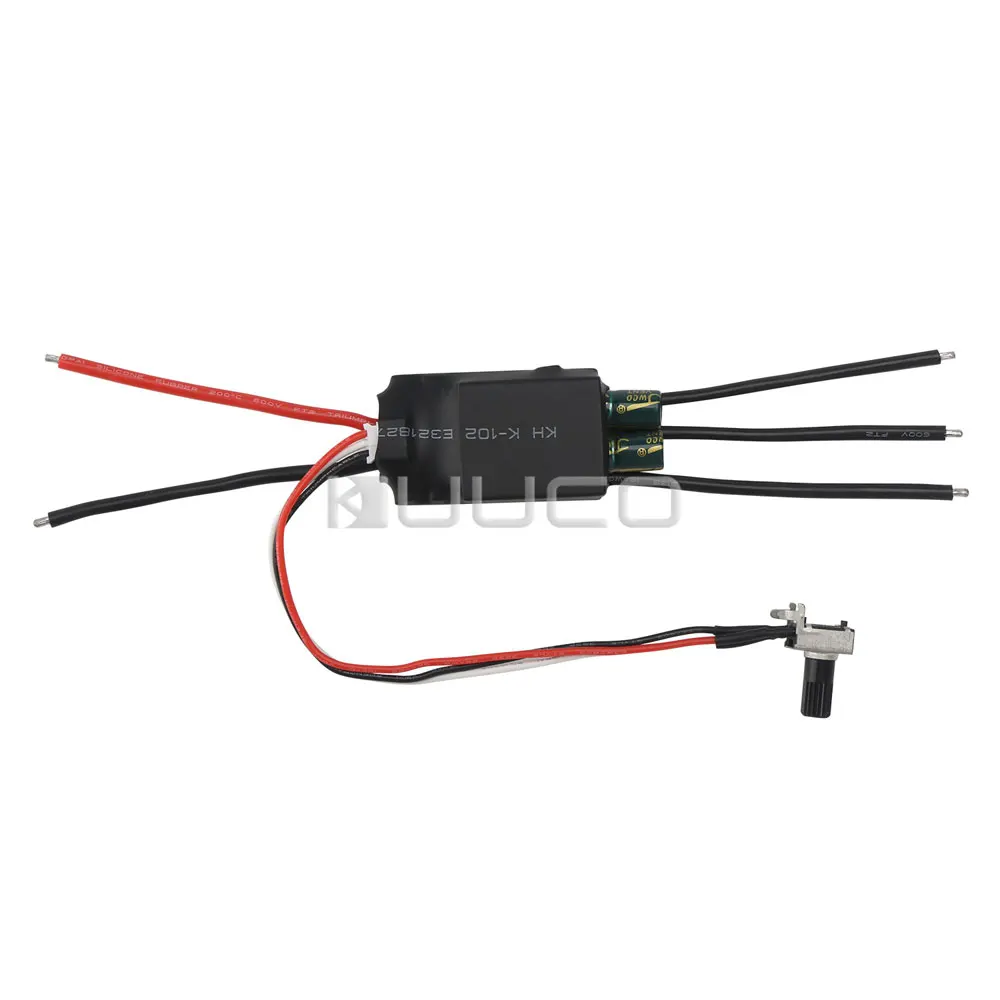

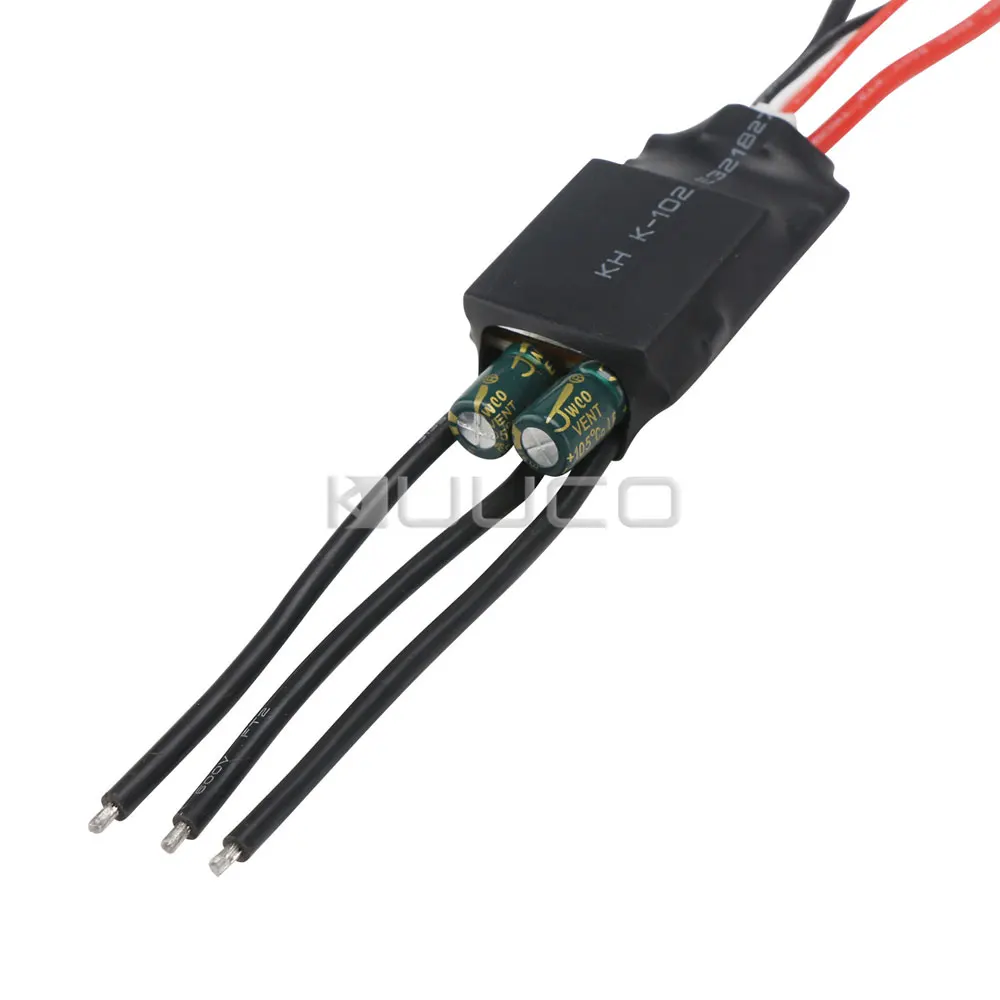

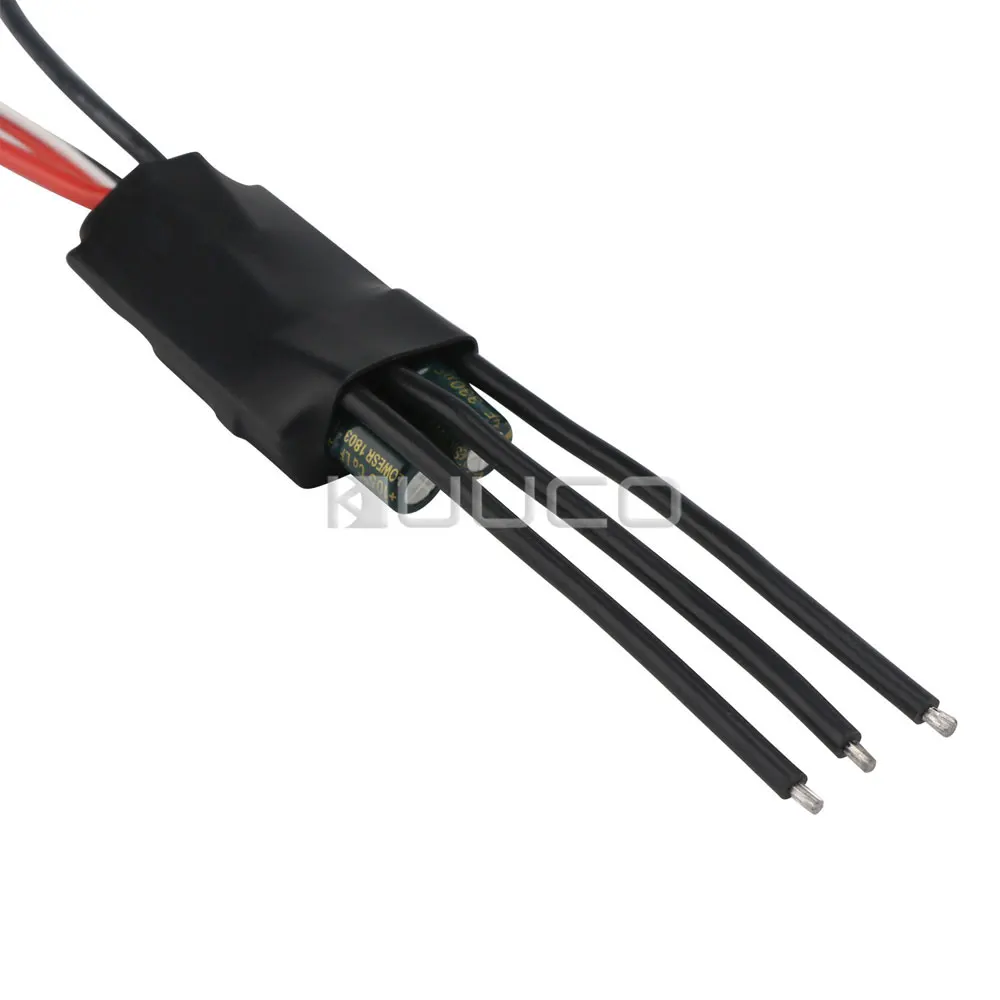

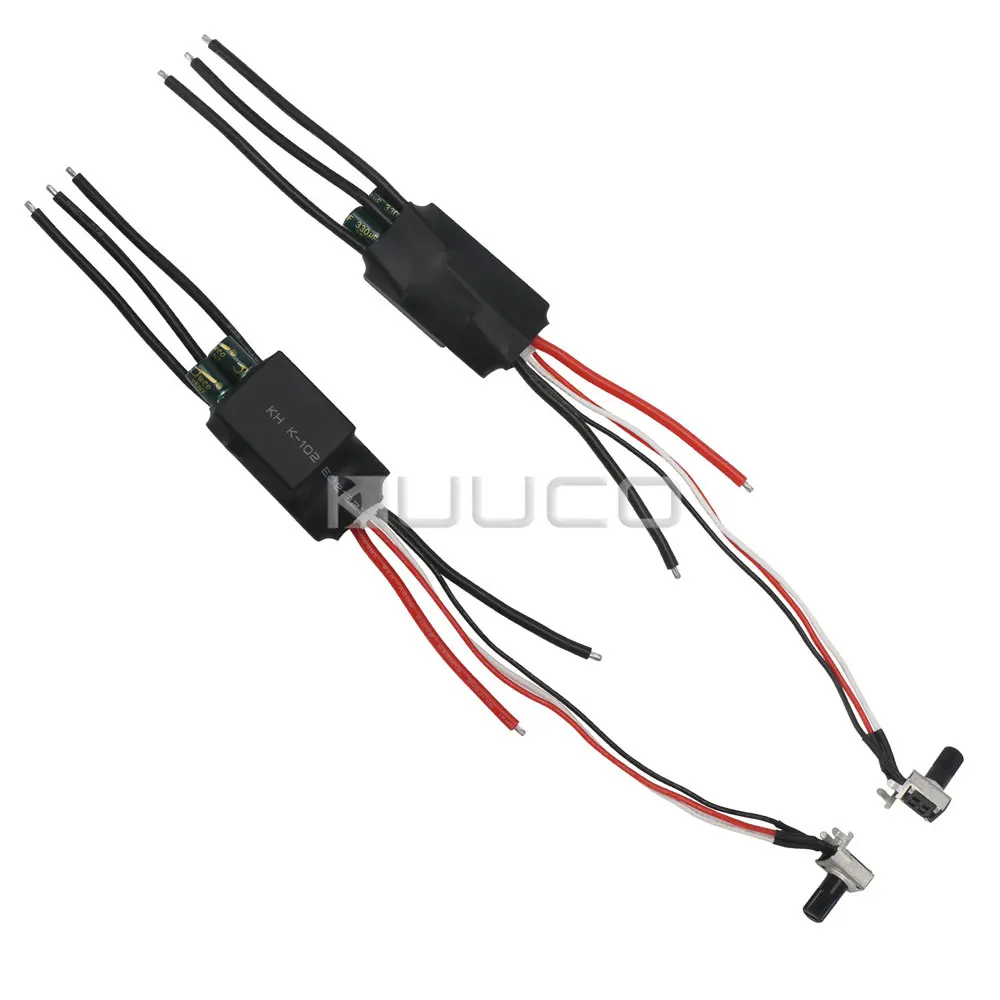

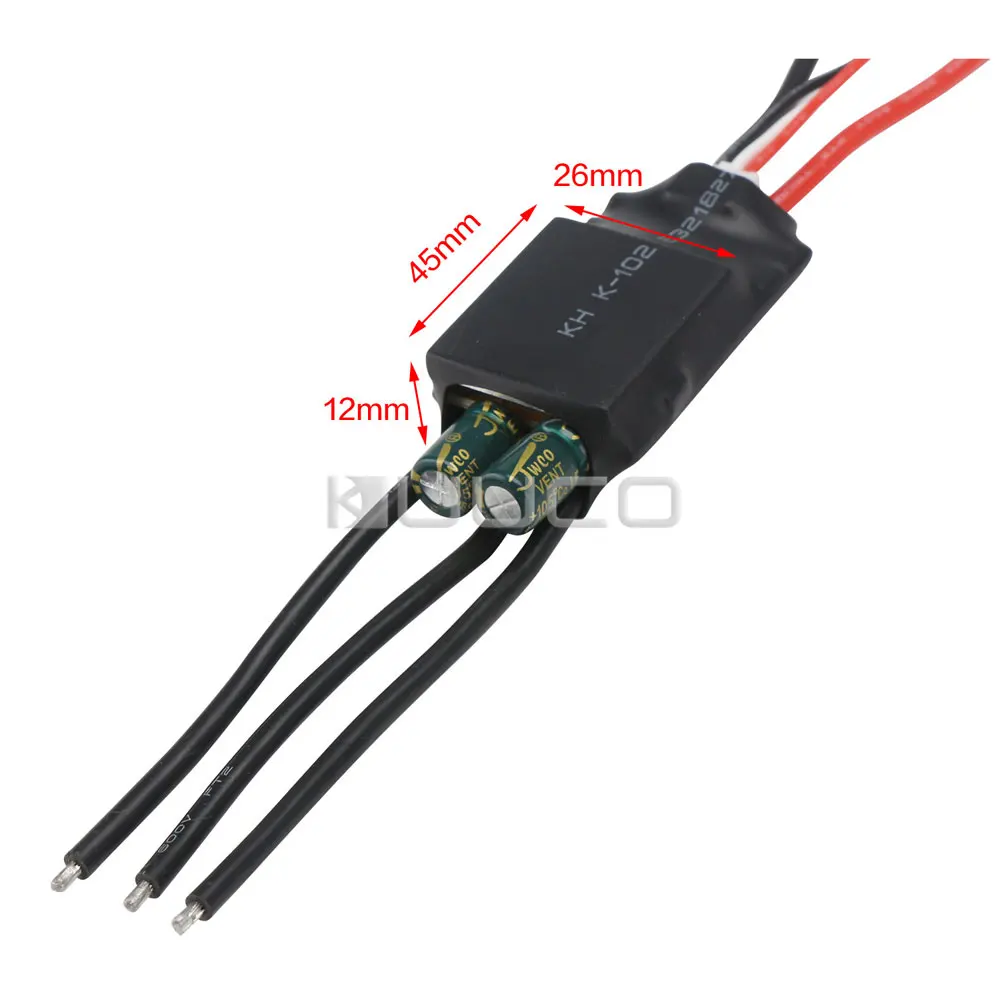

Controller DC 6.5~24V 12A Brushless Motor Control Module/Three-phrase high-speed high-power brushless motors Driver Module

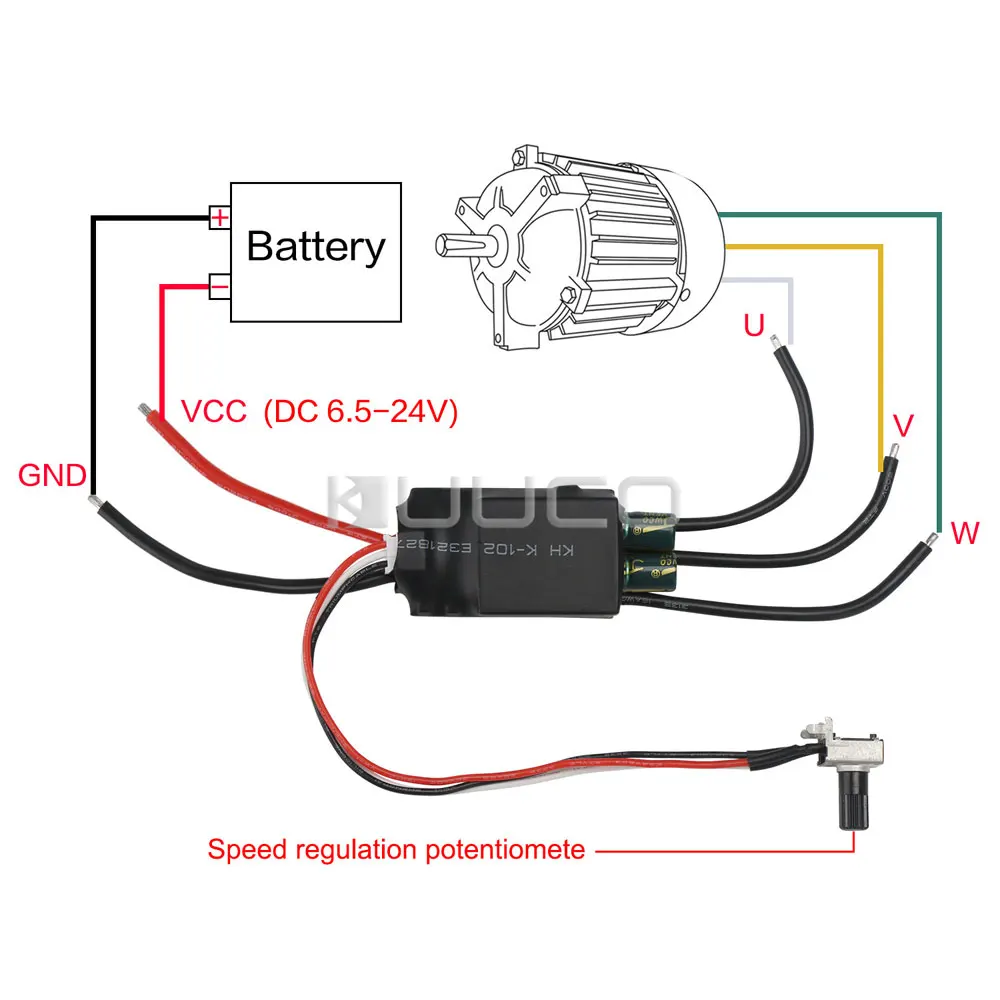

Parameters: Operating Voltage: DC 7~24V Drive current: rated 12A Maximum speed: 224000 RPM (2-pole motor), 74000 RPM (6-pole motor), 40000 RPM (12-pole motor), 35000RPM (14-pole motor) Potentiometer instructions: The potentiometer can regulate speed, does not need an external control signal. Adjust the potentiometer clockwise to accelerate and counter-clockwise to decelerate. It can also be applicable to external PLC 0-5 analog quantity control. Unplug the potentiometer cable, the external 0-5 analog quantity control signal and ground line, respectively connected with the brush-less driver board input signal end, only needs two lines connection. Attention: It is specially designed for all kinds of industrial control electric tools such as air pump, water pump, oil pump and fan which use DC three-phase brush-less motor. Default medium angle. For long time high current work, please use fan to enhance heat dissipation. It is designed with overheat protection. When the external heat dissipation condition of the ESC is poor, the power is automatically reduced when the temperature exceeds 100 degrees, and it will recover when the temperature drops to 100 degrees. The power supply circuit on the main board has no fuse, it is suggested to install by own. Please kindly note that don’t connect reserve the positive and negative of the power supply, it will cause the chip on the board to be permanently damaged (even if it is only 1 second). There is motor stall protection during normal operation. Since the module power and current are very large, please do not artificially short circuit when the module is not working normally. Once the short circuit, it may burn the line. Please use low current and voltage to the test for the first wiring, after confirming it is ok, then work with higher current or higher voltage Do not connect to the motor that is obviously inconsistent with the voltage range and current of the drive module or the parameter is different far away, to avoid damage. Package Includes: 1 x BLDC Motor Controller ( Motor Driver/Motor Control Module/voltage regulator )
