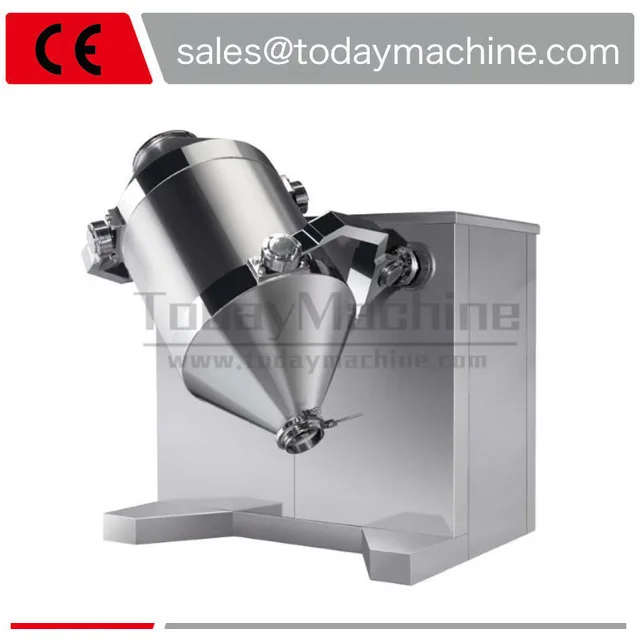

3 Dimension Mixer Mixing the powder state and grain state materials to achieve high uniformity in the pharmaceutical, chemical, food, light-industry, electronic, mechanical, metallurgical, nation defense industries and other science and technology institutes.

---

Description

Three dimension mixer. The mixing barrel of the machine moves in multi-direction. For the materials, there is no centrifugal function, without the specification gravity segregation and the layer division. For each of build-up phenomenon, there is the remarkable weight rate. The mixing rate is high. The machine is the desired one of various mixers at present.

Working Principle

The barrel for charging the materials is driven by the driving shaft. The barrel body carries on the repeated level movement, rotation, turning and other complex movements so that the materials will carry out the three dimensions and complex movements along the barrel body so as to realize the various movements of the materials. Through disseminating, gathering, agglomerating and mixing to realize uniform mixing.

Characteristics

The material charge rate of barrel is large. Maximum rate can be up to 80% (while normal mixer has only 40-50% of charge rate.). It is high in efficiency and short in mixing time.

The barrel adopts arc shape connections and it’s well polished.

Technical parameter

Model	Barrel volume (L)	Max contain volume (L)	Rotation speed (r/min)	Electric	Power (kw)	L×W×H (mm)	Weight (kg)
SYH-16	16	12	10-30	220V/380V	0.37	800x800x800	70
SYH-50	50	40	10-30	220V/380V	0.75	1000x1000x1000	150
SYH-150	150	120	10-30	220V/380V	1.5	1200x1200x1450	250
SYH-200	200	160	10-30	220V/380V	2.2	1350x1350x1600	400

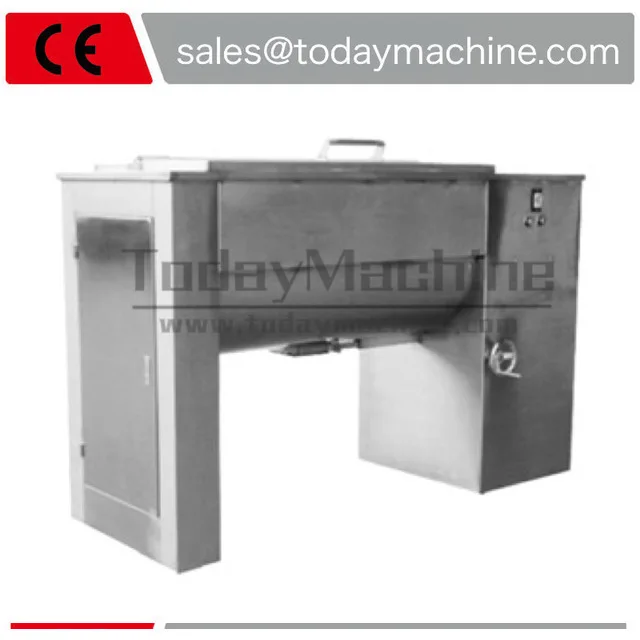

  Ribbon Blender Used in the mixing of solid-solid (ie powder and powder) solid-paste (ie powder and cement) for pesticides, veterinary drugs, food, chemicals, biology, aquaculture, ceramics, refractories, plastics, compound fertilizers, etc. It is also specially adapted to the mixing of viscous materials.

---

Characters

It consists of a U-shaped container, a ribbon stirring blade and a transmission component;

The U-shaped long body cylinder structure ensures small resistance movement of the mixed material (powder, semi-fluid) in the cylinder.

The positive and negative rotating screws are installed on the same horizontal axis to form a low-dynamic and high-efficiency mixed environment. The ribbon-shaped blades are generally made of double or triple layers, and the outer spirals gather the materials from the sides to the center. The spiral transports the material from the center to the sides, allowing the material to form more eddy currents in the flow. Speed ​​up mixing and increase mixing uniformity;

Horizontal ribbon mixer is a new type of mixing and mixing equipment with high efficiency, high uniformity, high loading factor, low energy consumption, low pollution and low crushing.

Technical

Model	Volume (L)	Voltage	Max contain (L)	Speed (r/min)	Motor power (kw)	Feed motor power (kw)	Dimension (L*W*H) (mm)
RB-200	200	380V	160	26	2.2	0.55	1550*550*1100
RB-300	300	380V	240	23	3	1.5	1920*650*1450
RB-500	500	380V	400	20	4	2.2	1950*750*1480
RB-600	600	380V	480	20	5.5	2.2	2380*850*1500
