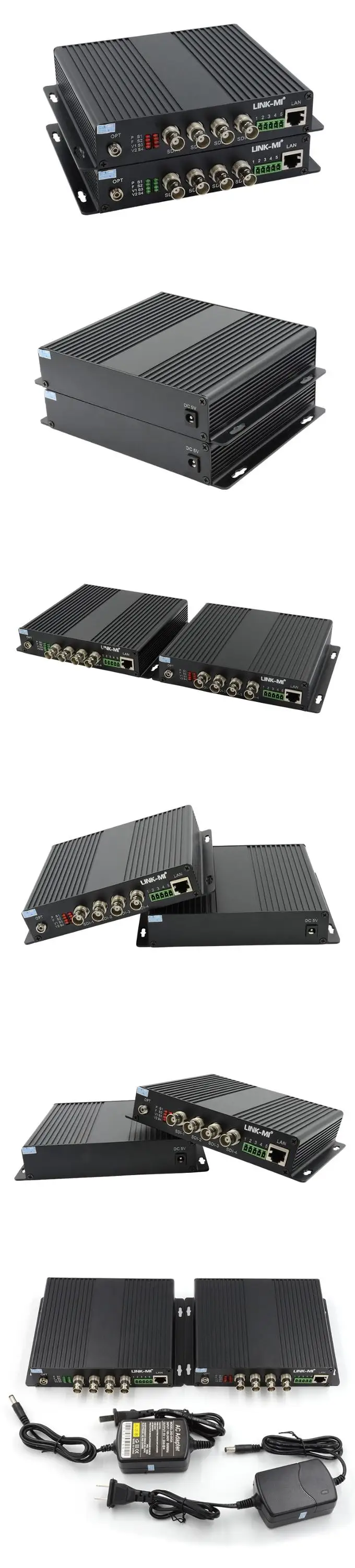

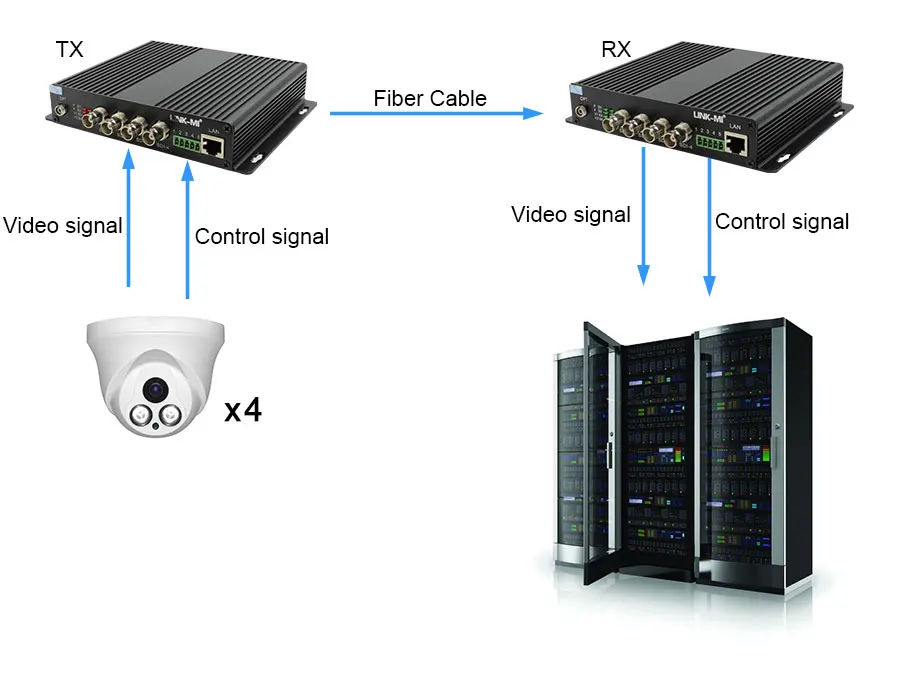

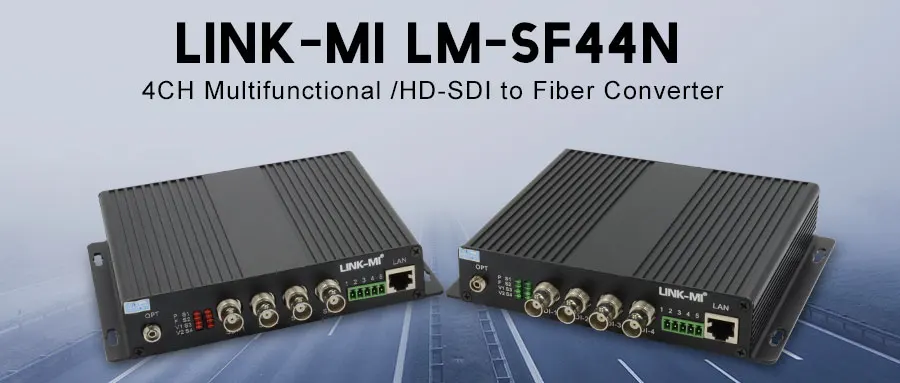

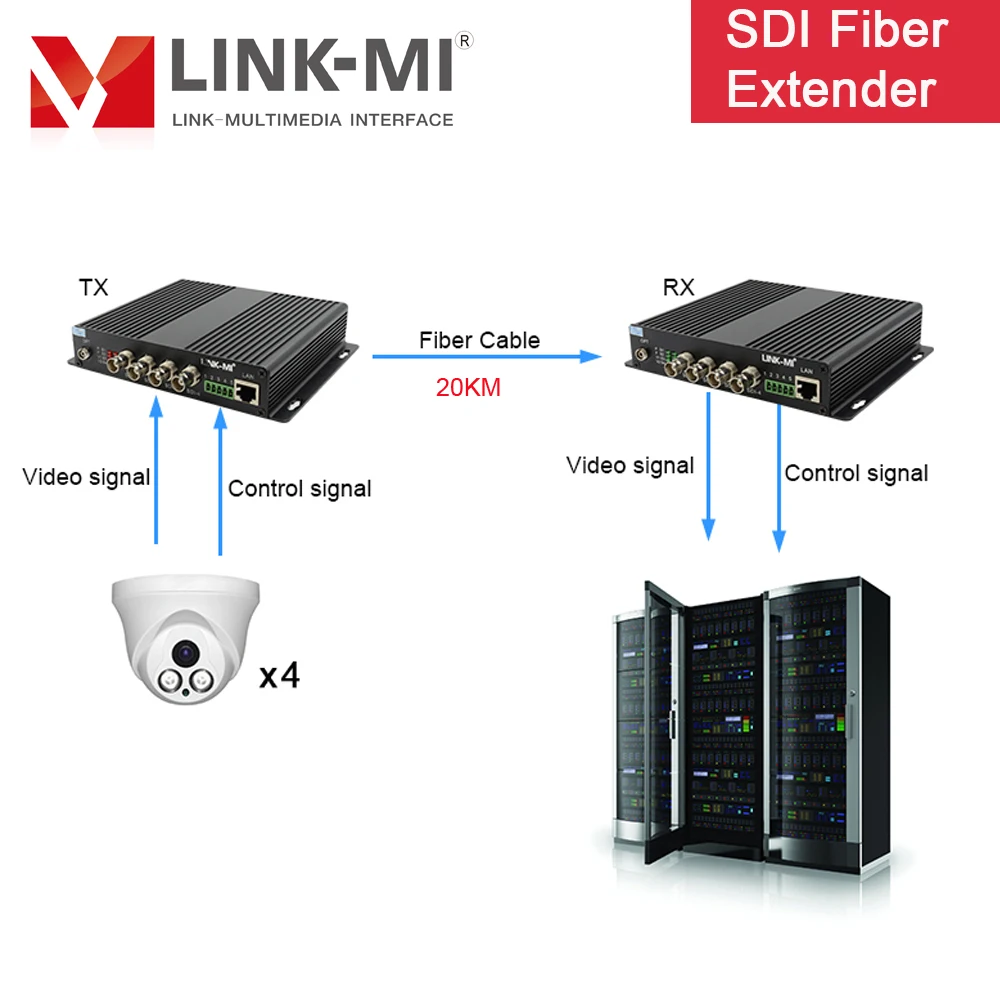

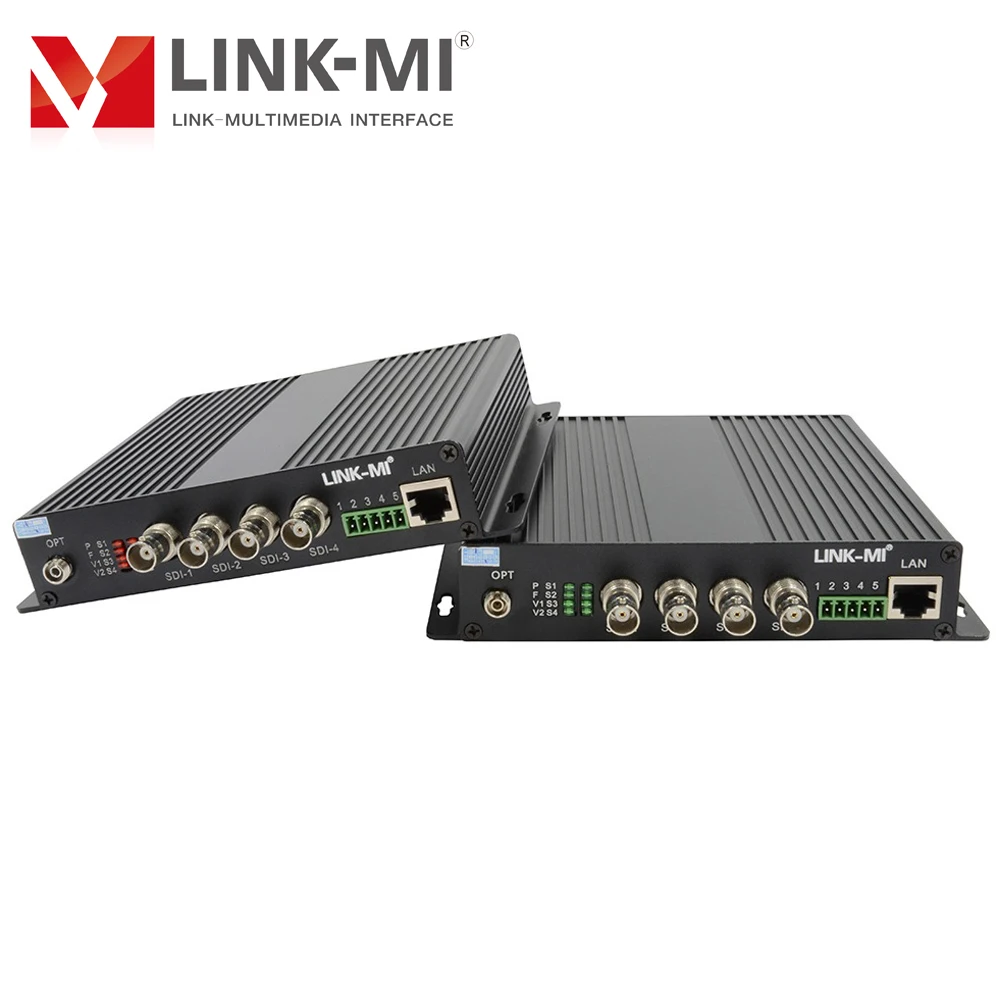

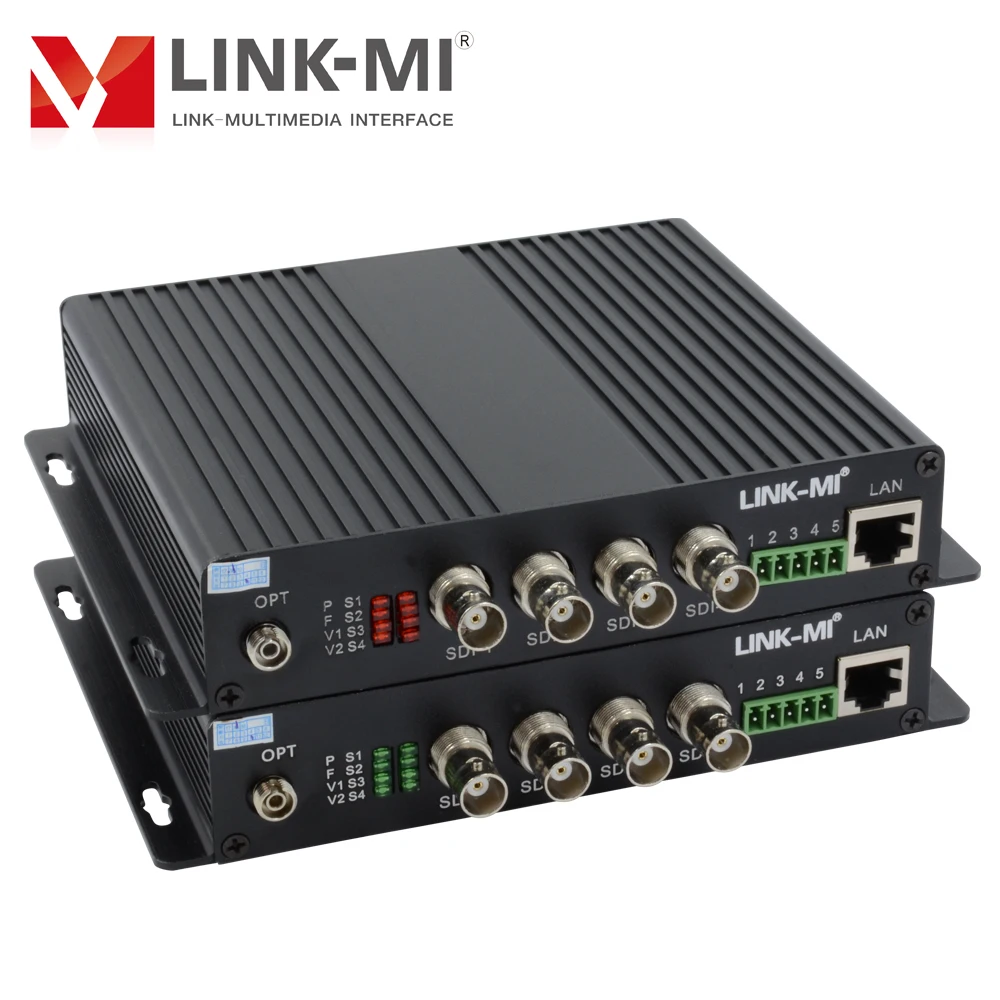

 LINK-MI LM-SF44N The multifunctional 4CH HD-SDI To Fiber converter also named as 4CH SDI fiber multiplexer or 4 port sdi fiber optic extender, which consists of 1 piece of SDI fiber transmitter and 1 piece of SDI receiver .It transmits 4CH Unidirectional 3G/HDSDI signals (also compatible ASI,and each SDI signal includes 1 embedded audio signal)and 1ch bidirectional analog audio,1ch 10/100M ethernet,1ch bidirectional RS485/ RS232 to a long distance over one fiber. It's a popular product widely used in TV live broadcast, high-definition video conferencing, video surveillance and other fields.

1. Compatible with SMPTE-424M, SMPTE344M, SMPTE-292MHD-SDI and SMPTE-259M SD-SDI standard signals, supporting 1485Mb/s and 270Mb/s, 2.97Gbps rate

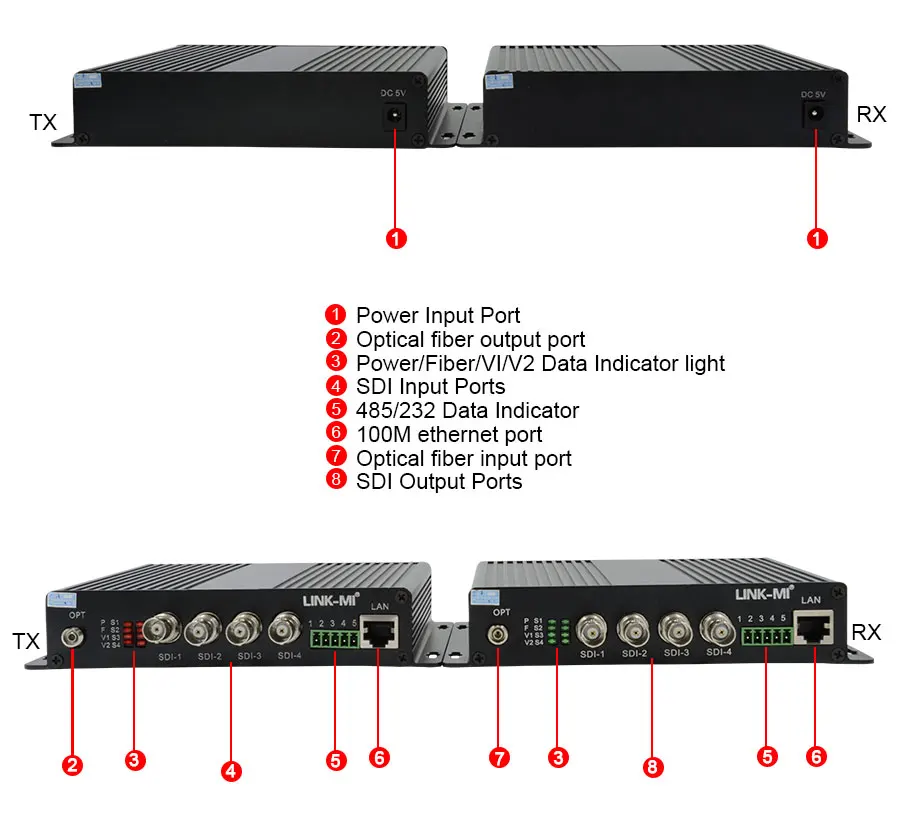

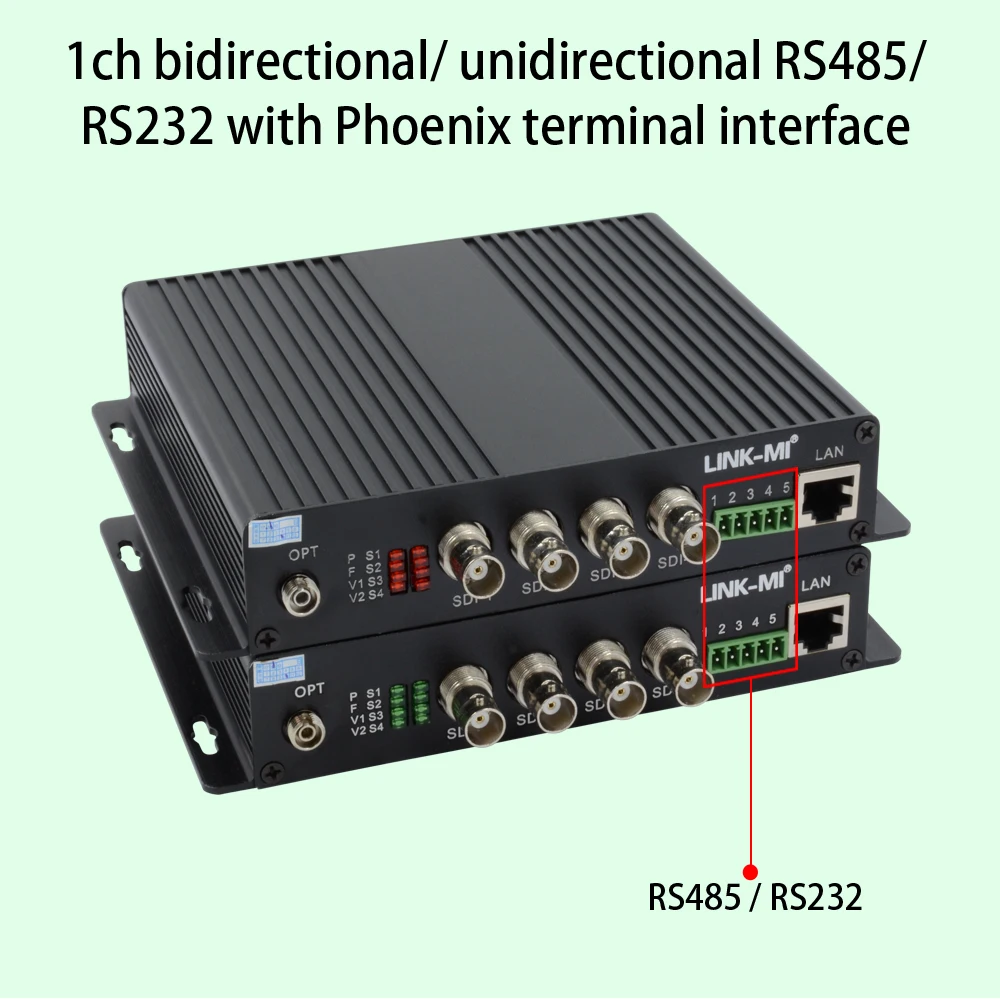

2. Support 1ch 10/100M ethernet with RJ45 interface and 1ch bidirectional/ unidirectional RS485/RS232 with Phoenix terminal interface, up to 115.2Kb/s baud rate

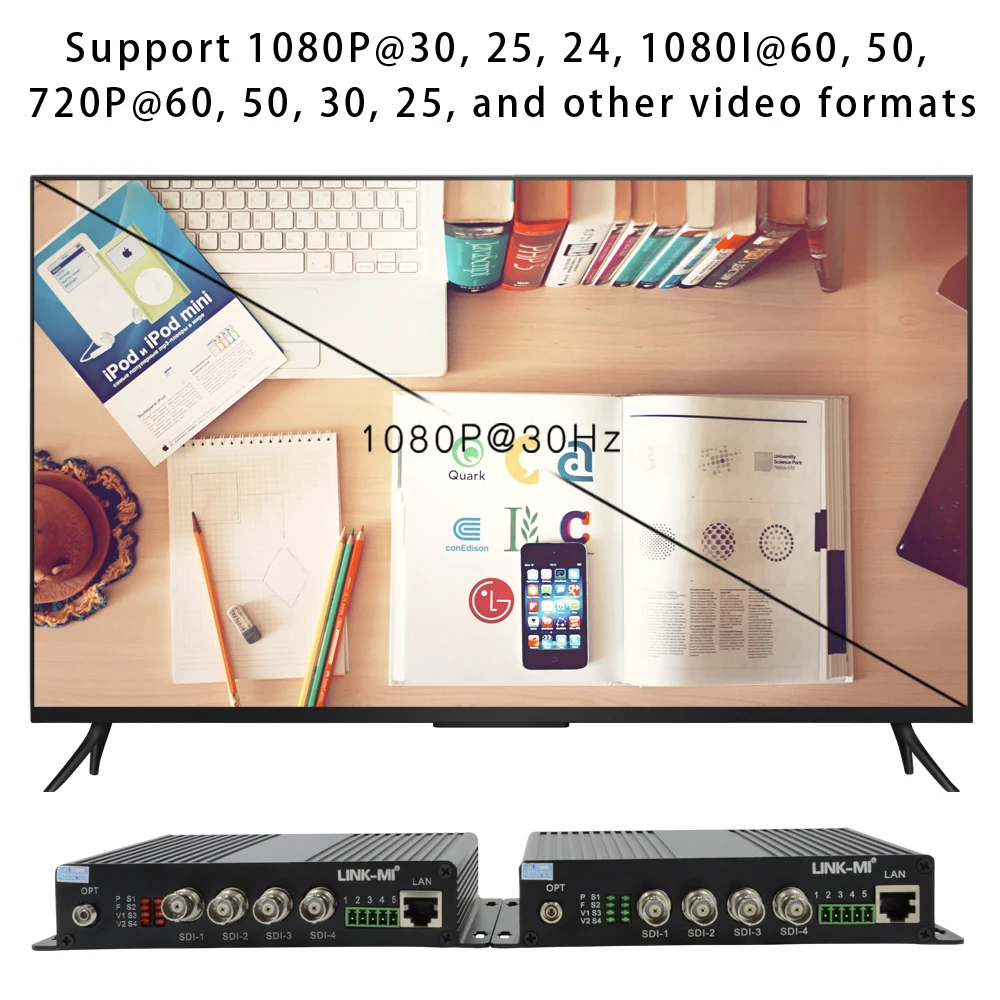

3. Support 1080P@, 30, 25, 24, 1080I@60, 50, 720P@60, 50, 30, 25, and other video formats.

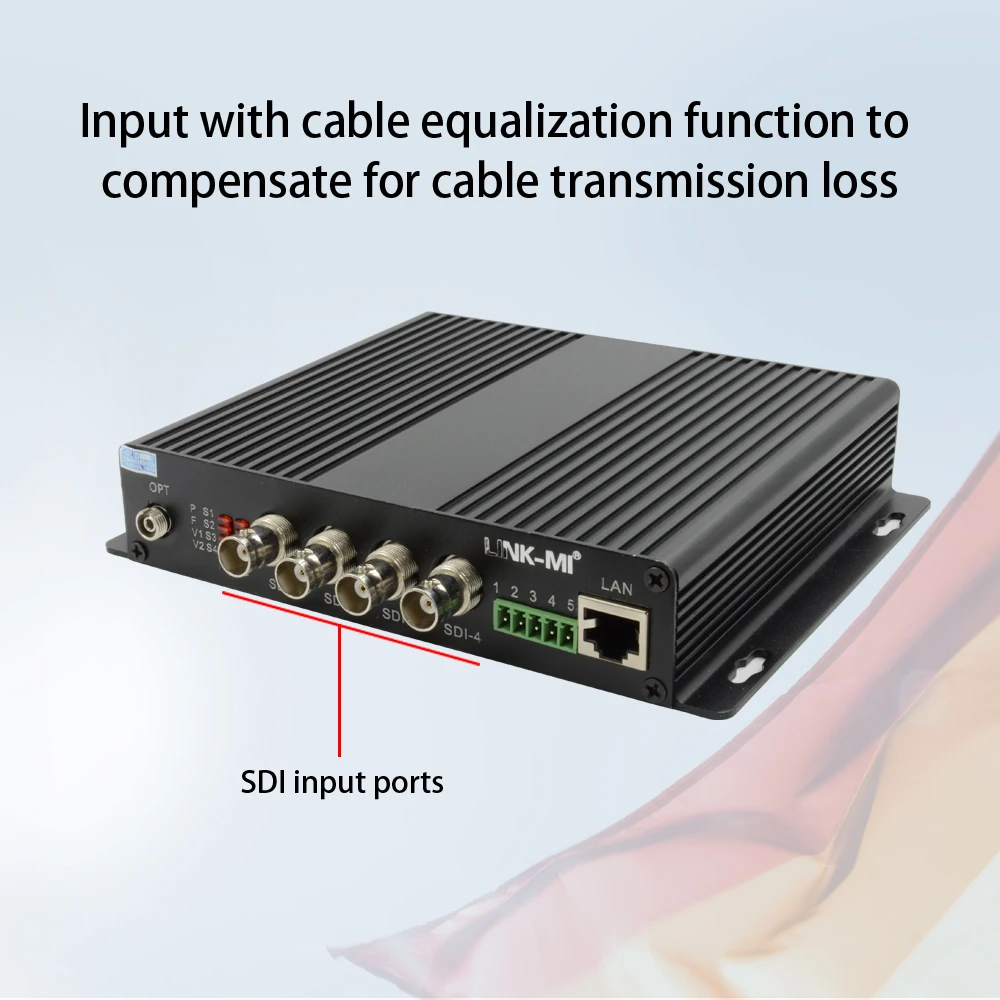

4. Input with cable equalization function to compensate for cable transmission loss
5. Built-in ESD and surge protection circuit to prevent static electricity and lightning damage
6. Provide optical disappearance alarm, remote power failure alarm, output signal status indication, and input signal lock status indication
7. Stand-alone type or card-type installed in 19'' 4U rack-mount chassis.
