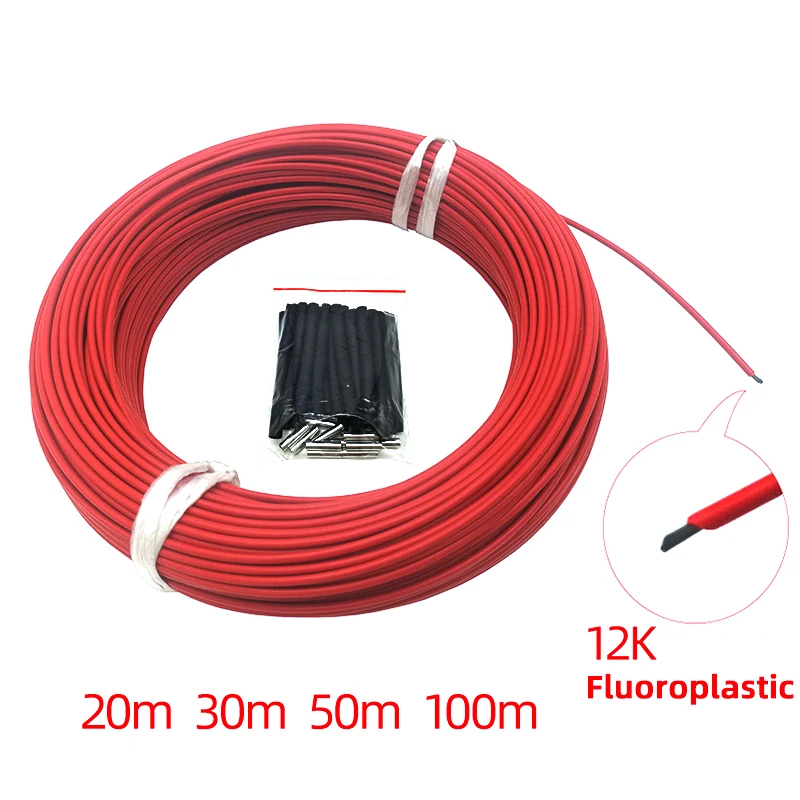

12k 33Ohm Фторопластовый нагревательный кабель с углеродными волокнами низкая цена 20м 30м 50м 100м электрический обогреватель Minco Heat для комнаты Hotline on - купить

Купить 12k 33Ohm Фторопластовый нагревательный кабель с углеродными волокнами, низкая цена, 20м, 30м, 50м, 100м, электрический обогреватель Minco Heat для комнаты Hotline on.

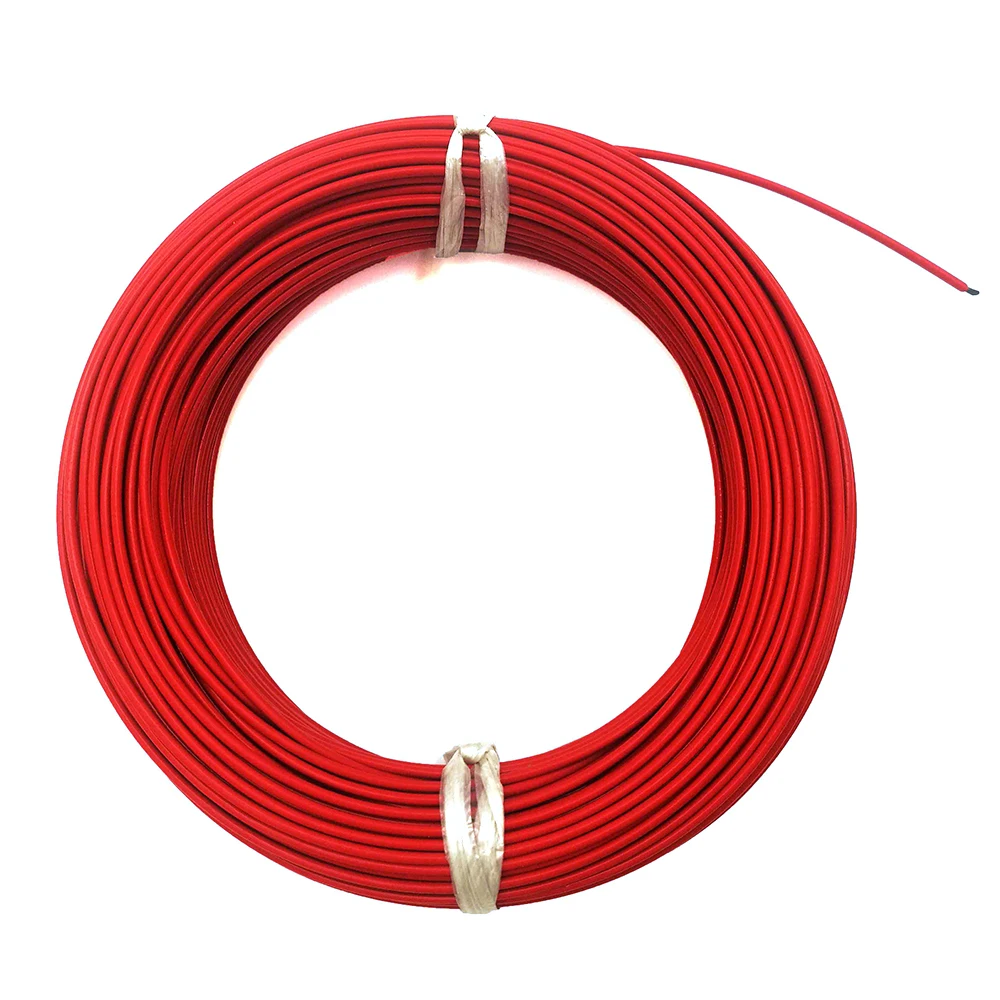

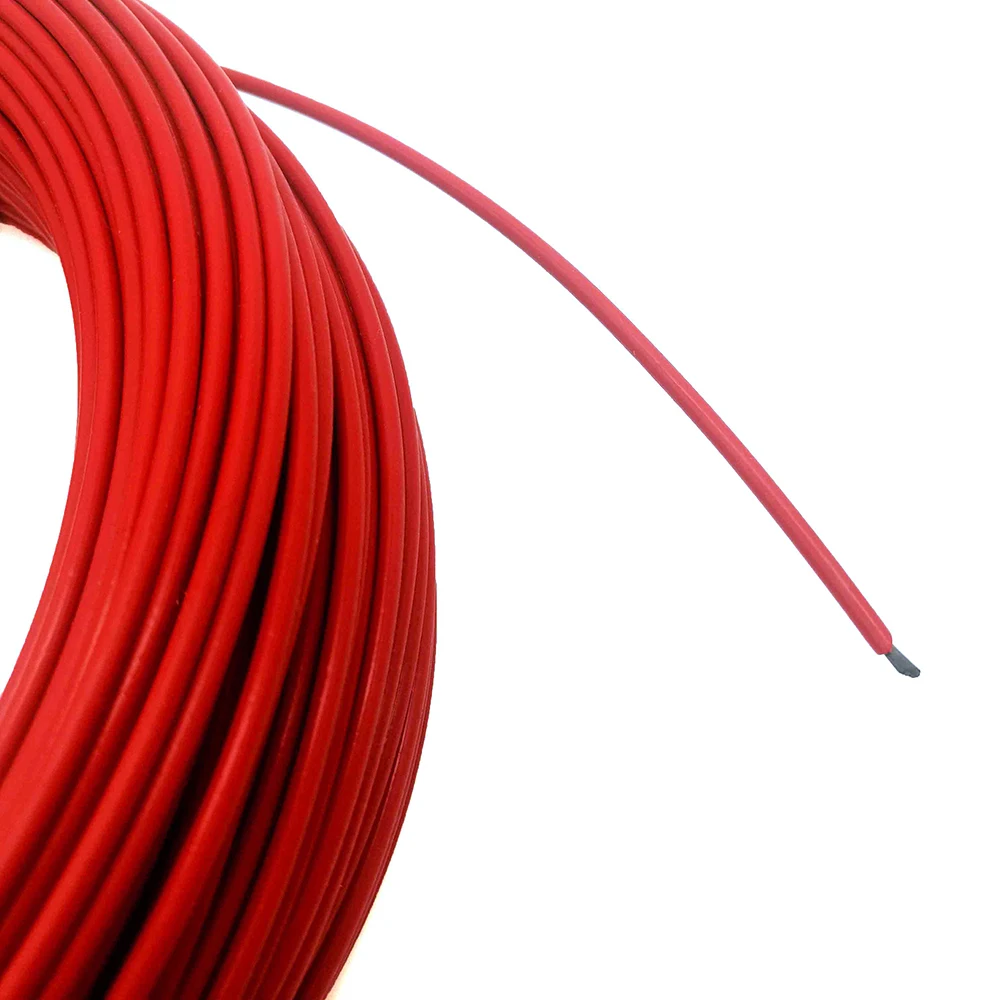

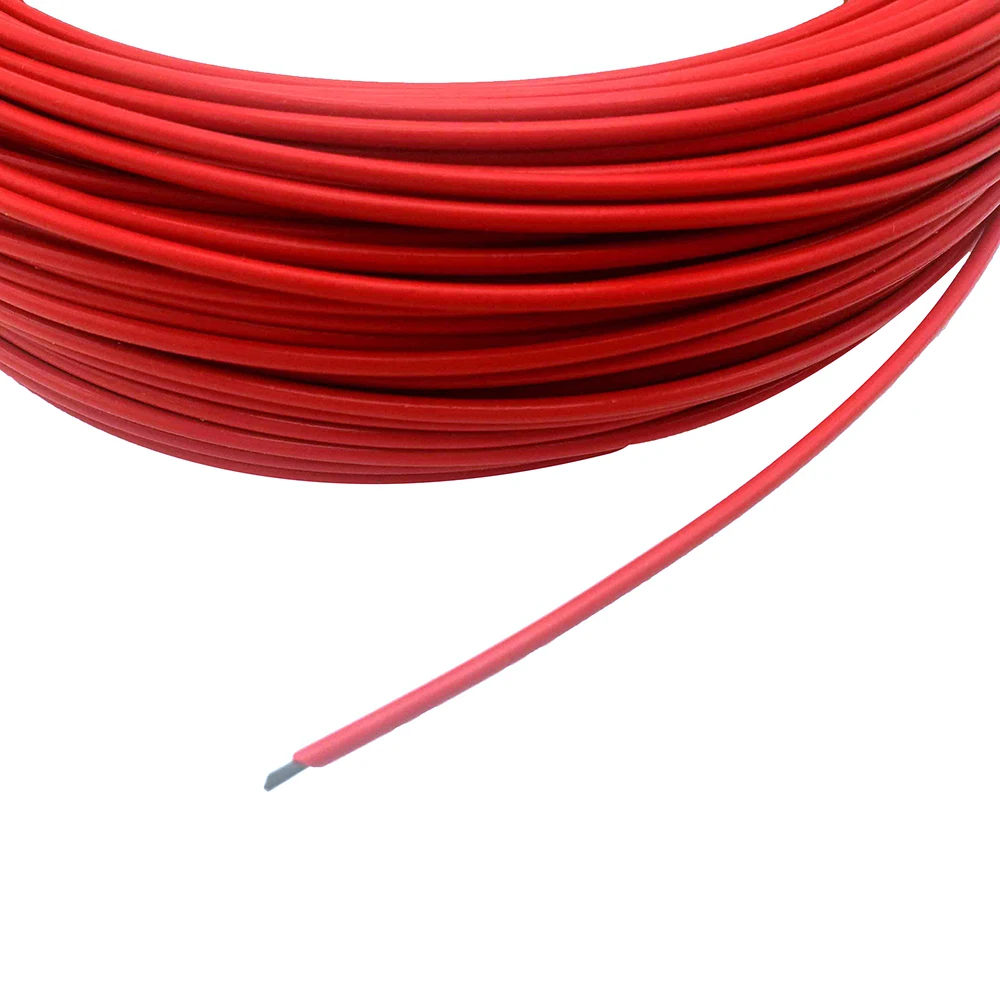

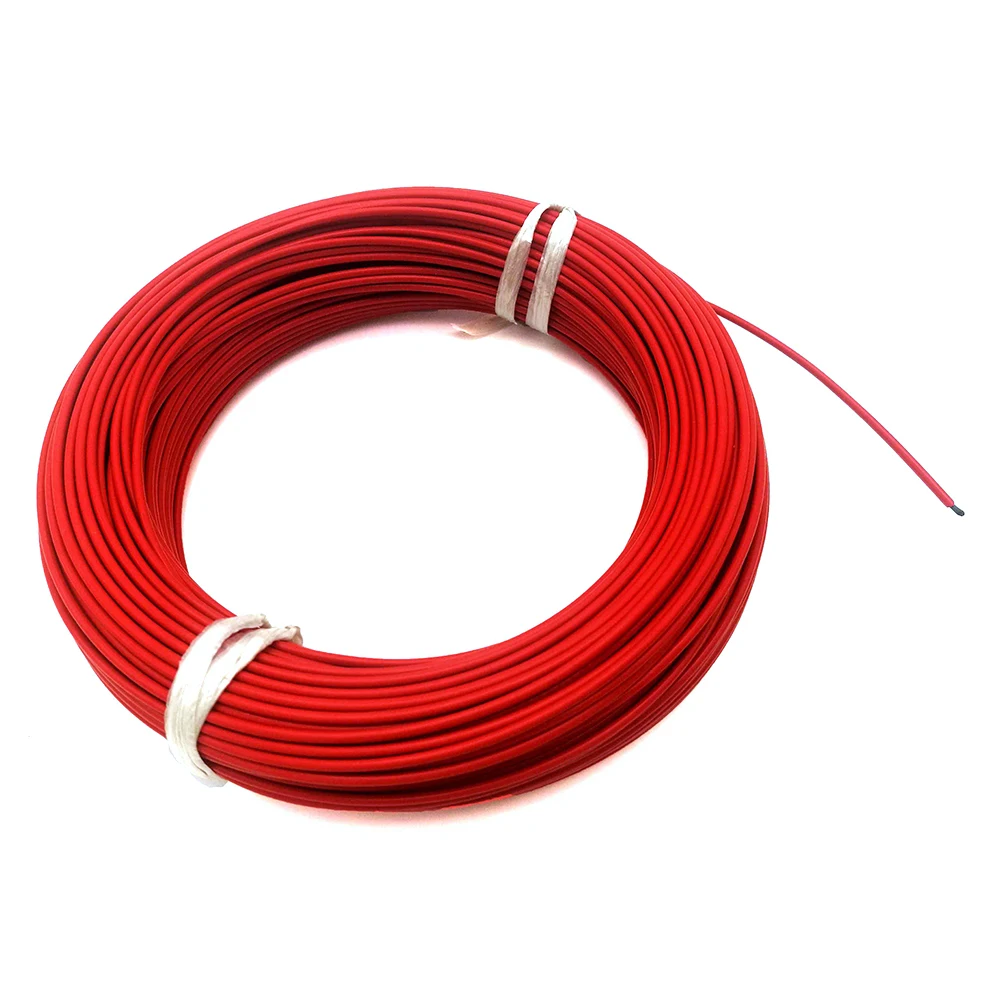

Product Name:  Carbon fiber heating wire

Outer jacket:Fluoroplastic

Temperature: 200 degrees celsius limit

Heating conductor: 12K

High voltage test: 3000V

Leakage current: 0.05mA/m

The product can withstand the power of power: 25W/M

Diameter: 1.9mm-2.1mm

Optional colors: Red

Infrared wavelength: 8UM-18UM

Conductor resistance: 33 Ω / M (+-10%)

Product Power Calculation:

Voltage * voltage / total resistance = power

For example: 12K carbon fiber, length of 10 meters

220V × 220V / (10 m x 33 Ohm) =150 watts

For example: 12K carbon fiber length of 15 meters

220V × 220V / (15 m x 33 Ohm) =100 watts

The data shows that the longer heating wire you use and the smaller output power. (The min length of 12K carbon fiber heating wire is 10 meters)

Product Advantages:

1.High energy-efficient: Don't need other transmission medium, the electrothermal conversion efficiency is above 98%.

2.Comfortable and healthy: New infrared floor heating, make the temperature uniformity, promote blood circulation.

3.Easy to install: The carbon fiber heating wire cost a little, and has a long life span,  an investment, life-long benefit, low maintenance costs.

And etc...

If you are in Russia,please click hereto choose to ship from Russia, we will ship from Moscow warehouse.

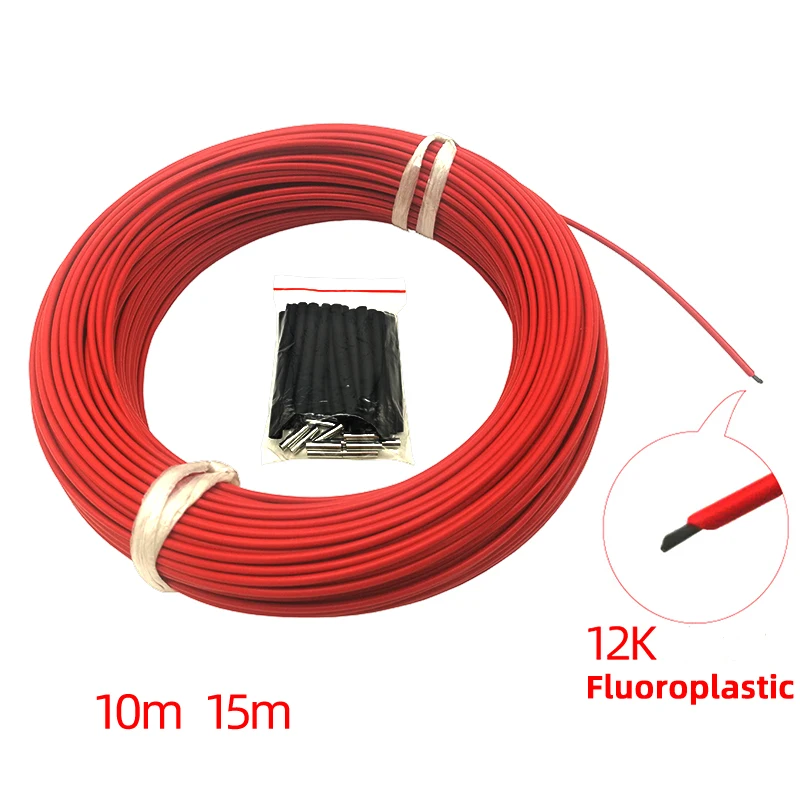

We also have heating cable(cold wire connected) and other lengths(10m,15m) cable, please click the picture below to buy(customize lengthplease contact me):

How to wiring?

1. Floor heating for Home and office: Homes, villas, hotels, office buildings, hospitals, shopping malls

2. Floor heating for public areas: Swimming pool, soccer field, gymnasium, museum, memorial hall, the kindergarten

3. Floor heating for large public facilities: Bus terminal, parking lot, airport, highways

4. Floor heating for professional field: Botanical garden, greenhouse, laboratory

And other heating applications..etc...

The marched thermostats:

Click the below picture to have more choose about thermostat
