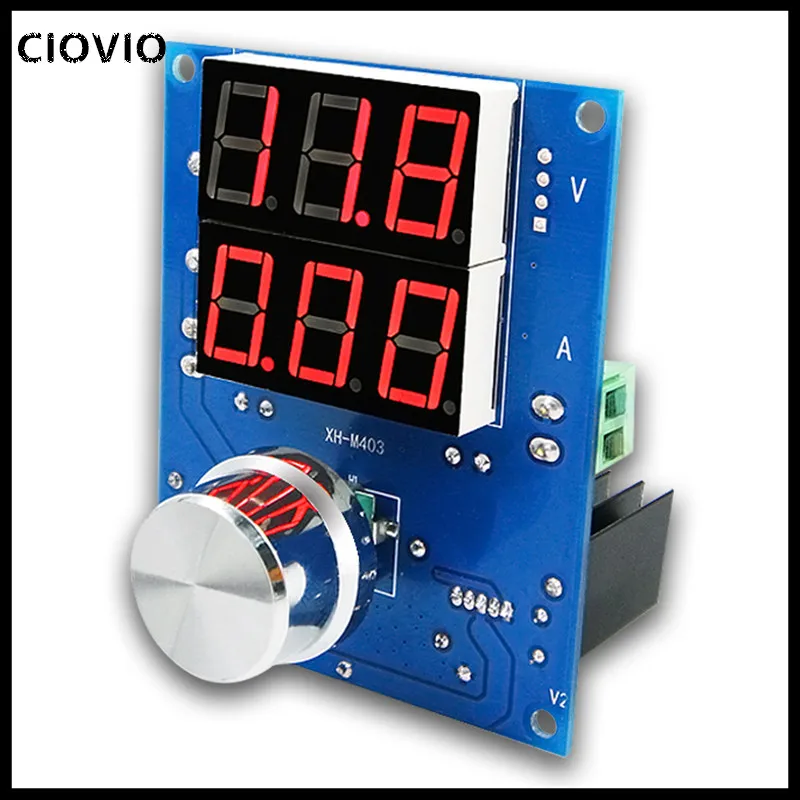

Digital Voltage and Current Regulator Module High Power 8A DC Converter 12V 24V Обустройство дома - купить

Купить Digital Voltage and Current Regulator Module High Power 8A DC Converter 12V 24V | Обустройство дома

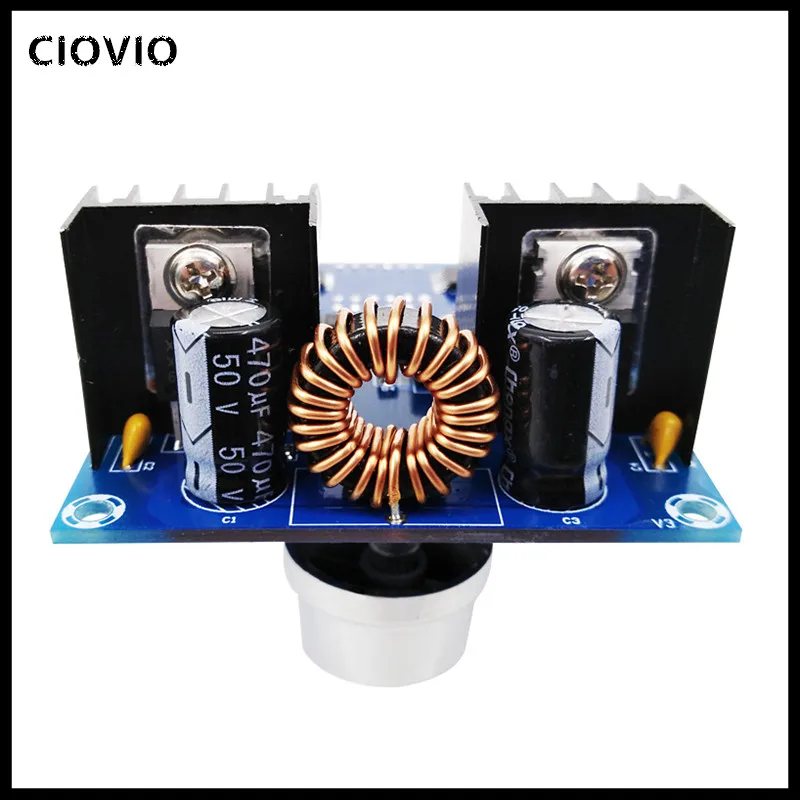

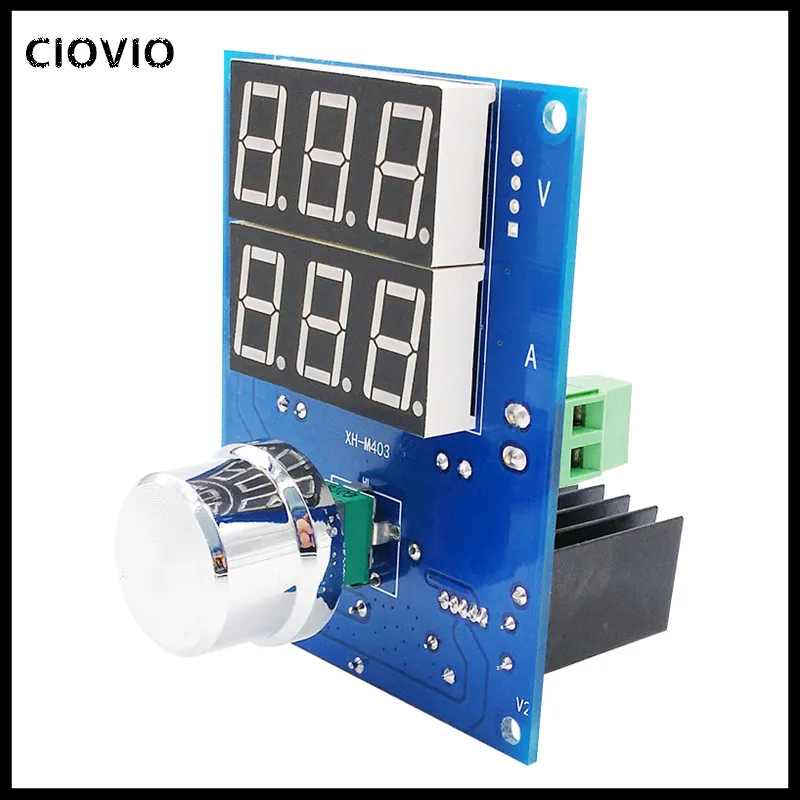

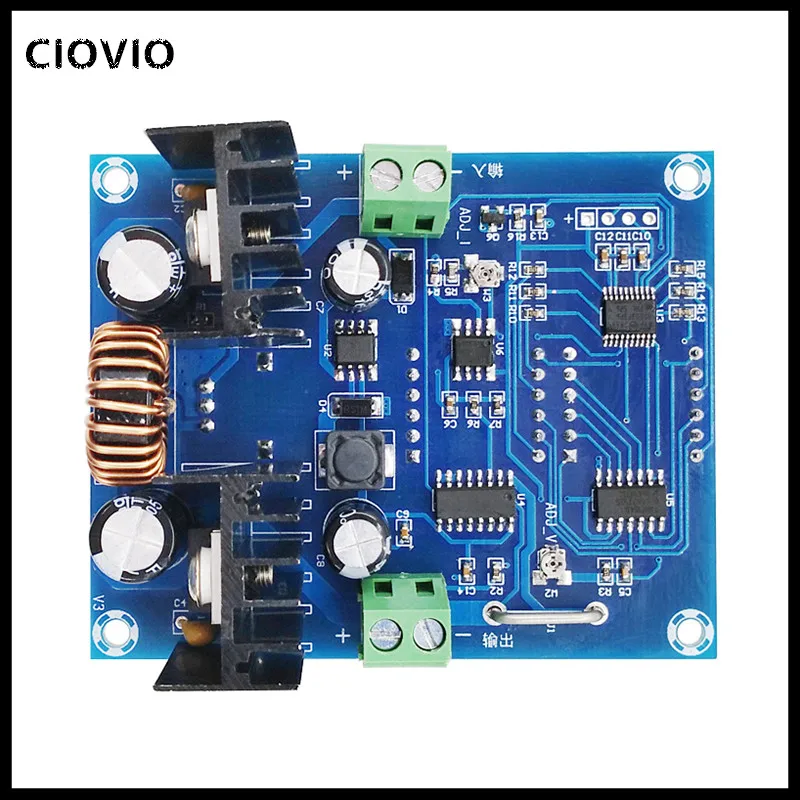

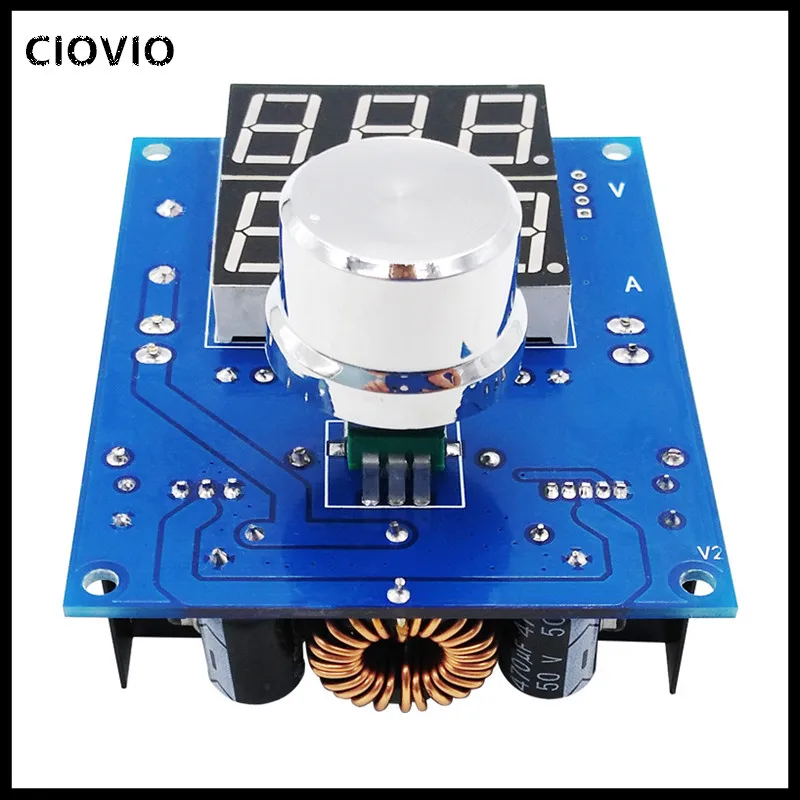

Description:   This is Digital DC Step Down Module Built in XL4016 Chip with High Power.   Product name：Digital DC regulator board   Product model：XH-M403   Pressure regulation mode：PWM modulation   Input voltage：DC4-40V   Output voltage：DC1.25--36V   Maximum current：8A (long term recommendation 5A)   Maximum power：200W   Conversion efficiency：94%   Switching frequency：180KHz   Appearance size：78*63*40mm   Other functions：Short circuit protection current measurement     Features:   Real time display output voltage without detection. It is convenient and safe. The Low voltage display accuracy 0.1V.       Application:   1. Electronic maintenance application 2. Rectifier bridge application 3. Power application       Component introduction:   1. Built in XL4016 Chip.   2. Regulating potentiometer (damping) 3. Aluminum alloy black coating radiator. (long term use of recommended current should not exceed 5A. If more than 5A, you need to use fan assisted cooling 4. Large inductance of copper core. Inductive coil action on AC finite current. It can be composed of high or low pass filter with resistor or capacitor. Phase shifting circuit and resonant electric. It can connect DC and resistance AC. 5. Dual layer high density glass fiber circuit board for 1.6mm military quality. The circuit board is not only thick, but also of high density. And after a long period of use, there will be no edge delamination bulge phenomenon.       Wiring attention:   1. The input voltage range is 4-40V. The output voltage range is 1.25-36V. 2.Digital tube V shows the output voltage value, digital tube A shows the current value. 3. If the regulating potentiometer is adjusted clockwise, the output voltage will increase. The output voltage is reduced if the counter is adjusted clockwise. After adjusting the voltage, connect the load to prevent burn out load.     As an honest seller we devote ourselves to offering best products & services. We understand sometimes you may have a problem with your purchase but whatever it is please trust that we will try out best to make you satisfied. Fair & Objective feedback is very IMPORTANT to our reputation and we'll be highly grateful if you can contact us before leaving Negative/Neutral feedback. Let's work together to solve the problem at the earliest convenience.    Digital Voltage and Current Regulator Module High Power 8A DC Converter 12V 24V     Shipment 1.- We can ship the products all the world.
