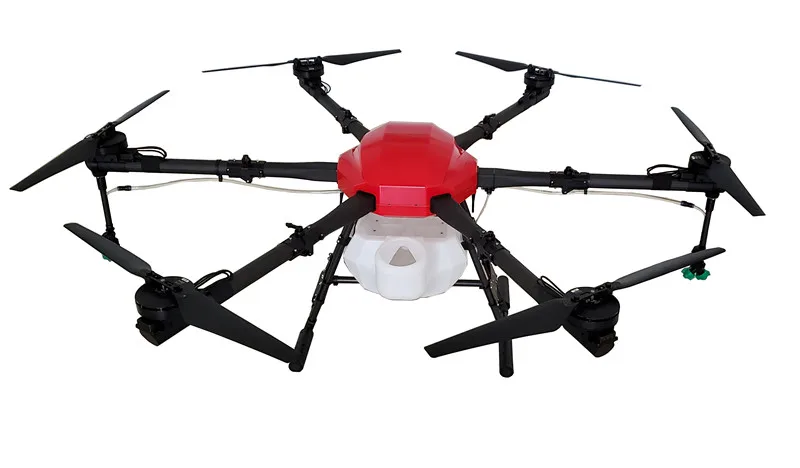

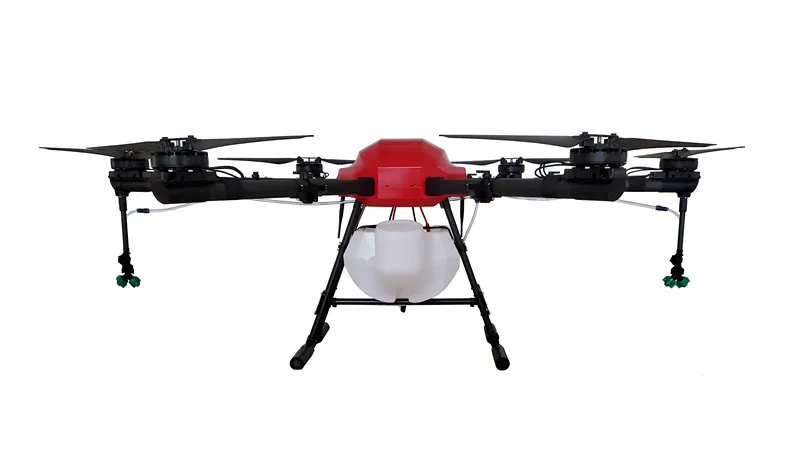

SA616 16L agricultural spray drone 1650mm wheelbase six-axis aircraft with X8/E5000 powerhexacopter spray drone frame kit

Product Parameter   Wheelbase: 1650mm Main meaterial:3K pure carbon fiber Folded size: 1100x980x650mm Wing arm size: 45mm to 40mm Airframe weight: 15KG Water tank: 16L Max takeoff weight: 36KG Effective spray width:5-7 meters Pump maxpressure: 0.68mpa Spray flow: adjustable from 2.5-4L/min Normal spraying time: 7-10 min Working efficiency: 10-16 acres / sort   note: Recommended configuration(not included): Flight Control: JIYI K3-A pro, K++ ; DJI A3-NG Radar: JIYI Terrain radar, obstacle avoidance radar ; DJI terrain radar, obstacle avoidance radar, AMU module Remote control: SIYI DK32, DK32S, VD32 ; FUAV M12 , T12 ; DJI datalink3 Lipo-battery: 12S 44.4V 22000mAh x 2 pcs Product Parameter   Wheelbase: 1650mm Main meaterial:3K pure carbon fiber Folded size: 1100x980x650mm Wing arm size: 45mm to 40mm Airframe weight: 15KG Water tank: 16L Max takeoff weight: 36KG Effective spray width:5-7 meters Pump maxpressure: 0.68mpa Spray flow: adjustable from 2.5-4L/min Normal spraying time: 7-10 min Working efficiency: 10-16 acres / sort   note: Recommended configuration(not included): Flight Control: JIYI K3-A pro, K++ ; DJI A3-NG Radar: JIYI Terrain radar, obstacle avoidance radar ; DJI terrain radar, obstacle avoidance radar, AMU module Remote control: SIYI DK32, DK32S, VD32 ; FUAV M12 , T12 ; DJI datalink3 Lipo-battery: 12S 44.4V 22000mAh x 2 pcs   Features: Fully sealed waterproof canpoy High-quality ABS material, large internal space, easy to expand and install the flight control system, or built-in GPS antenna (Tested TopXgun T1-A flight control, the antenna is high in the canopy, the flight is not offset) The bottom of canopy reserves a plurality of holes, which is compatible with a variety of outlet modes, which facilitates the power line, datalink and receiver antenna outlet. The idle hole can be sealed with a dustproof coil to protect against water and dust. The SA616 16L flight platform V2 uses the latest anti-collision and long-pressure high-pressure atomizing dual nozzles, and the spray width and efficiency are comparable to those of the four single nozzles. The wiring is more simple and beautiful

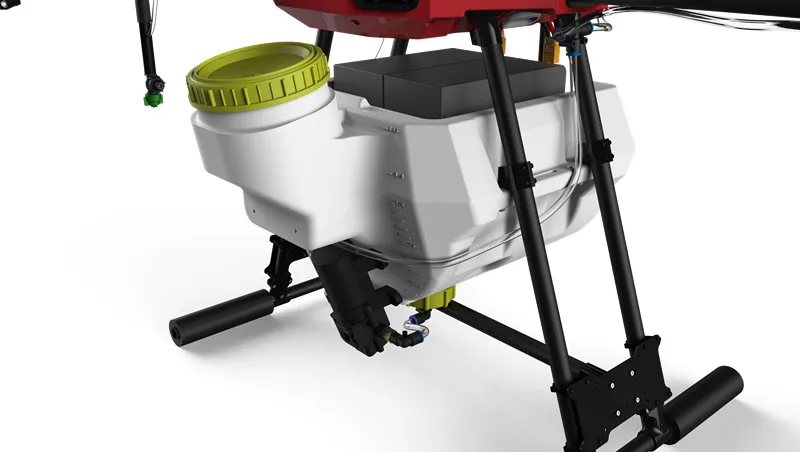

The latest 16L water tank, large injection port design, with filter inside, multi-nut hole position, easy to install water pump and other sensors

After testing, when using 4 single nozzles or 2 double nozzles, the spray atomization effect is the best, and the spraying range is equivalent

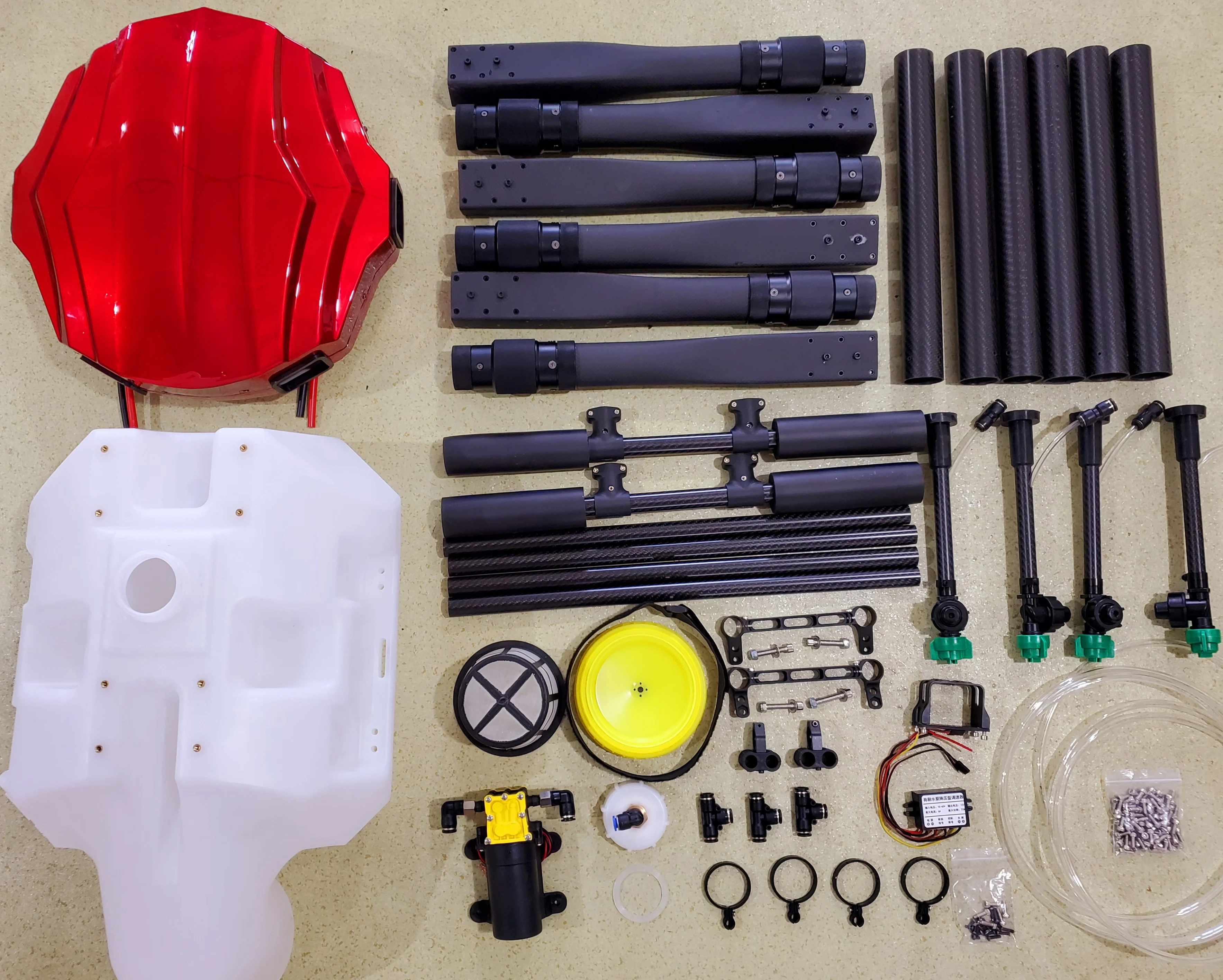

  Folding wing arms, pure carbon fiber shaped main arm, 40mm pure carbon fiber end of wing arm The square tube has a tapered elliptical tube design, and the gradient is too smooth and not easy to break; The exposed square tube end can directly fix the GPS bracket for easy installation of GPS or RTK lines; The end of the pipe is provided with a waterproof rubber ring; The motorized carbon fiber wing arms are 40mm pipe diameter, which is more stable when The drone is flying and spraying. High-pressure atomization extension nozzle, rubber hose connection end to prevent collision breakage.   ​​   Package list:   item 1 (just frame for E5000): SA616 16L waterproof Agricultural spraying drone frame + 16L sprayer system * 1 set(don`t included the end parts of wing arms)  if buyer had DJI E5000 power system combos,please choose this option   item 2(just frame for X8): SA616 16L waterproof Agricultural spraying drone frame + 16L sprayer system * 1 set   item 3(with E5000 power combos) SA616 16L waterproof Agricultural spraying drone frame + 16L sprayer system * 1 set Hobbywing X8 FOC power system combos * 3cw & 3 ccw(Motors,Motor mounts,ESCs,2911 folding propellers)   item 4(with X8 power combos) SA616 16L waterproof Agricultural spraying drone frame + 16L sprayer system * 1 set Hobbywing X8 FOC power system combos * 3cw & 3 ccw(Motors,Motor mounts,ESCs,2911 folding propellers)     Please note:   ​1：Because DJI E5000 power combo included 40mm wing arm parts,so Option 1(just frame for E5000) didn`t included front end parts of wing arms!!!if you had DJI E5000 power system combos,please choose option 1(just frame for E5000) 2：The canopy have red and orange color. when you order the item,please let me know that what`s color do you want?      If the buyer friend does not tell the color that is needed, then we will ship the color randomly. 3：RTK kit and lipo-batteries are not included in this product options,  4：Please read the product details page carefully before purchasing.
