Купить UTECH Cheap price 600x400mm mini cnc 4 axis 6040 for acrylic label logo sign | Инструменты

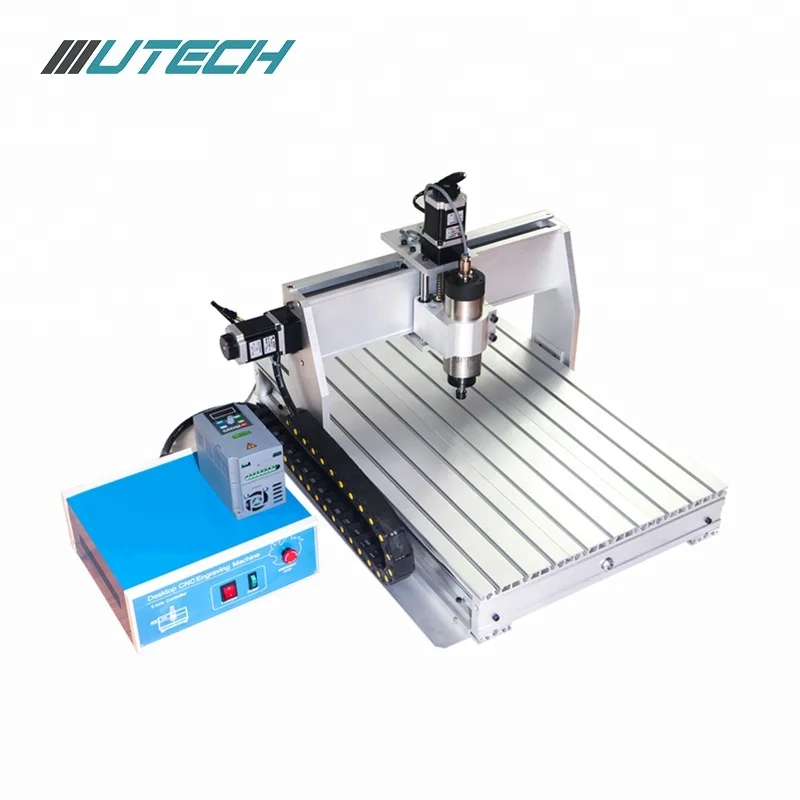

UTECH Cheap price 600x400mm mini cnc 4 axis 6040 for acrylic label , logo sign
If you want to know more information about our products
please feel free to contact us , and welcome to our factory!
Trust us, we will be your best choice!
Packing list:
1× CNC 6040 Engravine machine
1× Control box
1× Parallel port cable 25pin
1× Power cable
1× Tool box and tools
3× Axis motors
1× Rotation axis(optional)
1× tool auto-checking instrument
1× CD of manual and software MACH3 (if not get, may be lost in customs, please contact us).
Product Description
The CNC router is suitble for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.
The cnc router is designed for large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.
|
Type |
6040 |
|
Max working travel |
XYZ=400*570*75mm |
|
Machinable material thickness |
≤100mm |
|
Dimensions |
750*570*390mm |
|
Frame material |
6061-T5 aluminium alloy |
|
Track type |
Chrome-plated + linear bearing |
|
Spiral type |
Ball screw, diameter of 16mm, Thread pitch 5mm |
|
|
|
|
Mechanical resolution |
XYZ axis:0.0025mm/step |
|
PositionaI accuracy |
0.05mm |
|
Spindle motor |
Frequency conversion spindle, 0.8kw |
|
Revolving speed |
24000rpm/min |
|
Holder |
ER11(3.175mm,6mm) |
|
XYZ motor |
Stepper motor JK57HS76-4204B-01AF |
|
Stepper driver |
High performance, independent of each axis |
|
Feed rate |
2000mm/min |
|
Communication Interface |
USB2.0 |
|
System requirement |
WIN-XP or WIN-7 |
|
Instruction code |
G code/.nc/.ncc/ .tab/.txt |
|
Voltage |
Input 85V-240VAC(400HZ) |
|
Operating environment |
Temperature: 5℃-40℃; Humidity: 35%-80% |
|
Packaging size |
45.8kg (86*62*48mm) |
Usage :
Mainly used in PVC, acrylic, plexiglass, color plates, engineering plastics, bakelite, wood and soft metal material carving milling, and also suitable for engraving the PCB, and wood model mold, crafts, can not exceed the limit size plastic boxes, aluminum chassis, the panel cutout hole and milling, but also at a low feed rate for aluminum, copper and other metal materials for three-dimensional carving and drilling and milling;
Why choose us?
Contact us
We will reply to your enquiries as immediately as possible.However,please note that we have 12-16 hours time difference with western Europe and 8 hours time difference with U.S.A.Therefore,we promise will try best to reply within 24 hours.
For bulk order,also please contact us for details.
