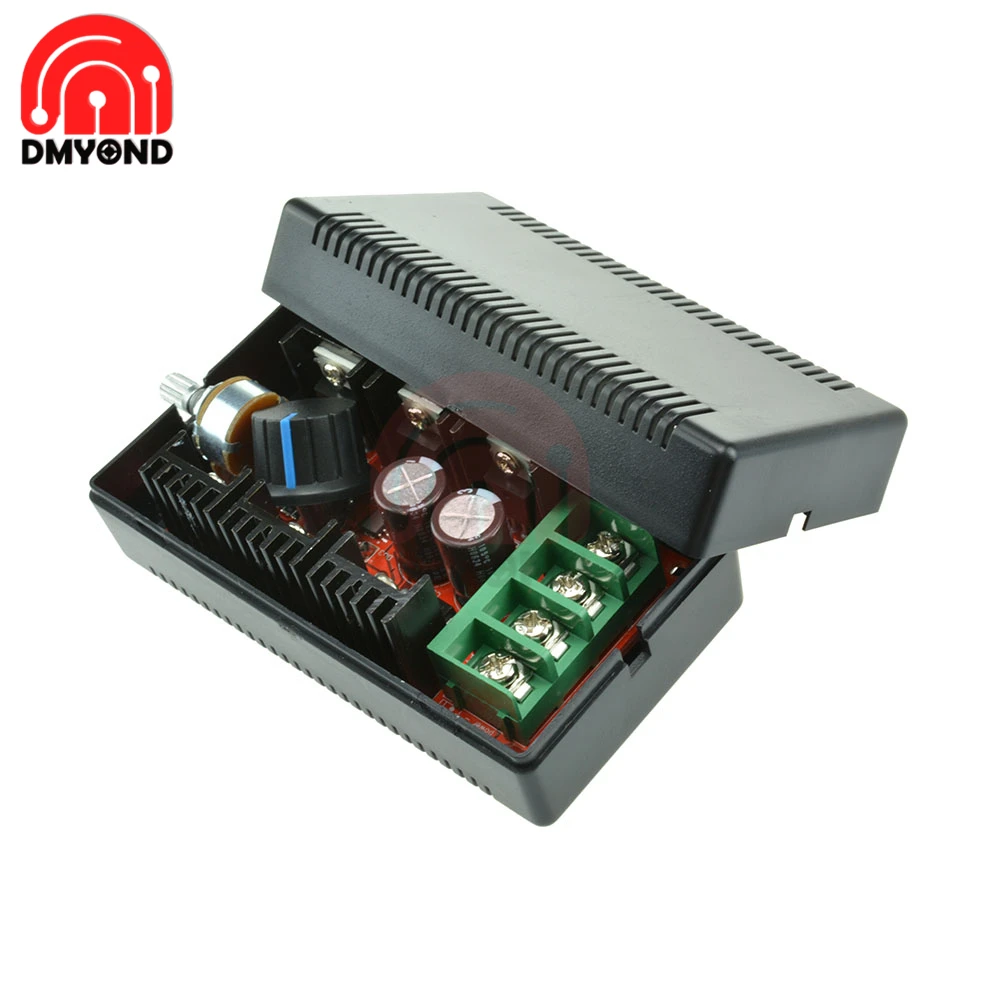

40A DC 9-50V Motor Speed Controller 2000W Voltage Regulator Dimming Dimmers Motor Speed Control Thermostat Electronic Module 12V

Product Description

12V 24V 36V 48V DC Motor Speed Control PWM HHO RC Controller 9-50V 40A 2000W MAX
100% Brand new and high quality.
DC Motor Speed Controller provides variable speed capability for DC motor.
It is fit all kinds of general-purpose and have a DC motor speed with brush.
1. All kinds of automobile motor car, (car wiper, car fan control cooling fan control, automobile air-conditioning fan speed control motor speed)·
2. Conveyor belt of the production line , pipe exhaust fan speed control and running machine control of motor speed, multiple computers parallel speed control, electronic fan speed control.
3. All kinds of dc lamp was dimming, all kinds of dc heater  adjust the temperature.
This speed governor is the grade quality for the industrial , can work in below freezing environment.

Product Specification

Working voltage: DC 9V- DC 50V
Peak current: 40A
Output power : 0.01-2000W (max)
12V:480W(max); 24V:960W(max) ; 36V:1440W(max); 50V:2000W(max)
Recommended use range:12V 250W;24V350W;36V 400W;48V 500W
Quiescent current:0.025A
PWM Regulation range:5-100%
PWM Frequency : 200hz·
PCB Size: 90x51mm(inch:3.5"x2")
Case size: 105x55x40mm(inch:4"x2.2"x1.6")
Operating temperature:  -40°C~+85°C (40º F-185º F)


Main Usage

Widely use to people DIY, hobby, scientic test, such as control computer Ipad fan speed, control bulb, control motor kymco, control xbox360, HHO Pluse Width modulator, Test Equipment, industrial automation, speed regulator module board support PLC, motor electric pump fan speed control, PWM HHO RC controller,remote control toys, etc......

Package Included

1 * 2000W 40A DC Motor Speed Controller 9-50V PWM HHO RC Car Fan Speed Regulator Adjustable Power Control Switch
