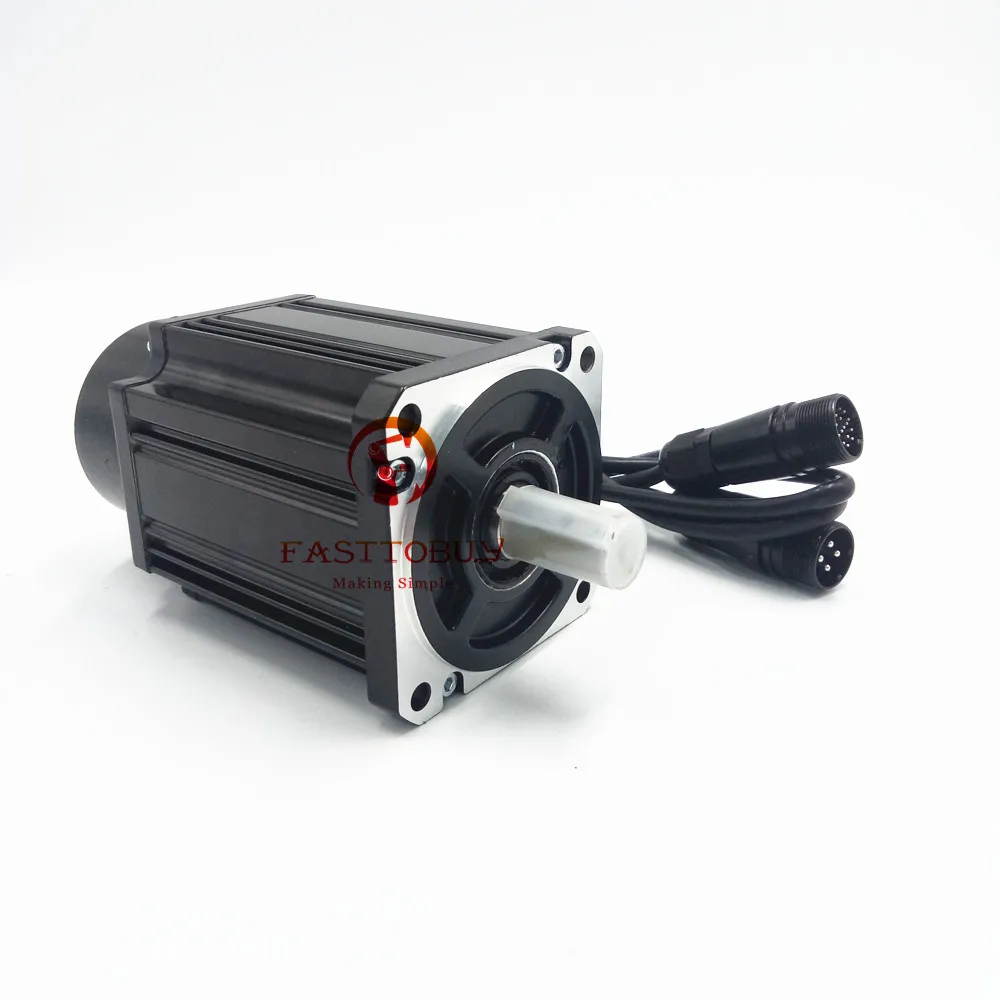

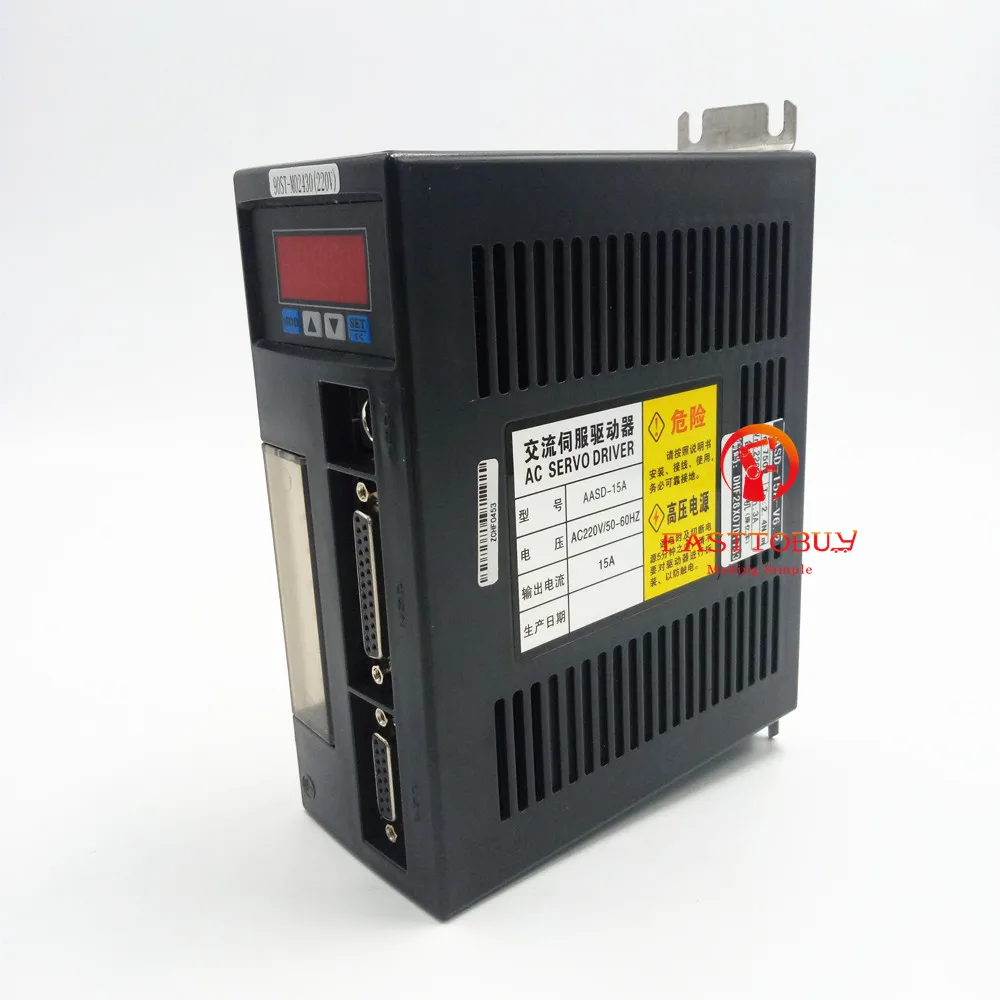

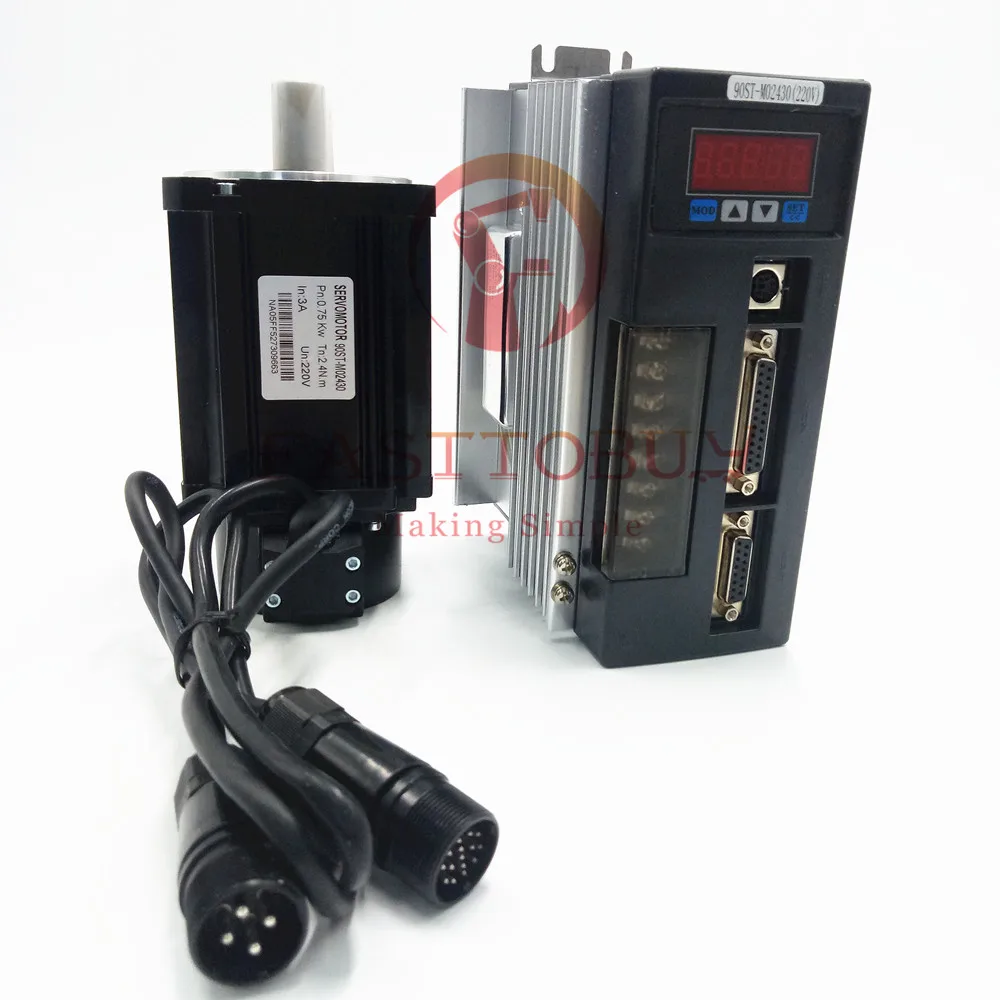

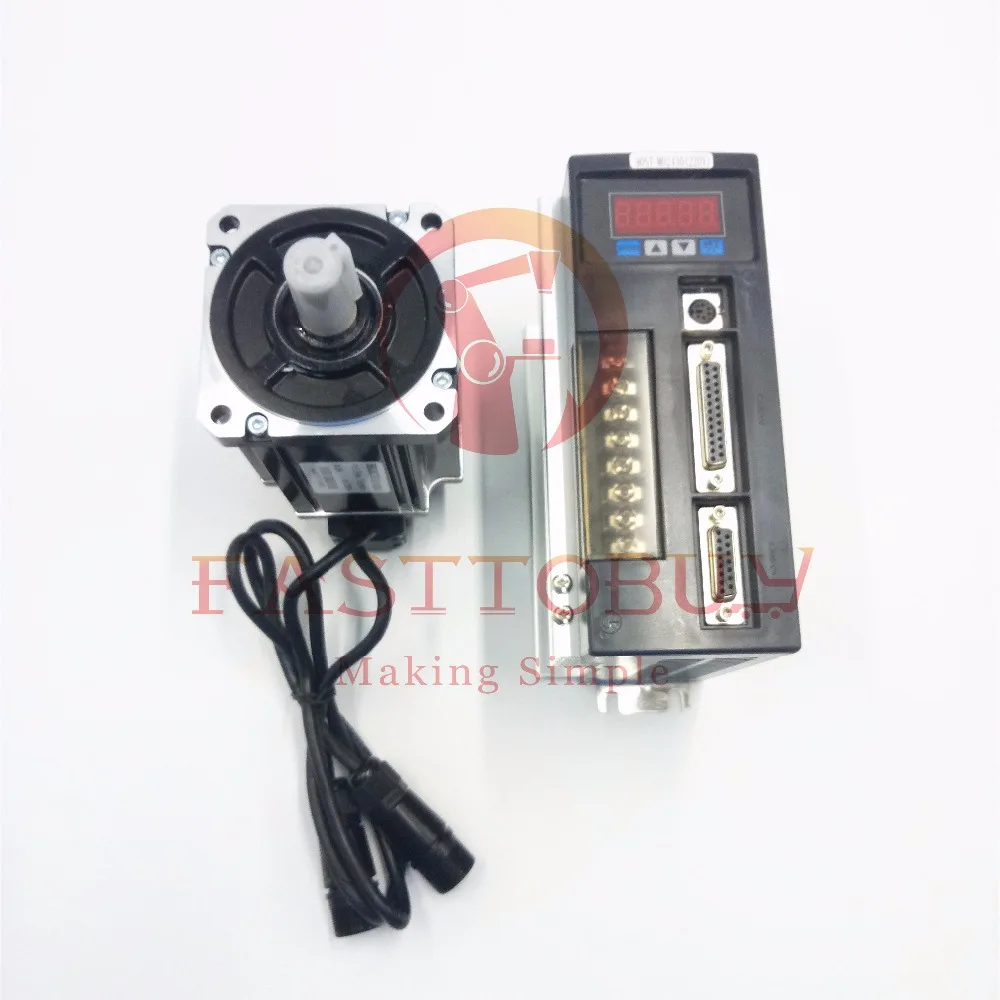

NEMA36 750w Servo Motor + Drive Kits 2.4Nm 1/3phase 220v 3000rpm 90mm 90ST-M02430 Обустройство дома - купить

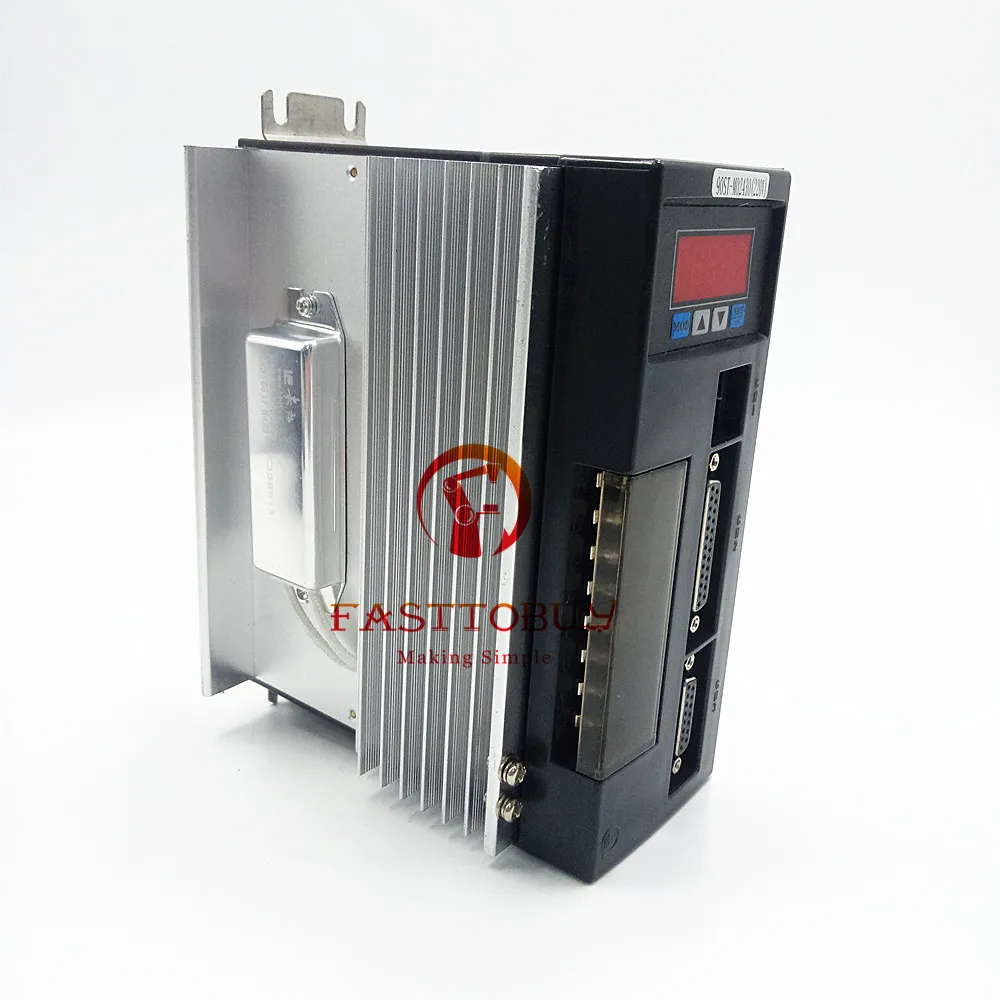

The input power

Single phase or three phase AC220V -15~+10%50/60Hz

Control mode

IGBT PWM sine wave control

Control mode

Torque mode (internal or external)

speed mode (internal or external)

Position mode (internal or external)

Position/velocity model

Position/torque model, Speed/torque model

Control feature

Speed frequency response

<400HZ

speed fluctuation ratio

<plusminus0.3(load0~100%);<plusminus0.2(power supply-15+10%)  (Value corresponding to the rated speed)

Speed ratio

1:5000

Impulse frequency

≤ 500KHZ

The encoder feedback

2500line incremental encoder, 10000ppr, differential output

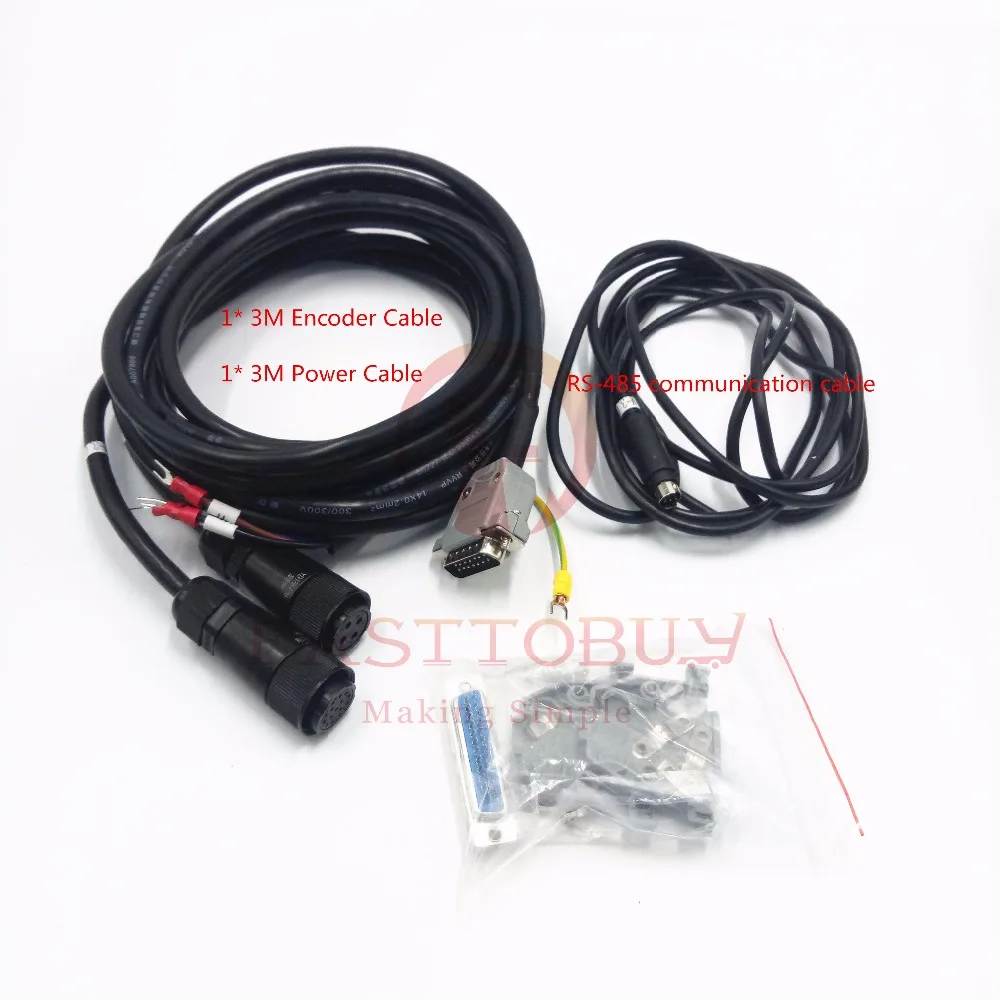

Communication mode

 RS-485,  If you need RS-232, please contact us.

Display and operation

five LED display  Four buttons

Braking way

Through the internal ,external braking resistance braking energy

Cooling way

Air cooled (heat transfer film , the strong cold wind fan)

Power range

≤7.5KW

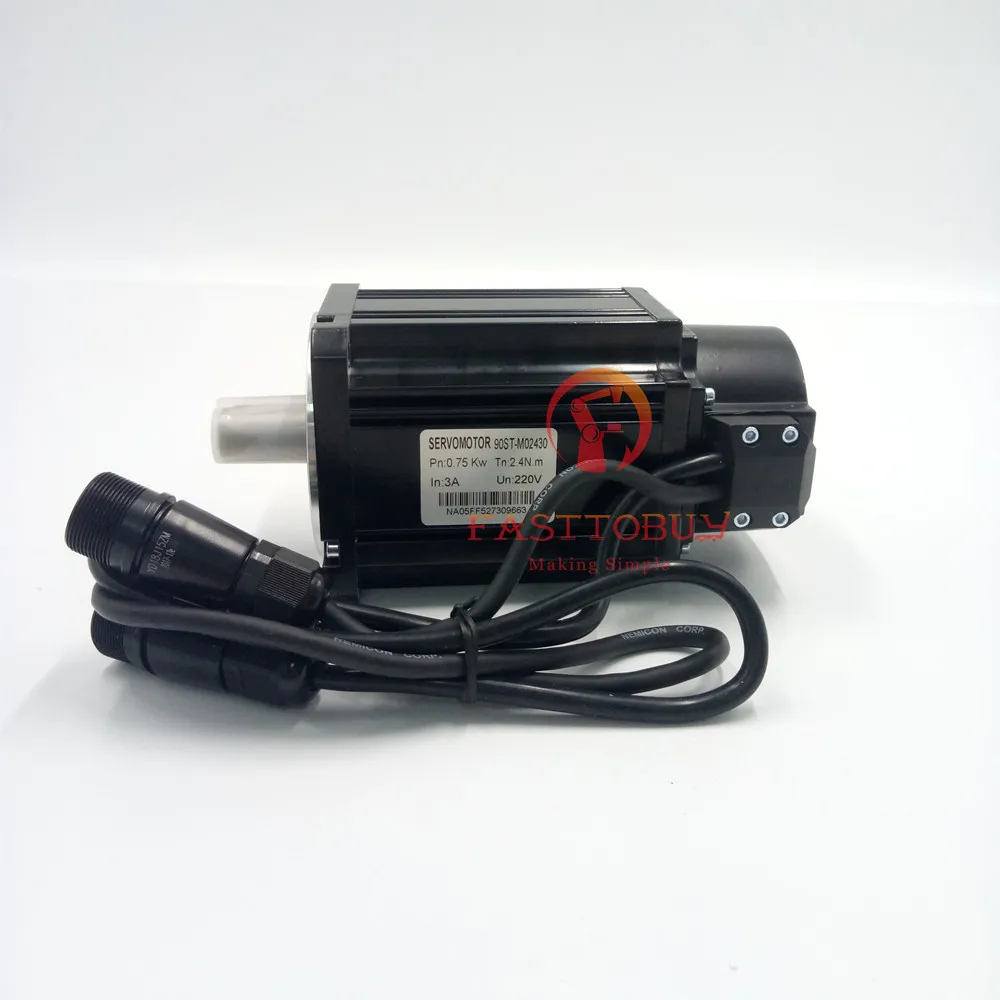

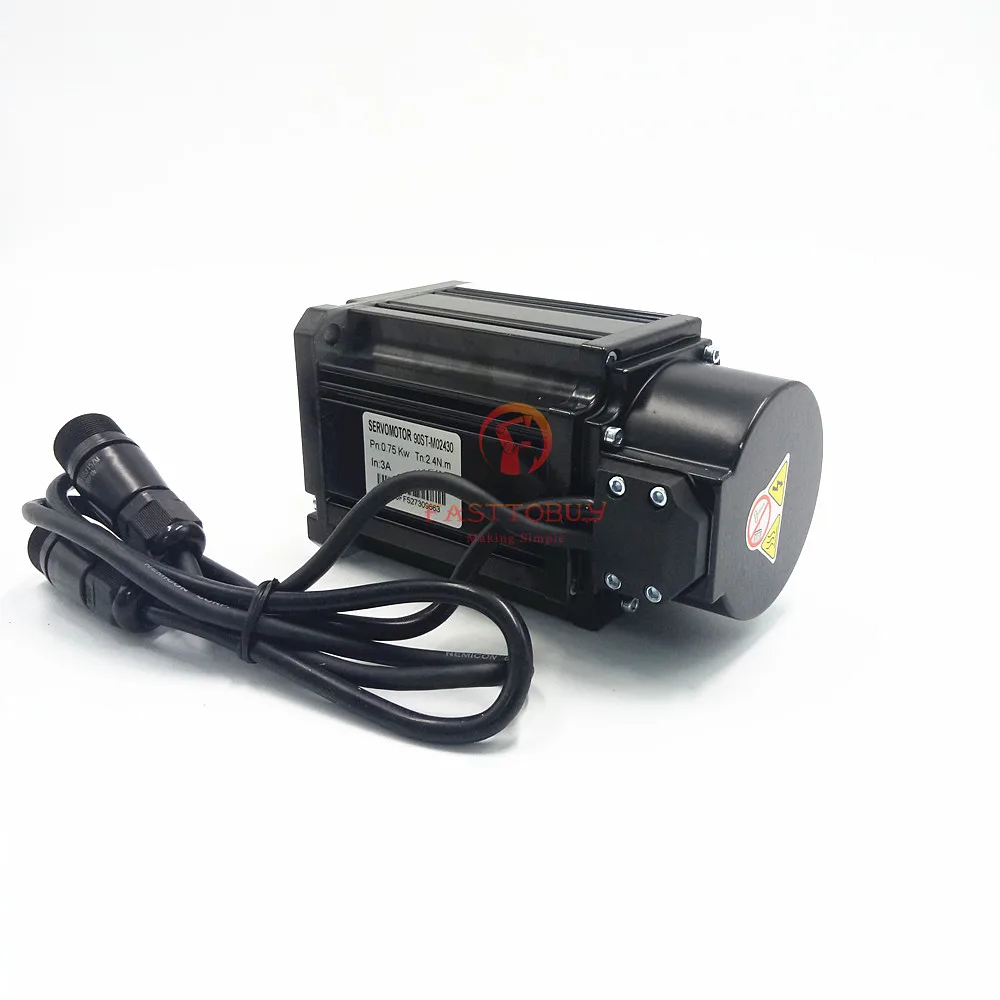

Motor Model

90ST-M02430

90ST-M03520

90ST-M04025

Rated Power(KW)

0.75

0.73

1.0

Rated voltage(V)

220

220

220

Rated current(A)

3

3

4

Rated speed(rpm)

3000

2000

2500

Rated torque(N. m)

2.4

3.5

4

Peak torque(N. m)

7.1

10.5

12

Peak current(A)

9

9

12

Voltage constant(V/1000r/min)

51

67

60

Torque coefficient(N.m/A)

0.8

1.2

1.0

Rotor inertia (kg.m2)

2.45*10-4

3.4*10-4

3.7*10-4

Line-Line Resistance( Ω)

3.2

4.06

2.69

Line-Line Inductance(m H)

7.0

9.7

6.21

Electrical time constant(MS)

2.2

2.39

2.3

Weight(Kg)

3.4

3.8

4.13

Encoder line number(PPR)

2500 (TAMAGAWA  increment type Encoder)

Insulation Class

Class B (130 degree centigrade)

Safety Class

IP65

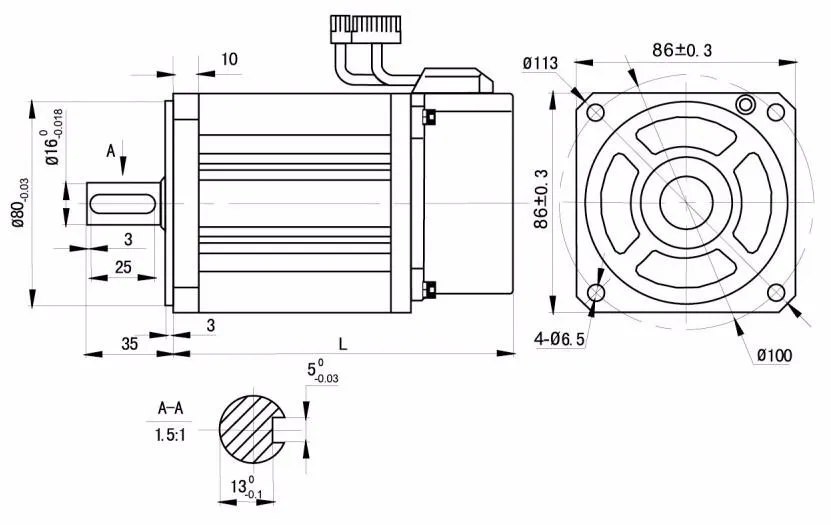

Size(L) mm

149

171

178

Model

Ratio

Arcmim

Input Flange

Input Shaft Size

Output Bore Size

Stage

Link

LRF90-5

5:1

<8

NEMA 36

20mm

19mm

1

Buy it now

LRF90-10

10:1

<8

NEMA 36

20mm

19mm

1

Buy it now

LRF90-20

20:1

<10

NEMA 36

20mm

19mm

2

Buy it now

LRF90-25

25:1

<10

NEMA 36

20mm

19mm

2

Buy it now

LRF90-35

35:1

<10

NEMA 36

20mm

19mm

2

Buy it now

LRF90-40

40:1

<10

NEMA 36

20mm

19mm

2

Buy it now

LRF90-50

50:1

<10

NEMA 36

20mm

19mm

2

Buy it now

LRF90-80

80:1

<12

NEMA 36

20mm

19mm

3

Buy it now

LRF90-100

100:1

<12

NEMA 36

20mm

19mm

3

Buy it now

AF90-5

5:1

<3

NEMA 36

20mm

19mm

1

Buy it now

Model

Voltage

Application

Link

SVC-010-A

3PH 380V to 220V

Power Supply for 1KW Servo Drive

Buy it now

SVC-015-A

3PH 380V to 220V

Power Supply for 1.5KW Servo Drive

Buy it now

SVC-020-A

3PH 380V to 220V

Power Supply for 2KW Servo Drive

Buy it now

SVC-030-A

3PH 380V to 220V

Power Supply for 3KW Servo Drive

Buy it now

SVC-040-A

3PH 380V to 220V

Power Supply for 4KW Servo Drive

Buy it now

SVC-050-A

3PH 380V to 220V

Power Supply for 5KW Servo Drive

Buy it now

SVC-060-A

3PH 380V to 220V

Power Supply for 6KW Servo Drive

Buy it now

SVC-070-B

3PH 380V to 220V

Power Supply for 7KW Servo Drive

Buy it now

SVC-080-B

3PH 380V to 220V

Power Supply for 8KW Servo Drive

Buy it now

SVC-090-B

3PH 380V to 220V

Power Supply for 9KW Servo Drive

Buy it now

SVC-100-B

3PH 380V to 220V

Power Supply for 10KW Servo Drive

Buy it now

SVC-120-B

3PH 380V to 220V

Power Supply for 12KW Servo Drive

Buy it now

SVC-150-B

3PH 380V to 220V

Power Supply for 15KW Servo Drive

Buy it now
