200mm Travel 1250mm/min CNC Flame Plasma Cutting Lifter Z axis +Anti Collision Clamp+2pcs Proximity Switches

JYKB-200-Nema23 stepper-GH applicable to flame and plasma cutting

the motor inside is nema23 step motor, if need DC motor, please order another link in our sotre.

Packing details:

JYKB-200-Nema23 stepper-GH lifting body*1pc

4 pin plug*1pc

Anti collision Clamp *1pc

Proximity switch 8mm NPN normal open*2pcs

Specifications and features of CNC plasma lifter- Z axis:

Taiwan TBI ball screw

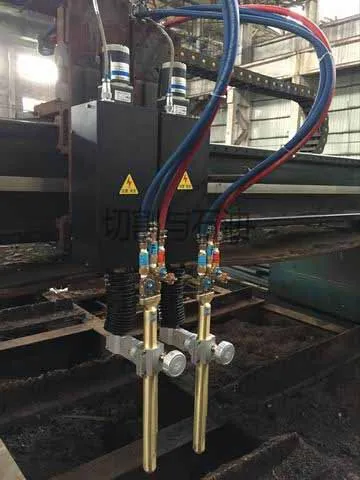

CNC flame and plasma collision avoidance gun function

With plasma positioning micro switch Inside the lifting body

4- pin air plug

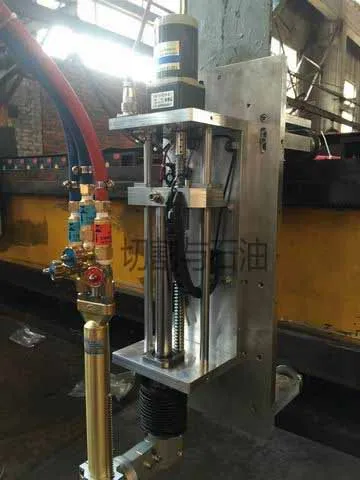

The telescopic shaft is optical and the straight sliding block is stable

Shell color: Black (spray)

working speed: 1250mm/min

Working travel: 200mm

Working voltage: DC24V

Load Weight: 10 kg

Clamp gun hole: 20mm-36mm (angle adjustable)

Retractable cover: high temperature resistant material

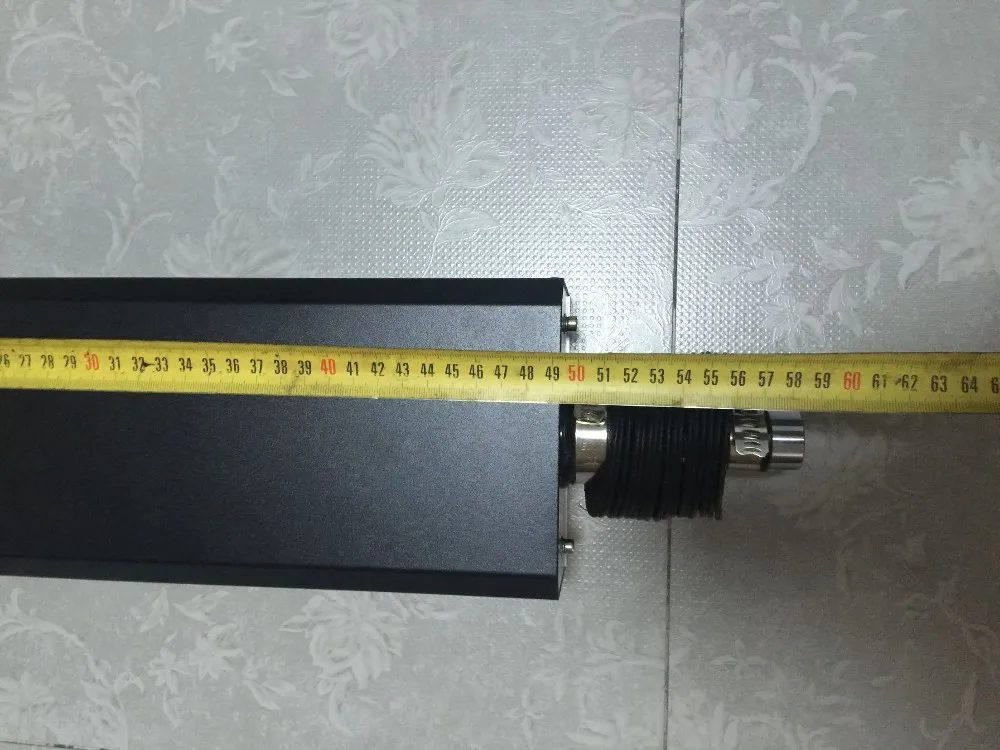

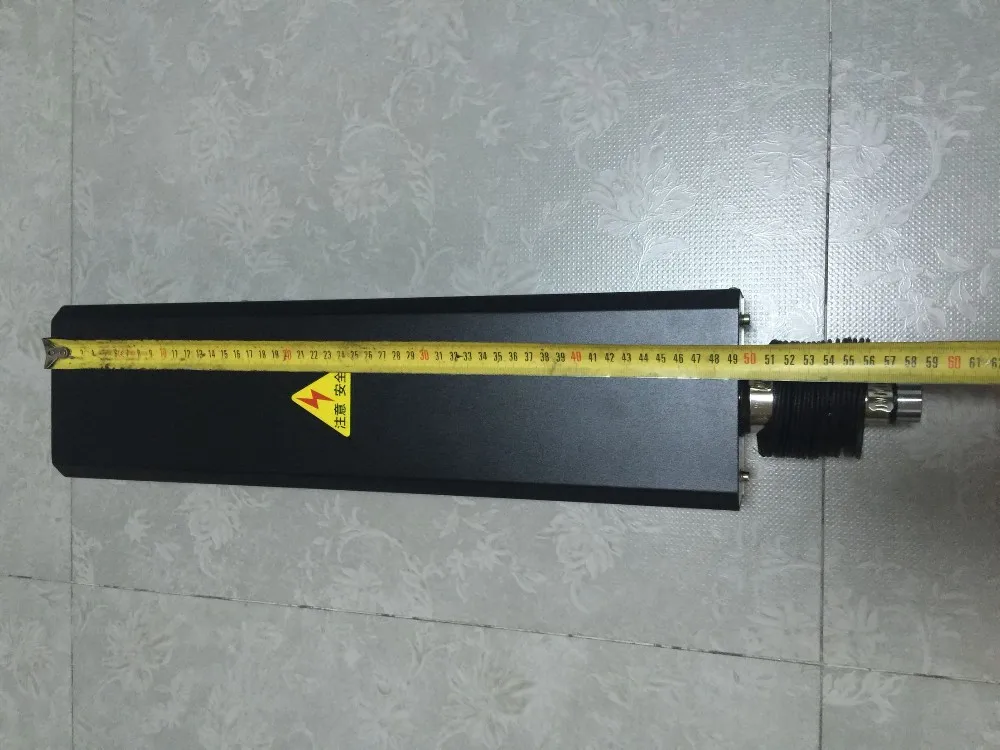

Size: L 490* W 130* H 80

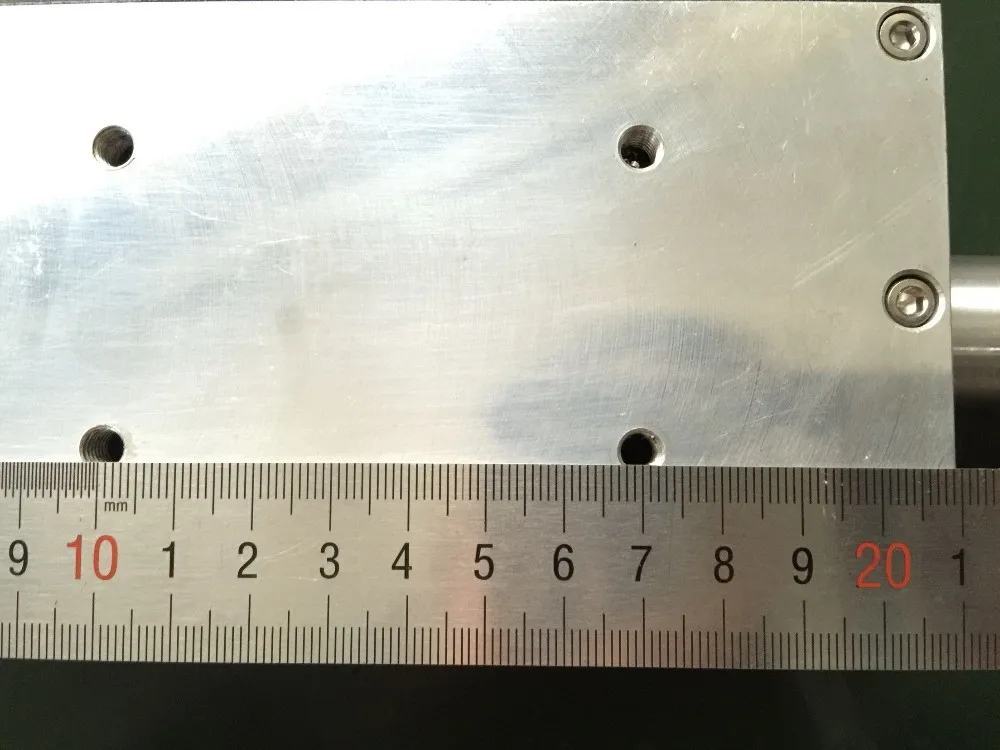

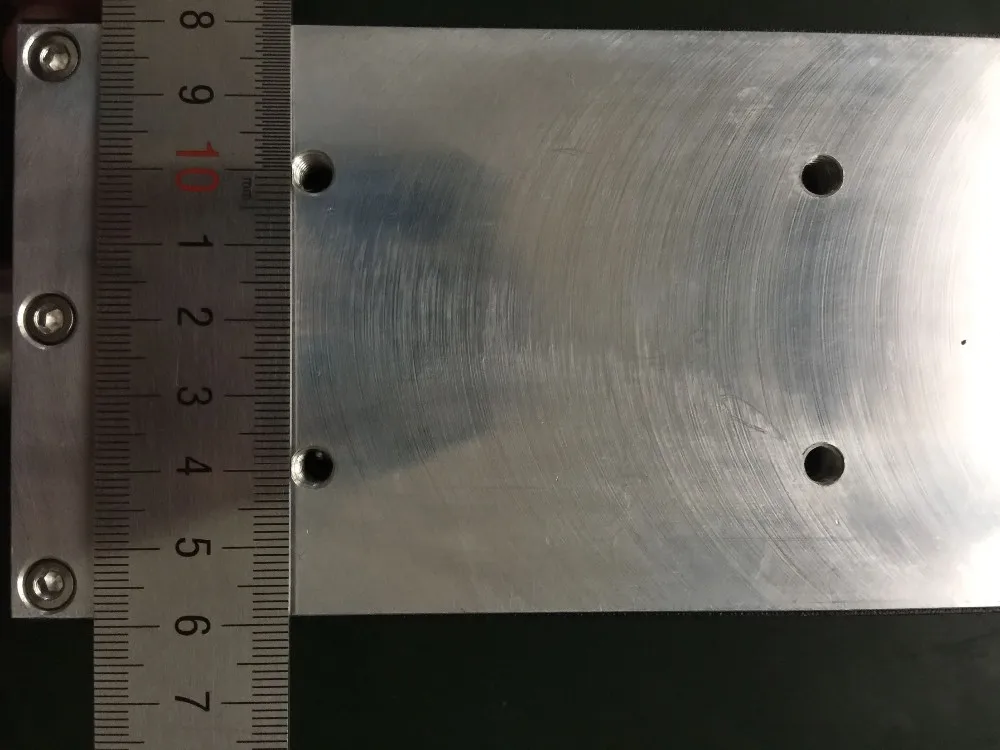

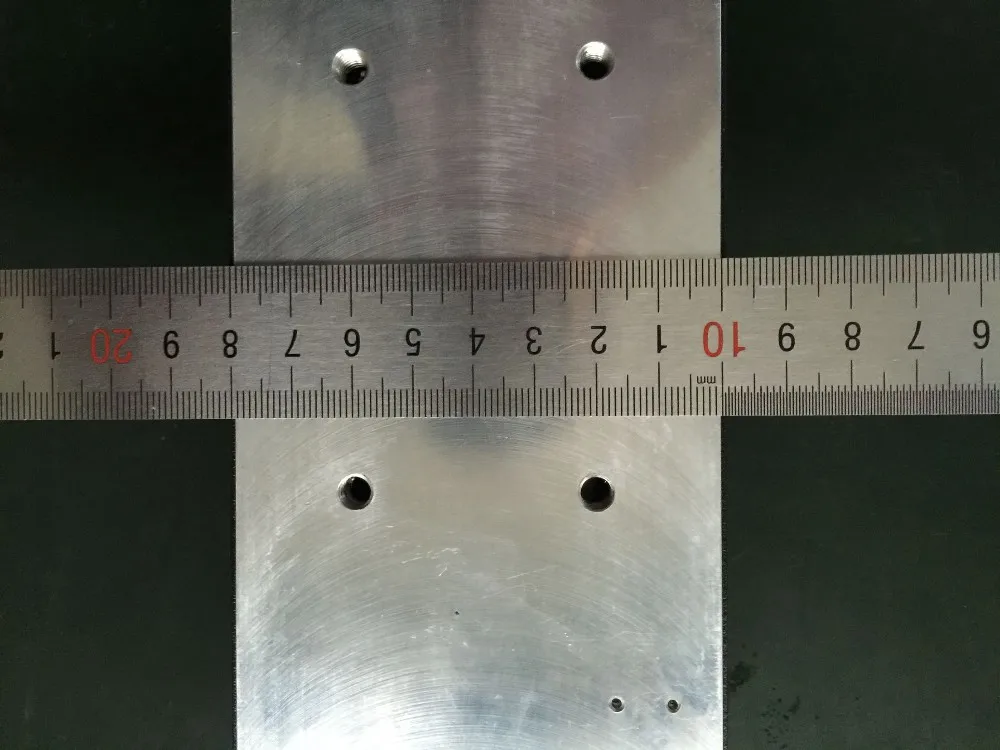

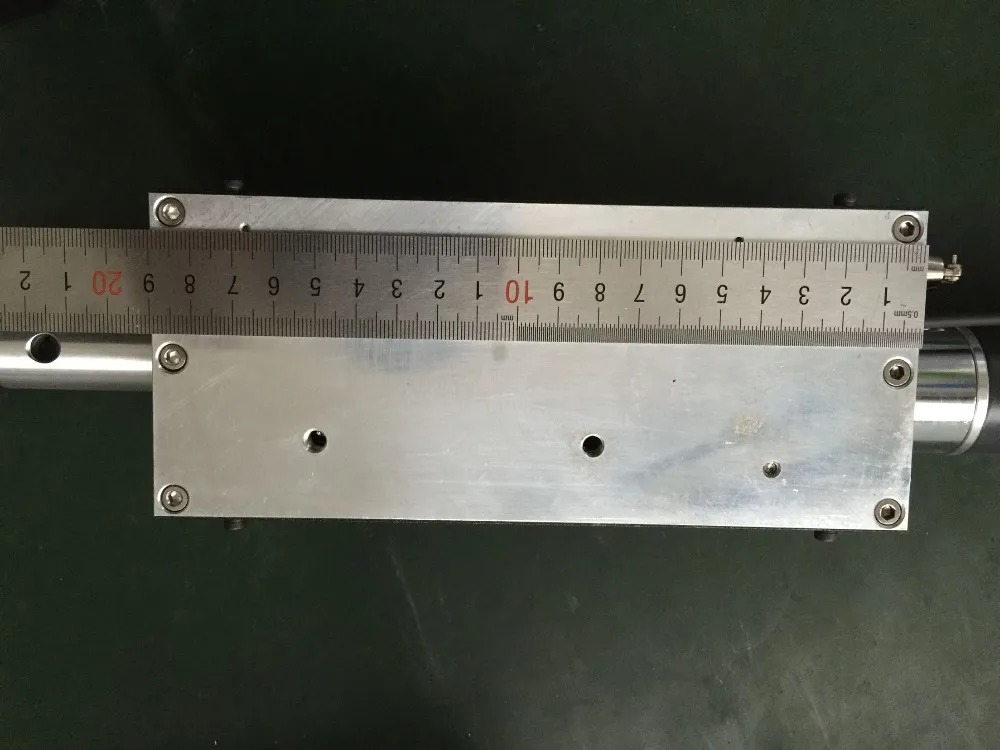

Mounting hole size length 70*70*70 width 66

Definition of air plug: 1 foot --MOT+; (motor anode) 2 foot --MOT-; (motor cathode) 3 foot --Zero; (location normally open -zero signal output) 4 foot --COM; (location normally open -COM signal output) Note: the lifting body built-in limit (10A reverse diode) don't need you connection.

Parameter of anti collision clamp: 1 the diameter of the hole for clamp lifting is 25mm 2 wood hole diameter is 32mm. clip gun range: 32mm-55mm(standard is 32mm, if need other size, buyer need machining) 3 disc out diameter is 100mm 4 The total length about 220mm 5 Board thickness: 15mm 6 weight: 1 kg (excluding packaging) 7 If as function of anti collision gun, using 2pcs* 8mm proximity switches, if as the starting arc positioning function then use 1pc or 2pcs*8mm NPN  proximity switch. Proximity switch: diameter: 8 mm proximity distance: 1.5mm NPN normal open multiple
