Купить 220v/380v CNC ER20 80mm Water Cooled 4pcs bearings spindle 2.2kw Frequency Driver VFD with clamping bracket water pump! | Инструменты

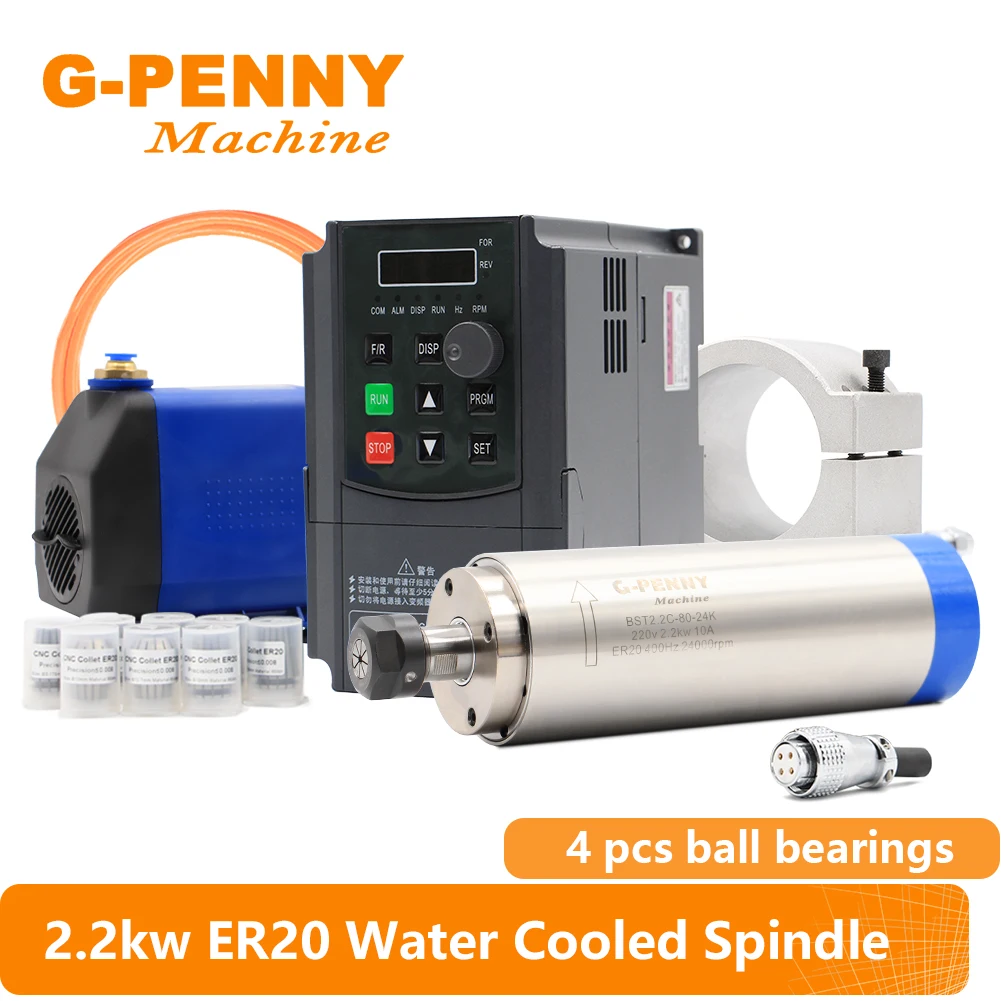

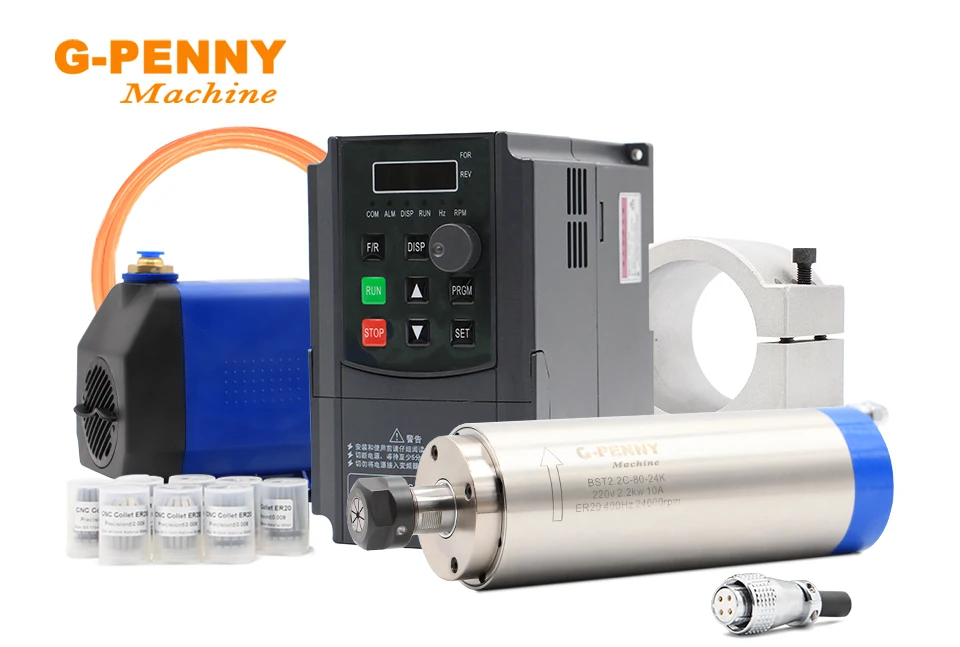

1 & 220vAC 2.2kw CNC Water Cooled Spindle Motor 80x230mm ER20 4 bearings1 & 220vAC 2.2kw CNC GP Inverter1 & 80mm Clamping Bracket1 & 220v 75w Wtaer Pump 3200L/H with 5m Tube1 kit ER20 high accuracy collet (≤0.008mm) --- 4,6,8,10,12,1/2,1/4,1/8 (As gift)
Good News ! Now order the 2.2kw ER20 water cooled spindle kit , you can get 1 kit ER20 high accuracy collet as gift (Precision ≤0.008）

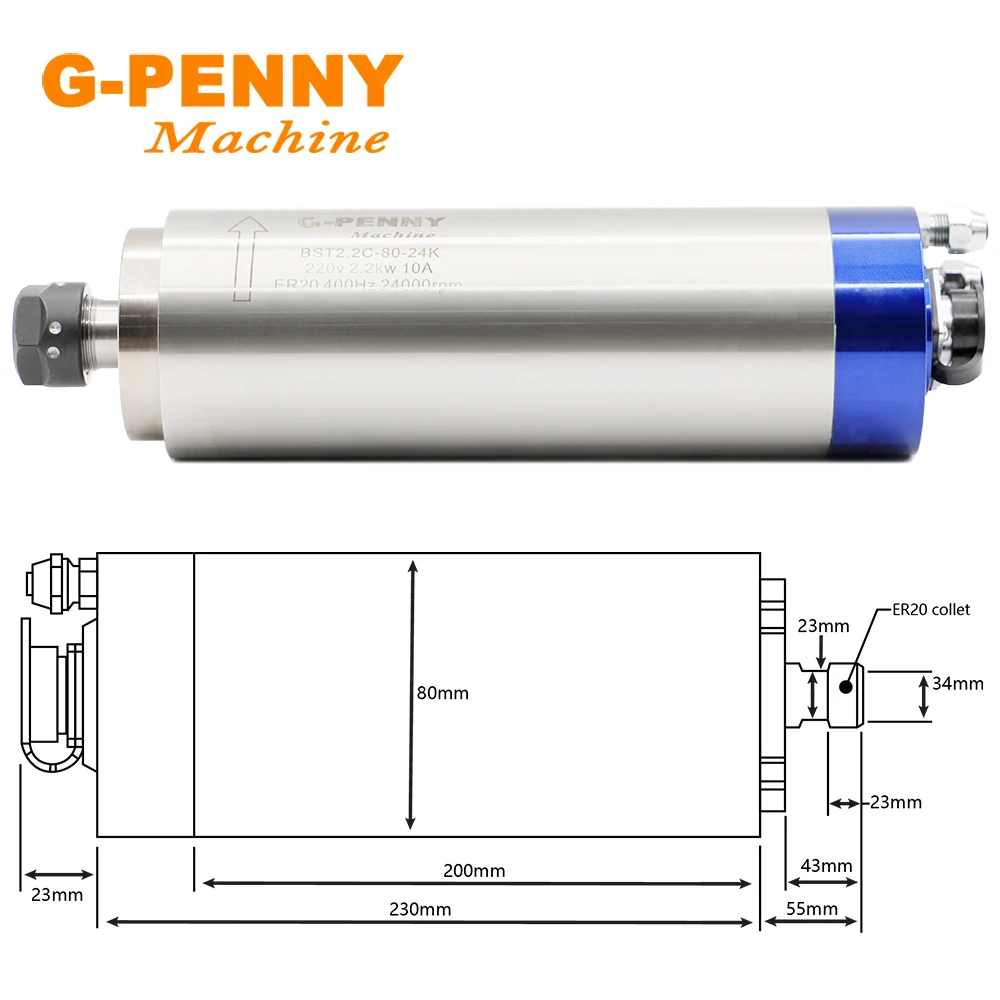

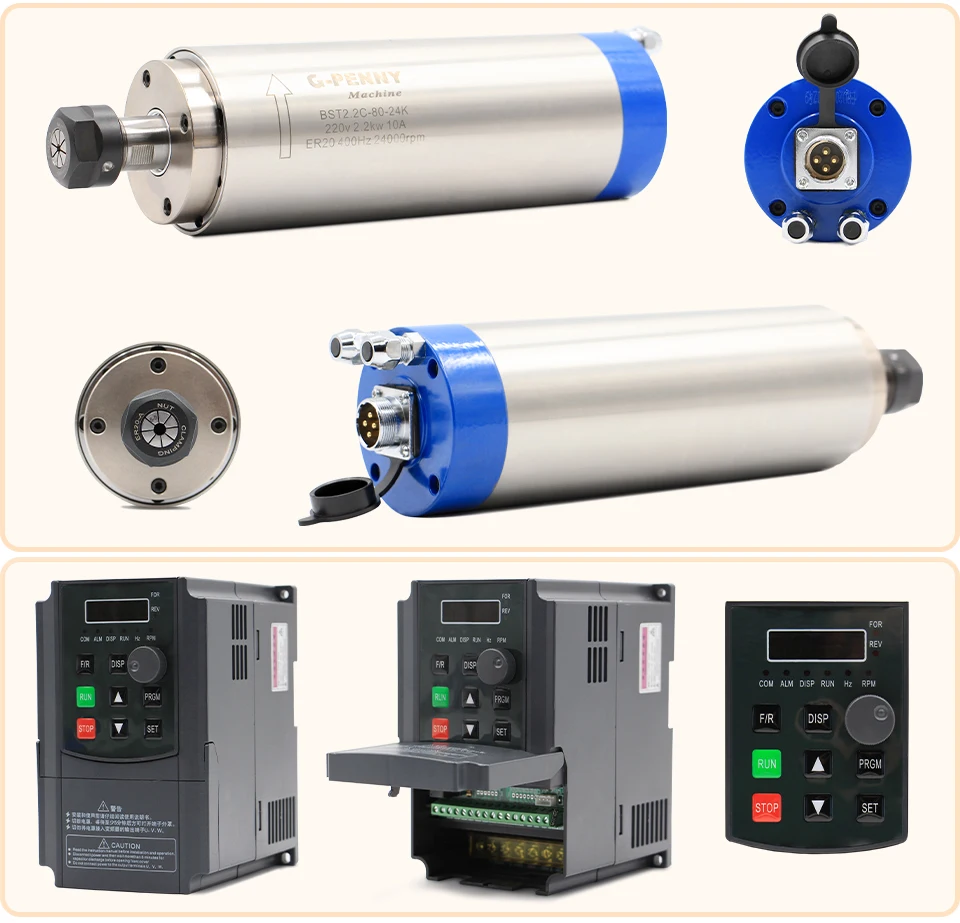

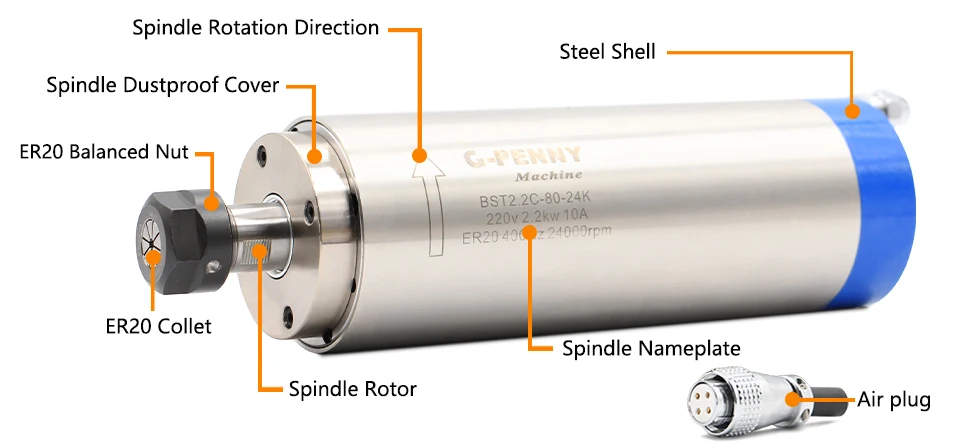

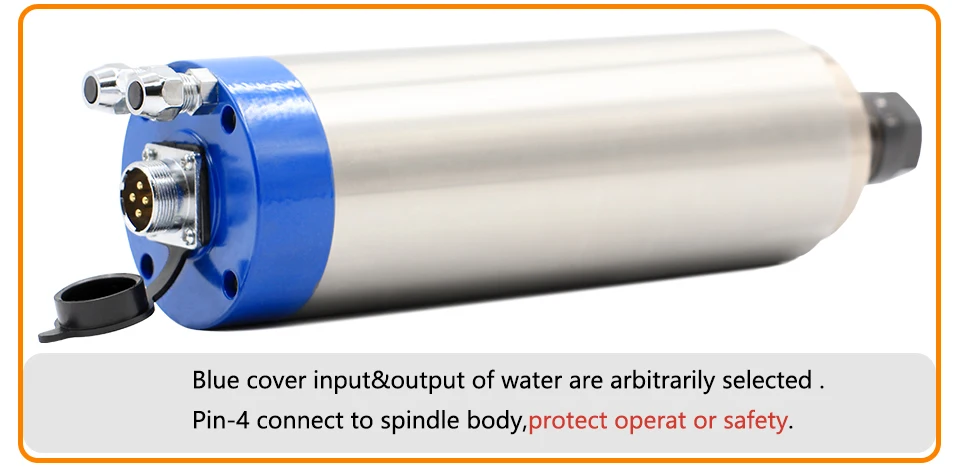

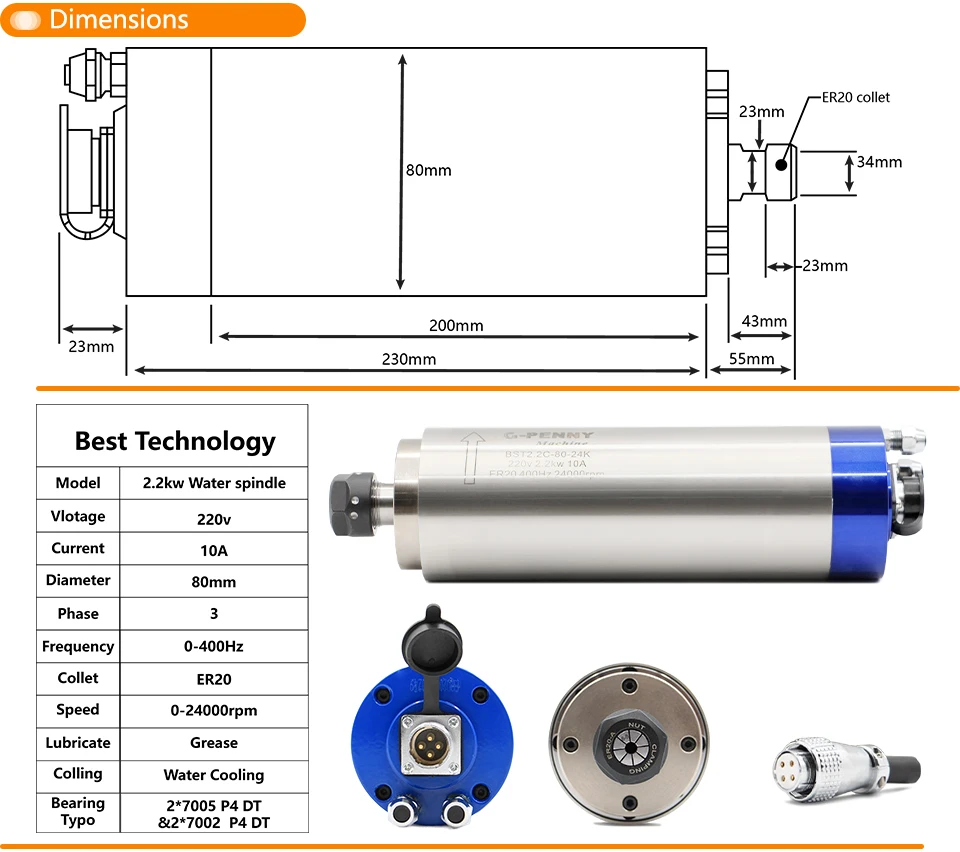

Size:80x230mm(Middle body diameter:80mmxLength:230mm)Speed Ways: Through 3-phase output inverter and adjust the inverter frequency to change the spindle speed.Cooling:Water coolingPower Interface:Optional H20-4 pins waterproof air plug. The air plug marked "1 ","2"," 3"," 4", "1 ","2 ","3" were connected to inverter (U, V, W), 4 connected inverter ground.Power:2.2kwVoltage:220vCurrent:10AFrequency:0-400HzSpeed: 0-24000rpmRunout Off:Less than 0.01mmDiameter(mm): 80Bearing Type:2 x 7005 P4 DT & 2 x 7002 P4 DT4pcs fully sealed angular contact bearingsCollet: ER20Clip Knife diameter:13mm,12mm,12.7mm,11mm,10mm,9mm,8mm,7mm, 6.35mm,6mm, 5mm, 4mm, 3.175mm, 3mm, 2mm, 1mm(standard 6mm)Water Cooling ER20 collet chunkGrease LubricationMain Application:Engrave for wood,bamboo,normal PCB,PVC,PMMA,plastic,bamboo,duotone board(ABS)and etc nonmetal,also can engrave on gold,silver,copper,aluminium,Pb etc soft metal surface working.

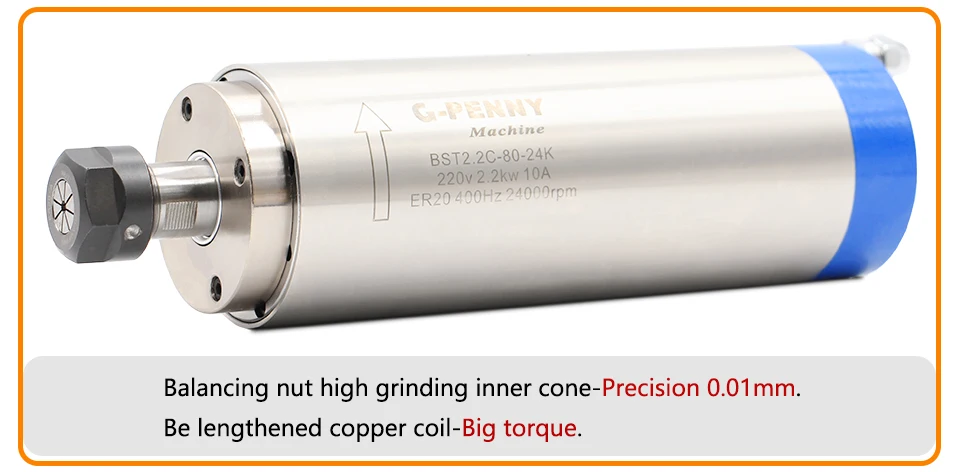

P4 fully sealed angular contact bearings ,2×7005C P4 DT &2×7002C P4 DT,increase spindle life .(We also have 4 pcs ceramic ball bearings type spindle) Longer length make the torque bigger,more powerful. Carefull assembly make the spindle more precisional. Precision 0.01mm.Coaxial degree less than 0.0025mm.

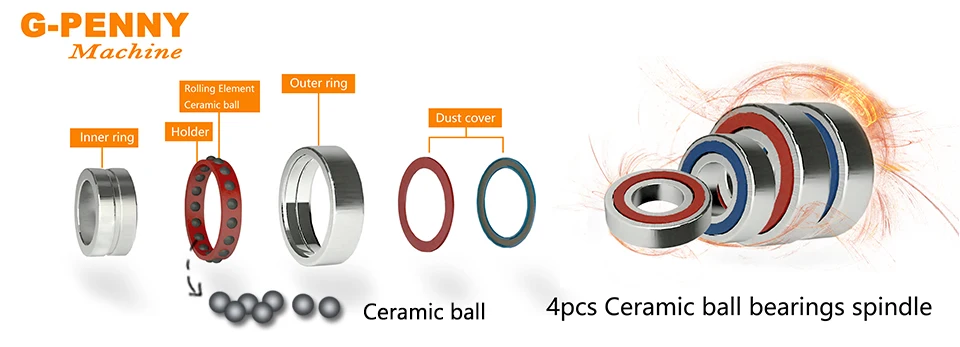

1. Our Ceramic ball bearings spindle use 4 pcs ceramic ball bearings. 2. Ceramic ball bearings are resistant to high temperatures and low heat , usually 3-5 degrees lower than steel ball bearings during using . 3. Ceramic ball bearings have low friction, low noise and long service life. 4. If you want to use the spindle for aluminum, hard wood, then ceramic ball bearings better than steel ball bearings.

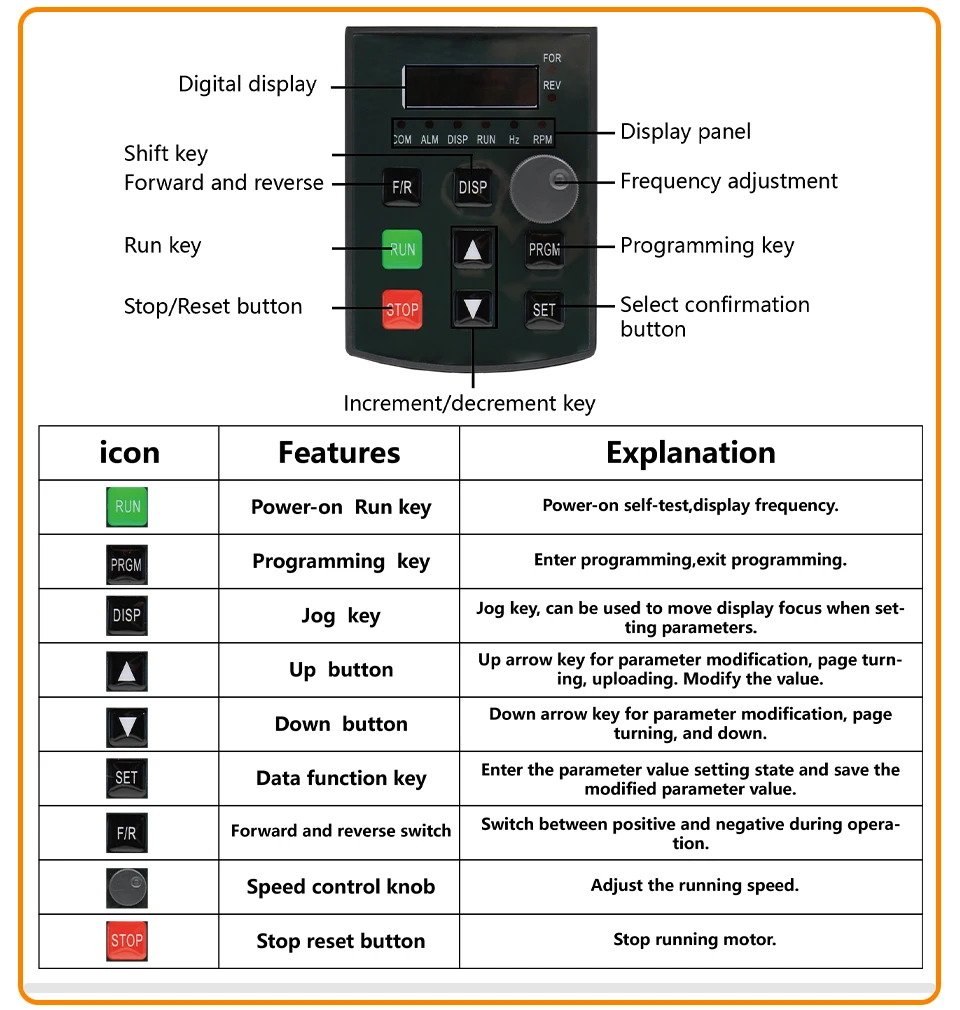

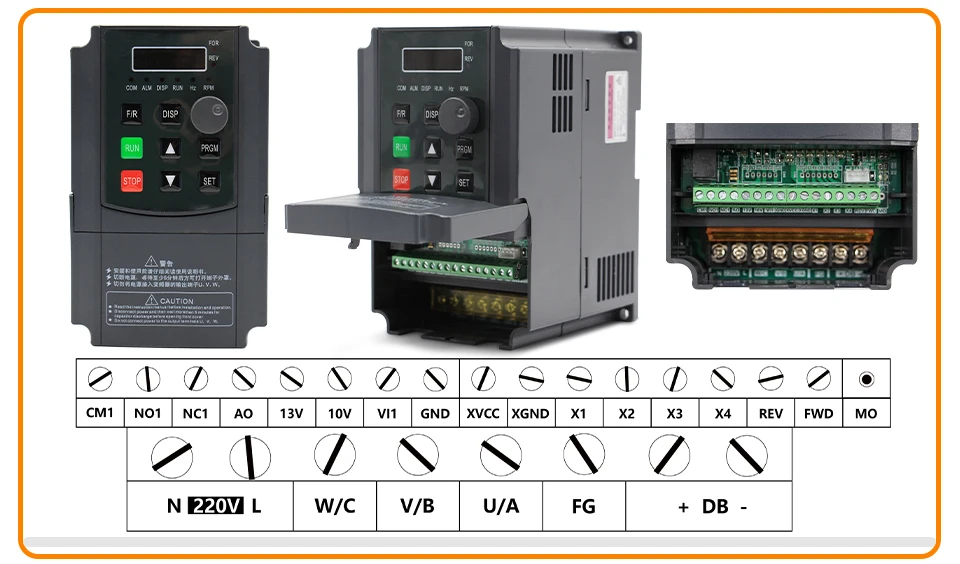

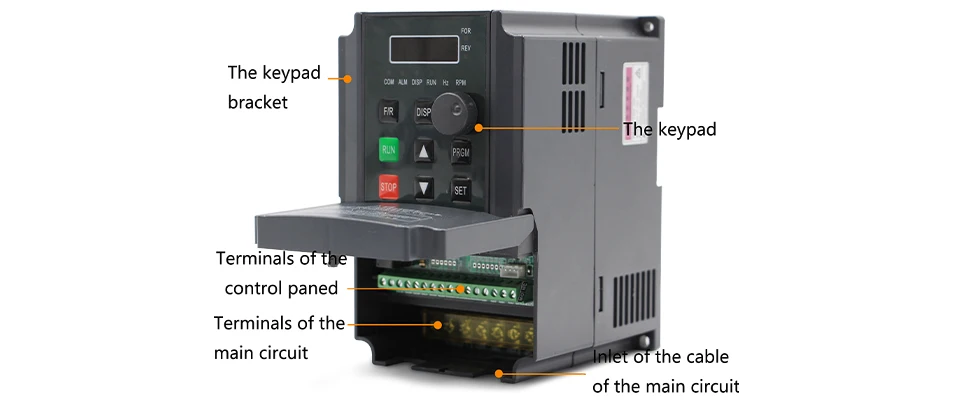

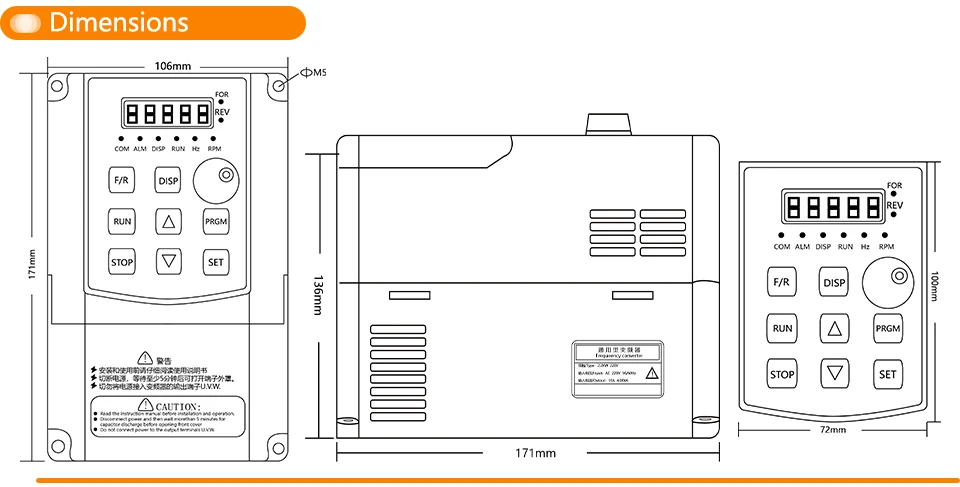

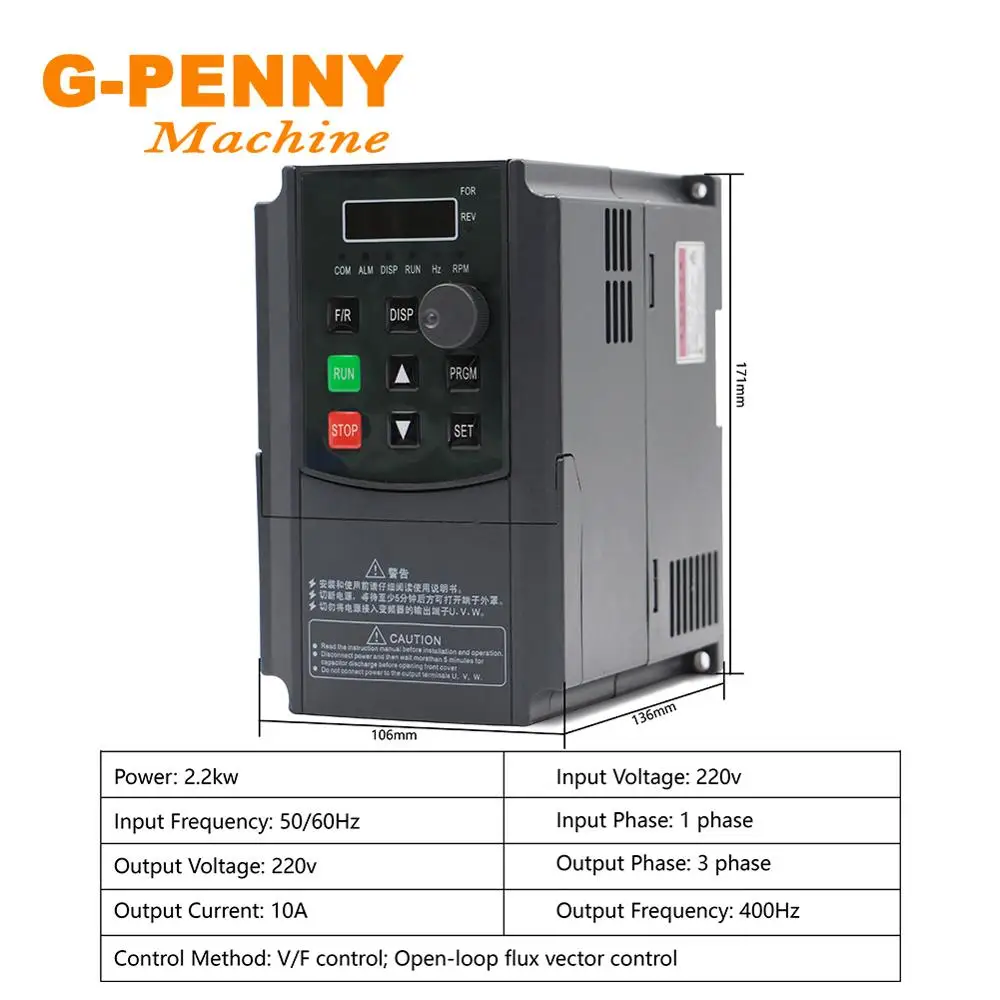

Power: 2.2kwInput Voltage: 220vInput Phase: 1Input Frequency: 50/60HzOutput Voltage: 220vOutput Phase: 3Output Current: 10AOutput Frequency: 400HzControl Method: V/F control; Open-loop flux vector control
1. Open-loop flux vector control---Vector inverter have a bigger torque in low frequency too. So the vector inverter have a good performe in 50~400Hz.2. Closed loop control can be achieved. Vector inverters can easily implement closed-loop control, while V/F inverters are relatively complex.3. Usually Vector inverter price higer 10% than normal V/F control, now we offer a very cheap price for vector inverter.4. The volume of the spindle is small，so it save space of the controller box.Some Qusetions about InverterDO NOT set up the inverter by yourself if you don't know how to, or it will make both the spindle and inverter burn easily.Please contact us, we have manuals, videos and pictures to help you.

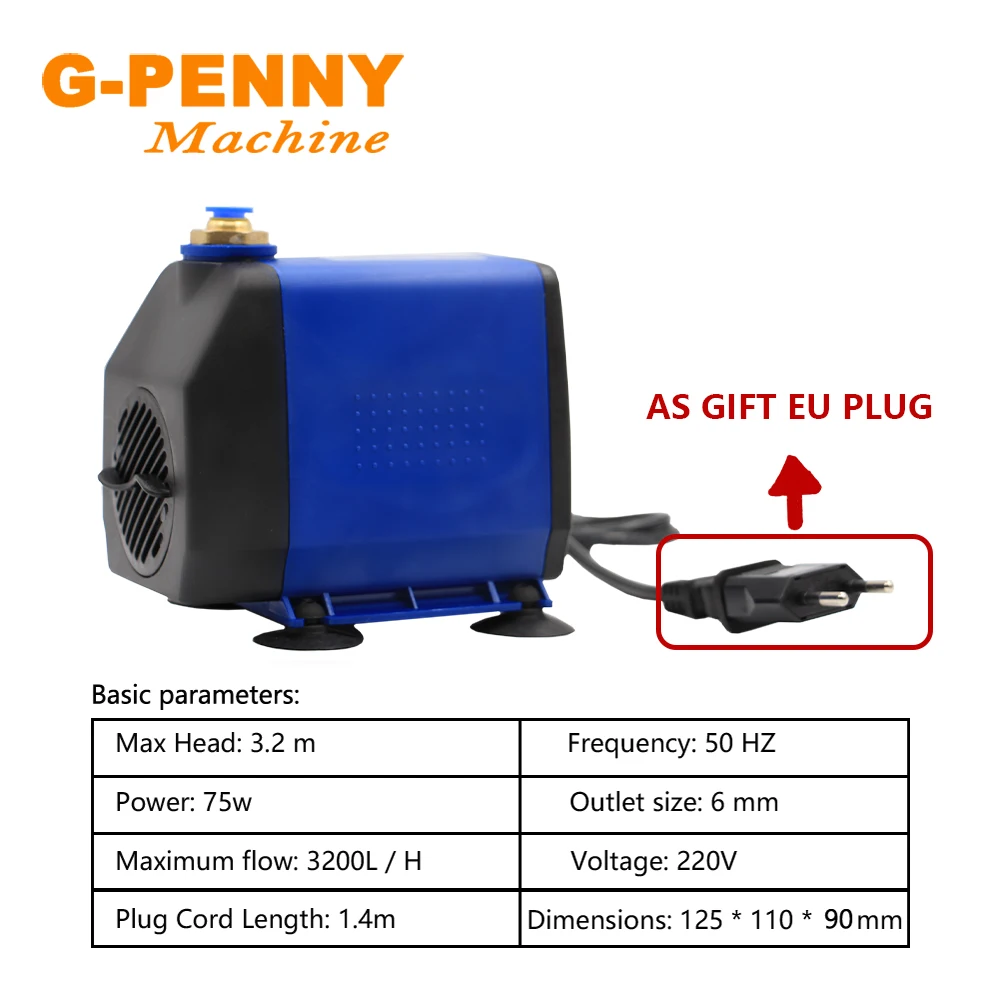

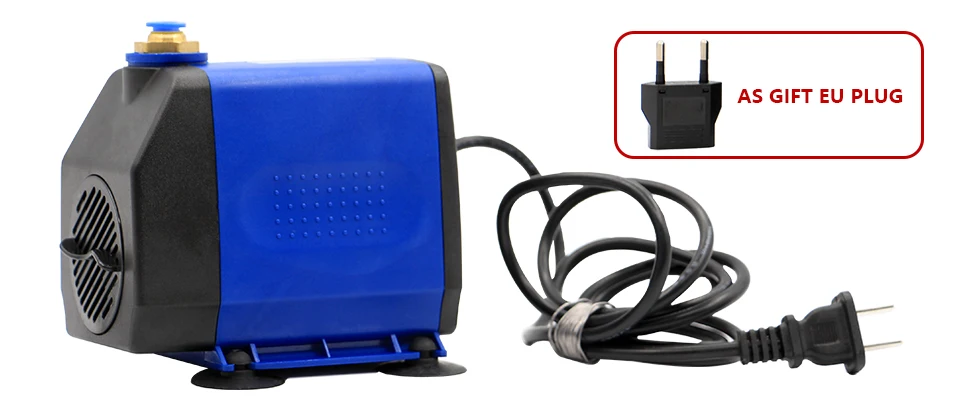

Max Head: 3.2 m;Power: 75w;Maximum flow: 3200L / HPlug Cord Length: 1.4mVoltage: 220V;Frequency: 50 HZOutlet size: 4 and 6 mm;Dimensions: 145 * 110 * 90 mmPumps have excellent insulation thanks to the motor bearing completely sealed.
Pumps combione pumping, filtered,oxygen and fountains in one.
Must cut off the electricity once the product works improperly and must maintain it after lifting it from the water.

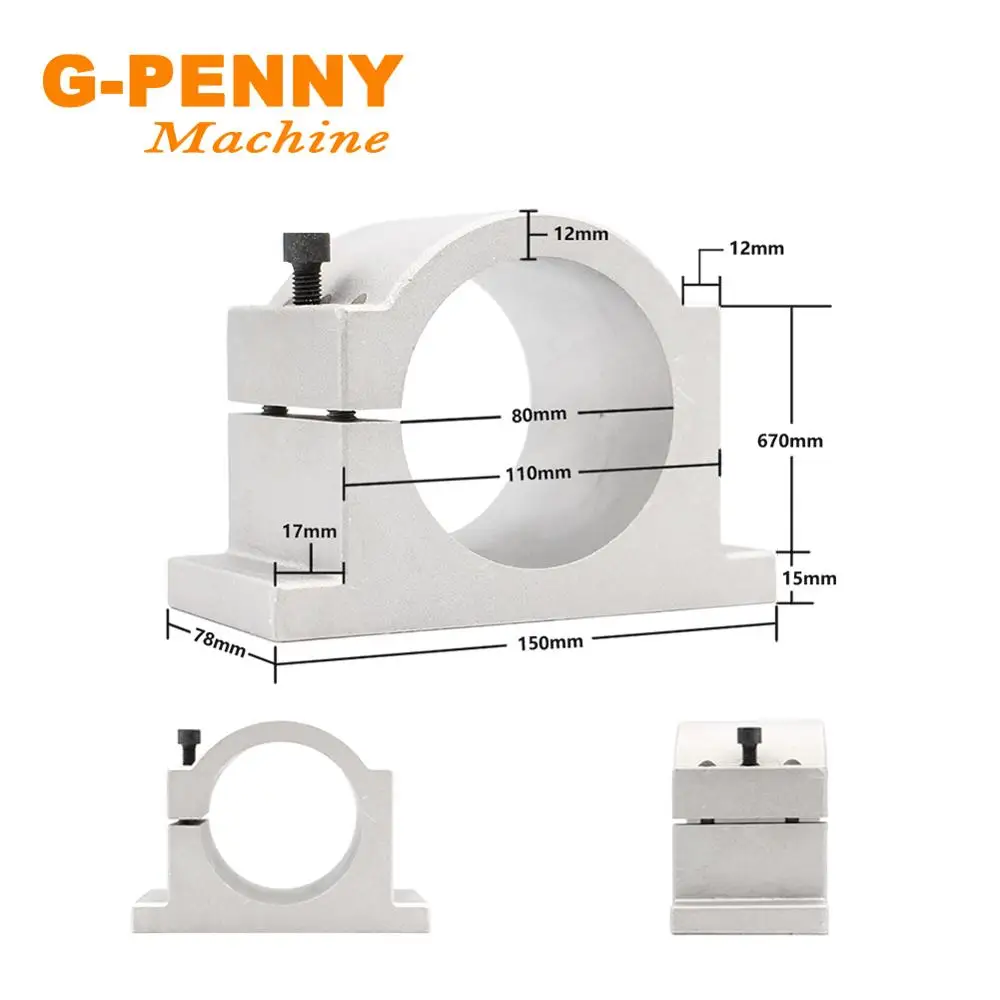

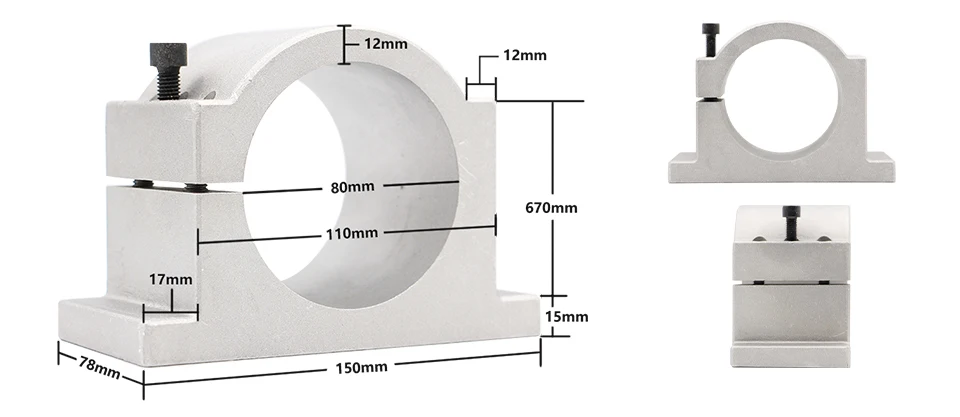

Diameter: 80mmMaterial: Cast AluminiumInner wall is very smooth, outer walls is sandblasted, relatively fine uniform, but not very smooth,.Cast aluminium fixture is much heavier than aluminium profile fixture

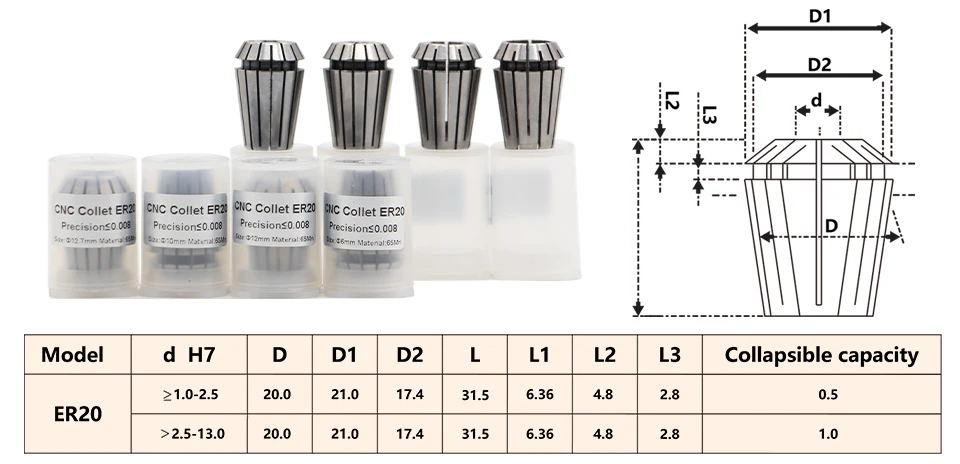

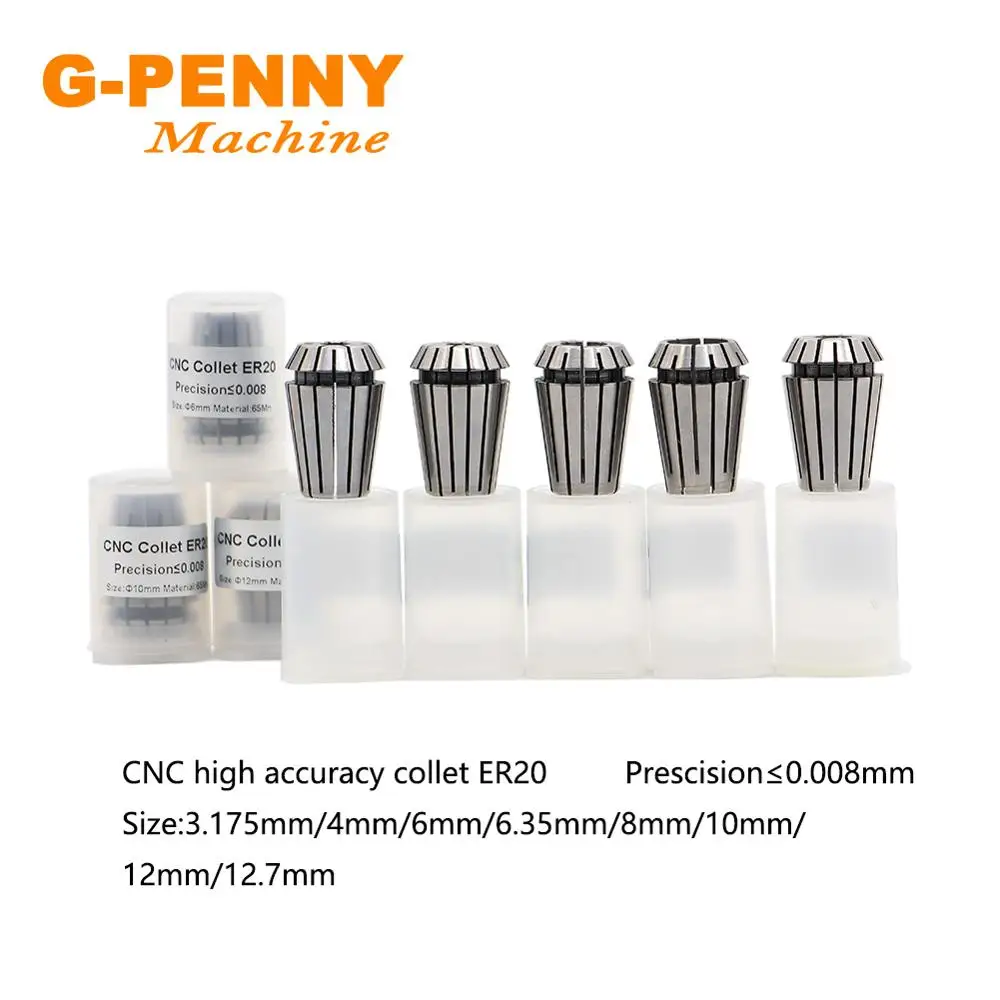

Material:65Mn SteelQuantity: 8 pcs (4mm,6mm,8mm,10mm,12mm,1/4(6.35mm),1/8(3.175mm),1/2(12.7mm))Precision ≤ 0.008mmHardened & Precision groundWidely used in boring, milling, drilling, CNC milling machine wire tapping,engraving spindle machines,machining centers and other processing.
Spindle working environment temperature is usually -10 ~ 40 .Before installing the first electric spindle axis head turned by hand, should feel flexible, non-blocking phenomenon.

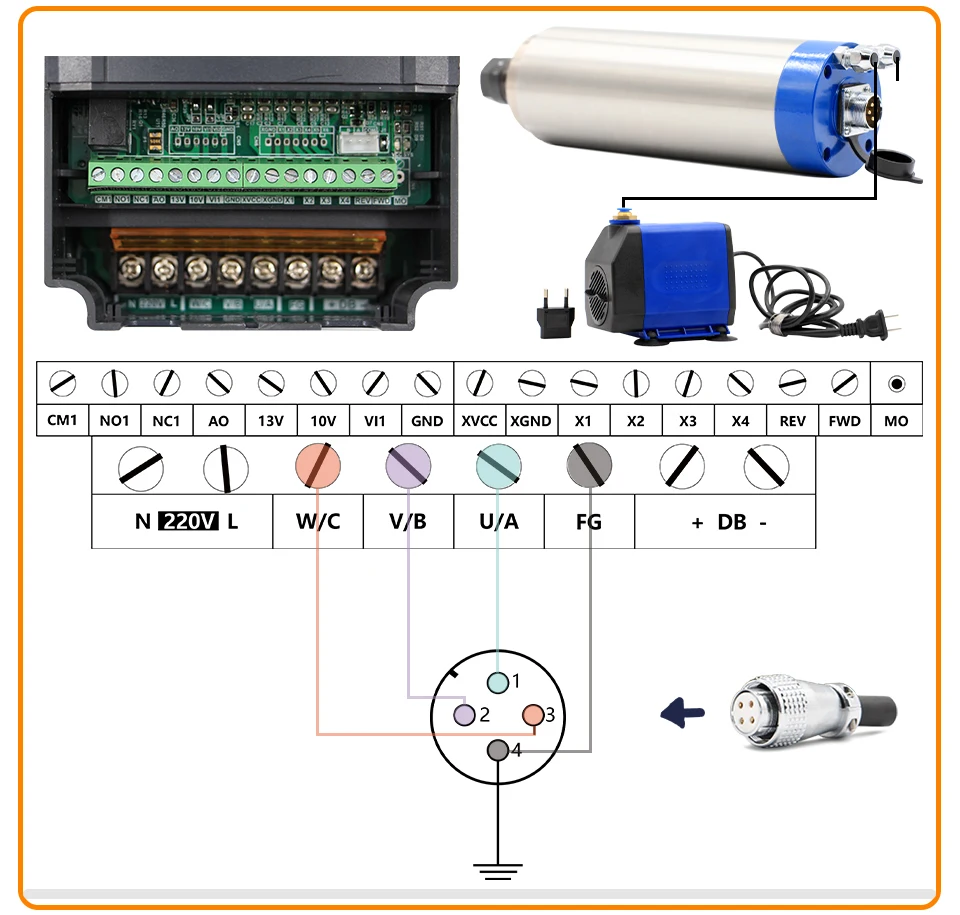

Spindle in the preservation and transportation, high-speed grease inside the bearing state will change, customers should be running at low speed for 30 minutes. 3000 rpm and then follow the poor increase, run 20 minutes each. Spindle and the inverter should be working together. The inverter's specifications and parameter settings need match spindles parameter.Connect the inverter spindle, three-phase inverter power cord should be soldered in the plug 1 (U), 2 (V), 3 (W) feet, 4 feet for the ground. After the power is turned on, to observe whether the spindle rotation axis indicates the direction consistent. If inconsistency should be immediately shut down, replace the inverter and spindle connected two wires of three-phase power supply.It should ensure that before use of water-cooled spindle, the cooling system is working properly. Every day before using the spindle must be running at low speed for 15-20 minutes. Clamping the cutters to spindle, collet nuts ,collets,cutters must be clean enough. Shank inserted into the collet must be greater than 15mm.
Water cooled spindle MUST be used with water pump. Otherwise the spindle will soon broken. AC spindle motor MUST use with inverter. The power of inverter need equal or bigger than the spindle power. Before using,please set up the inverter parameters suitable for spindle. Otherwise the spindle and inverter will broken at once.When you use the spindle,the noise is not same as always,please STOP the spindle at once. You may need to replace the spindle bearings.Before shipping , we did the oil seal to avoid the rust during the long shipment. When you get the spindle, please clearing the oil seal before using. Thank you.
1. Cooling in different ways: water-cooled spindle motor is the use of the water cycle to cool the heat generated after the high-speed rotating spindle, spindle motor with fan-cooled approach to cooling.2. Noise: Water-cooled spindle motor is basically no noise, but the air-cooled spindle motor is very loud.3. Life aspects: Water-cooled spindle motor pay attention to maintenance, frequently changes the water or the use of industrial water coolers, air-cooled spindle fan mainly by the wind blowing the heat transferred to the heat sink, so as to achieve the cooling effect.4.If you need use for metal ,hard wood,granite,stone,you can choose metal spindle.Metal spindle much better than wood spindle.
We will 100% guarantee security to the hands of the guests.Spindle from the production - assembly - test, and finally the perfect packaging .
Shipping CostOur products are sold worldwide.If you need many items in the same time, please contact us in advance to confirm shipping cost.Payment:We accept paypal credit, bank transfer, western union etc. Payment must be made within 7days calendar days of the auction end time.Problem and Feedback:PLEASE DON'T leave any negative feedback before you contact us.We are honest and helpful supplier , we will try our best to solve problems with you.Your satisfaction is very important for our store, so please contact us before you want to leave a negative feedback. Thanks very much in advance.Refund:If you are NOT SATISFIED with our package like the products is damage, please do not sign it and contact us immediately.If it is possible, please take some photos or make a small video about it. It will help us to solve the problems.Note:We can produce the product according to our customer's design. If you need something is very special, please contact us about it.We are willing to help you about it.
