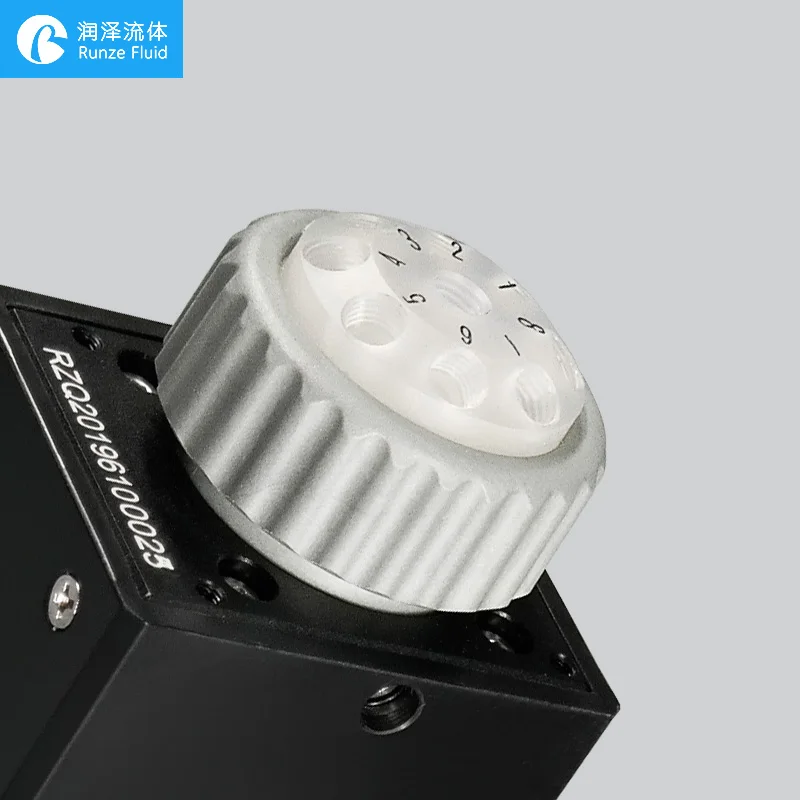

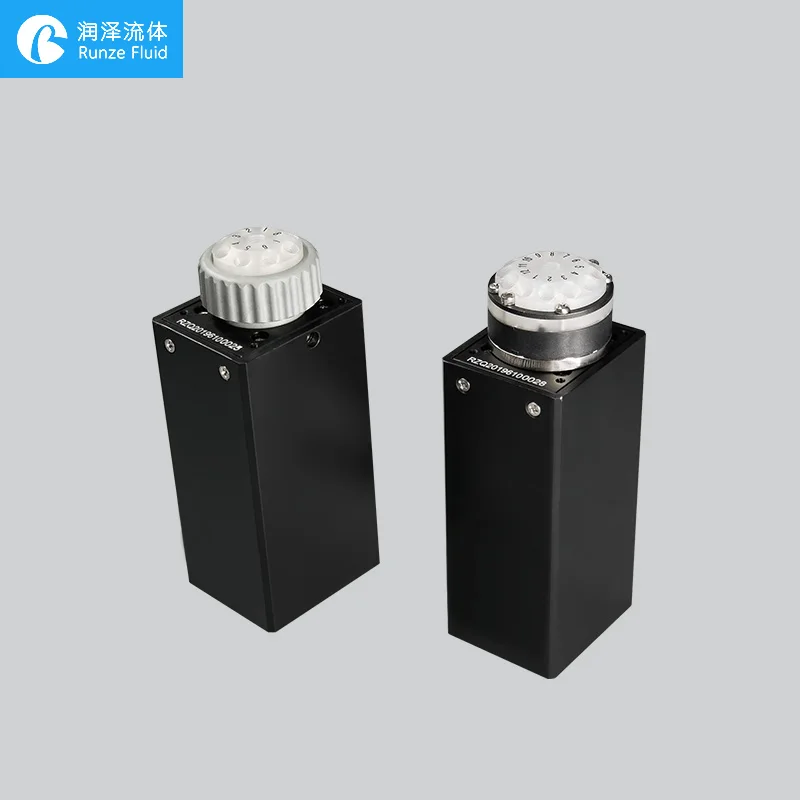

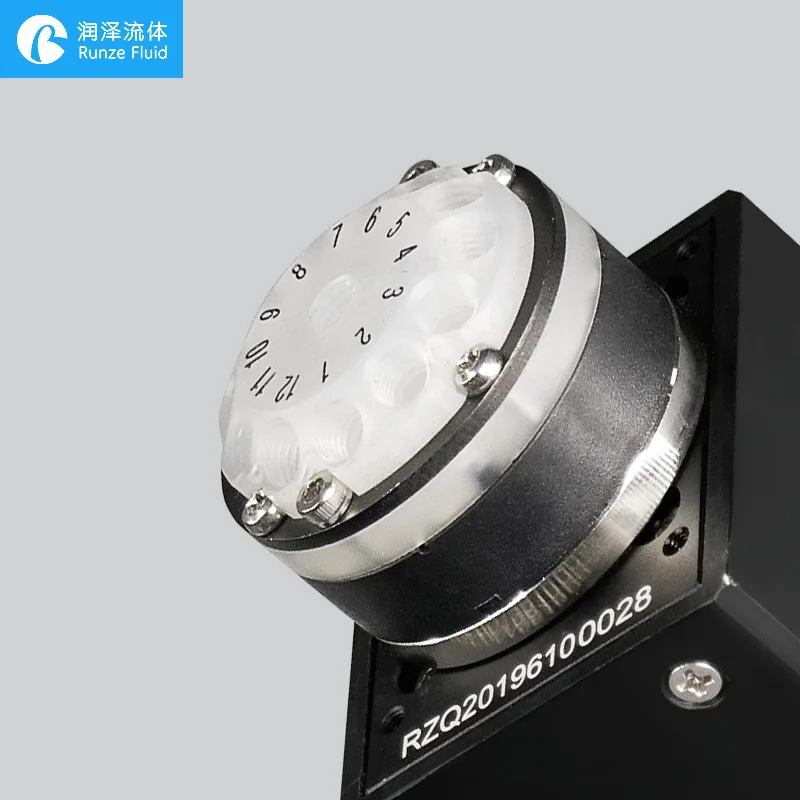

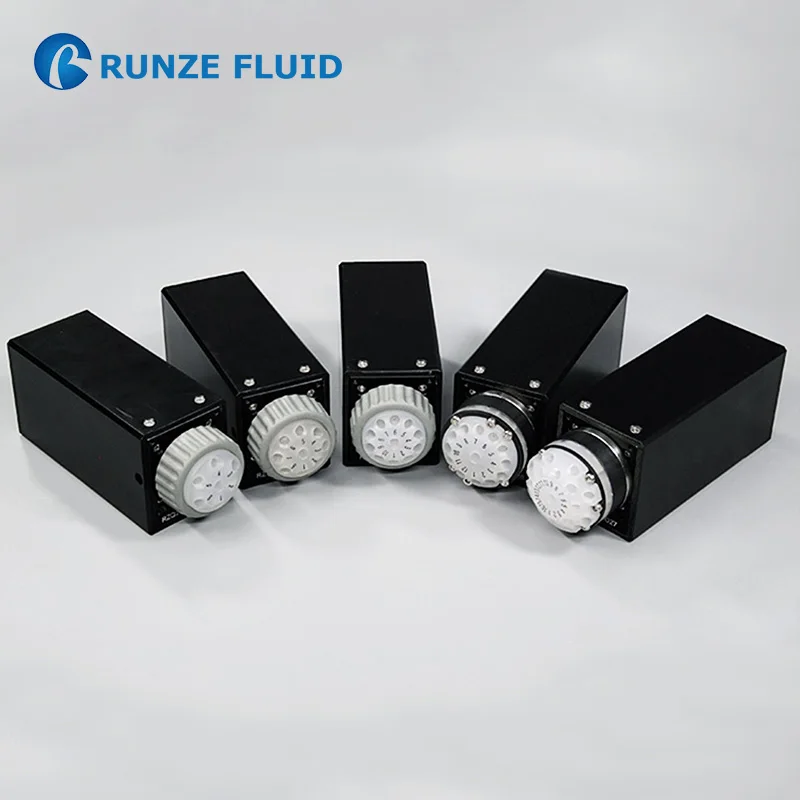

Liquid Distribution Collection Selector Valve 6/8/10/12/16 Port Upgraded Model Small Size High Torque Risk-free Sample Handling - купить
Специальная цена от 40 193,56 - 83 723,94 руб.*
Категория товара: Valve
История изменения цены
*Внимание! Указанная цена 40 193,56 - 83 723,94 руб. уже могла изменится, перед тем как купить данный товар перейдите на страницу продавца и проверьте актуальную стоимость.
| Месяц | Мин. | Макс. | Цена |
|---|---|---|---|
| 12.05.2026 | 51045.37 | 52066.86 | 51555.5 руб. |
| 12.04.2026 | 41399.70 | 42227.85 | 41813 руб. |
| 12.03.2026 | 50241.90 | 51246.55 | 50743.5 руб. |
| 12.02.2026 | 49839.37 | 50836.54 | 50337.5 руб. |
| 12.01.2026 | 39791.55 | 40587.75 | 40189 руб. |
| 12.12.2025 | 49035.11 | 50016.63 | 49525.5 руб. |
| 12.11.2025 | 48634.59 | 49607.86 | 49120.5 руб. |
| 12.10.2025 | 48232.66 | 49197.9 | 48714.5 руб. |
Купить Liquid Distribution Collection Selector Valve 6/8/10/12/16 Port Upgraded Model Small Size High Torque Risk-free Sample Handling |
QHF-SV06-X-T6-K1.2-S
QHF-SV06-X-T8-K1.2-S
QHF-SV06-X-T10-K1.0-S
QHF-SV06-X-T12-K1.0-S
QHF-SV06-X-T16-K1.0-S
X – Slope
T6 – 6 port; T8 – 8 port; T10- 10 port; T12 - 12 port; T16 - 16 port
K1.2 – channel diameter 1.2mm; K1.0 – channel diameter 1.0mm
S – Sapphire valve spool
Technical Parameter
Port diameter | 1.0mm | 1.2mm |
Fluid path | sapphire | sapphire |
Port numbers | 10/12/16 port | 6/8 port |
Dead volume | 5.41μL(10) 6.08μL(12) 10.4μL(16) | 39.8μL |
Air pressure | 0-1.0Mpa | 0-1.0Mpa |
Water pressure | 0-1.6Mpa | 0-1.6Mpa |
Detection | auto-detect original position when powered on (when selectively open or close the valve) | |
Working temperature | 0-50℃ | |
Working humidity | ≤80% | |
Liquid temperature | 0-150℃ | |
Connector | 1/4-28UNF female | |
Replaceable parts | stator replaceable, sealed rotor unreplaceable | |
Transposition | random start to different ports | |
Driver | non-optional | |
Switch speed | ≤5s/circle | |
Max drive power(torque) | 3.5N/m | |
Secondary drive power(torque) | 0.42N/m | |
Communication | RS232, RS485, CAN | |
Baud rate | 9600bps, 9200dps, 38400dps, 57600dps, 115200dps | |
Add setup | serial pont | |
Parameter setup | serial pont | |
Dimension (L*W*H) | 61*51*145.8mm(6/8/10) 60*51*156.5mm(12) 60*51*175.5mm (16) | |
Power supply | DC24V/3A | |
Max current | 2.5A | |
Max power | 60W | |
Net weight | 0.73kg(6/8/10) 0.86kg(12) 1.02kg(16) | |

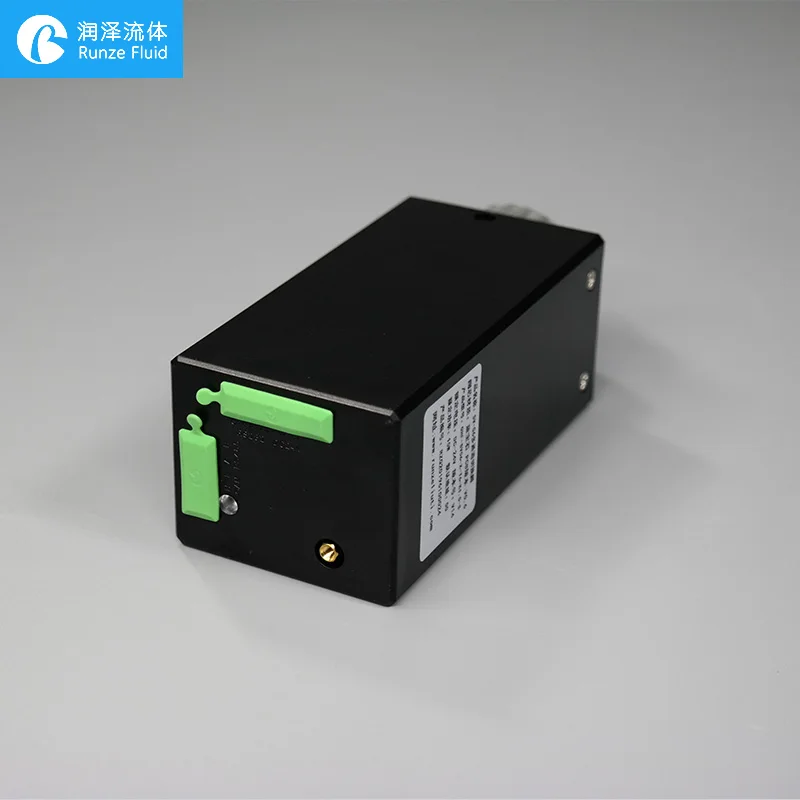

Port Name | Description |
+ | Positive |
- | Negative |
TX | RS232 TX |
RX | RS232 RX |
GND | RS232 Land |
H | CAN - H |
L | CAN -L |
A | RS485 - A |
B | RS485 - B |

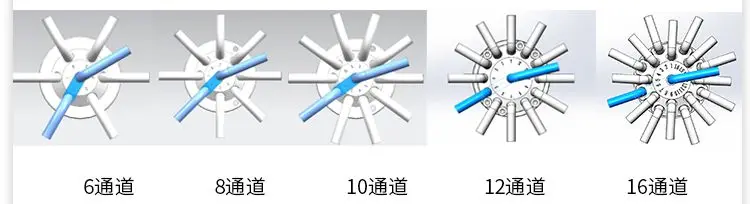

Flow Path
