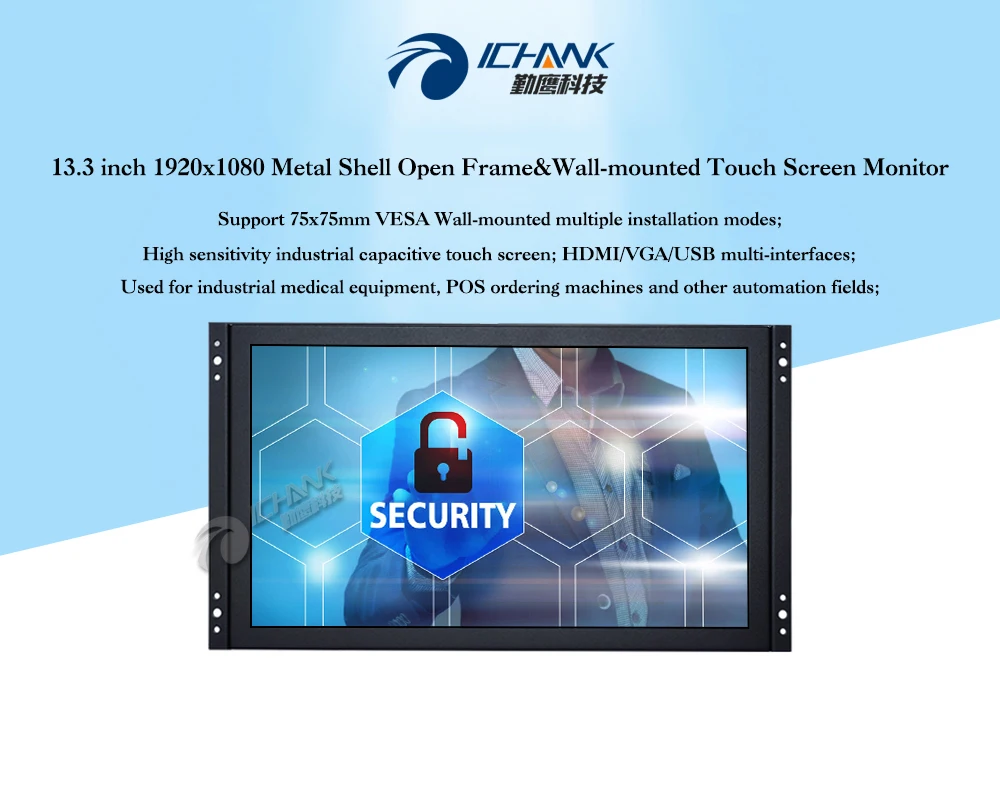

Монитор ZK133TC-25D с диагональю 13.3 дюйма разрешением 1920x1080p HDMI и USB сенсорным ЖК-экраном встроенной открытой рамкой - купить

Product Body:

Product Brand:

iChawk; (this logo will only appear on the product label, and there will be no logo in other positions)

Model Number:

ZK133TC-25D;

Shell Material/Color:

Metal/Black;

LCD Panel Parameters:

Panel Type:

13.3 inch 16:9 full view IPS widescreen HD LCD screen;

Resolution:

1920(H) x 1080(V) pixels;

Display Area:

293.5x165.1mm;

Brightness:

350cd/m²; (recommended to use indoors; support paid custom a high-brightness version for outdoor use)

Contrase Ratio:

800:1;

View Angle:

85°/85°/85°/85° (Left/Right/Up/Down);

Optimal Visual Angle:

Full view;

Display Color Count:

16.7M;

Refresh Rate:

50~70Hz; (60Hz recommended)

Color System:

PAL/NTSC Auto switch;

Touch Screen and Compatible OS:

Touch Screen:

Yes, with projected multi-point capacitive touch screen; (10 points)

Touch Screen's Hardness:

≥6H;

Positioning Accuracy:

＜2mm;

Click Lifespan:

＞50,000,000 times;

Touching Media:

Finger or capacitive touch pen (self purchased please);

Right Click Function:

Click a certain point and hold for at least 3 seconds;

Touch Screen's Interface:

USB; (supports paid customization to make it a COM (RS232) port)

Compatible OS:

1. When not using touch screen: Most OS on the market are supported by default, including Windows XP/Vista/7/8/10/11, Linux (Ubuntu, Debian, Raspbian, Yocto, Fedora Core, Mandriva, etc.), Android, Mac OS, etc.

2. When using touch screen: Supports Windows XP/Vista/7/8/10/11, Linux (Ubuntu, Debian, Raspbian, etc.), Android, Mac OS, etc. by default; other OS may require paid customization. (Please note: In Windows 7/8/10/11, the capacitive touch screen can be used directly without installing the touch screen driver; in Linux (Ubuntu, Debian, Raspbian, etc.), it can also be used directly without installing the touch screen driver, but you may need to provide us with the kernel version of your Linux OS in advance, so that we can burn the touch screen driver corresponding to your Linux OS kernel version into the monitor in advance, otherwise, you may need to burn the touch screen driver into the monitor by yourself later according to our guide. The capacitive touch screen can realize multi-touch in Windows 7/8/10/11, but can only realize single-point touch in Windows XP, Linux and Mac OS)

Optional:

Support paid customization for a four-wire resistive, five-wire resistive, infrared touch screens, etc;

Power Parameters:

Default Power Adapter:

Input: AC 100-240V～50/60Hz 1.5A Max; Output: DC 12V 3A;

Monitor Input Power:

Supportable range of input voltage and input current: DC 12V⎓2~4A;

Power Adapter Plug:

US, EU, UK, AU standard plugs are optional. But by default, we will provide you with a power adapter that matches the country's plug standard according to the country you reserved in the order;

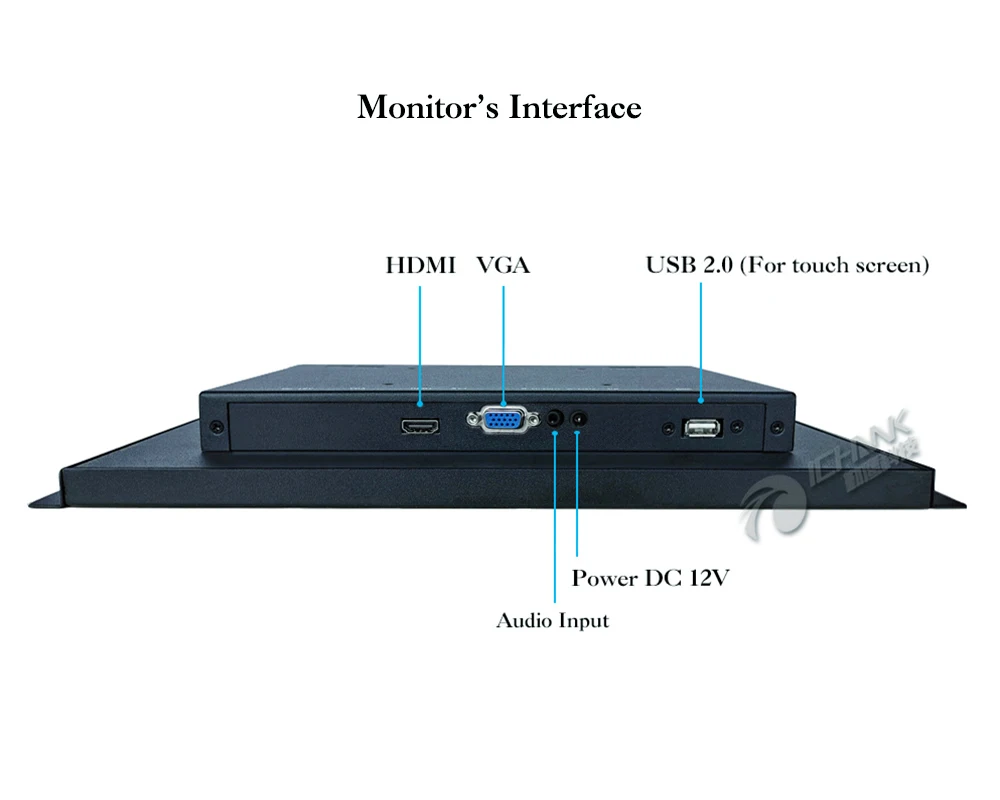

Interfaces and Function:

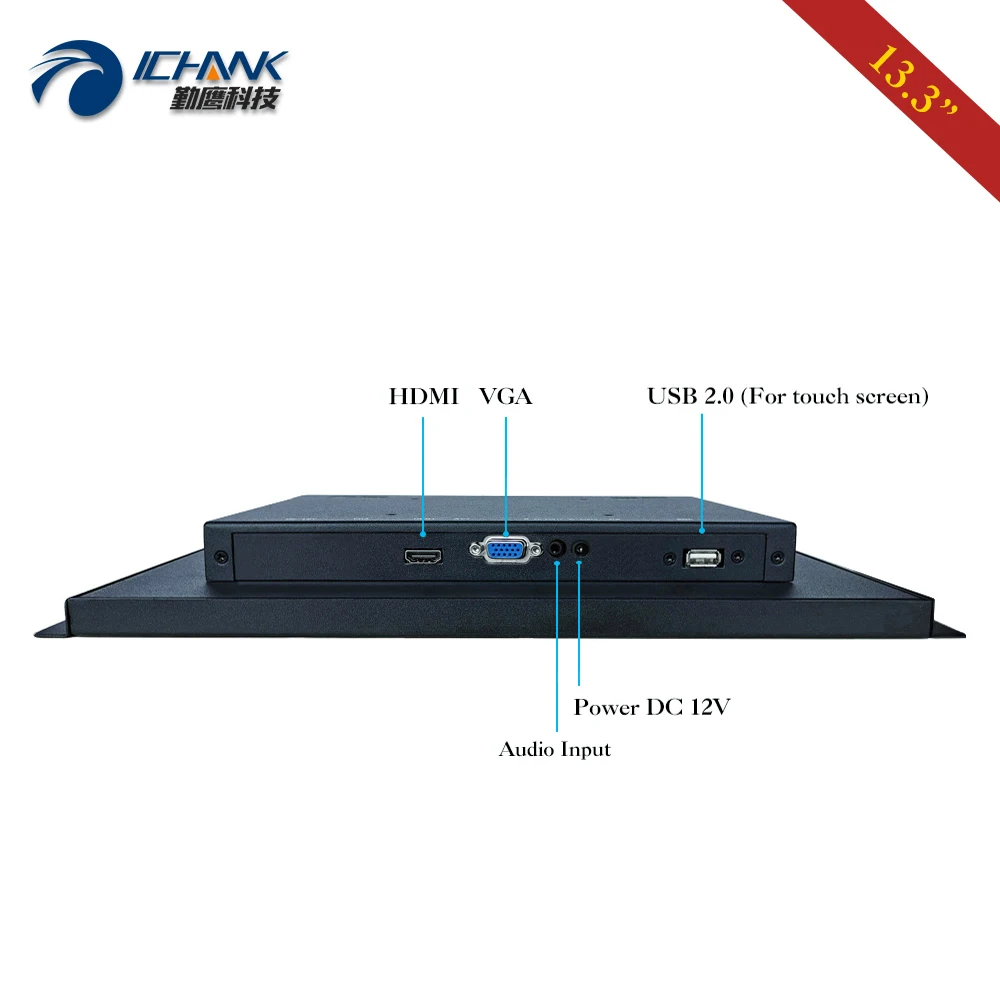

Interfaces:

Audio input*1/HDMI-input*1/USB*1/VGA*1;

Built-in Speaker:

Yes;

Remote Control:

Not available by default; (support paid customization of this function)

Built-in Battery:

None, this function is not supported;

Menu Language:

OSD Language:

English, Simplified Chinese, Traditional Chinese, French, Italian, German, Spanish, Russian;

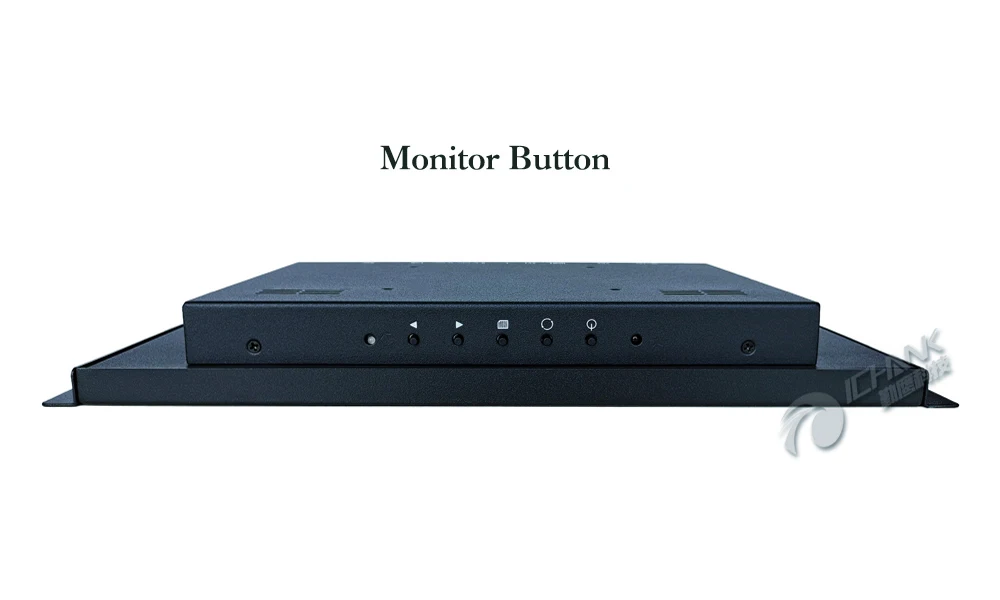

Menu Control Mode:

Button;

Environmental Parameters:

Operation Condition:

Temperature: -10℃ ~ +50℃; Relative Humidity: 0%~80%; (without condensation)

Store Condition:

Temperature: -15℃ ~ +60℃; Relative Humidity: 0%~90%; (without condensation)

Mounting of Product:

Base (Stand):

Without base by default; (if required, you can purchase a metal folding base from our separately)

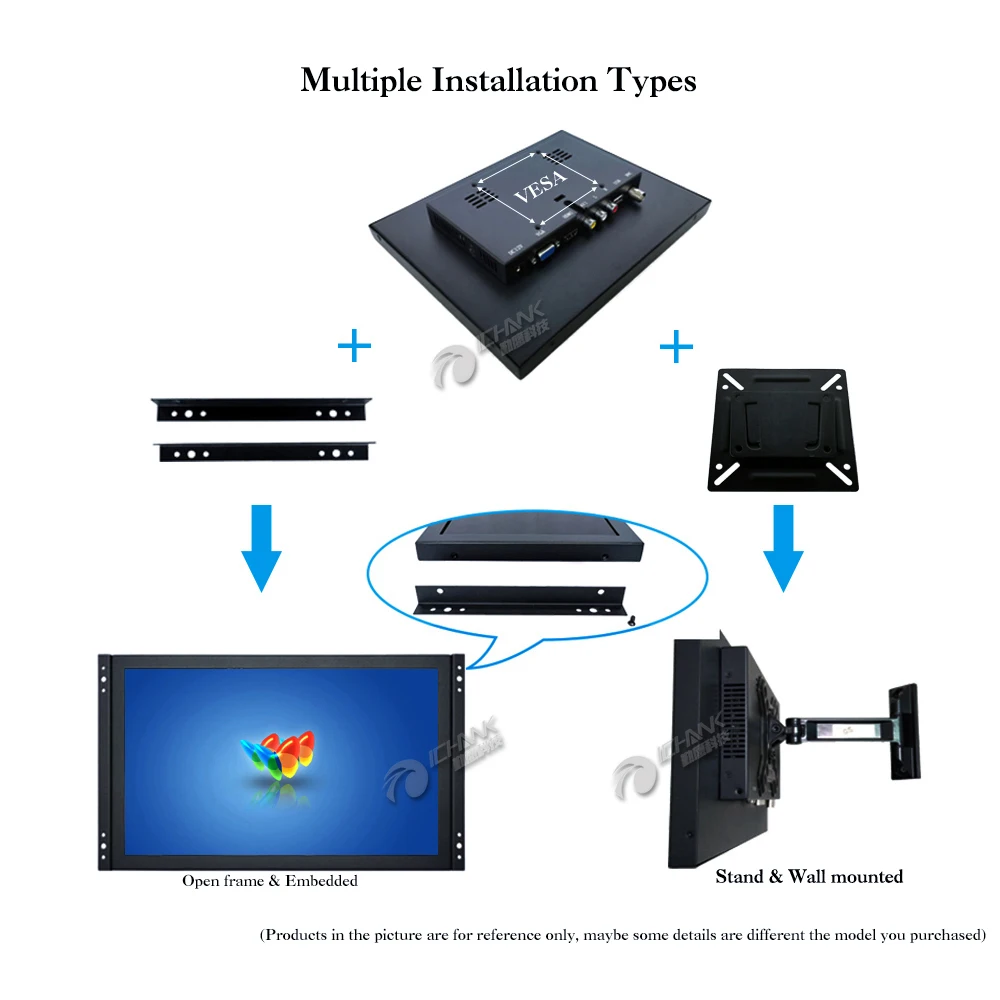

Mounting Mode:

Support multiple mounting modes, such as: Desktop, Wall-mounted, Open frame, Embedded;

VESA Compatible:

75x75mm; (standards for all threaded holes: M4)

Dimensions and Packaging:

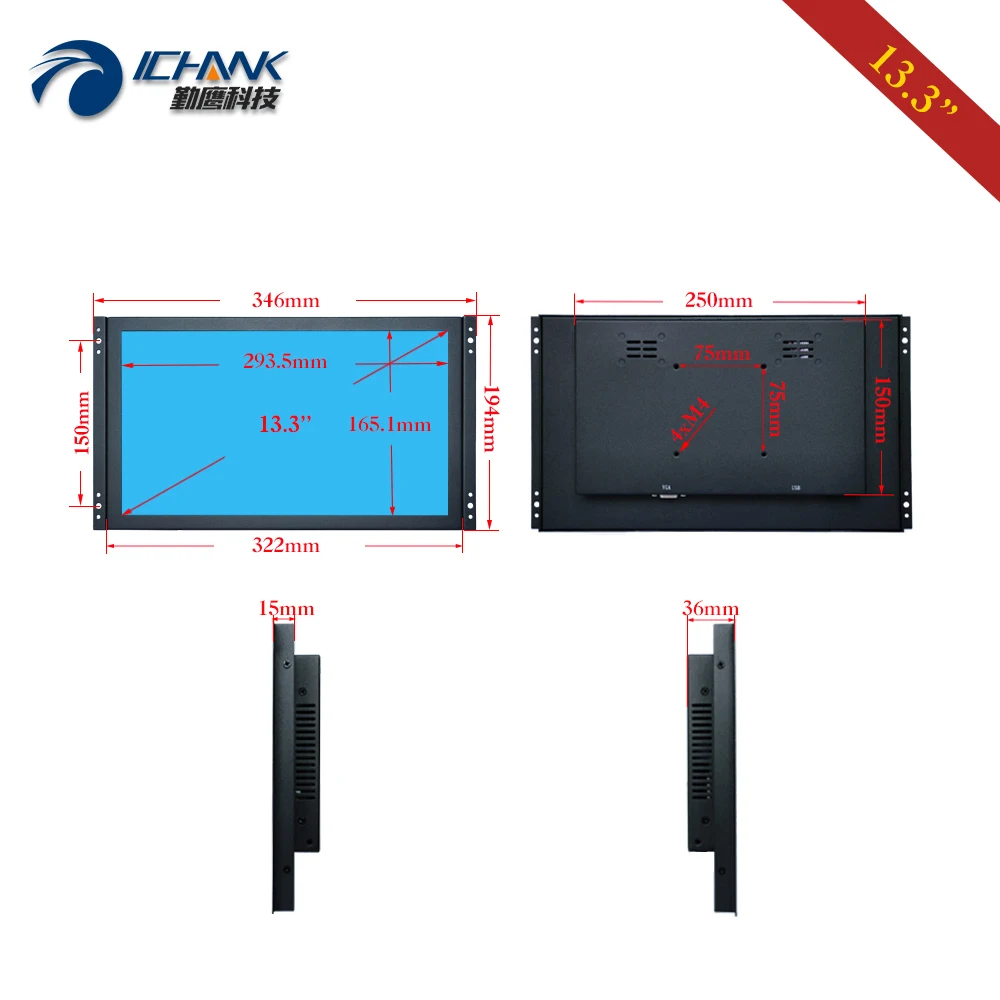

Monitor Size/Net Weight:

346x194x36mm/1.9Kg (manual measurement, some differences are normal)

1 Piece of Monitor:

Size and gross weight of box: 41x38x14cm/3.5Kg; (manual measurement, some differences are normal)

1 Carton of Monitor:

Full carton: 6 pieces, full carton size/gross weight: 54.2x39.5x36.5cm/18Kg; (refers to when you buy a full carton)

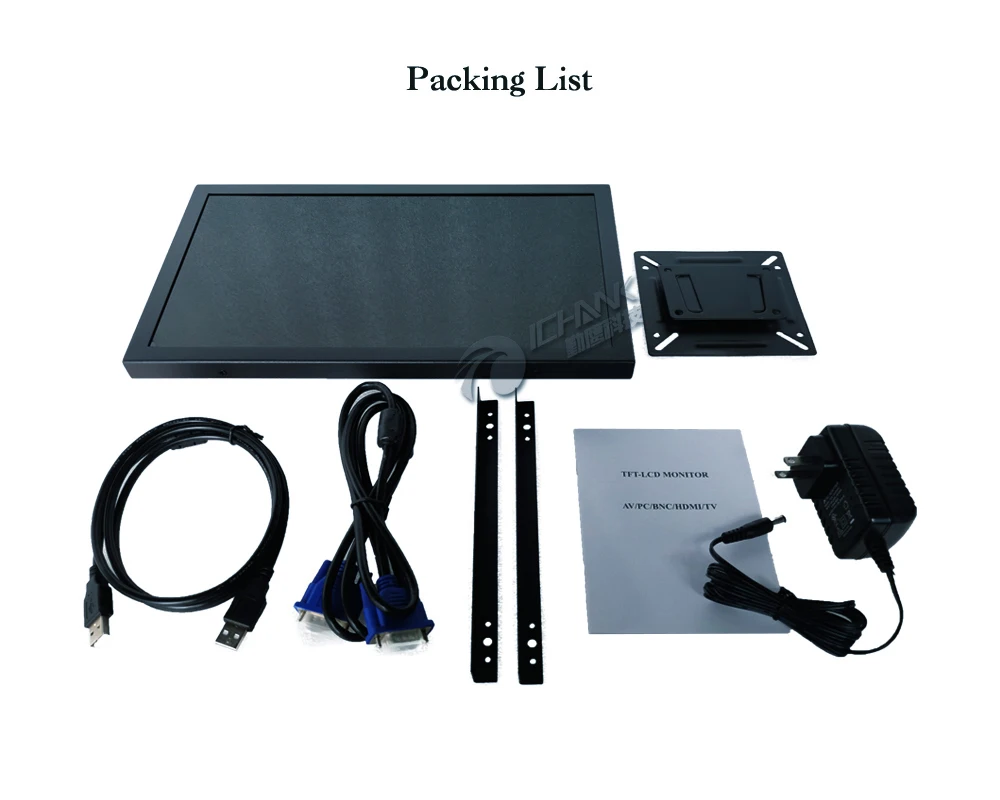

Packing List:

Monitor*1/Power adapter*1/Wall-mount bracket*1/Open-frame bracket*2/USB cable*1/VGA cable*1/User manual*1 (general version, for reference only);

Warranty Policy:

Default Warranty:

LCD screen and touch screen (if equipped) warranty for 1 year, other spare parts for 2 years;
