Купить W7500P Ethernet Chip IC MCU Integration TCPIP/M0/MAC with PHY | Инструменты
modname=ckeditor
Necessary conditions for Ethernet communication:
\
\
1MCU 2 MAC 3 PHY 4 TCP/IP Stack
\
\
Many say that the MCU with Ethernet interface, such as STM32F107, only has a MAC, but also expands the PHY, and then the protocol stack can be used. The W7500P solves one chip.
\
\
W7500= TCP/IP Protocol Stack + M0+MAC Industrial Grade -40--80
\
\
W7500P=TCP/IP protocol stack + M0+MAC +PHY quasi-industrial grade
\
\
ARM Cortex-M0
\
\
\
Maximum clock frequency 48MHz
\
\
\
Full hardware TCP/IP core
\
\
\
8 sockets
\
Each socket has a maximum of 32KBSRAM
\
MII (media independent interface)
\
\
\
RAM
\
\
\
Flash: 128KB
\
SRAM: 16KB to 48KB (such as 32KB socket cache is used, the minimum available 16KB, if the socket cache is not used, the maximum available 48KB)
\
ROM for Boot program storage: 6KB
\
\
\
Clock, reset and supply management
\
\
\
POR (power-on reset)
\
Regulator: 3.3V to 1.5V
\
8 to 24MHz external crystal oscillator
\
Internal internal 8MHz RC oscillator
\
Phase-locked loop for CPU clock
\
\
\
ADC
\
\
\
12bit, 8ch, 1Msps
\
\
\
DMA
\
\
\
6 DMA controller
\
Peripherals: UARTs, SPIs
\
\
\
GPIO
\
\
\
53 I/Os (16 IO x 3ea, 5 IO x 1ea)
\
\
\
Debugging mode
\
\
\
Serial Debug (SWD)
\
\
\
Timer/PWM
\
\
\
Watchdog*1 (32-bit subtraction counter)
\
Timer*4 (32-bit or 16-bit subtraction counter)
\
PWM*8 (32 counter/timer with 6-bit programmable prescaler)
\
\
\
Communication Interface
\
\
\
3 UART (2 UARTs with FIFO and flow control, 1 single UART)
\
2 SPI
\
2 I2C (Master/Slave, Fast-mode (400 kbps))
\
\
\
encryption
\
\
\
1 RNG (random number generator): 32-bit random code
\
Package : 64 TQFP (7×7 mm)
\
\
\

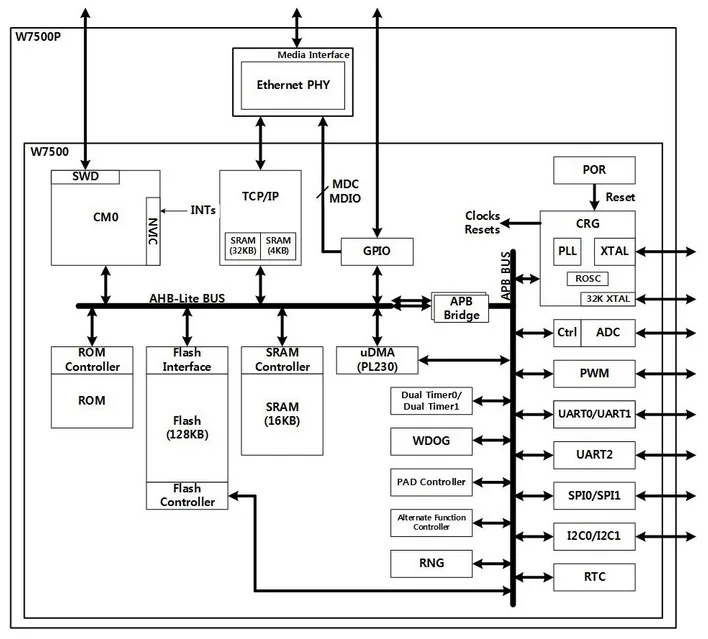

Block diagram
\
\
W7500P
