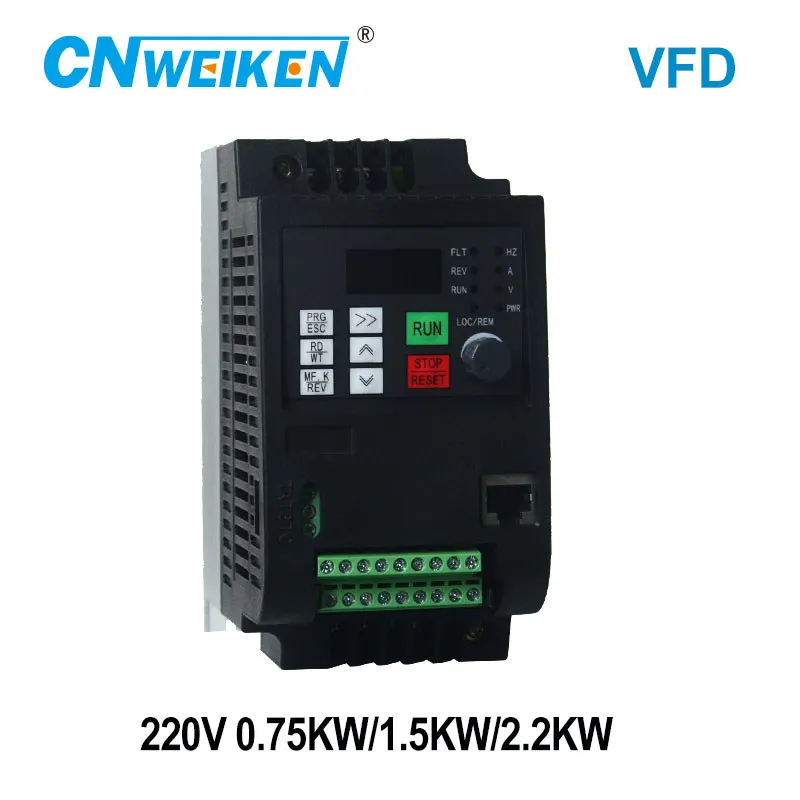

Купить 1.5KW/2.2kw 220V Three-phase inverter input low frequency Adjustable Speed Inverter | Обустройство дома
Spindle inverter ac drive 1.5kw/2.2kw 220v frequency converter 3 phase frequency inverter for motor speed controller VFD
Type Selection Table| 220V/0.75KW | 220V/1.5KW | 220V/2.2KW | |
| Model NO. | WK600-0007-M2TB | WK600-0015-M2TB | WK600-0022-M2TB |
| Input voltage | Three phase 220V±10% 50Hz/60Hz | ||
| Output voltage | Three phase 0-220V 0-650Hz | ||
| Power | 0.75KW/1HP | 1.5KW/2HP | 2.2KW/3HP |
| Rated current | 4A | 7A | 10A |
| Shape size(mm) | 155*82*135 | 155*82*135 | 155*82*145 |
| packing size(mm) | 220*150*130 | ||
| Weight | 1.2KG | ||
Type selection instructions:
1. Please read the product instructions carefully, choose the type according to the function and power you need, and avoid the damage caused by wrong wiring.
2. This Frequency converter does not support single-phase motor speed regulation with capacitance.
3. Speed regulation of three-phase AC motors with six or more stages. Please purchase a converter with higher power than the motor.
4. If you don't know how to choose the type, you can also contact us to give you some suggestions.

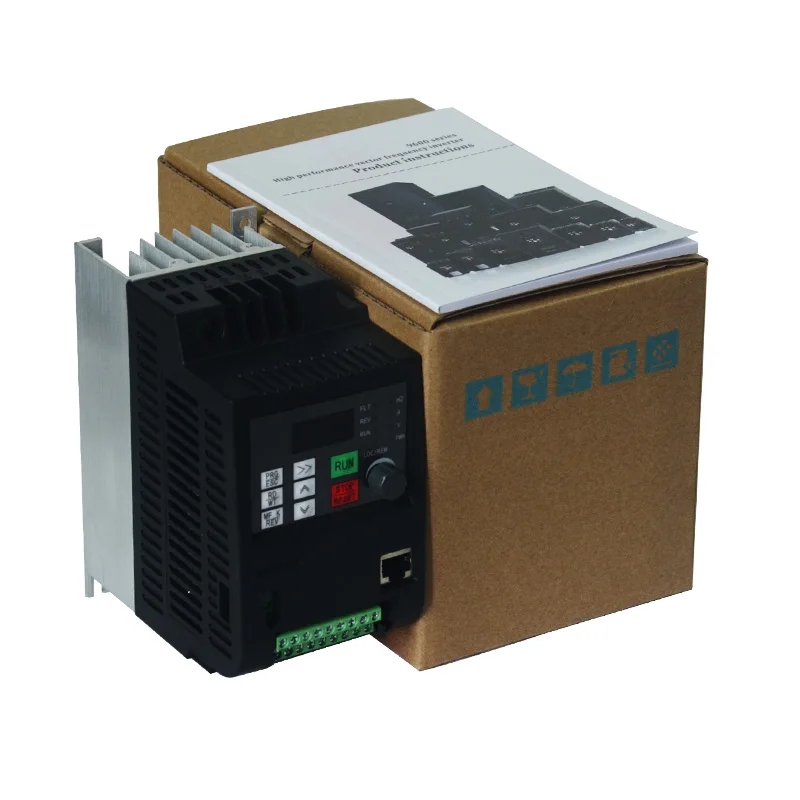

Packing list
Packaging list:
machine * 1, streamlined version of product manual * 1 (including warranty card), extension line * 1 (keyboard introduction, need to be purchased separately), product qualification certificate * 1
Supplementary Note:
A. If you need detailed version of product manual, you can contact us to send it to you free of charge.
B. If there is no paper product manual in the packing case, it is because of product changes or upgrades. Please contact us for the latest and accurate electronic product manual.
RECOMMENDED ACCESSORIES
Supplementary Note:

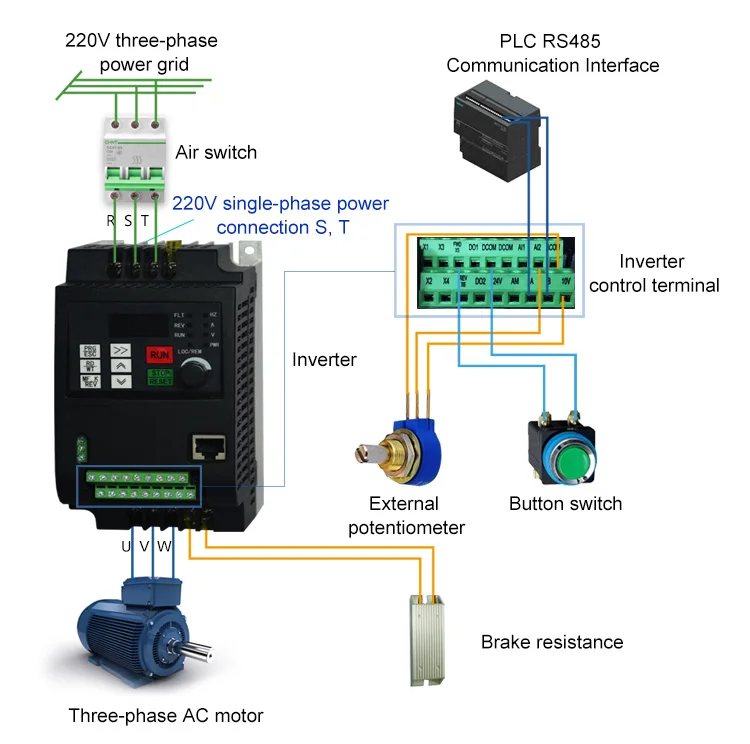

R, S, T are input terminals of three-phase power supply of frequency converter (single-phase power supply connected with S, T).
U, V, W are output terminals of frequency converter, and connected three-phase asynchronous motor. P and P B are connection terminals of brake resistance.
DETAILS OF OUR PRODUCTS
| Item | Specifications | |
| Standard functions | Maximum frequency |
• Vector control: 0-650 Hz • V/F control: 0-650 Hz or 0-3200Hz |
| Carrier frequency |
0.5-16 kHz The carrier frequency is automatically adjusted based on the load features. |
|
| Input frequency resolution |
Digital setting: 0.01 Hz Analog setting: maximum frequency x 0.025% |
|
| Control mode |
• Sensorless flux vector control (SFVC) • Voltage/Frequency (V/F) control |
|
| Startup torque | G type: 0.5 Hz/150% (SFVC); | |
| Speed range | 1:100 (SFVC) | |
| Speed stability accuracy | ± 0.5% (SFVC) | |
| Torque control accuracy | ± 5% | |
| Standard functions | Overload capacity | G type: 60s for 150% of the rated current, 3s for 180% of the rated current |
| Torque boost |
• Fixed boost • Customized boost 0.1%-30.0% |
|
| V/F curve |
• Straight-line V/F curve • Multi-point V/F curve • N-power V/F curve (1.2-power, 1.4-power, 1.6-power, 1.8-power, square) |
|
| V/F separation | Two types: complete separation; half separation | |
| Ramp mode |
• Straight-line ramp • S-curve ramp Four groups of acceleration/deceleration time with the range of 0.0-6500.0s |
|
| DC braking |
DC braking frequency: 0.00 Hz to maximum frequency Braking time: 0.0-36.0s Braking action current value: 0.0%-100.0% |
|
| JOG control |
JOG frequency range: 0.00-50.00 Hz JOG acceleration/deceleration time: 0.0-6500.0s |
|
| Onboard multiple preset speeds | It implements up to 16 speeds via the simple PLC function or combination of X terminal states. | |
| Onboard PID | It realizes process-controlled closed loop control system easily. | |
| Auto voltage regulation (AVR) | It can keep constant output voltage automatically when the mains voltage changes. | |
| Overvoltage/ Overcurrent stall control | The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to overvoltage/overcurrent. | |
| Torque limit and control | It can limit the torque automatically and prevent frequent over current tripping during the running process. | |
| Individualized functions | High performance | Control of asynchronous motor and synchronous motor are implemented through the high-performance current vector control technology. |
| Power dip ride through | The load feedback energy compensates the voltage reduction so that the AC drive can continue to run for a short time. | |
| Rapid current limit | It helps to avoid frequent overcurrent faults of the AC drive. | |
| Virtual I/Os | Five groups of virtual X/DOs can realize simple logic control. | |
| Timing control | Time range: 0.0-6500.0 minutes | |
| Multi-motor switchover | Four motors can be switched over via four groups of motor parameters. | |
| Multiple communication protocols | It supports communication via Modbus-RTU, PROFIBUS-DP, CANlink and CANopen. | |
| RUN | Running command source |
• Operation panel • Control terminals • Serial communication port You can perform switchover between these sources in various ways. |
| Frequency source |
There are a total of 10 frequency sources, such as digital setting, analog voltage setting, analog current setting, pulse setting and serial communication port setting. You can perform switchover between these sources in various ways. |
|
| Auxiliary frequency source | There are ten auxiliary frequency sources. It can implement fine tuning of auxiliary frequency and frequency synthesis. | |
| Input terminal |
Standard: 6 digital input (X) terminals, one of which supports up to 100 kHz high-speed pulse input, 2 analog input (AI) terminals, one of which only supports 0-10 V voltage input and the other supports 0-10 V voltage input or 4-20 mA current input |
|
| Output terminal |
Standard 1 high-speed pulse output terminal (open-collector) that supports 0-100 kHz square wave signal output 1 digital output (DO) terminal 3 relay output terminal 1 analog output (AM) terminal that supports 0-20 mA current output or 0-10 V voltage output |
|
| Display and operation on the operation panel | Key locking and function selection | It can lock the keys partially or completely and define the function range of some keys so as to prevent mis-function. |
| Protection mode | Motor short-circuit detection at power-on, input/output phase loss protection, overcurrent protection, overvoltage protection, undervoltage protection, overheat protection and overload protection | |
| Environment | Installation location | Indoor, free from direct sunlight, dust, corrosive gas, combustible gas, oil smoke, vapour, drip or salt. |
| Altitude | Lower than 1000 m | |
| Ambient temperature | -10℃ to +40℃ (de-rated if the ambient temperature is between 40℃ and 50℃) | |
| Humidity | Less than 95%RH, without condensing | |
| Vibration | Less than 5.9 m/s2 (0.6 g) | |
| Storage temperature | -20℃ to +60℃ | |
| IP level | IP20 | |
| Pollution degree | PD2 | |
| Power distribution system | TN , TT | |
