Maximum discharge current: 20AInstantaneous discharge current: 35A
Charging voltage: 25.5V
Maximum charging current: 20A
Overcharge detection voltage: 4.25±0.025V
Overcharge protection delay: 1.0±0.5S
Overcharge release voltage: 4.15±0.05V
Battery balance detection voltage: 4.125±0.025V
Battery balance release voltage: 4.125±0.05V
Battery balance current: 41±5mA
Overdischarge detection voltage: 2.7 ± 0.1V
Overdischarge detection delay: 1.0±0.5S
Overdischarge release voltage: 3.0±0.1V
Overcurrent detection voltage: 100mV
Overcurrent detection delay: 1±0.3S
Overcurrent protection current: 40±5A
Overcurrent protection release condition: disconnect load
Short circuit protection condition: external load short circuit
Short circuit detection delay: 250uS
Short circuit protection release condition: disconnect load
Main circuit conduction internal resistance: less than equal 20mΩ
Working current: less than equal 40uA
Temperature range: -30/+80°C

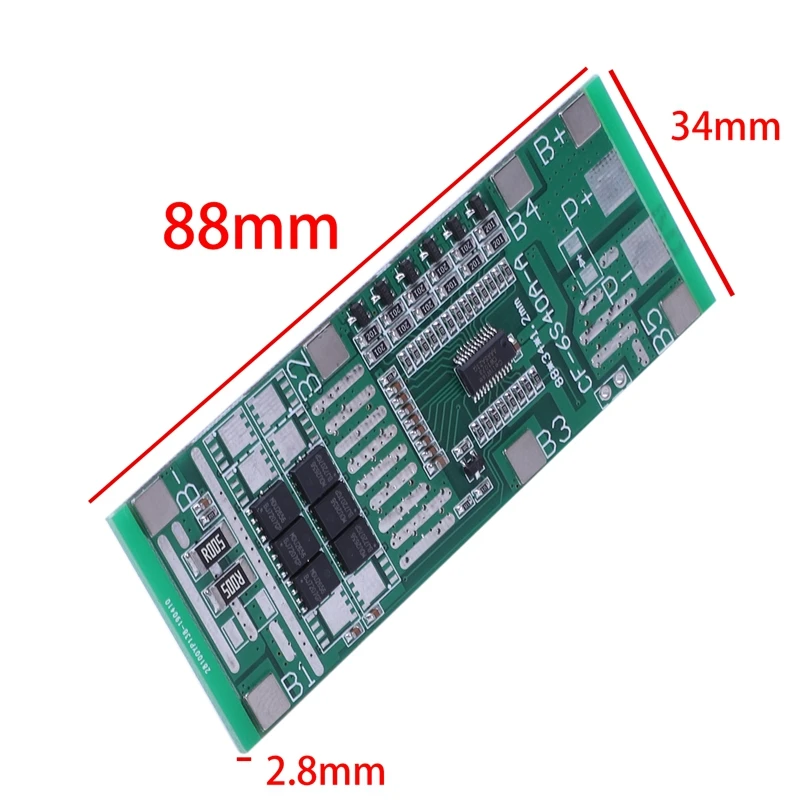

Size: 88*34*2.8mm
colour:green
Material:PCB
Package Contents:
1 * Protection board
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
|
