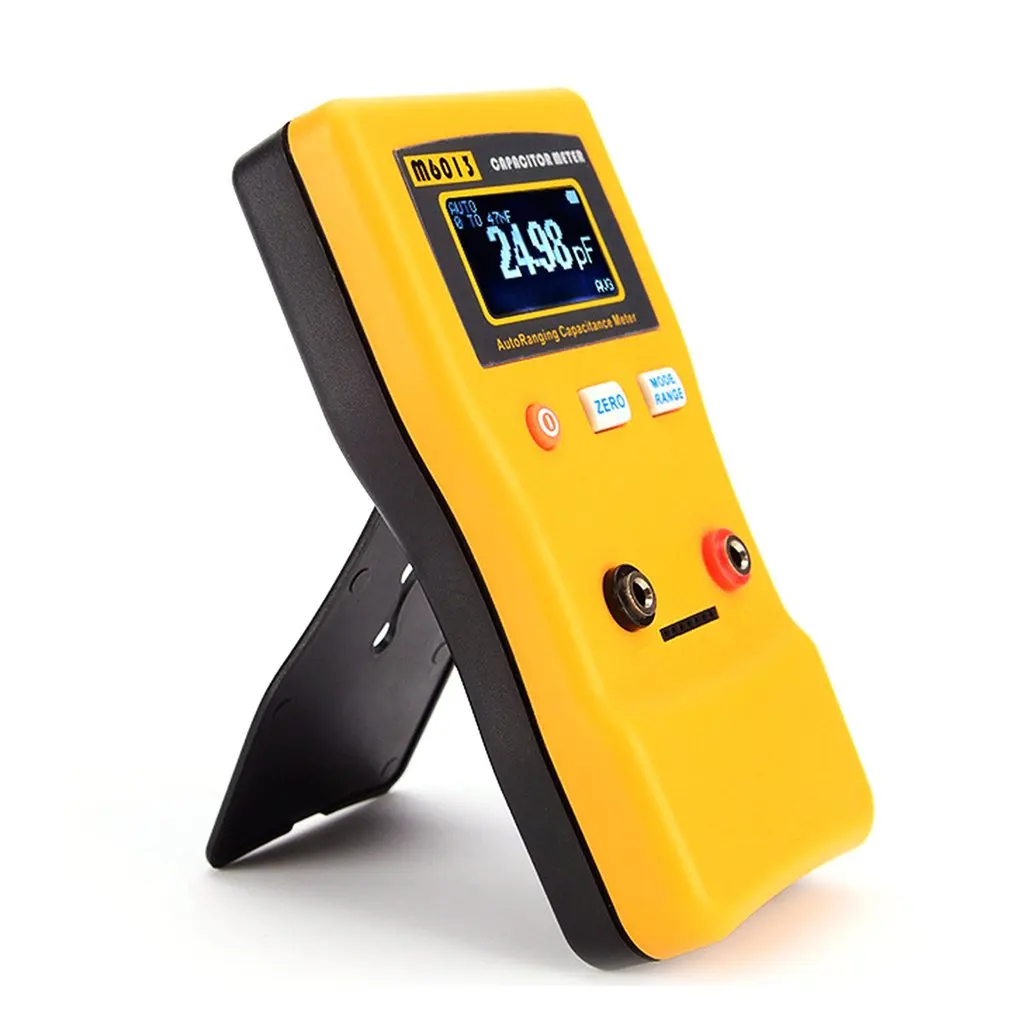

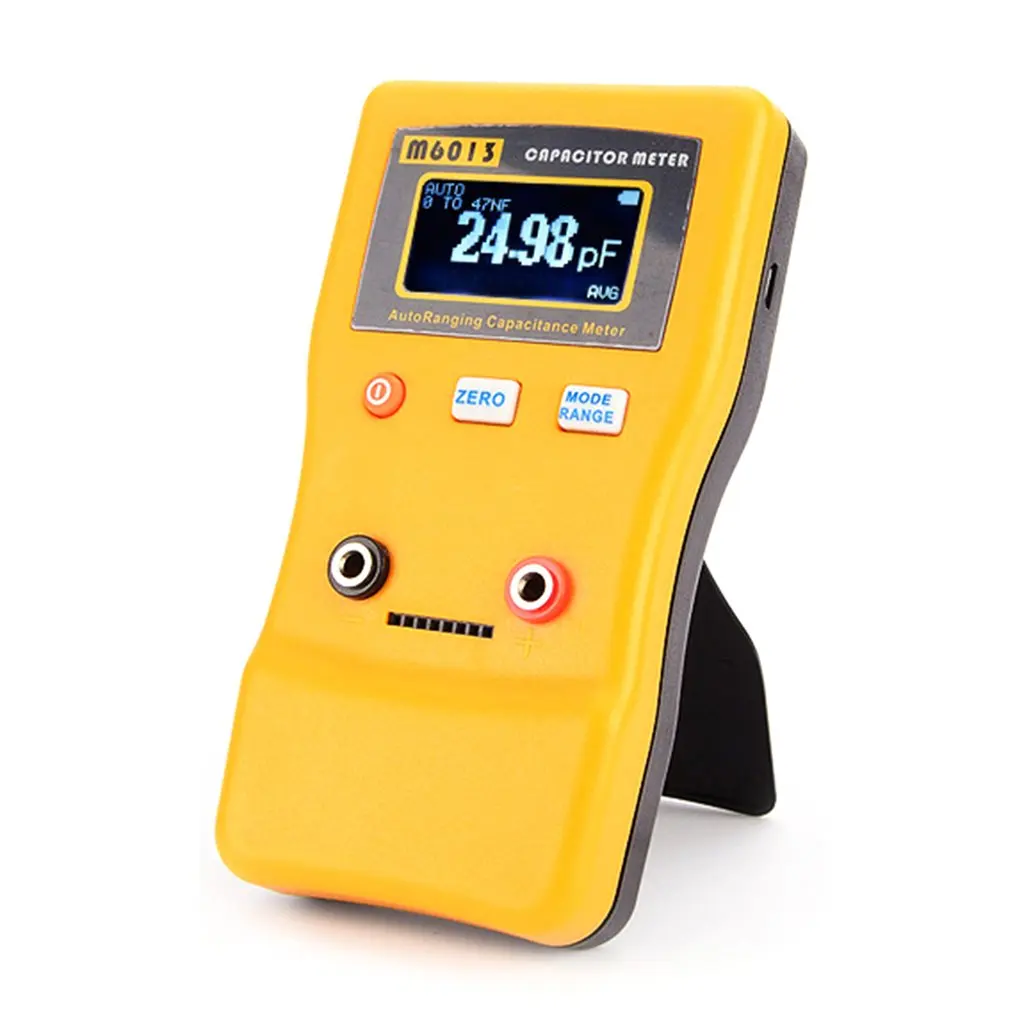

M6013 LCD Capacitor Meter Handheld Autoranging Digital Capacitance Measuring Meter Resistance Capacitor Tester

Features:

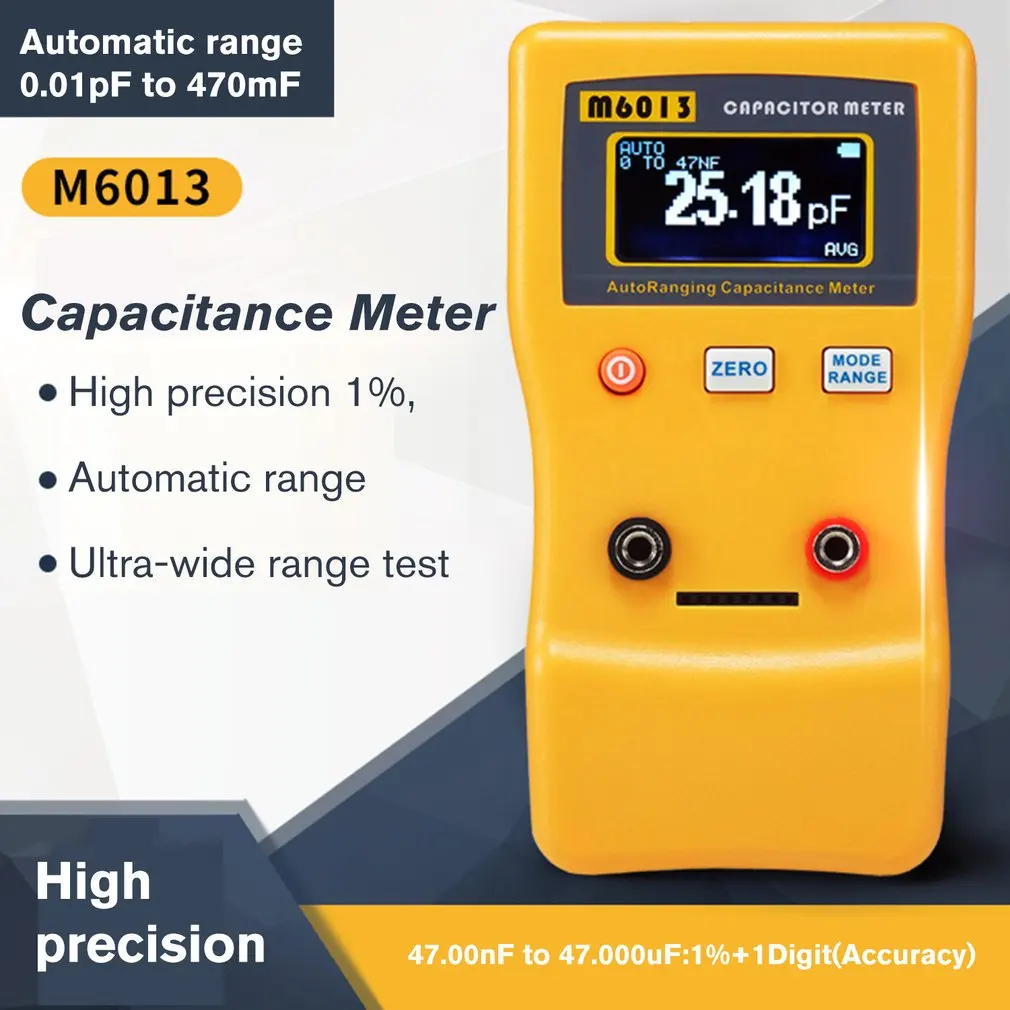

1.High-precision capacitance meter, full protection function, strong anti-electromagnetic anti-interference ability, automatic range 0.01pF to 470mF, ultra-wide range test, suitable for professional engineers and DIY users.
2.Using 128*64 dot matrix LCD display, can display 5-digit readings with higher precision.
3.AVG sliding function, can automatically start after the test is stable, allowing users to read the value more accurately and conveniently.

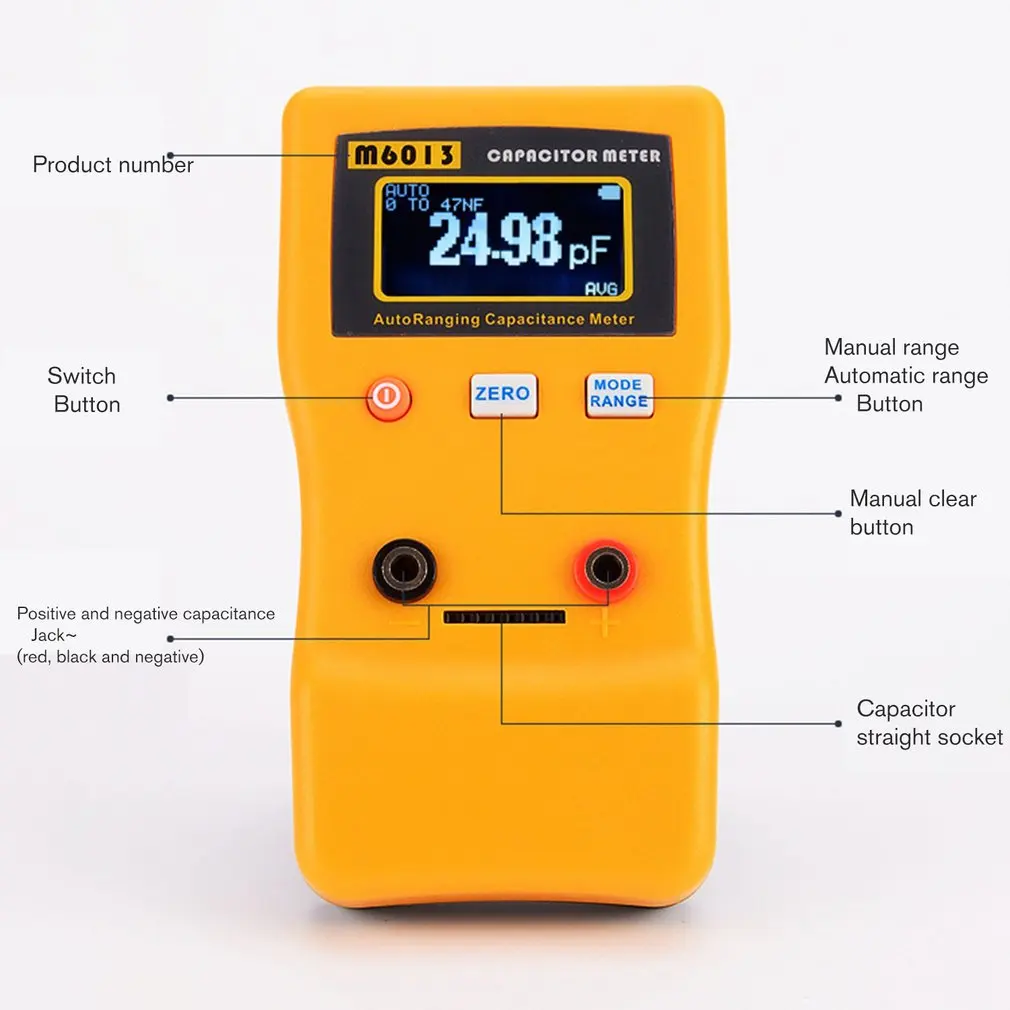

4.Automatic range and manual range can be switched freely, one button clear button, convenient and accurate test, reducing error.
5.Automatic shutdown function, saving power. Concealed bracket for easy desktop testing. It can be powered by USB or by ordinary 5th dry battery.

Descriptions:

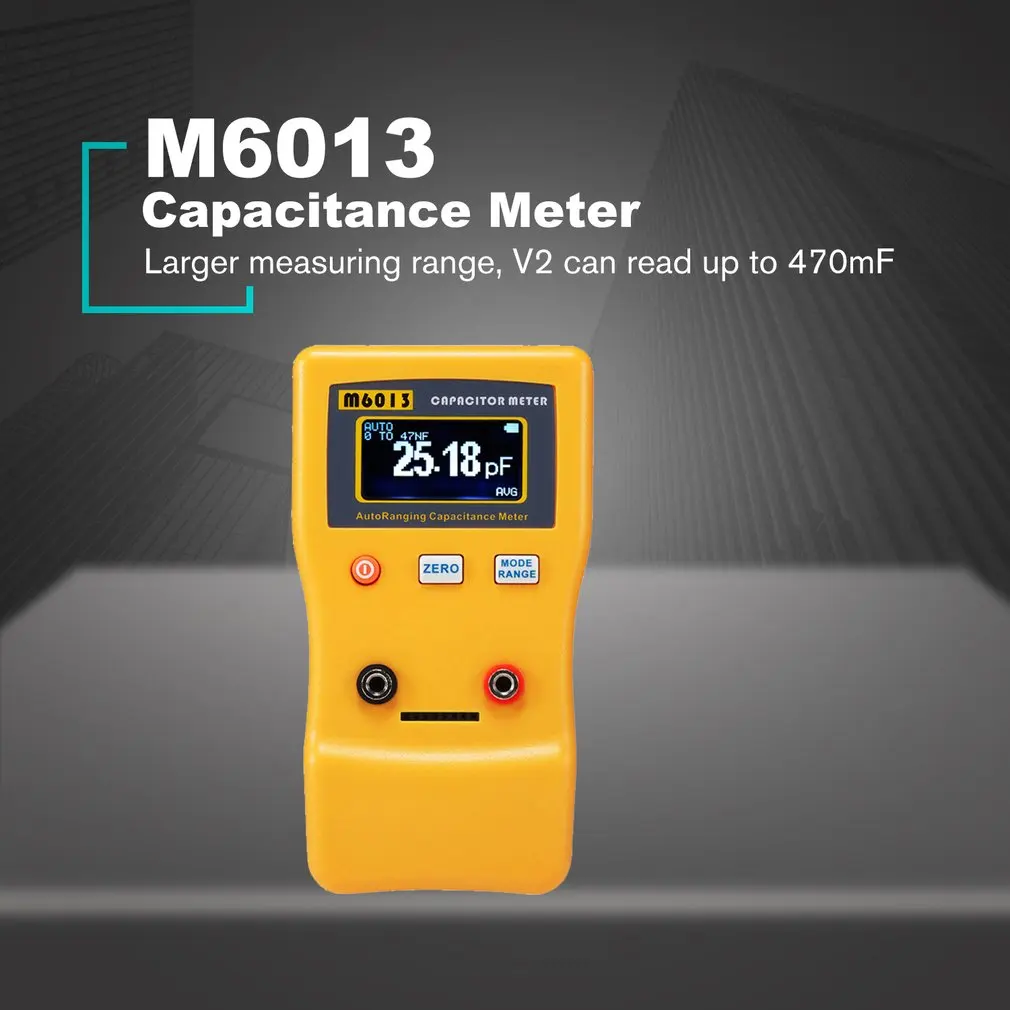

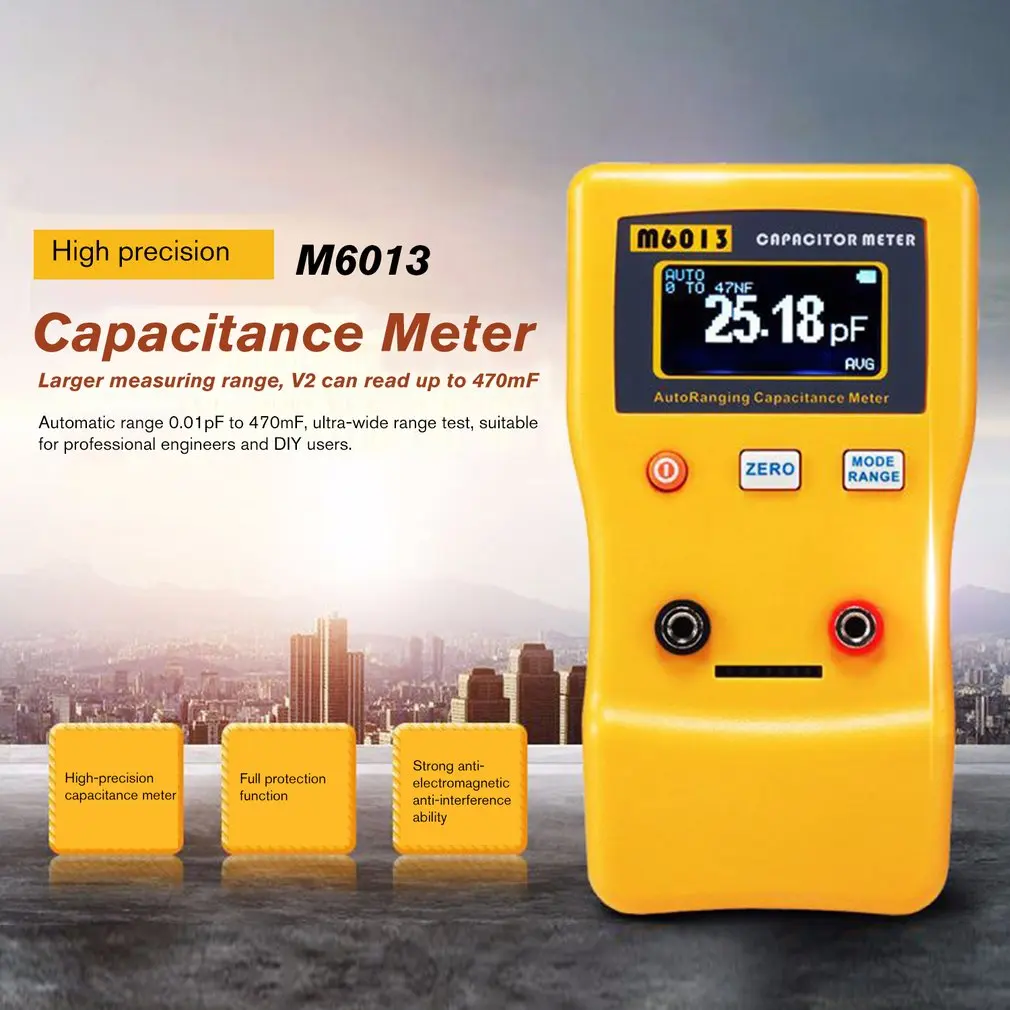

1.Larger measuring range, V2 can read up to 470mF.
2.More stable on reading, (with auto running averaging function, can read pF more stable and accuracy), reading a 2200uF capacitance only takes ~0.2s.
3.Can use mirco usb as external power.

Specifications:
Model:M6013
Test Range:
0.01pF to 47.000nF:1%+2Digit(Accuracy), ~0.2s to 1s(Responce Time)
47.00nF to 47.000uF:1%+1Digit(Accuracy), ~0.2s to 2s(Responce Time)
47.00uF to 470.00mF:1 to 3%+1Digit(Accuracy), ~0.2s to 30s(Responce Time)
Measuring Voltage:<0.8V
Clamping Voltage:~1.25V (Open voltage)
External Power:5V micro USB
Operating Current:0.02A
Battery:2 * AA 1.5V Battery(Not included)
Battery Life time:>80 Hours

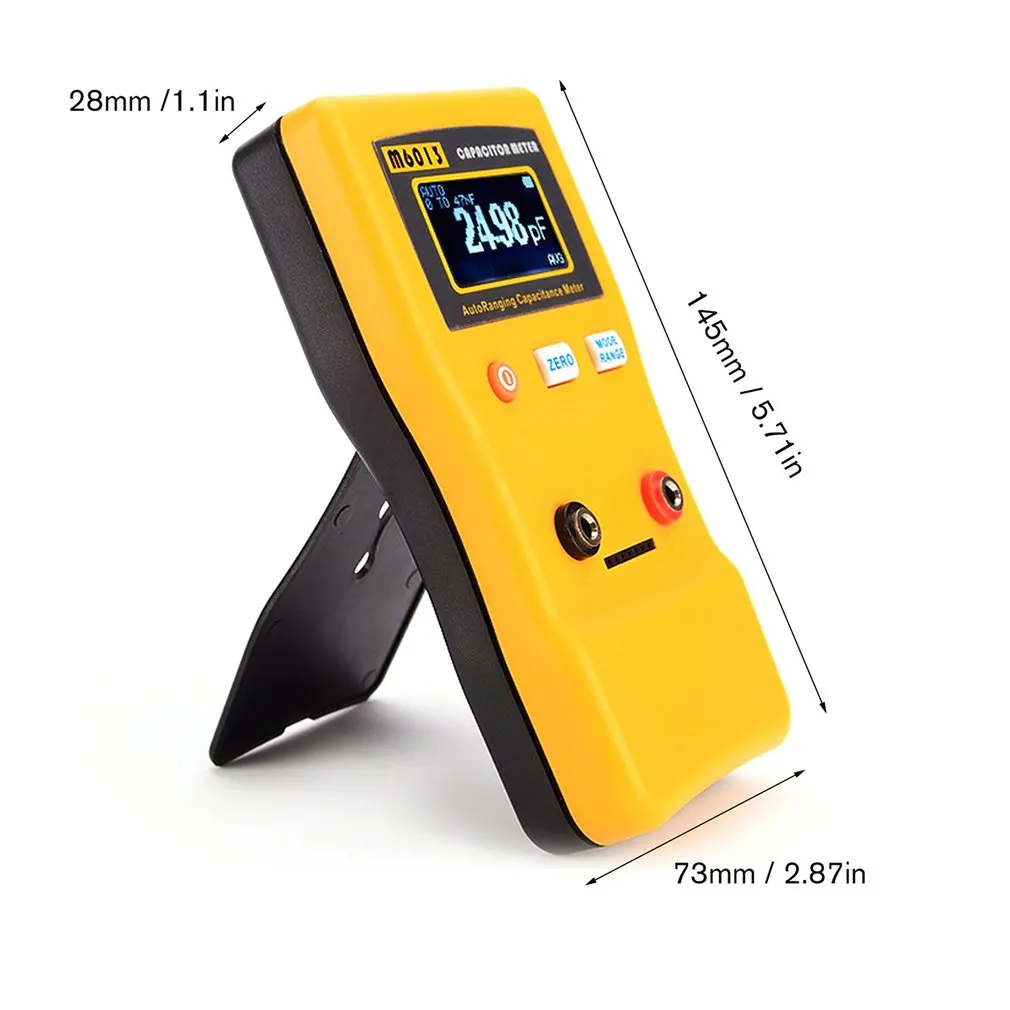

Size:145x73x28mm/5.71x2.87x1.1in
Color:Yellow

Package Information:
Package Size:170x90x50mm/6.69x3.54x1.97in
Package Weight:350g/12.25oz
General Box Package

Package Included:

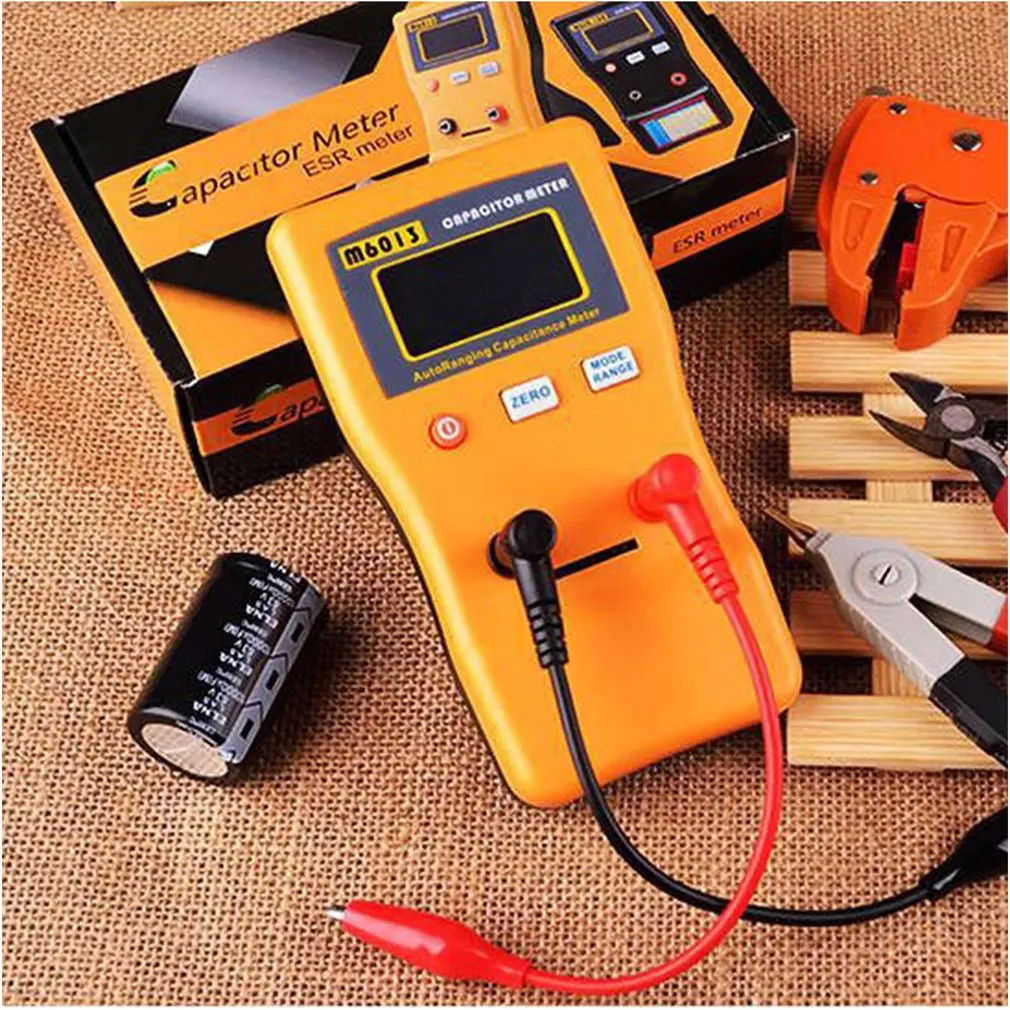

1 x Capacitance Meter

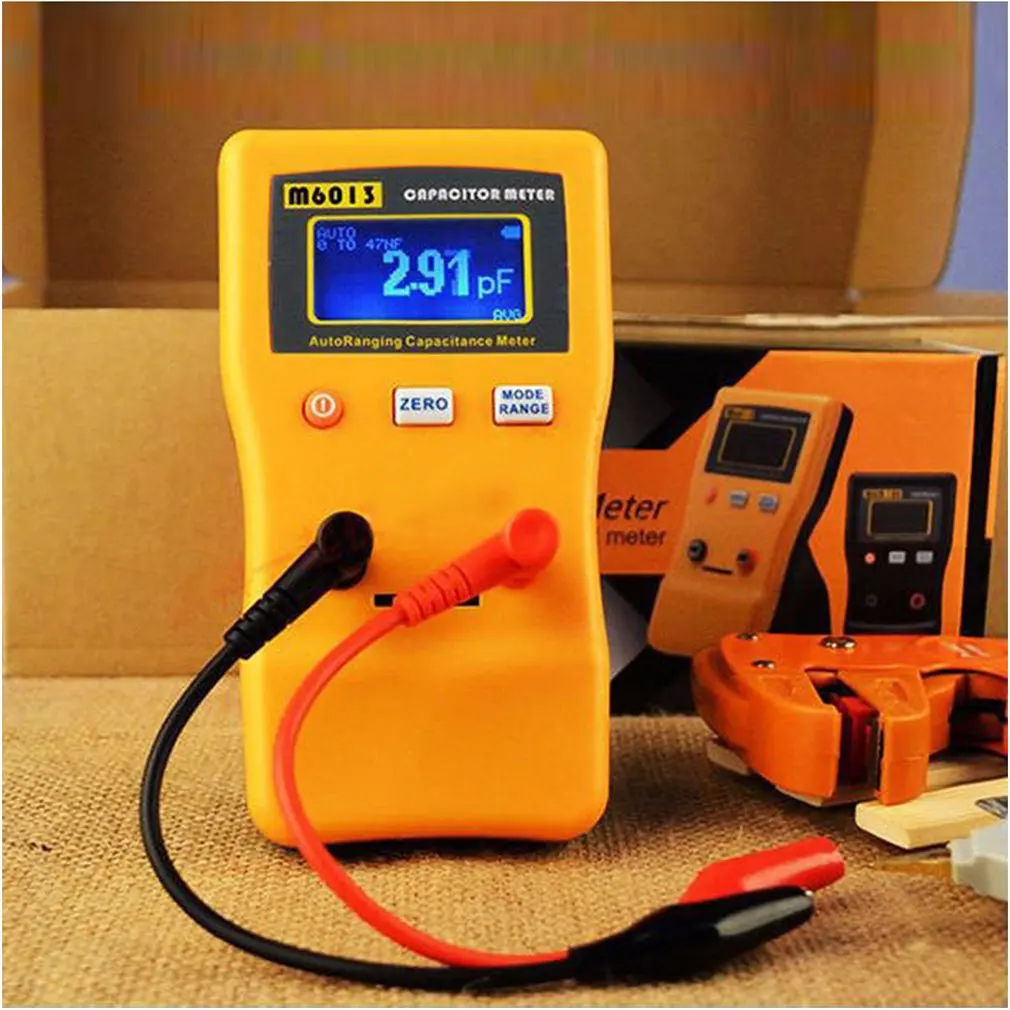

2 x Test Clips
1 x Certification
1 x User Manual

Notes:
1.Due to the difference between different monitors,the picture may not reflect the actual color of the item.
2.Due to different personal measuring techniques,there might be 1-3cm error of the physical.Thank you!
