Voltage to PWM 0-5V 0-10V Duty Cycle Range 0-100% Linear Conversion Transmitter Module Электронные компоненты и - купить

Специальная цена от 1 871,70 руб.*




Категория товара: Integrated Circuits

Наличие: На складе

Продавец:


История изменения цены

*Внимание! Указанная цена 1 871,70 руб. уже могла изменится, перед тем как купить данный товар перейдите на страницу продавца и проверьте актуальную стоимость.

Месяц Мин. Макс. Цена
17.02.2026 2376.41 2424.10 2400 руб.
17.01.2026 1927.27 1966.25 1946.5 руб.
17.12.2025 2339.53 2386.86 2362.5 руб.
17.11.2025 2320.72 2366.86 2343 руб.
17.10.2025 1852.88 1889.28 1870.5 руб.
17.09.2025 2283.48 2329.94 2306 руб.
17.08.2025 2264.97 2309.74 2286.5 руб.
17.07.2025 2245.57 2290.58 2267.5 руб.

Купить Voltage to PWM 0-5V 0-10V Duty Cycle Range 0-100% Linear Conversion Transmitter Module | Электронные компоненты и

Voltage to PWM 0-5V 0-10V Duty Cycle Range 0-100% Linear Conversion Transmitter Module  Электронные компоненты иVoltage to PWM 0-5V 0-10V Duty Cycle Range 0-100% Linear Conversion Transmitter Module  Электронные компоненты иVoltage to PWM 0-5V 0-10V Duty Cycle Range 0-100% Linear Conversion Transmitter Module  Электронные компоненты иVoltage to PWM 0-5V 0-10V Duty Cycle Range 0-100% Linear Conversion Transmitter Module  Электронные компоненты иVoltage to PWM 0-5V 0-10V Duty Cycle Range 0-100% Linear Conversion Transmitter Module  Электронные компоненты иVoltage to PWM 0-5V 0-10V Duty Cycle Range 0-100% Linear Conversion Transmitter Module  Электронные компоненты и

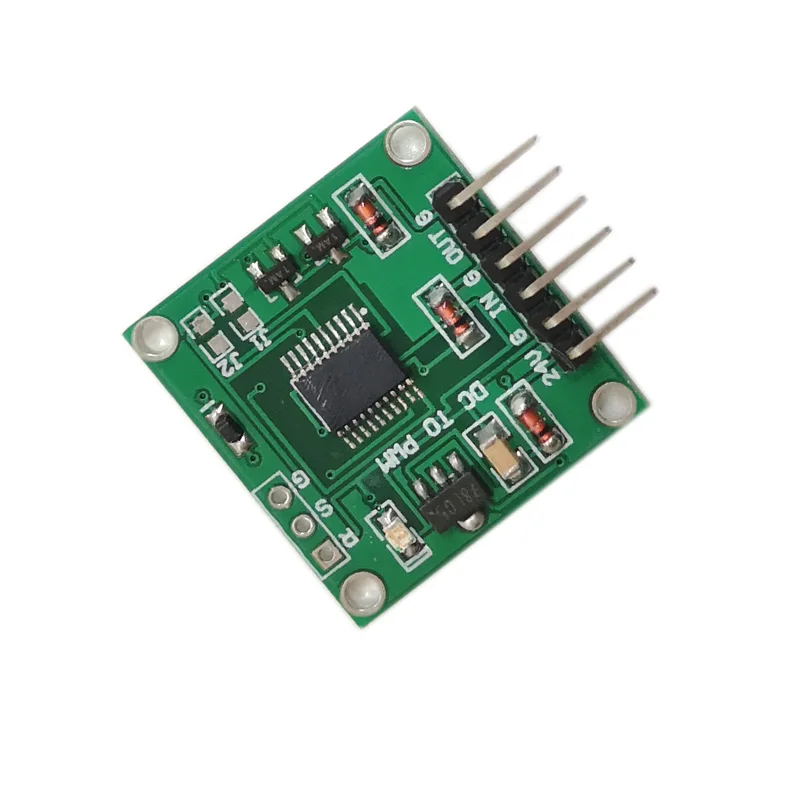

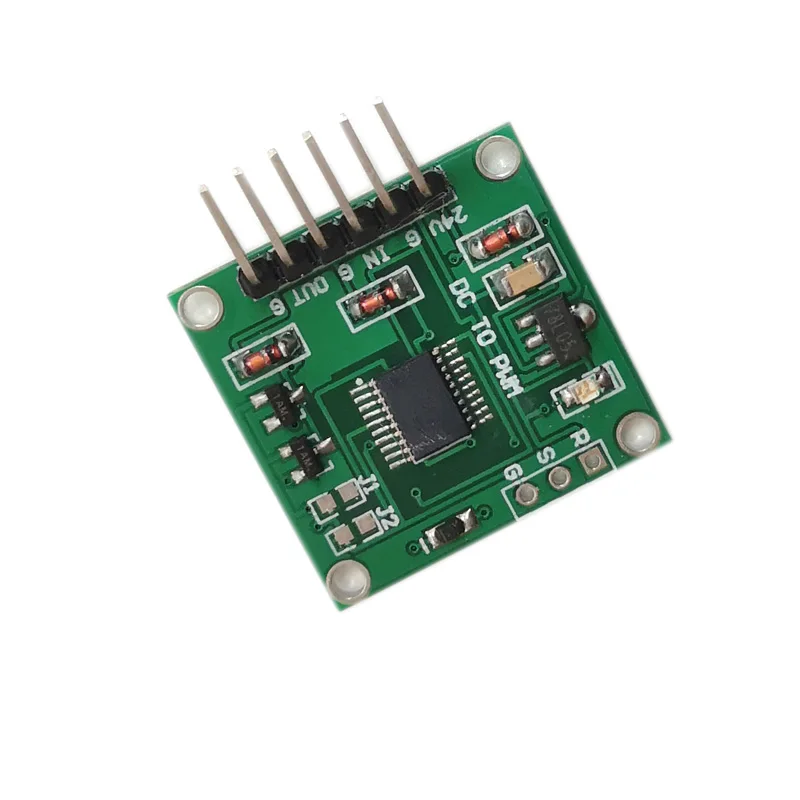

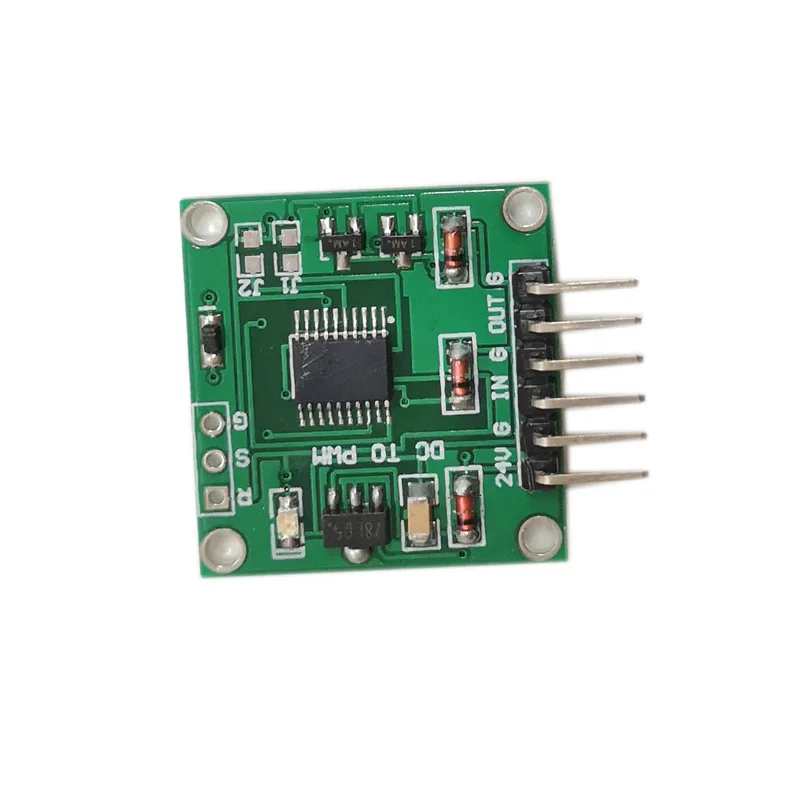

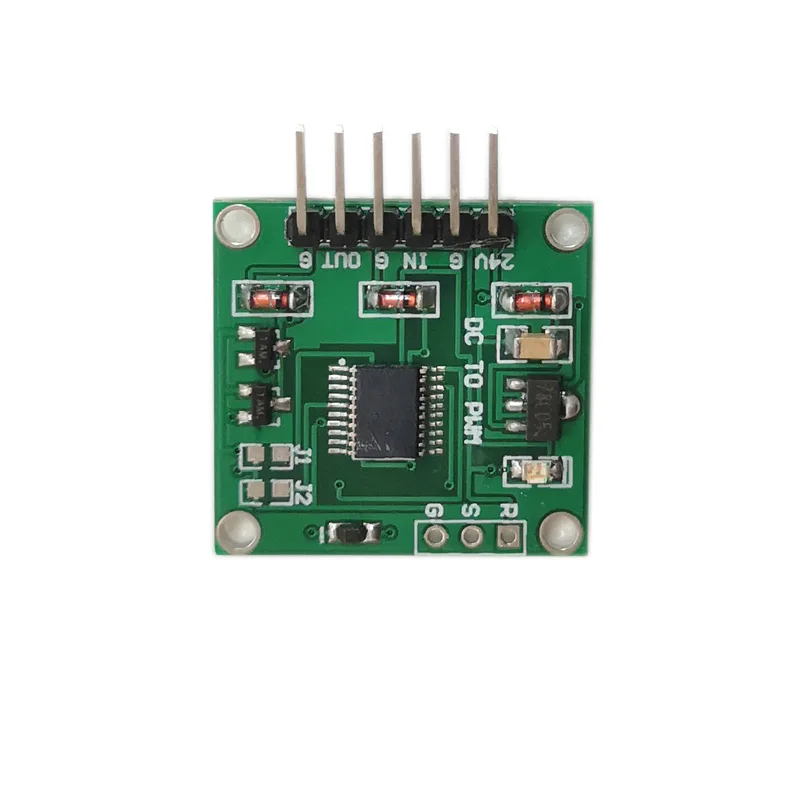

Voltage to PWM 0-5V 0-10V to PWM Duty Cycle Range 0-100% Linear Conversion Transmitter Module


Voltage to PWM module:This is a linear conversion module that converts the input voltage signal to a corresponding 0 to 100% PWM signal output via internal chip processing.There are two input voltage range options, and two output frequency options.Module parameter:1, the supply voltage: 9V ~ 24V2. Input voltage range: 0.00V ~ 5.00V / 0.00V ~ 10.00V3. Signal output frequency range: 1KHz / 8KHz4, signal output duty cycle range: 0 ~ 100%5. Input mode: J1 pad on the circuit board: open circuit (0~5V); short circuit (0~10V) default is open circuit.6. Output mode: J2 pad on the circuit board: open circuit (1KHz); short circuit (8KHz), the default is open circuit.7. Drive mode: open collector NPN drive, maximum current 200MA, external voltage range 1~30V.8, the scope of application: remote data acquisition and control equipment;9, size: (length) 26mm * (width) 23mm * (height) 10mm10, module interface:24V: Positive power supply interface (9V ~ 24V).G: Power ground interface.IN: Signal input positive interface.G: Signal input negative interface.OUT: Output interface of the signal (1KHz/8KHz).G: Power ground interface.Input voltage selection: J1 padOpen circuit: Input (0.00V ~ 5.00V) Output corresponds to a duty cycle of 0 ~ 100% pulse signal.Short-circuit: Input (0.00V ~ 10.00V) output corresponds to a duty cycle of 0 ~ 100% pulse signal.Output frequency selection: J2 padOpen circuit: Output 1KHz pulse signal.Short circuit: Output 8KHz pulse signal.1 *voltagetoPWMmodule
