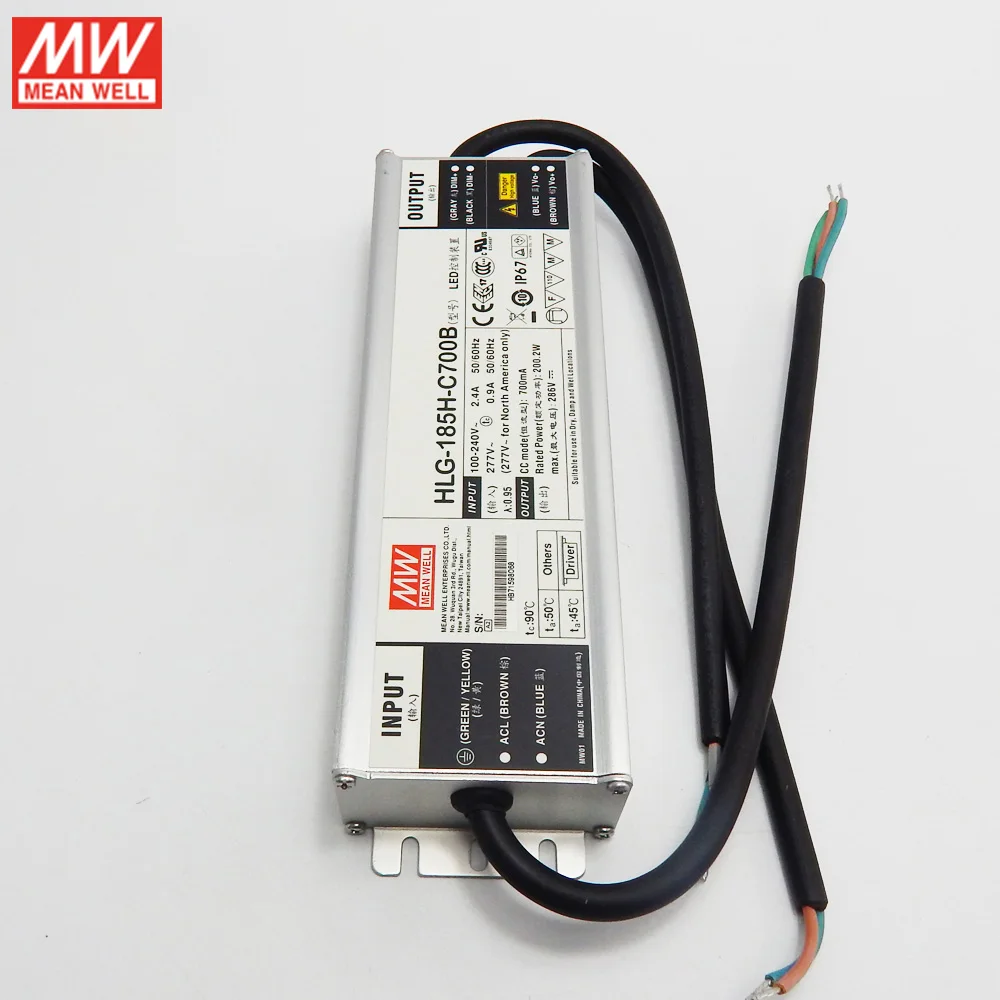

MEAN WELL Dimming Power Supply HLG-185H-C700B 700mA 200W IP67 waterproof Dimmable LED driver PFC Обустройство дома - купить

Купить MEAN WELL Dimming Power Supply HLG-185H-C700B 700mA 200W IP67 waterproof Dimmable LED driver PFC | Обустройство дома

For your reference, please follow the steps below to check the validity of our products.

Step1: Open the official website of MeanWell at www.meanwell.com Step2: Click on the "Service" button at the top of the page and find the "Quality Control Inspection Report" Step3: Enter the serial number and click search

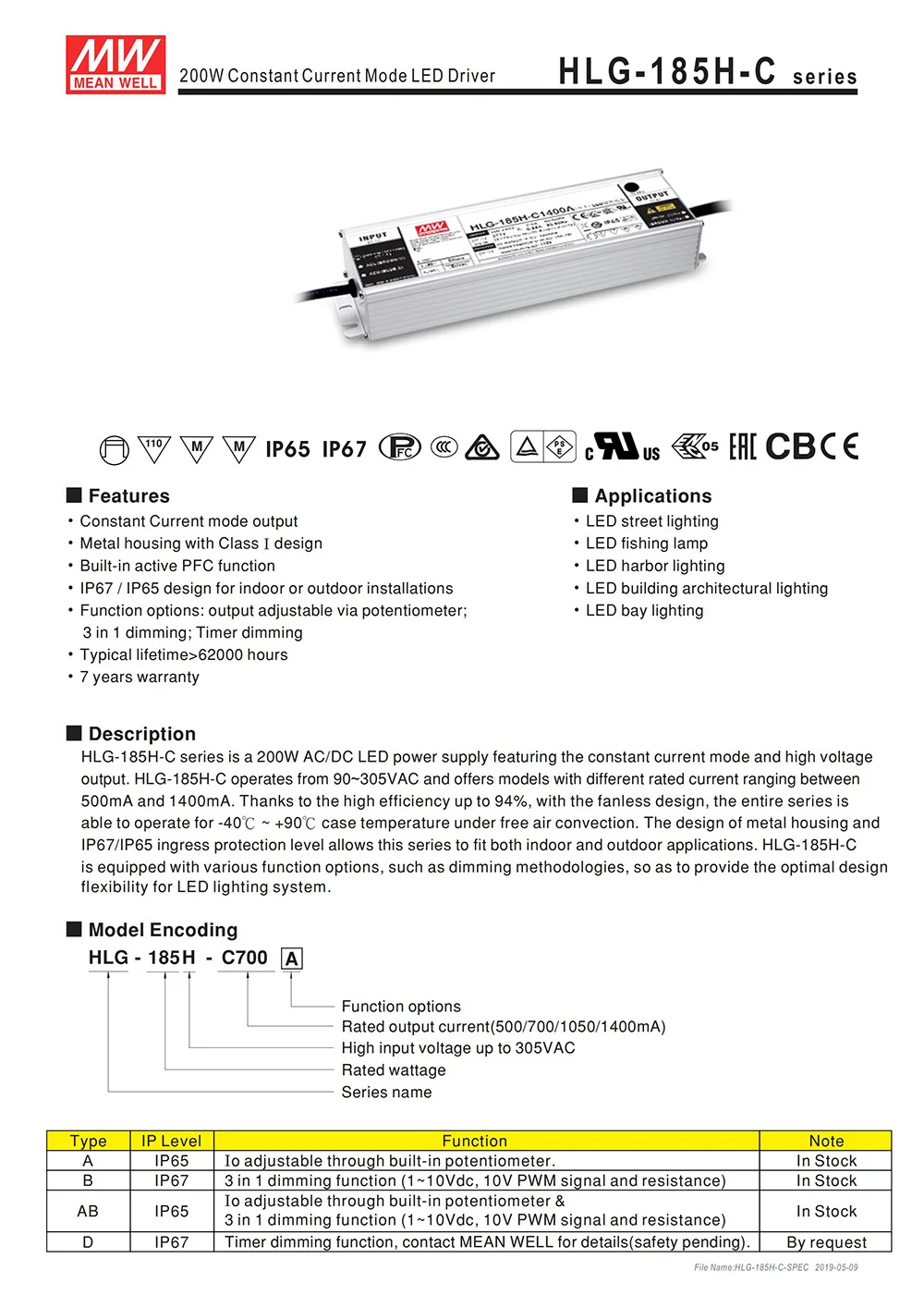

Features

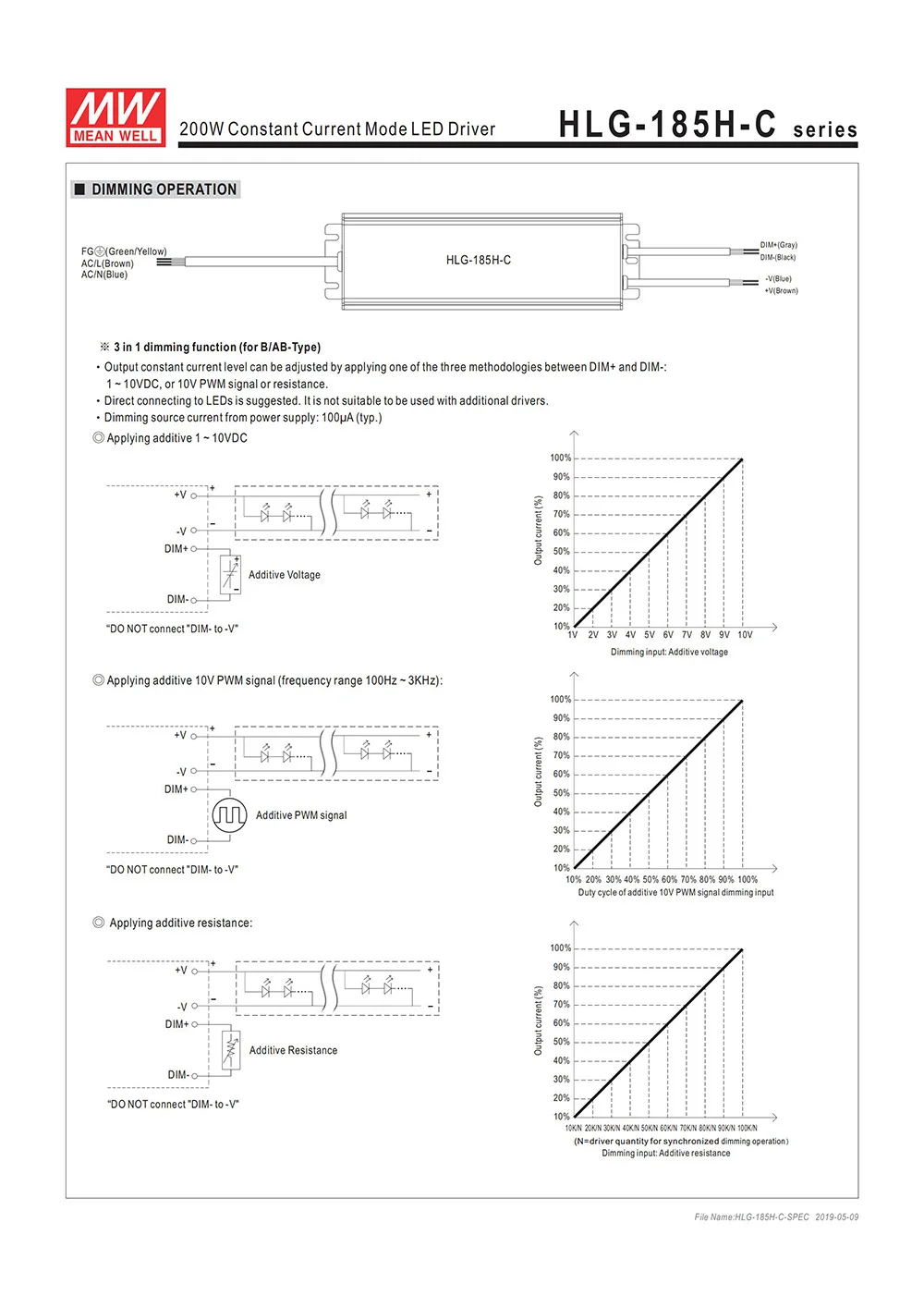

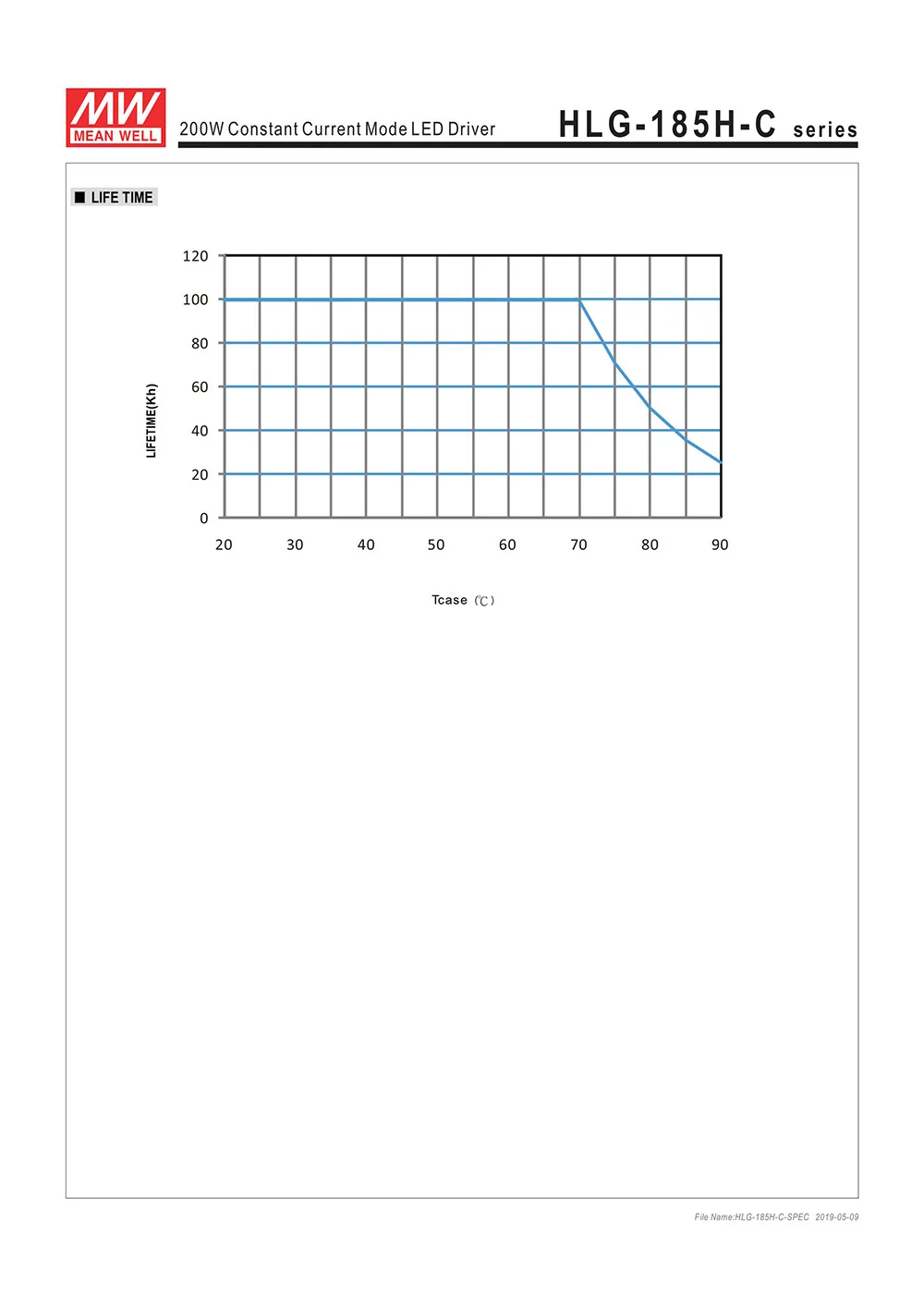

Constant Current mode output Metal housing with class I design Built-in active PFC function IP67 / IP65 rating for indoor or outdoor installations Function options: output adjustable via potentiometer;3 in 1 dimming; Typical lifetime> 62000 hours 7 years warranty

Applications

LED street lighting LED harbor lighting LED bay lighting LED fishing lamp LED building architectural lighting

Description

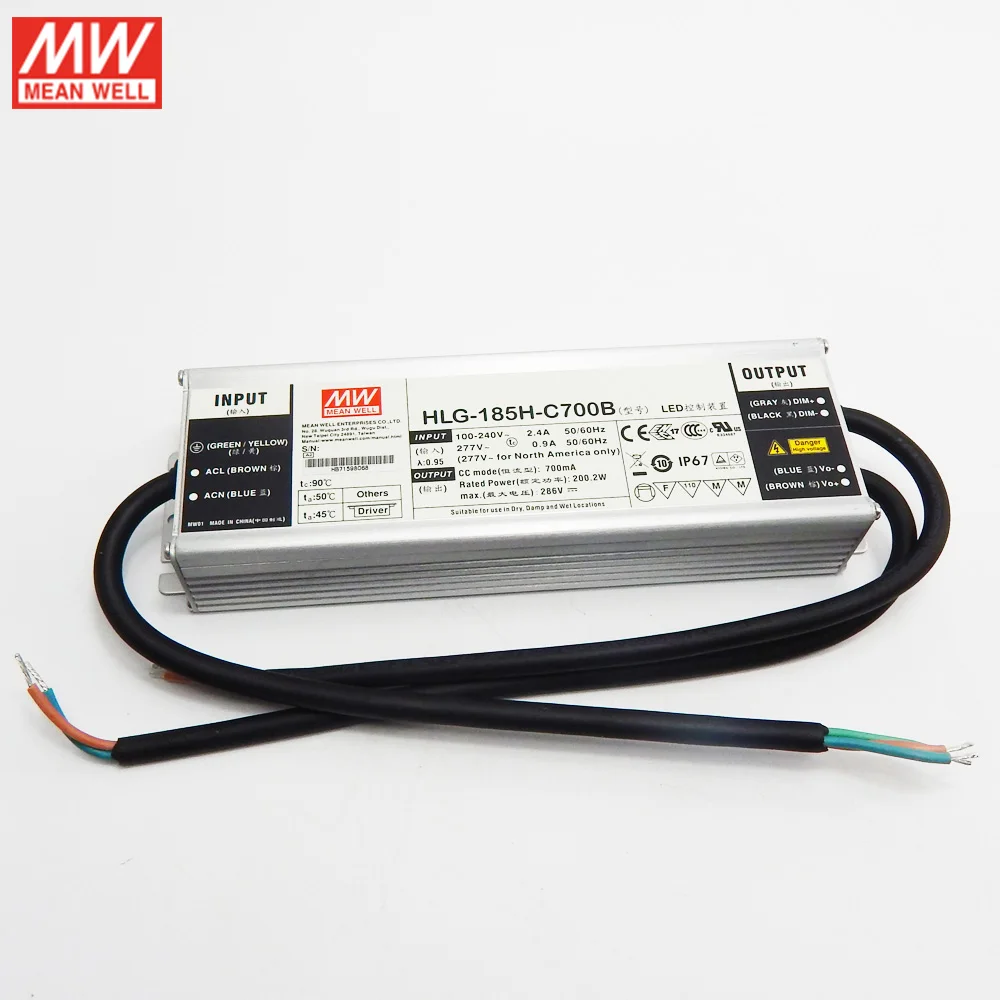

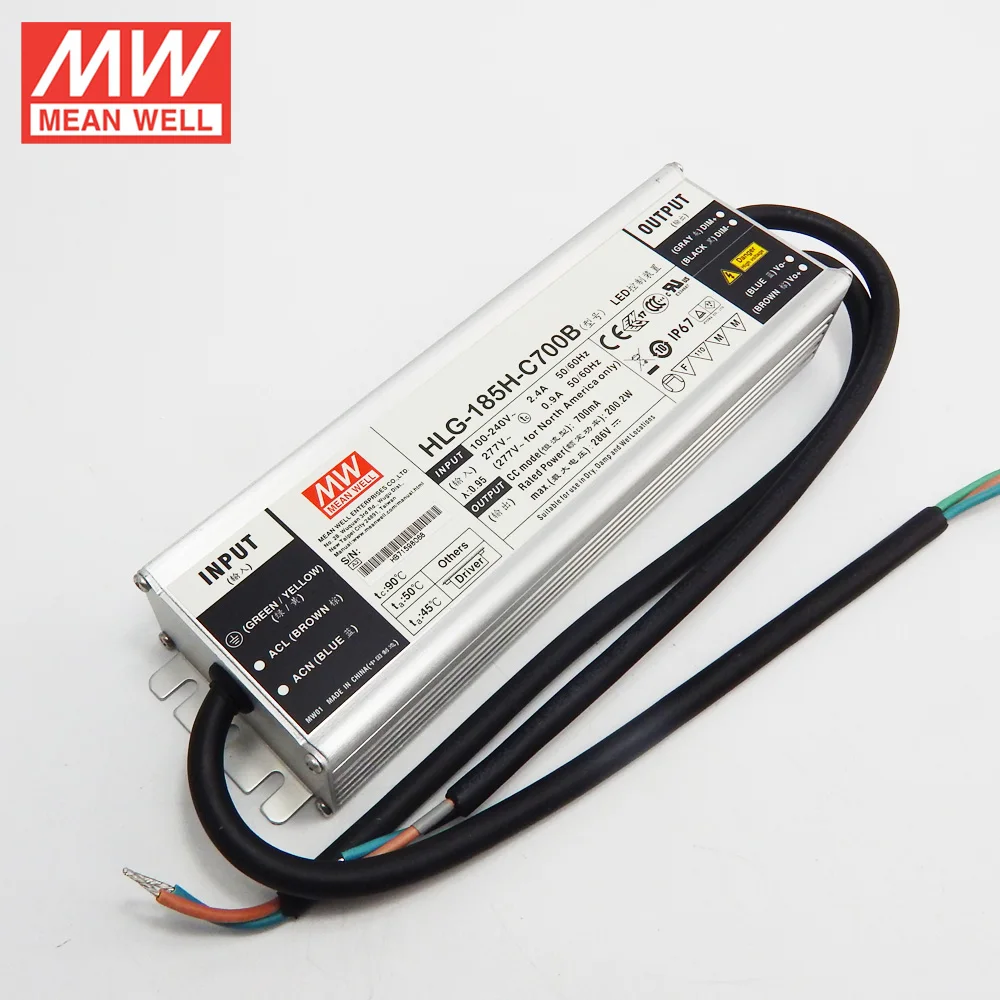

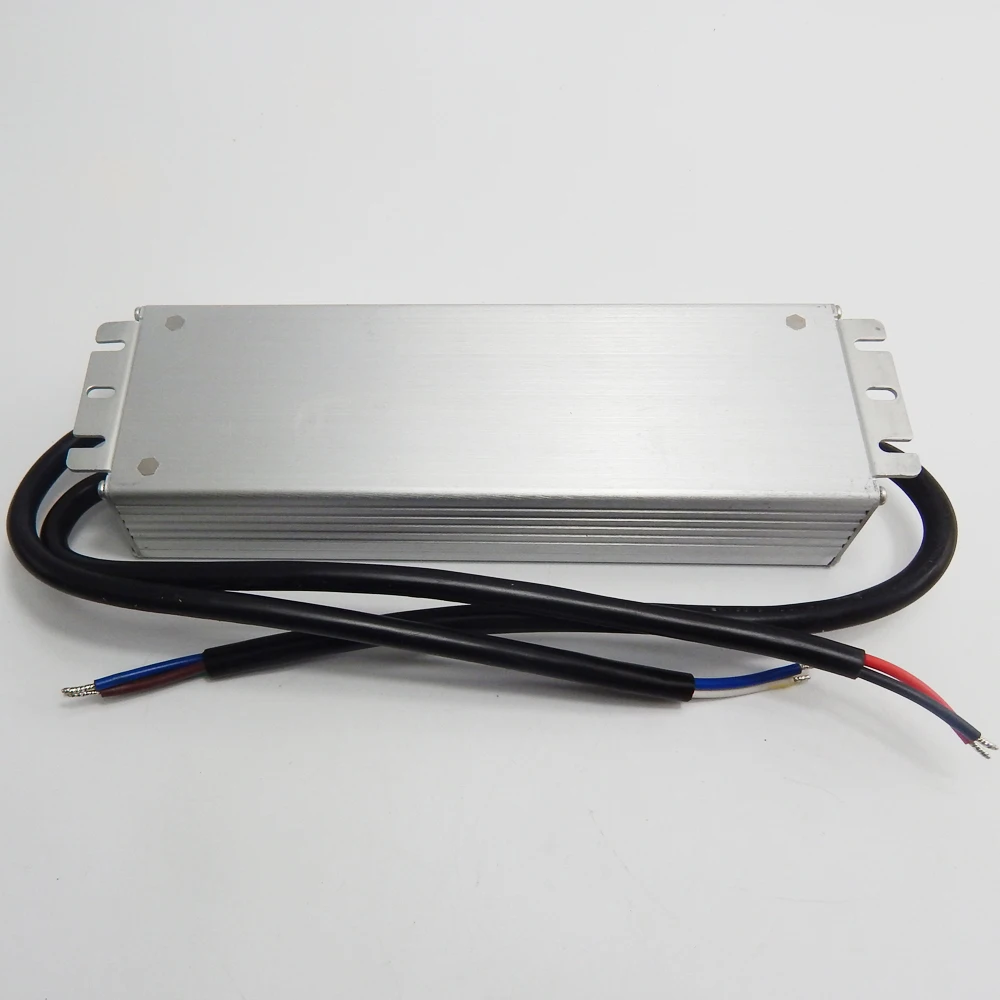

HLG-185H-C series is a 200W AC/DC LED driver featuring the constant current mode and high voltage output. HLG-185H-C operates from 90-305VAC and offers models with different rated current ranging between 500mA and 1400mA. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40~ +90°C case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications.HLG-185H-C is equipped with various function options, such asdimming methodologies, so as to provide the optimal designflexibility for LED lighting system
