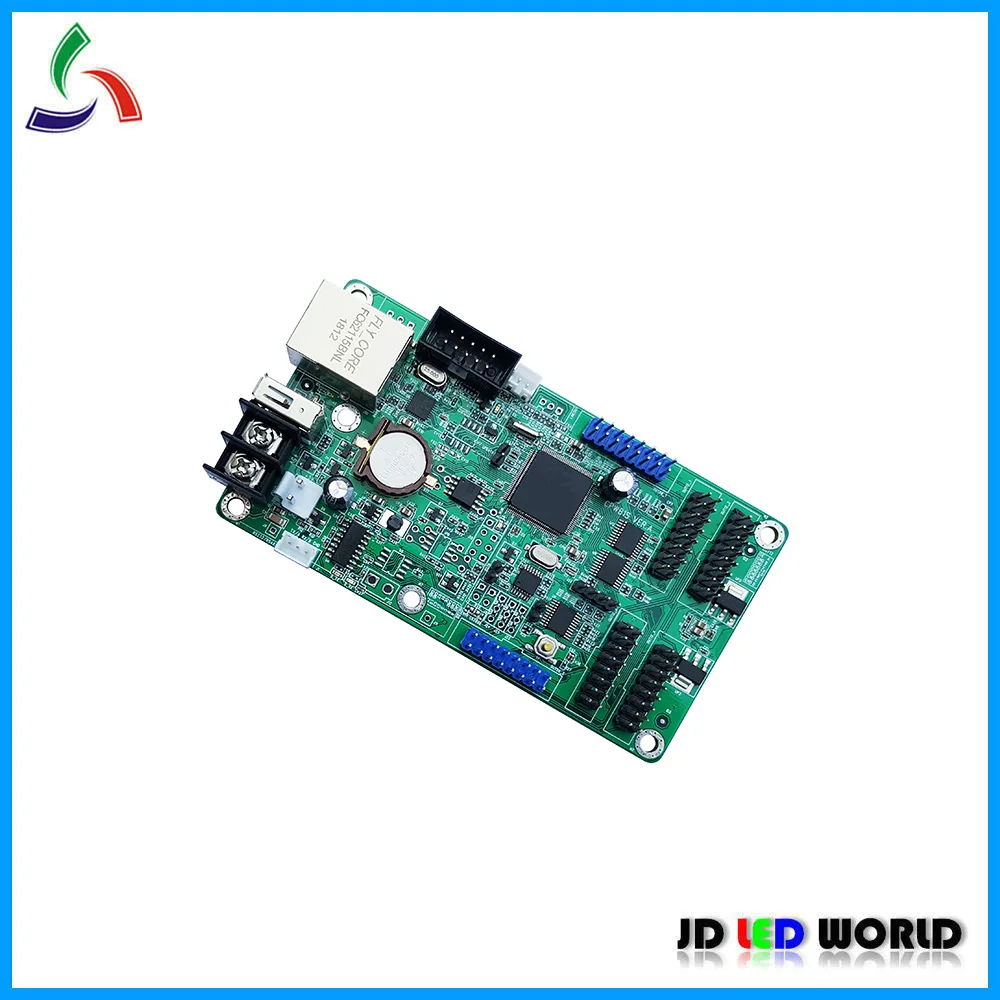

Lumen C-Power10B Single/Dual/RGB color LED Screen controller Card 1024* 64Dots HUB08/HUB12/HUB75 Can adjust by Software Электронные - купить

control area

(single, double color)

1024* 64 pixels; 7 colors without gray-scale

SC

The standard board contains 8 megabytes (64Mbit) of which the program space is 3.2 megabytes.

Support programme content

Support video programs for Flash (SWF), animation (GIF), pictures, text, clock,

temperature and other types of programs 60 kinds of action special effects, snow, mosaic, fan spread and so on;

Each window independently set around the borders of the language programs,

text can be transparent superposition of multiple windows to display multi-program mode,

the maximum on the screen can store thousands of programs menu program hierarchical management,

Edit management simple and quick support program broadcast by time, accurate to the week, hour, minute

Windowing mode

Each program supports a maximum of 10 playing windows for arbitrary segmentation,

and each window supports simultaneous playback of content in different formats

Subsidiary function

The board has its own real-time clock RTC management and setup. Environment data programs such as analog clock,

digital clock, transparent display, support temperature

Support brightness sensor (achive automatic adjustment of 32 level brightness)

On-board optional font

2MB font and system space

Optional loading 16 × 16, 24 × 24, 32 × 32, 40 × 40, 48 × 48, 56 × 56, etc.

(Chinese simplified, traditional Chinese, Japanese, Korean, etc.)

Font library, which can be edited by the customer;

supports a font library with up to 8 different fonts built in and displayed at the same time

Support for Hong Kong supplementary character fonts, Hindi

Standard software

LED Control Center (LedCenterM V5.3.7)

 communication mode

TCP/IP port: network communication

WIFI version: integration of all versions of WIFI RS232/RS485 high-speed serial port :

baud rate reach to 115200 maximum

Infrared remote Control and Keyboard selection

Support infrared remote control and key board broadcast program, function control

Plug-in communication accessories support

Support a variety of external wireless communication modes:

ZigBee module, RF wireless module, etc.

else

Provide rich secondary development interface and interface manual,

provide secondary development demo program and source code

joggle

With 4 HUB 12 interfaces, 2 HUB 08 interfaces,

2 HUB75(adjust by Software)
