Линейный актуатор подъема 2" - 18" с силой 1000 Н и 1500 при 12 В электродвигателями 220 фунтов 330 для промышленного двери автомобиля - купить

Купить Актуатор линейный подъема 2" - 18" со силой 1000 Н (ньютон) и 1500 Н (ньютон) при напряжении 12 В (вольт) с электродвигателями 220 фунтов и 330 фунтов для автомобильной двери открывателя промышленного подъема.

Description

Linear actuators are widely used in many industries, such as electric power, machinery, metallurgy, mine, petroleum, chemical industry, transportation, lifting, construction, food and feed processing and so on. With reliable performance, sensitive action stable running, the same characteristics of push and pull and good environment adapt- ability etc.

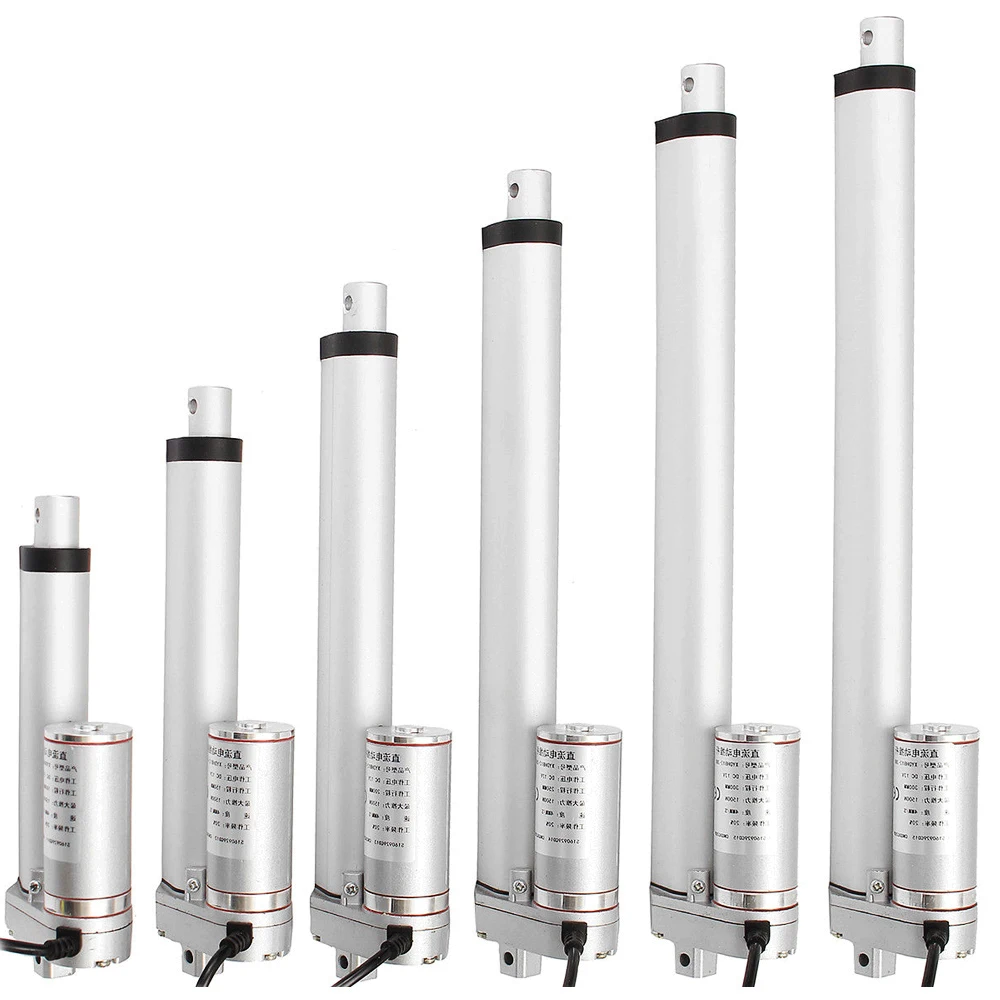

DC 12V 1000N 1500N Lift 2"-18" Stroke Linear Actuator 220lbs 330lbs Electric Motors For Auto Car Door Opener Industrial Lifting





Stroke Length	2"	4"	6"	8"	10"	12"	14"	16"	18"
Stroke Length	50mm	100mm	150mm	200mm	250mm	300mm	350mm	400mm	450mm
Retracted Length	155mm	205mm	260mm	320mm	370mm	420mm	470mm	550mm	600mm
Extended Length	205mm	305mm	410mm	520mm	620mm	720mm	820mm	950mm	1050mm



Note: Please check the dimensions carefully and choose the right size as you need.





Product Name	Linear Actuator
Input Voltage	DC 12V
Speed	1500N-5.7mm/s
	1000N-14mm/s
Max Push Load	5.7mm/s-1500N/150KG/330lbs
	14mm/s-1000N/100KG/220lbs
Max Pull Load	5.7mm/s-1200N/120KG/264lbs
	14mm/s-800N/80KG/176lbs
Power Cord Length	1.5Meters
Duty Cycle	25%
Operating Frequency	20%
Material	Aluminum Alloy
Color	Silver Grey
Operation Temperature	-26 ° C ~ +65 ° C
Protection Class	IP65
No-load Current	< 0.5A
Max load Current	3A
Certification	CE&SGS
Warranty	Standard 1 Year









* 100% Brand New and high quality

* Heavy Duty and Long Lasting Motor

* High quality aluminum alloy material

* High performance motor

* Built-in high quality limit switch

* The low noise design, noise level below 42 dB

* Multiple Purpose Applications Linear Actuator

* Commonly Used In Automotive, Medical Devices and Engineering Industry.

* With CE&SGS certification





1PCS DC 12V 1500N-5.7mm/s Speed OR 1000N-14mm/s Speed Linear Actuator. (Size and Speed is AT YOUR OPTION)

          * Autos;   * The wedding system;   * Solar tracking system;   * Agricultural machinery;   * Industrial electric lifting system;   * The medical electric bed, surgical bed, traction bed;   * Chair for medical use: Electric wheelchair, Massage Chair, dental chair   * Electric equipments: Electric sofa, Electric lifting lever, Electric booth, Electric sunroof, etc;           ​
