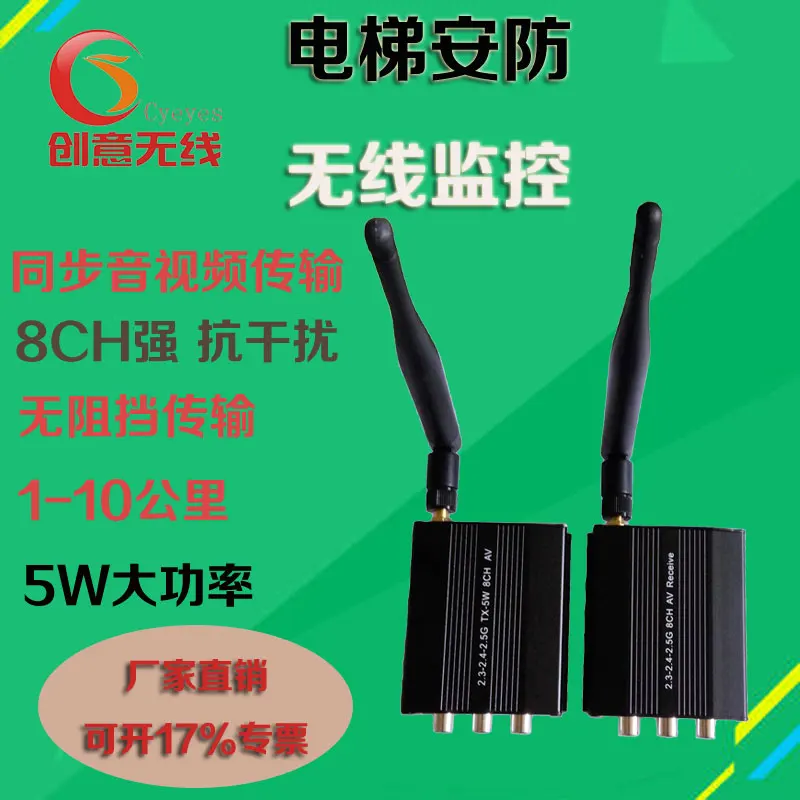

5W Elevator Wireless Monitoring Video Transmission High-power Analog Camera Transmitter Receiver 2.4G Network Bridge Device Инструменты - купить

Купить 5W Elevator Wireless Monitoring Video Transmission High-power Analog Camera Transmitter Receiver 2.4G Network Bridge Device | Инструменты

modname=ckeditor

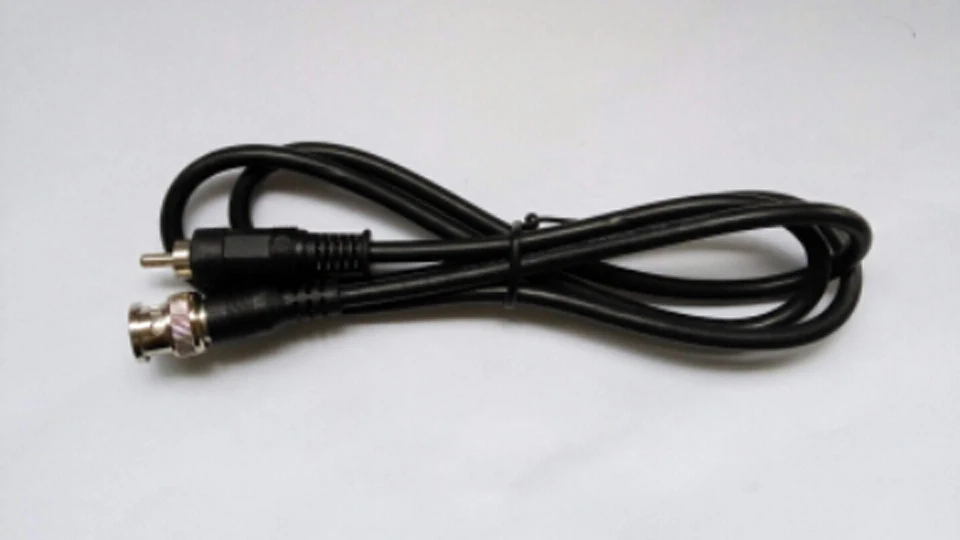

Default distribution BNC connection line

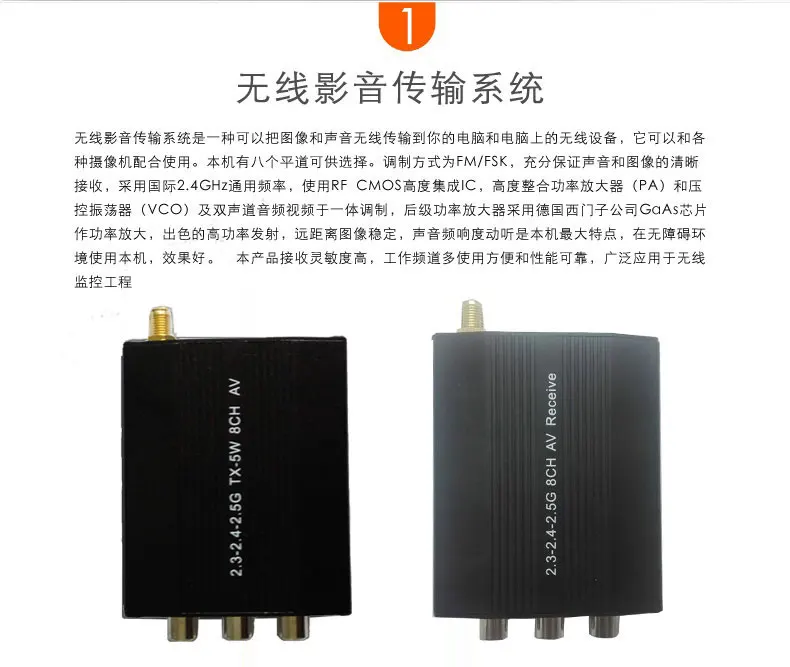

Wireless video and audio transmission system

A wireless video and audio transmission system is a wireless device that wirelessly transmits images and sounds to your computer and to your computer. It works with a variety of cameras.This machine has eight leveling channels to choose from.For FM/FSK modulation way, fully ensure the voice and image clarity of reception, adopts the international general frequency 2.4 GHz, the use of highly integrated IC, RF CMOS integrated power amplifier (PA) and the voltage-controlled oscillator (VCO) and the double channel audio video modulation at an organic whole, stage power amplifier used after Germany's Siemens GaAs power amplifier chip, excellent high power, long distance image stabilization, voice frequency loudness is the biggest characteristic of this machine in a barrier-free environment using this machine, the effect is good.This product has high receiving sensitivity, easy to use more working channels and reliable performance. It is widely used in wireless monitoring engineering

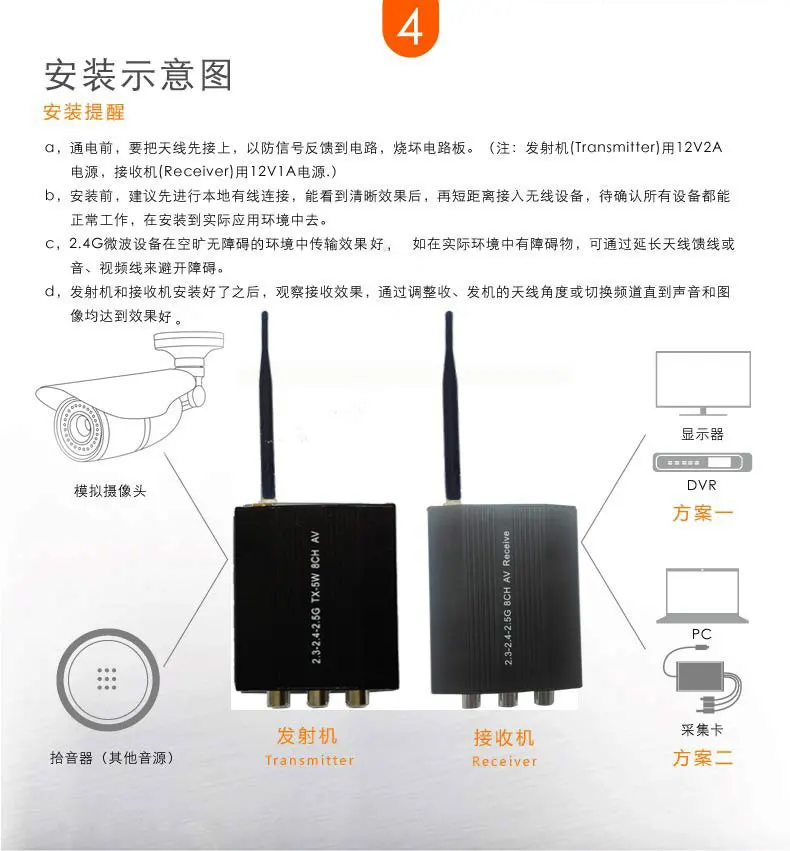

Installation diagram

Install remind

A. Connect the antenna before powering on, in case the signal feeds back to the circuit and burns out the circuit board.(note: Transmitter USES 12V2A power supply and Receiver USES 12VIA power supply.)

B. Before installation, it is recommended to connect the local wire first, and then access the wireless device for a short distance after the clear effect can be seen. After confirmation that all the devices can work normally, the device will be installed into the actual application environment.

C, 2.4g microwave equipment has a good transmission effect in an open and barrier-free environment. If there are obstacles in the actual environment, the antenna feeder or sound or video line can be extended to avoid obstacles.

D. After the transmitter and receiver are installed, observe the receiving effect by adjusting the antenna Angle of the transmitter and receiver or changing the channel until the sound and figure

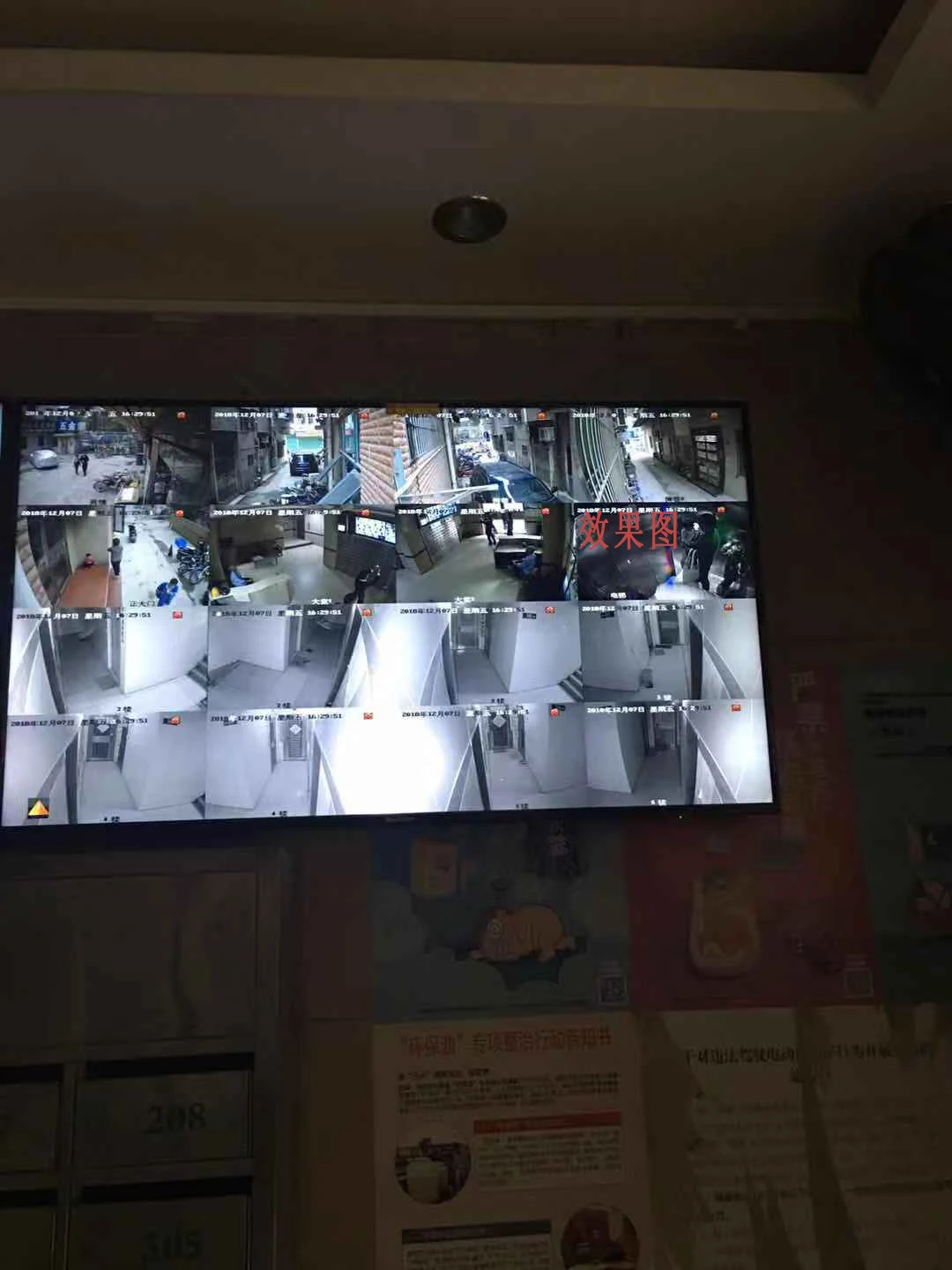

case shows

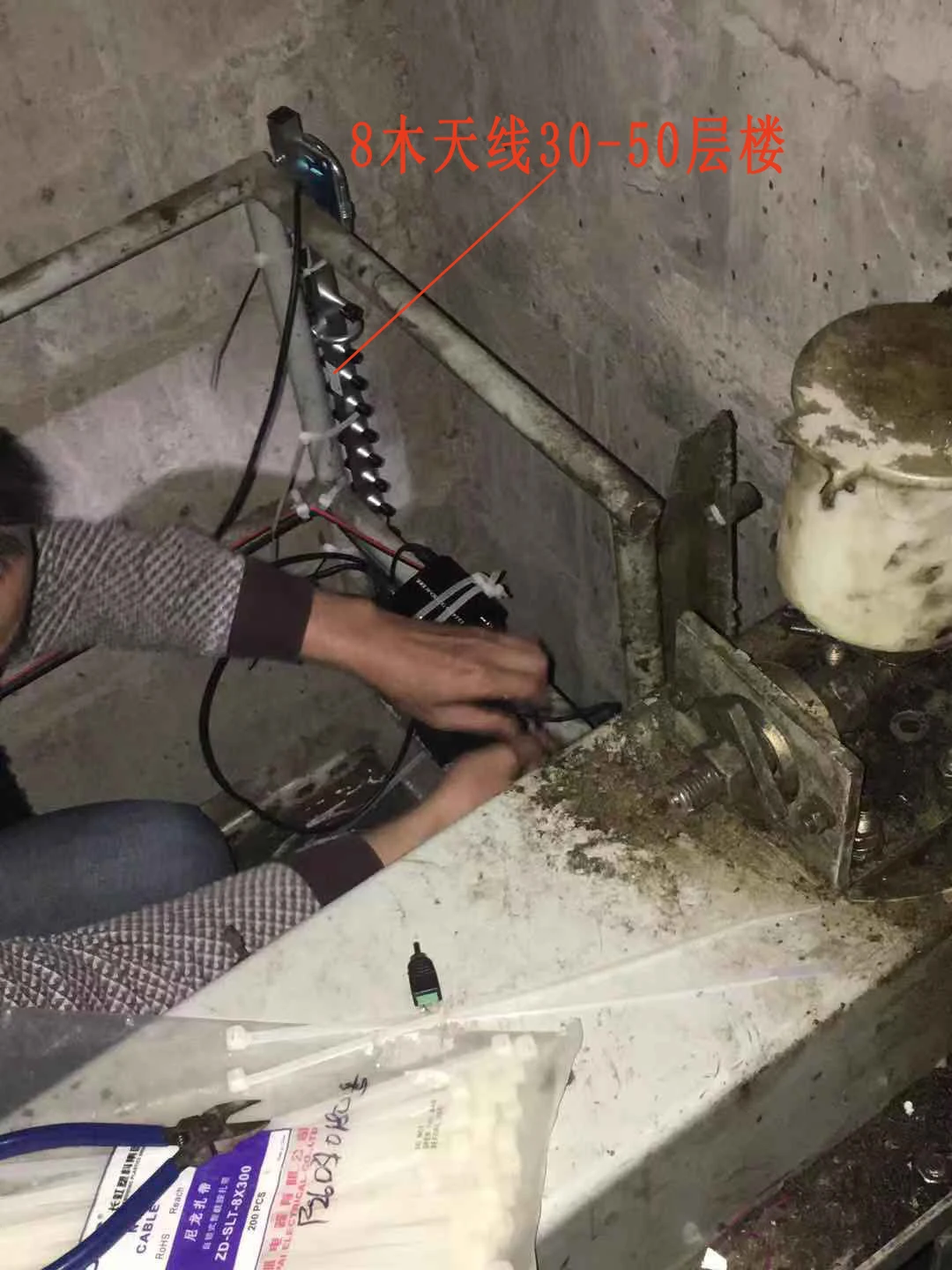

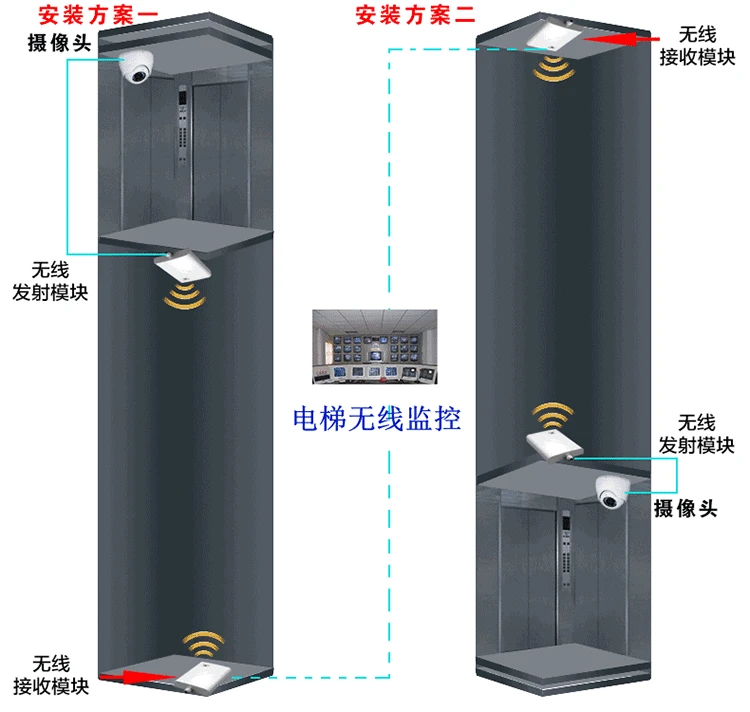

Best installation method of wireless elevator:
