Модуль питания LTC3780 DC-DC 5-32V до 1V-30V 10A: автоматический регулятор повышения и понижения напряжения с зарядным устройством - купить

Купить 1pcs LTC3780 DC-DC 5-32V to 1V-30V 10A Automatic Step Up Down Regulator Charging Module Power Supply |

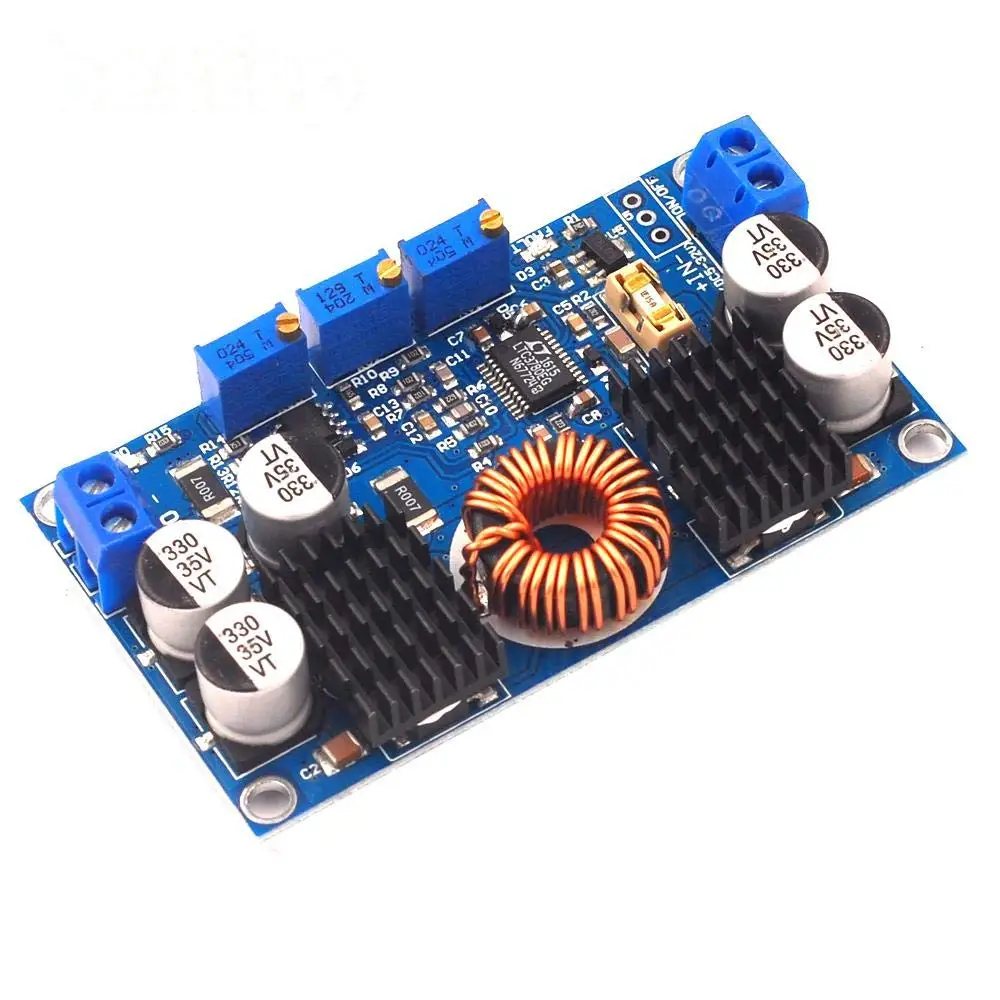

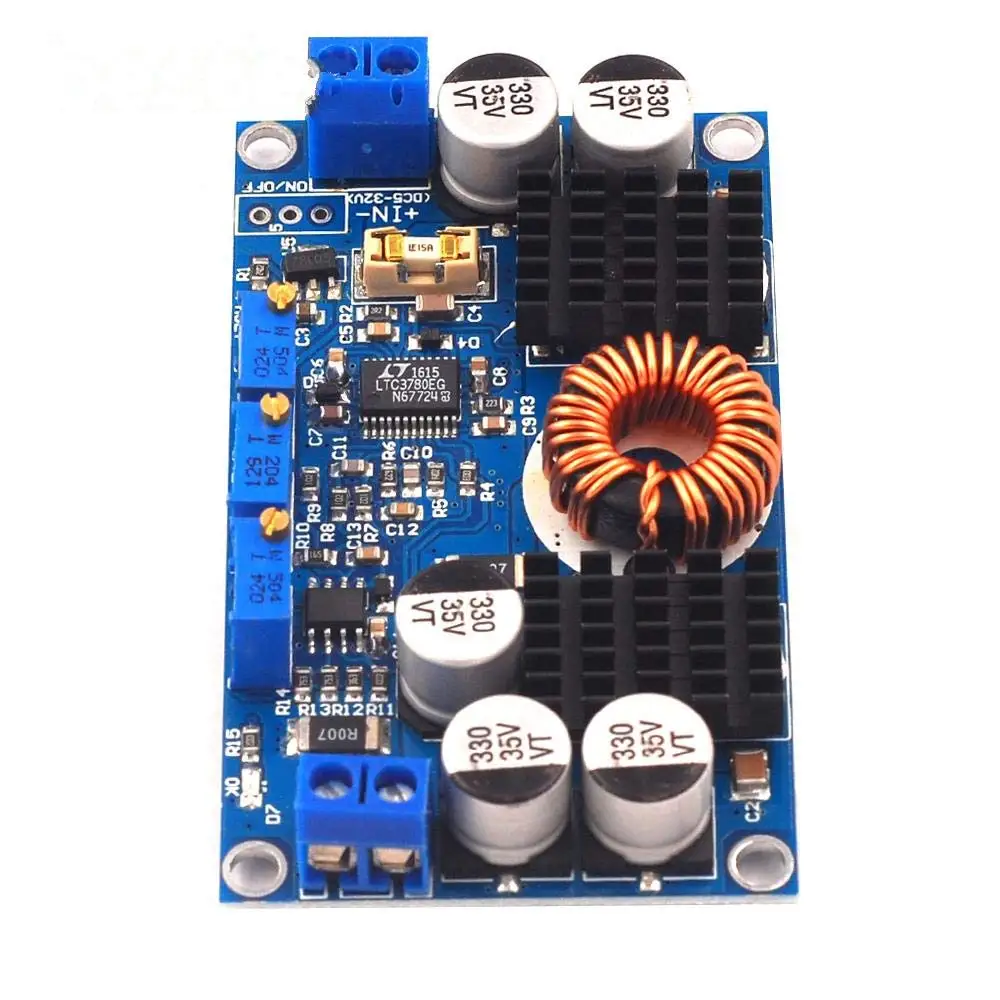

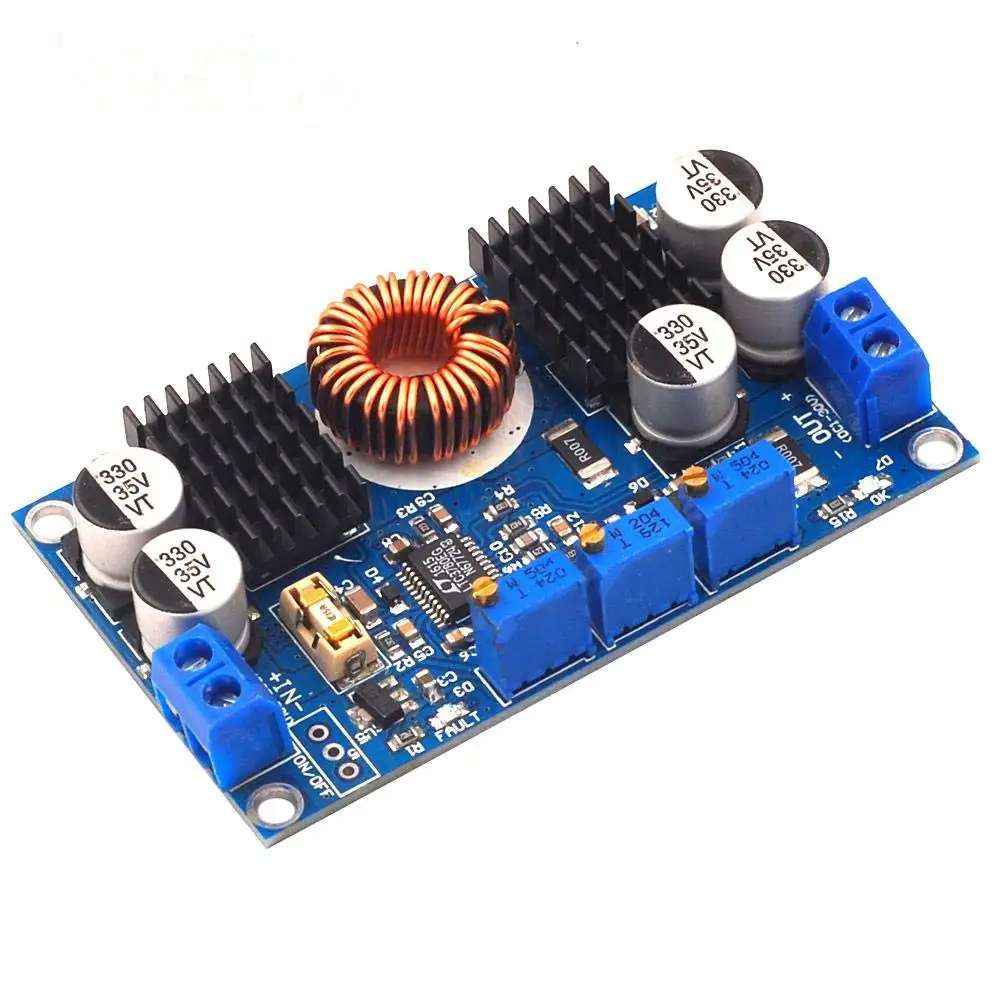

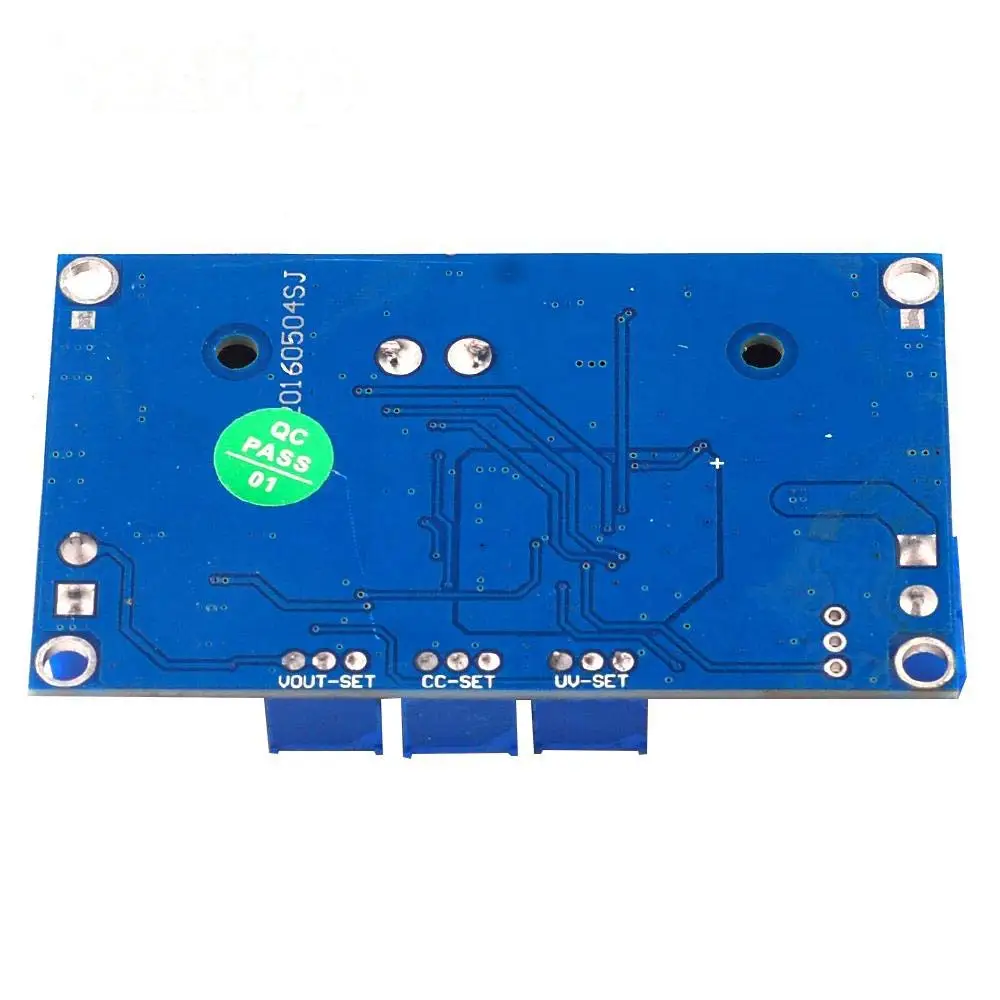

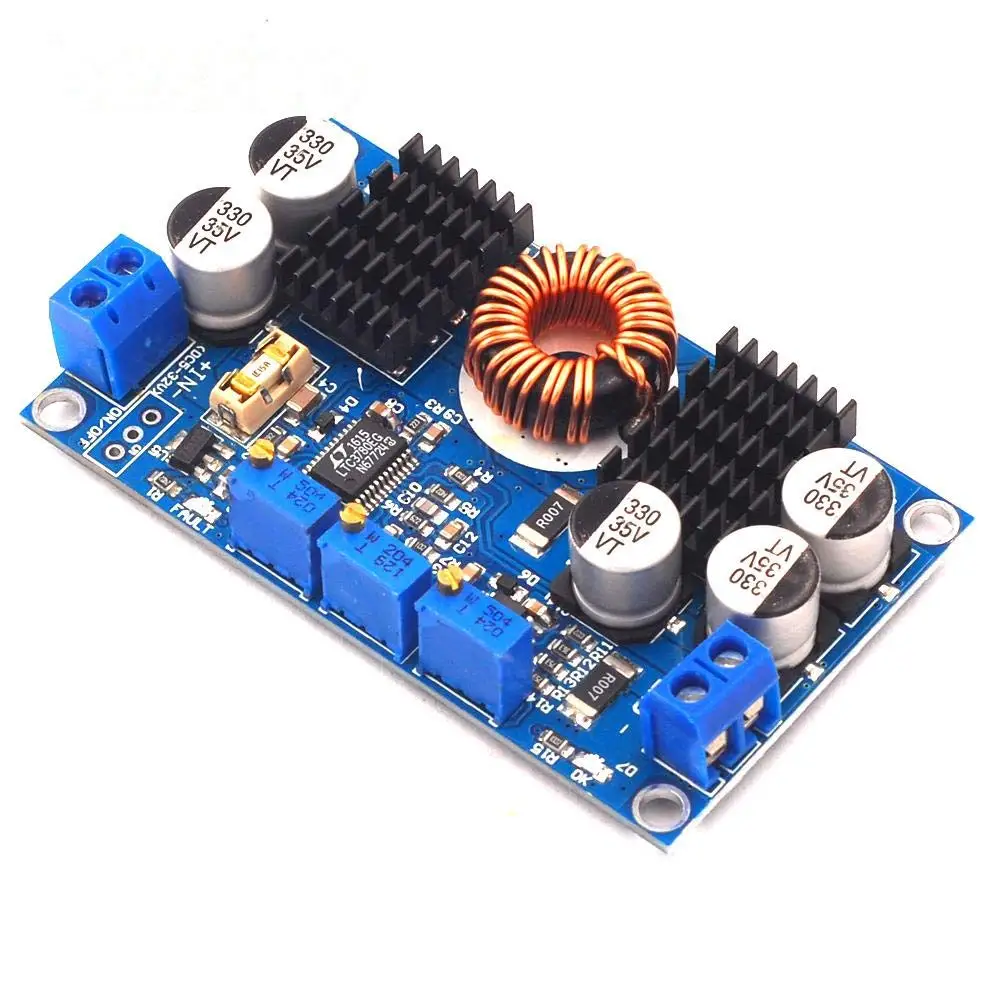

1pcs LTC3780 DC-DC 5-32V to 1V-30V 10A Automatic Step Up Down Regulator Charging Module Power Supply Module

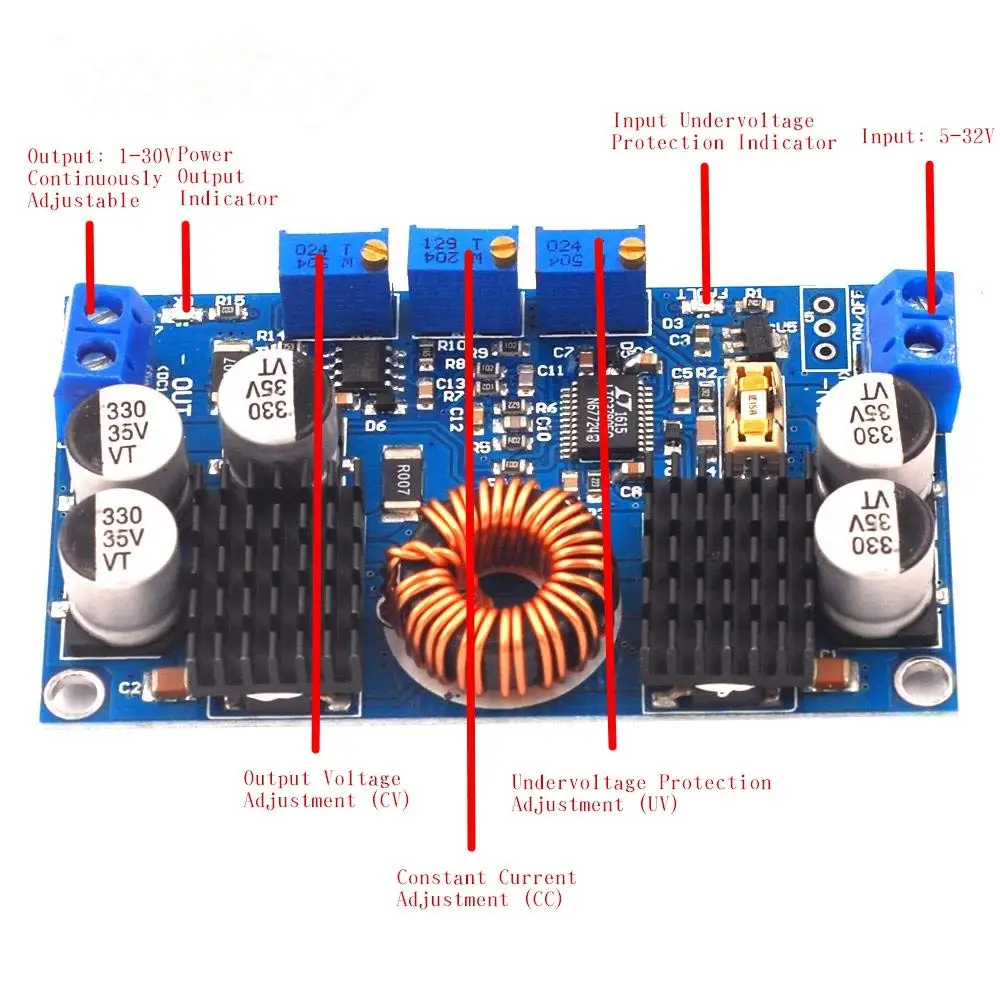

Product description LTC3780 Power Module Model: LTC3780 Size(L*W*H):77 x 50 x 12 mm Output ripple: 50 mV ((12V to 12V, 5A can be measured) Output current: 10 A(Max)(Long term within 7 A) Input voltage: DC 5V-32V (It is recommended to use in more than 10 v voltage) Output voltage: DC 1V - 30V continuous adjustable Output power: 80 W Short circuit protection:Yes Input reverse connect protection: No (If necessary, please input series schottky diode) Output control flow backward: No (If used for battery charging or load is bring electricity load, please on the output side series schottky diode) Features: 1.IC uses Linear imported original. 2.The input uses replaceable fuse protection, power supply and equipment. 3.Inductor used iron silicon aluminum, 0.8 double winding, generate less heat. 4.Output error indicating lamp, light output voltage drift too serious, short circuit fault. 5.Constant voltage, constant current, under voltage protection (MPPT is more suitable for solar charging). 6.The heatsinks can ensure good heat dissipation, need not consider the insulation and heat dissipation problems. 7.The whole electrolysis using imported patch, low resistance, high frequency capacitor, make the ripple down to the freezing point. Package Included: 1 x LTC3780 Power Module
