Купить quality DAQ-USB-6009 data acquisition module DAQ 8-channel 14-bit 8AD 48k Real-time 2DA 8DI/DO the Labview Replace NI USB-6009 |

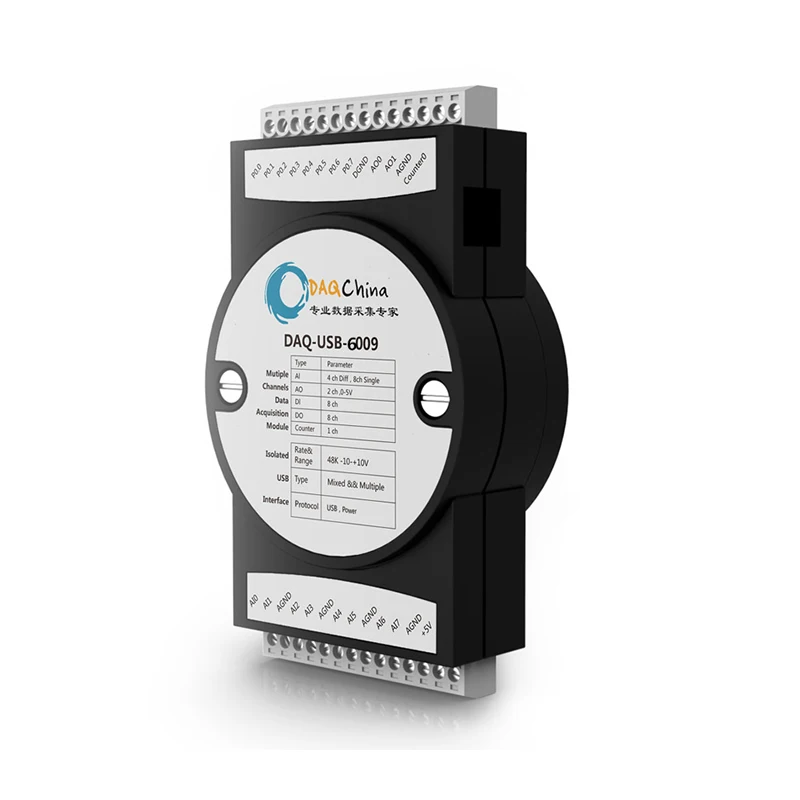

The iDAQ-USB-6009 is a hybrid multi-channel USB data acquisition card. It can sample 4 differential signals or 8 single-ended signals at the same time, and the sampling accuracy is up to 14 bits. Suitable for collecting various voltage and current signals from industrial sites, which can be used to acquire signals from sensors or transmitters. The capture card also has 8 channels of digital input and output, which can be set to user control output or over-limit status indication output for input samples. The acquisition card also has 2 AO DC voltages or arbitrary waveform outputs, as well as a 1-way Counter counter or pulse sequence generation function.
Main technical parameters:1.1 analog inputNumber of input channels: 8 single-ended inputs or 4 differential inputsSupport type and measurement range: The input signal measurement range of each channel can be independently configured, and the voltage input range is ±10V. ADC resolution: 14 bits Sampling accuracy: ±0.05% Maximum sampling rate: 48K / sec (by default, full channel) Input low pass filtering, over voltage protection1.2 digital input and output Number of input and output channels: 8 channels Output type: collector open drain output Level mode: 5V TTL Single channel current drive capability: 10mA Total current drive capability: 85mA Maximum load voltage: 20V Maximum load current: 50mA Can be selected as user control mode or input channel status indication mode In user control mode, with safety output function, software can configure safety time and safety output value1.3 analog output Number of channels: 2 channels Resolution: 12 bit DC voltage range: 0~5V Waveform output supports sine, square wave, sawtooth, triangle wave arbitrary waveform Single channel current drive capability: 15mA Total current drive capability: 30mA1.4 counter Number of channels: 1 channel Maximum counting frequency: 5Mhz Resolution: 32 bits Counting range: 0~65535 Level mode: 5V TTL Support pulse sequence output Support counting function1.5 system parameters CPU: 32-bit RISC ARM Operating system: real-time operating system RTOS Isolation withstand voltage: 250 VDC Supply voltage: USB power supply, reverse power protection Operating temperature range: -20 ° C ~ +85 ° C Industrial grade plastic housing, standard DIN rail mounting Communication interface: USB, ESD, overvoltage, overcurrent protectionSupport LabVIEW, CVI, Matlab, C++ 2 development interfaces
LabVIEW
CVI
VB
VC
