VFD AC 380V 0.75KW 1.5kW/2.2KW/4KW Variable Frequency Drive 50hz 60HZ 400HZ 3-Phase Speed Controller Inverter Motor Обустройство - купить

Купить VFD AC 380V 0.75KW 1.5kW/2.2KW/4KW Variable Frequency Drive 50hz 60HZ 400HZ 3-Phase Speed Controller Inverter Motor | Обустройство

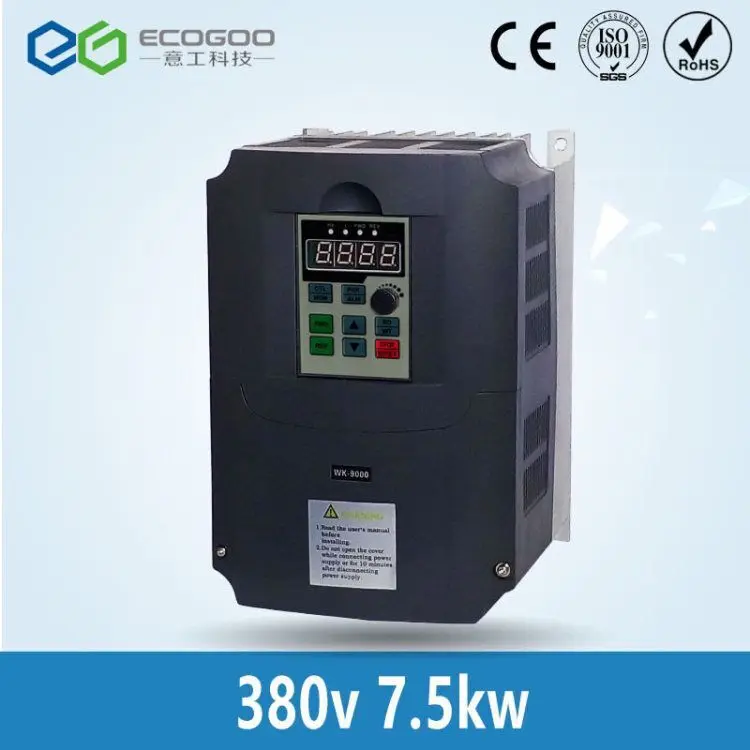

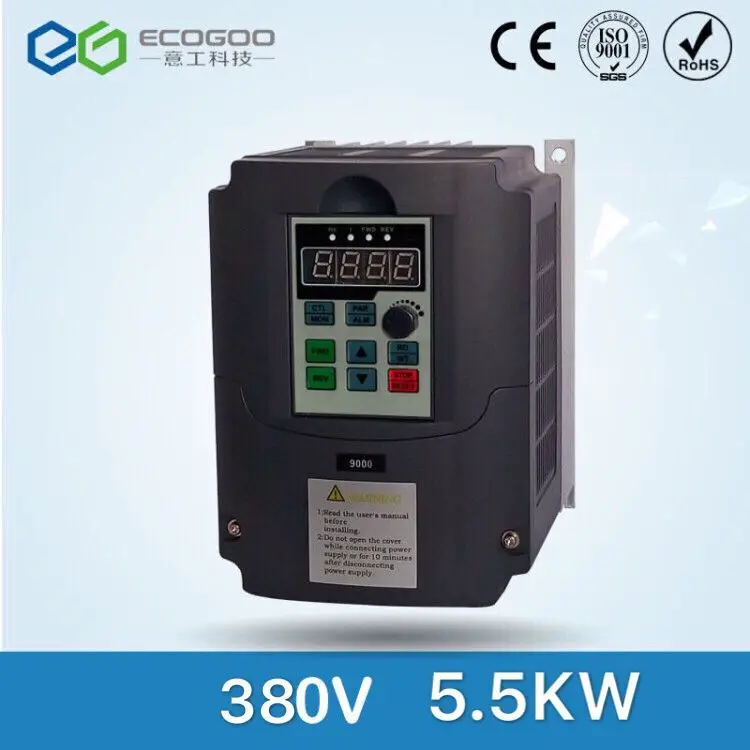

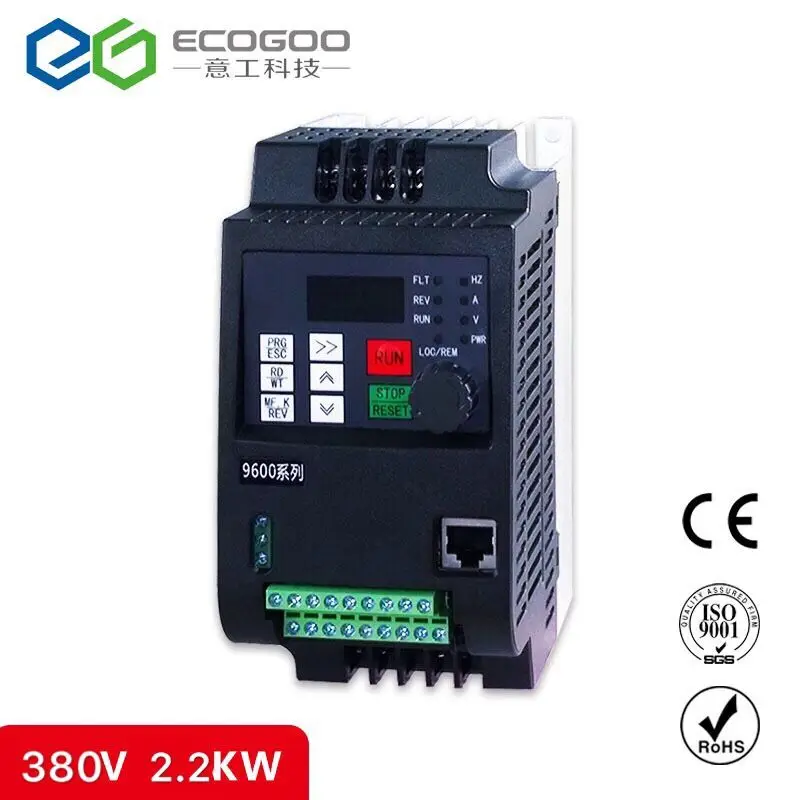

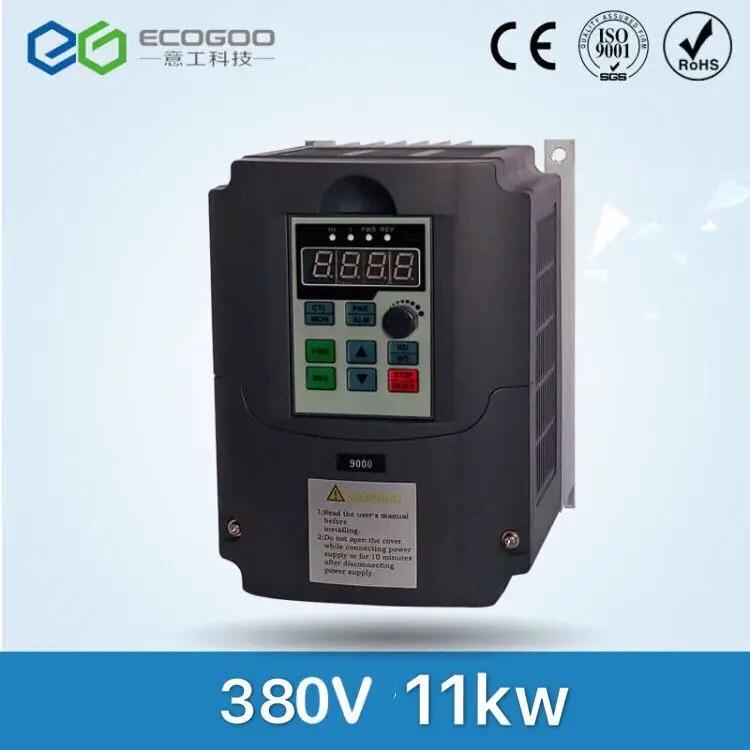

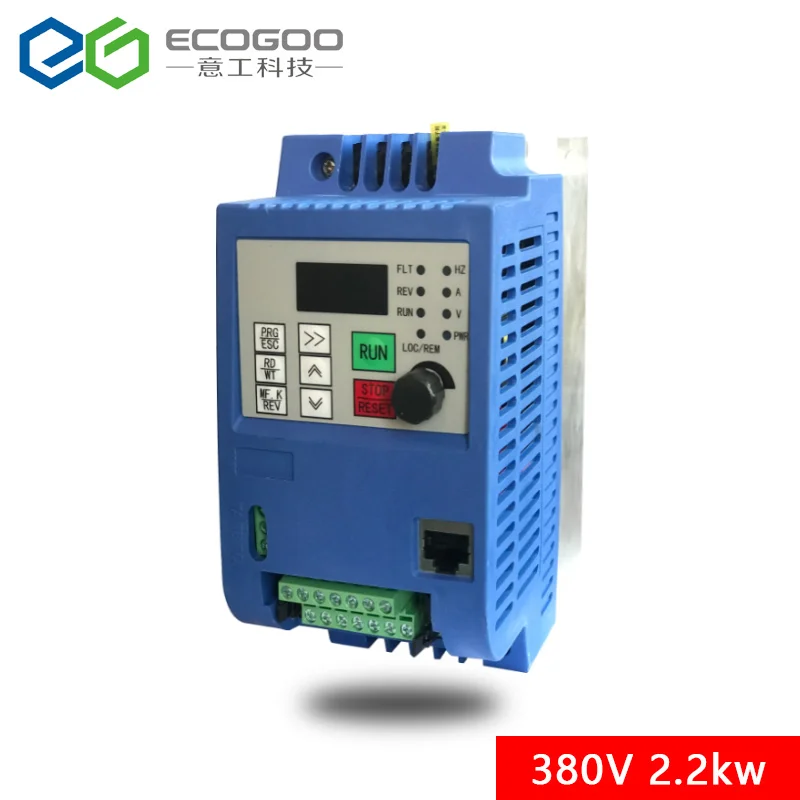

VFD 380 4KW AC 380V 1.5kW/2.2KW/4KW/5.5KW/7.5KW Variable Frequency Drive 3 Phase Speed Controller Inverter Motor VFD Inverter



1.Output Power:3.7A 1.5kW/5A 2.2KW/8.5A 4KW/13A 5.5KW/16A 7.5KW

2.Rated Frequency :50hz/60hz

3.Output Frequency Range:0~650Hz

4.Input Voltage Range:3 phase  380V±15%

5.Output Voltage Range:3 phase 380V±15%

6.Control way: Open loop vector control(SVC)      V/F control

7.Starting Torque: G type machine:0.5Hz/150%( SVC)

8.Main function: Control and adjust the speed of the ac motor





​+Advantages of ECOGOO AC drives

We have sophisticated engineers, scientific producing workmanship and management team with rigorous quality control systems ,frequency inverter are equipped with advanced features as below:
01 V/F control, vector control and output torque control;
02 Built-in RS-485 communication interface
03 Compact size, easy to install;
04 With a speed potentiometer and external panel;
05 Built-in synchronous control and proportional synchronization control;
06 16 speed control modest,Can run automatically;
07 Can choice multiple running commands or frequency channel;
08 Can be achieve Part or all of the keys locked(Analog potentiometer unlock);
09 Relay normally open or closed and two high configuration output have 100 kinds of ways optional;
10 6 digital opto-isolated inputs, 100 kinds of ways optional;
11 3 analog input, 1 analog output channel;
12 Having textile pendulum frequency function, It can be widely applications for many kinds of textile equipment;
13 Built-in user timer / counter;
14 Built-in PID regulation function to facilitate the realization of closed loop control of the temperature, pressure and tension.
15 At zero speed time,can be achieve output 0-100% of Adjustable torque,With zero speed brake function,instead foreign inverter application on freight elevator and crane.







+Technical specifications of ECOGOO AC drives

+The wiring diagram of ECOGOO AC drives

+The reason of ECOGOO AC drives for choosing us
