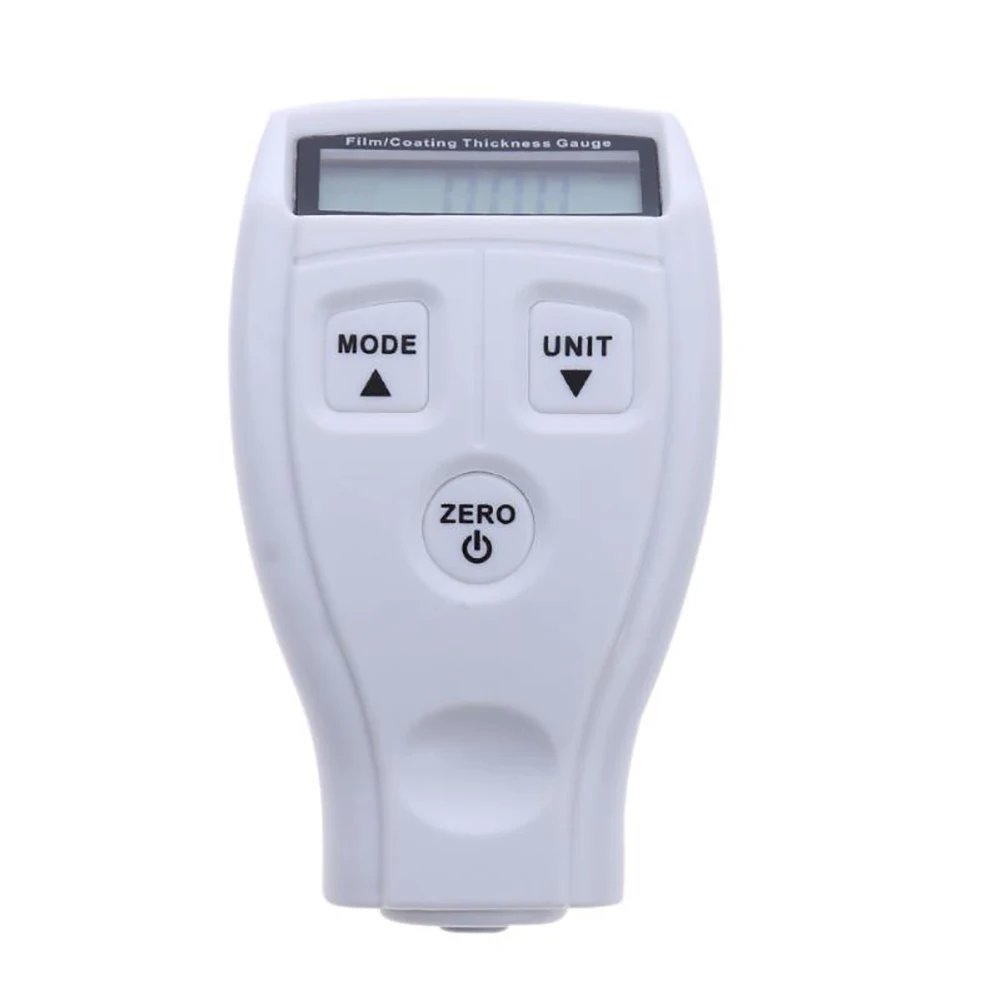

RM660 Paint Coating Thickness Gauge Digital Tester Meter Instrument Iron Aluminum Base Metal Car Automotive Non-Metal 0-1.25 mm

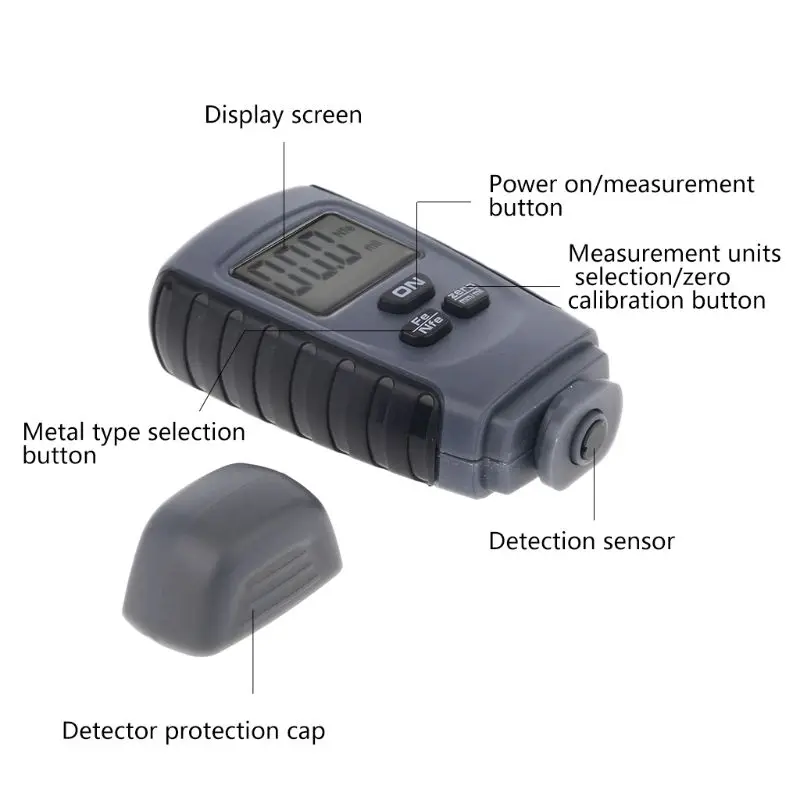

Features:



Perfectly used to measure the thickness of non-metal coating over the metal matrix

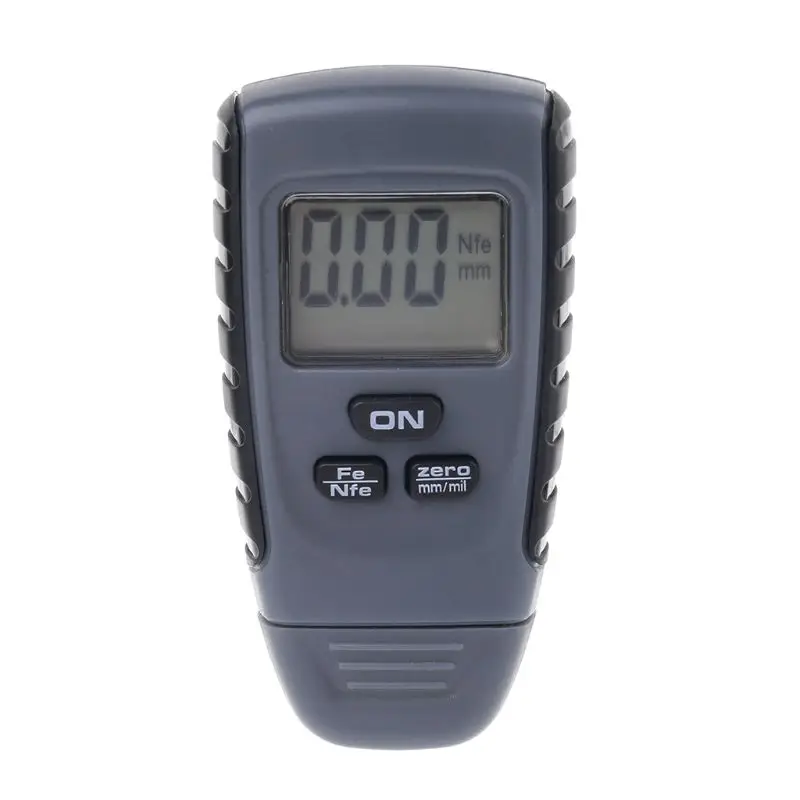

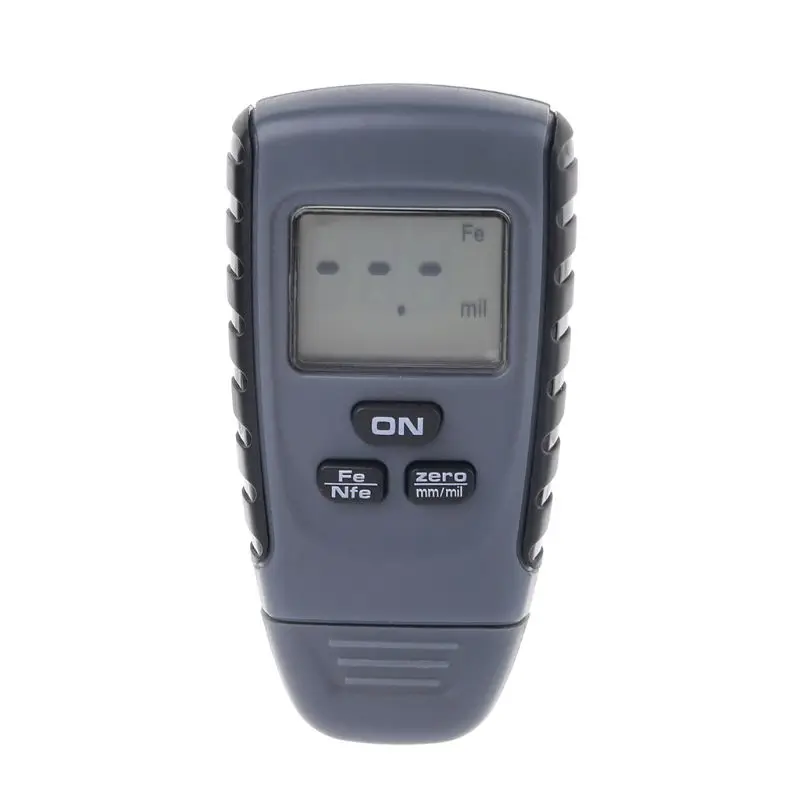

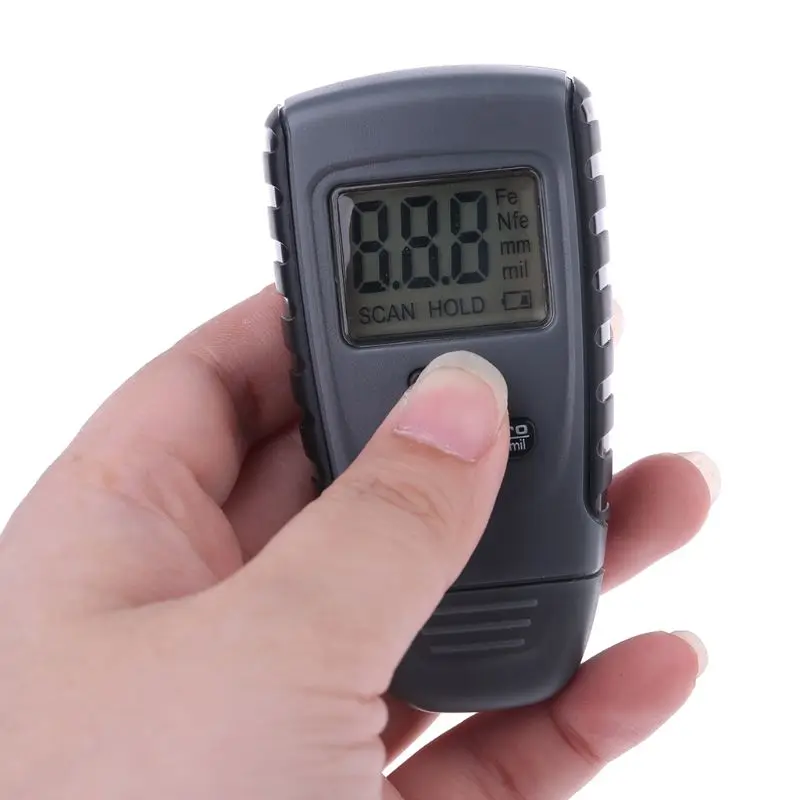

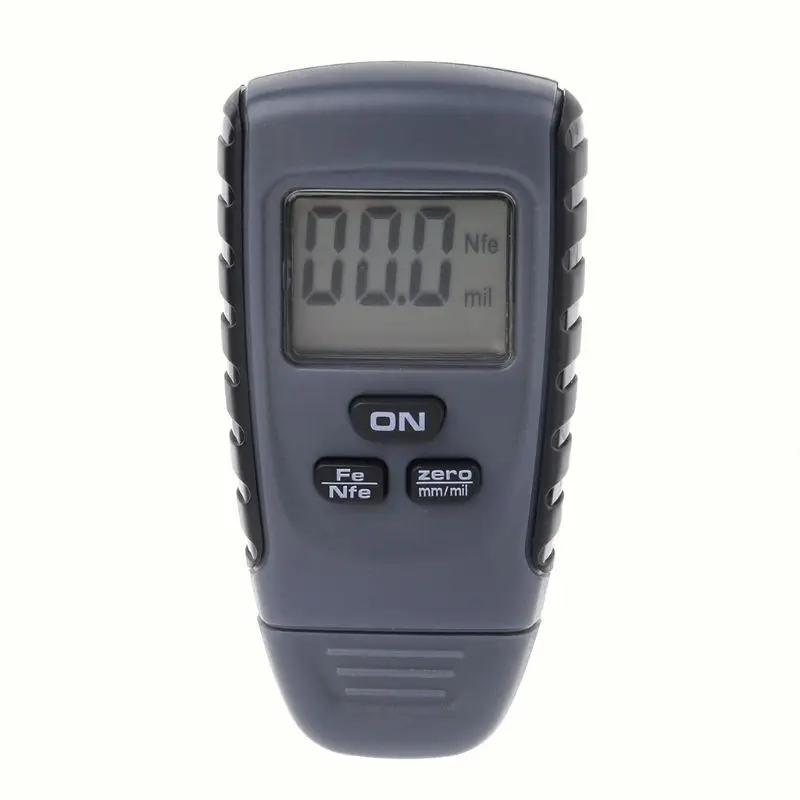

Digital LCD display



Data HOLD function



Zero calibration



Comes with iron base and non-iron (aluminunm) base



Portable, user friendly and easy to carry even in pocket



Low battery indication



Auto shut-off if no operation in 1 minute



Measuring Range: 0 ~ 1.25mm , Precision Measurement: 2%



Ideal for manufacturing company, metal machinery industry, chemical industry, and commodity







Specifications:



Target Measure: Non-metal coating thickness on the metal surface



Measuring Range: 0~1.25mm nonmetal coating on metal surface



Precision Measurement: 2% RDG 0.02mm [2% RDG ±1mil (steel and aluminum only)]

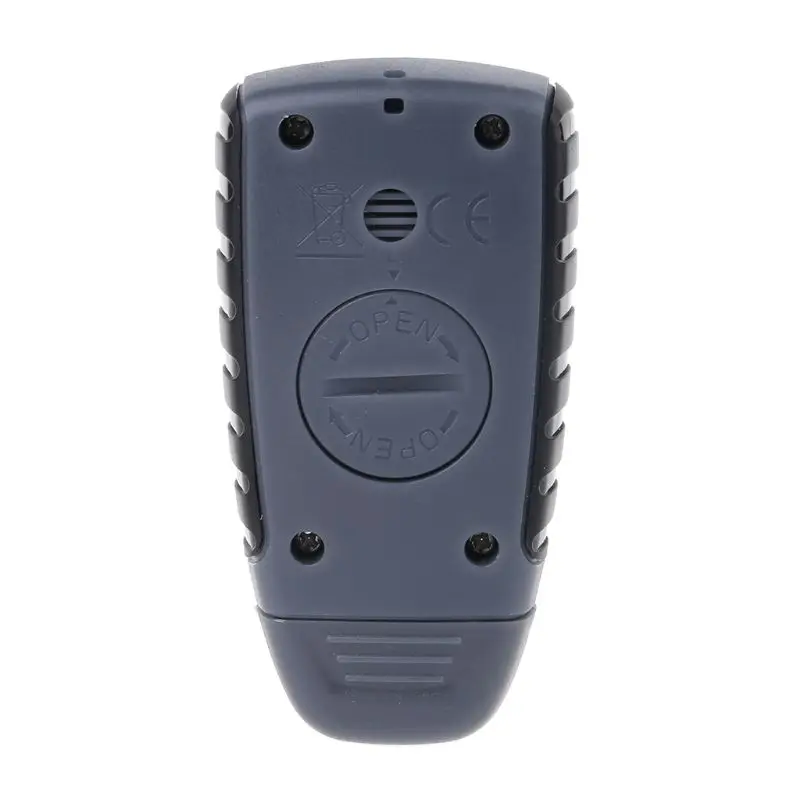

Power Supply: 1 x 3V CR2032 button battery(NOT INCLUDED)



Working Current: <10mA



Auto Power off time: No actions in 1 min if leave the measured object



Minimum base diameter: 10mm



Critical base thickness: 0.5mm



Display resolution: 0.02mm/1mil



Operating Environment



Temperature: -5~40°C



Humidity: 5~95%RH non condensing



Storage Environment



Temperature: -20~60°C



Humidity: <85%RH



Material: ABS



Dimensions: 80 x 42 x 24mm



Color: as shown







​Warmly Note: Must do the calibration before proceed measurement.







Package Includes:



1 x Thickness Meter



5 x Standard foils (0.10mm, 0.25mm, 0.50mm, 1.0mm, 2.0mm)



1 x Non-iron (aluminunm) base



1 x User manual
