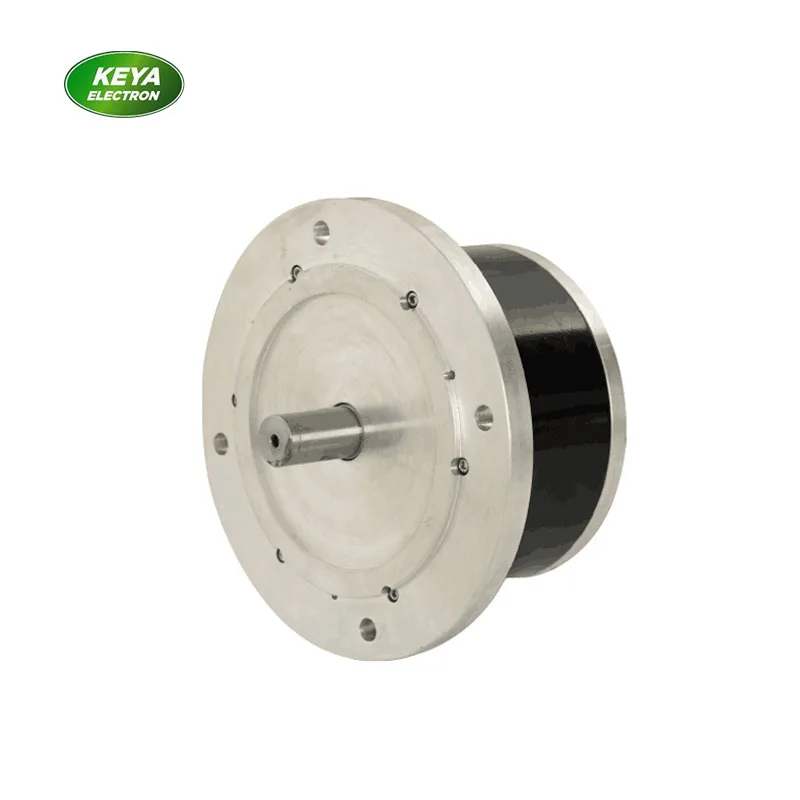

high-power high torque heavy duty 48v 5kw for KPJ electric flat car trackless cart Transfer Cart                                                   Model: KY210BL0405-30 Permanent magnet Brushless motor, axial magnetic field motor’s air gap is planar, The air gap magnetic field along the axial distribution, the motor stator structure is easy to Make core and winding cooling,it can get more heat dissipation area; because of its compact structure (axial size is short), small size, high efficiency, high power density, Good speed control performance. small moment of inertia, high reliability and short magnet circuit and it attracted more and more attention. They are widely used in new energy electric car, renewable energy systems, industrial equipment which require high torque density and compact occasions.

Frame	KY210BL0405-30	210BL0404-15
Rated Voltage	48VDC	48VDC
Rated Power	5KW	4KW
Rated Speed	3000RPM	1500RPM
Rated Torque	16N.m	25.5N.m
Peak Torque	48 N.m	75 N.m
Rated Current	125A	104A
Line Resistance	13.5Ω	0.029Ω
Rotor Inductance	37.5mH	0.26mH
Torque Constant	0.115N.m/A	0.241N.m/A
Roter Inertia	11.8X10 -3Kg.m2	1.17X10 -2Kg.m2
Mechanical Time Constant	12.05ms	5.84ms
EMF constant	0.115V/Krpm	25.3V/Krpm
Insulation Resistance	50MΩ	50MΩ
Pole	4P	4P
Noise	65dB	65dB
Level of protection	IP54	IP54
Working system	S2 60min	S2 60min
Temperature classification	H	H
Environmental temperature	-20—60°	-20—60°
Type of cooling	natural cooling	natural cooling
Bearing rated dynamic load	5.5	5.5
Installation	vertical mount	vertical mount
Feedback	Hall	Hall
Weight	19KG	17KG

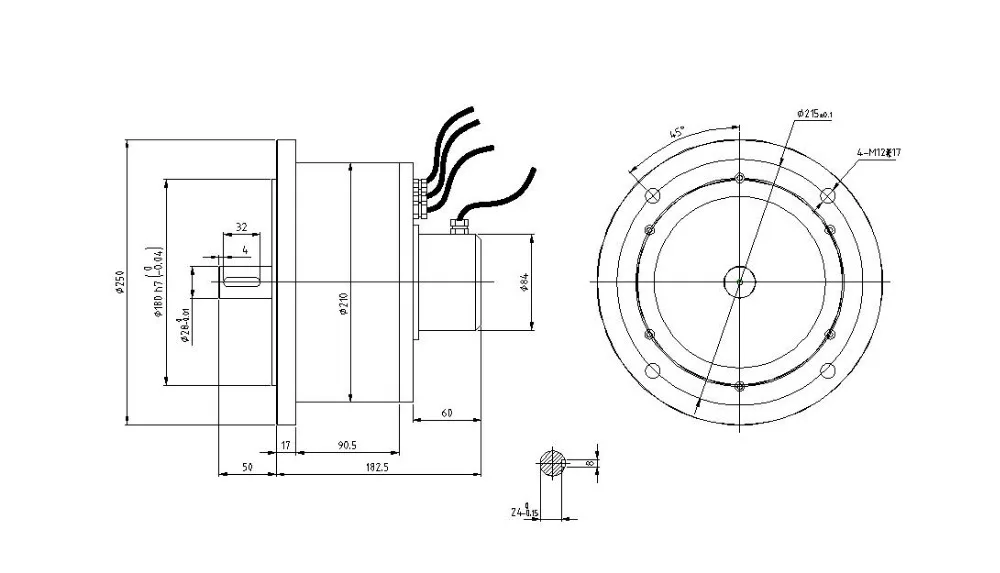

                                                                                              Dimension

 48v 5kw bldc motor, 4kw dc motor   48v 5kw bldc motor, 4kw dc motor  48v 5kw bldc motor, 4kw dc motor

pin	1	2	3	4	5
defination	5V	U	V	W	GND
Color	Red	Purple	Brown	Grey	Black

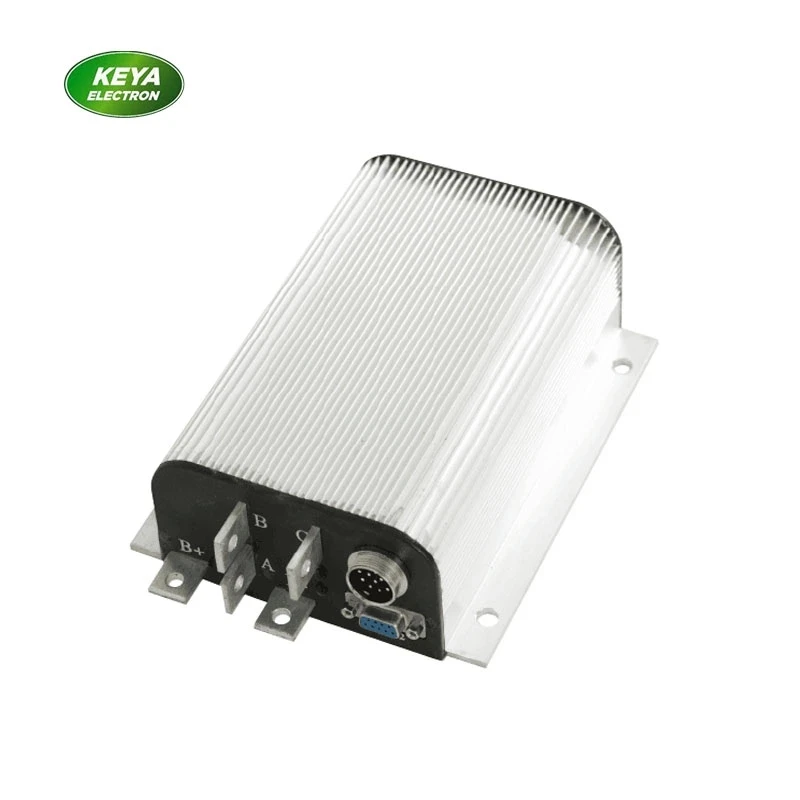

Matched controller https:/item/4000105028634.html
Jinan Keya Electron Science And Technology Co., Ltd. leading manufacturer of brushless dc (BLDC) motors with power range from 200W to 5000W, and the voltage range from 24V to 72V DC.We have a variety of different motors to meet different customer requirements. For example bldc motor with encoder or brake,brushless motor with worm gearbox or Precise planetary reducer. All the motors have been exported to Europe under CE certification.It is more than 10 years experience to study the technical to keep the quality.
It has been widely used for many applications, eg., Automatic Guided Vehicle,smart self driving robot vehicle platforms/kits,caterpillar lifting platform,Fire fighting Robot etc. It has better performances than other traditional dc motors.

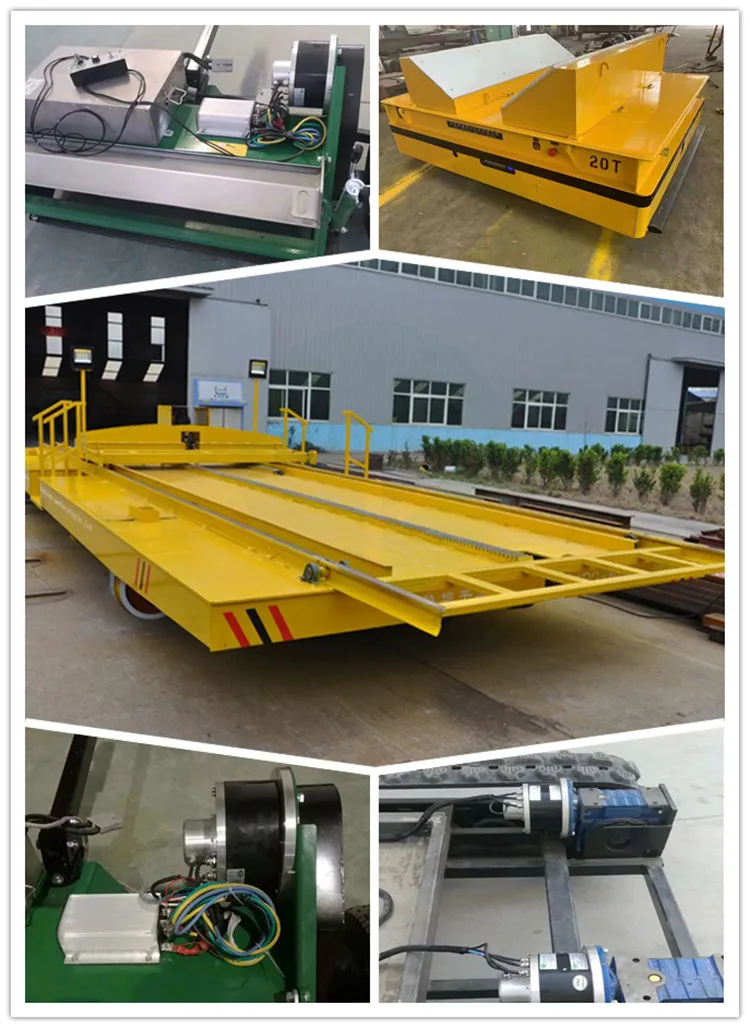

Application

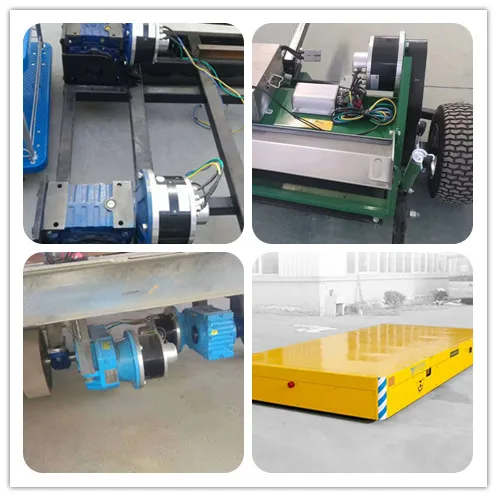

Tracked car,Logistics shuttle,AGV,intellgent robot,Fire fighting Robot Etc.  48v 5kw bldc motor, 5kw dc motor

Our Service

1.Many kinds of motor with different powers to meet difference requirements.

2. Many designs and Matched controller for your choice.

3. Samples will be offered to attest to the quality and our services.

4. No design limited. you design it by yourself.

5.The fastest feedback!

6. The fastest delivery time.  48v 5kw bldc motor, 4kw dc motor

Package

 1.    Q: What are your main products?  48v 5kw bldc motor, 5kw dc motor 48v

      A: We produce various kinds of dc motor & controller.

2.    Q: How long have you been in this field?

      A: More than 15 years in this field.

3.    Q: Do you have your own R&D team? 48v 5kw bldc motor, 5kw dc motor 48v

      A: Yes. R&D is our core competitiveness, continuous innovation is just what we are seeking for all       the time. Some of our engineers have more than 20years experience in the industry, and we also         cooperate with colleges, scientific research institutions and large enterprises.

4.    Q: How soon can you deliver the goods?

      A: That depends on the exact model you order. For regular products, usually we will prepare some units in stock, we can deliver them within 3 working days.

5.    Q: Can you make the product according to customer’s requirements?

      A: Yes, welcome costom-made products.

6.    Q: What is your payment term?

      A: You can pay by TT, Paypal, Western Union.
