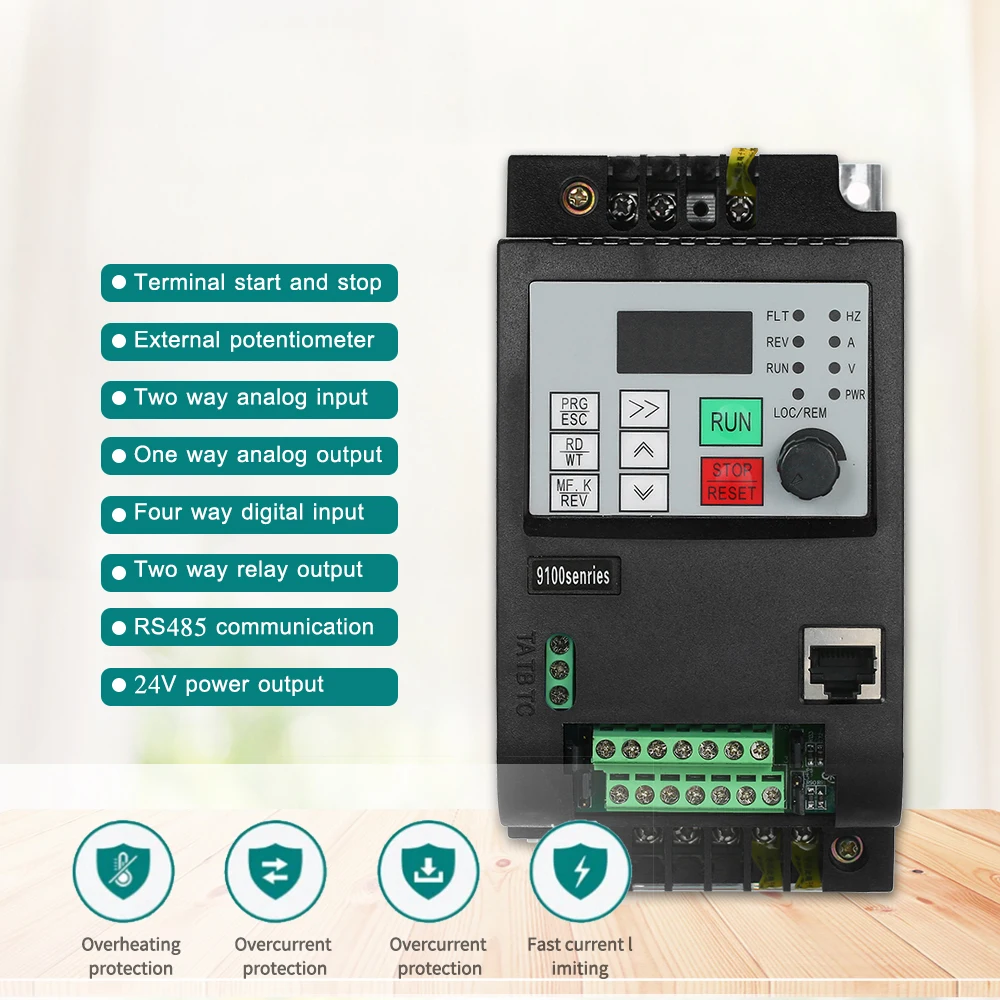

Features:
Control Method: V/F control, vector control  and output torque control;

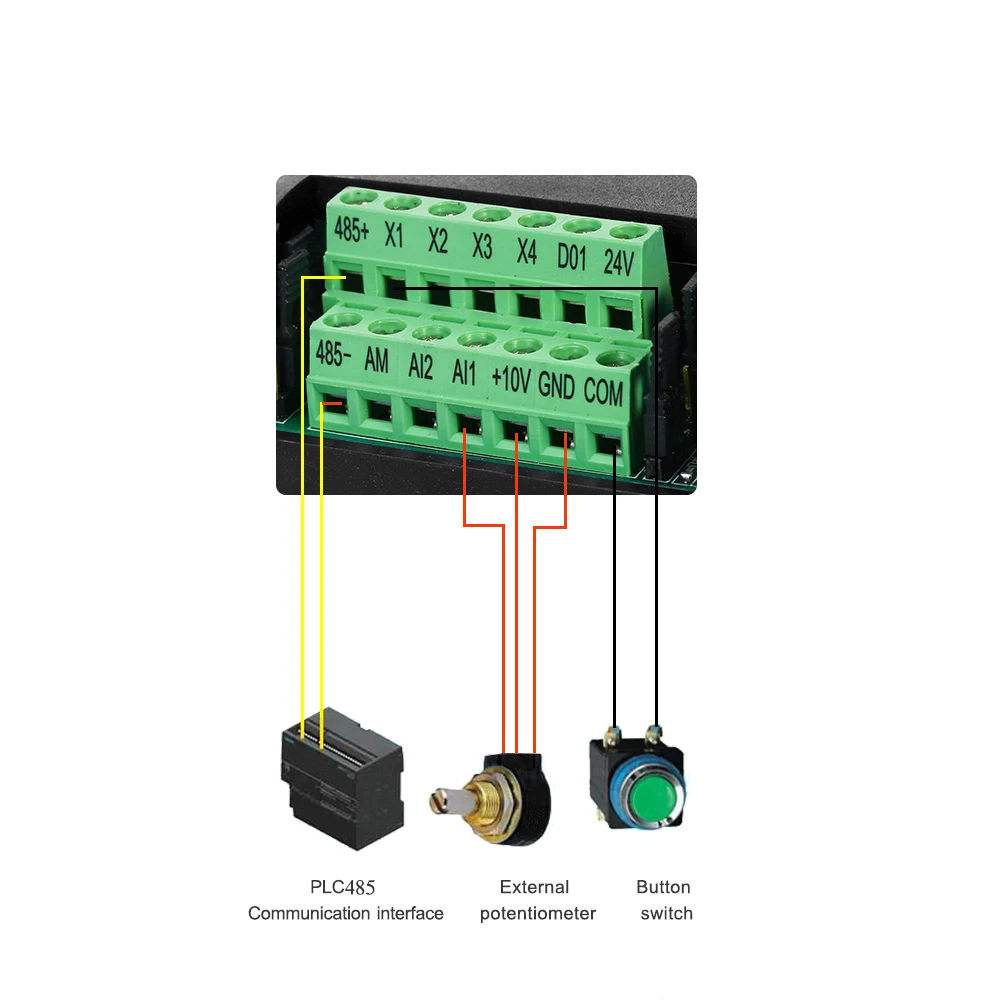

Built-in RS-485 communication interface; Built-in synchronous control and proportional synchronization control; 16 speed control modest,Can run automatically.
Special Design:  Compact size, easy to install; With a speed potentiometer and external panel.
Flexible Operation: Can choice multiple running commands or frequency channel; Can be achieve Part or all of the keys locked(Analog potentiometer unlock); Relay normally open or closed and two high configuration output have 100 kinds of ways optional.
6 digital opto-isolated inputs, 100 kinds of ways optional;
3 analog input, 1 analog output channel;
Having textile pendulum frequency function, It can be widely applications for many kinds of textile equipment;
Built-in user timer / counter;
Built-in PID regulation function to facilitate the realization of closed loop control of the temperature, pressure and tension.
At zero speed time,can be achieve output 0-100% of Adjustable torque,With zero speed brake function,instead foreign inverter application on freight elevator and crane.
Powerful Function: Widely used in water pump flow control,constant pressure water supply,engraving machine,fan speed regulation and other industries,energy-saving transformation of power electronics and transmission industries at home and abroad.

Specifications:
Material: ABS + Stainless Steel
Color: Blue/Black (optional)
Output Power: 2.2KW/1.5KW (optional)
Rated Frequency: 50hz/60hz
Output Frequency Range: 0~400Hz
Input Voltage Range: 3 phase  380V±15%
Output Voltage Range: 3 phase 380V±15%
Control way: Open loop vector control(SVC)      V/F control
Main function: Control and adjust the speed of the ac motor

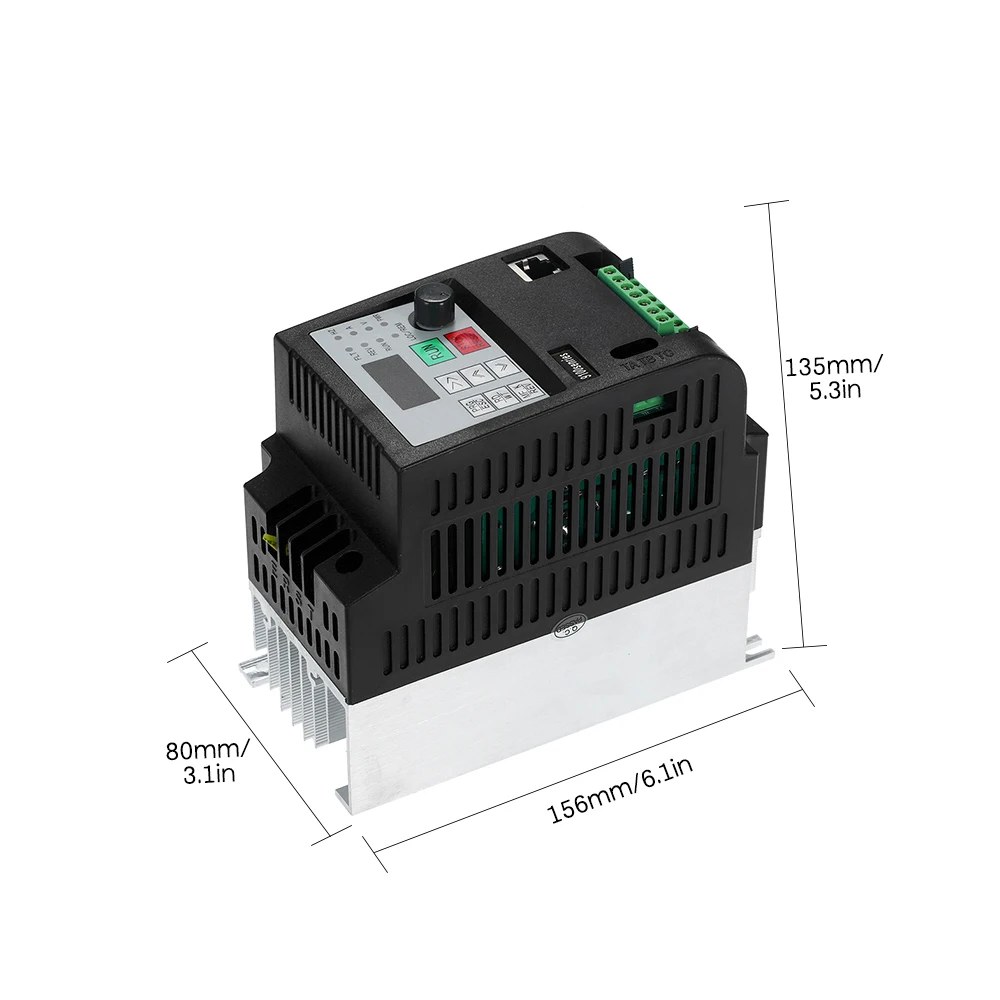

Item Size: 156*80*135mm / 6.1*3.1*5.3"
Item Weight: 930g / 32.8oz
Package Weight: 1150g / 40.6oz
Package Size: 220*150*130mm / 8.7*5.9*5.1"

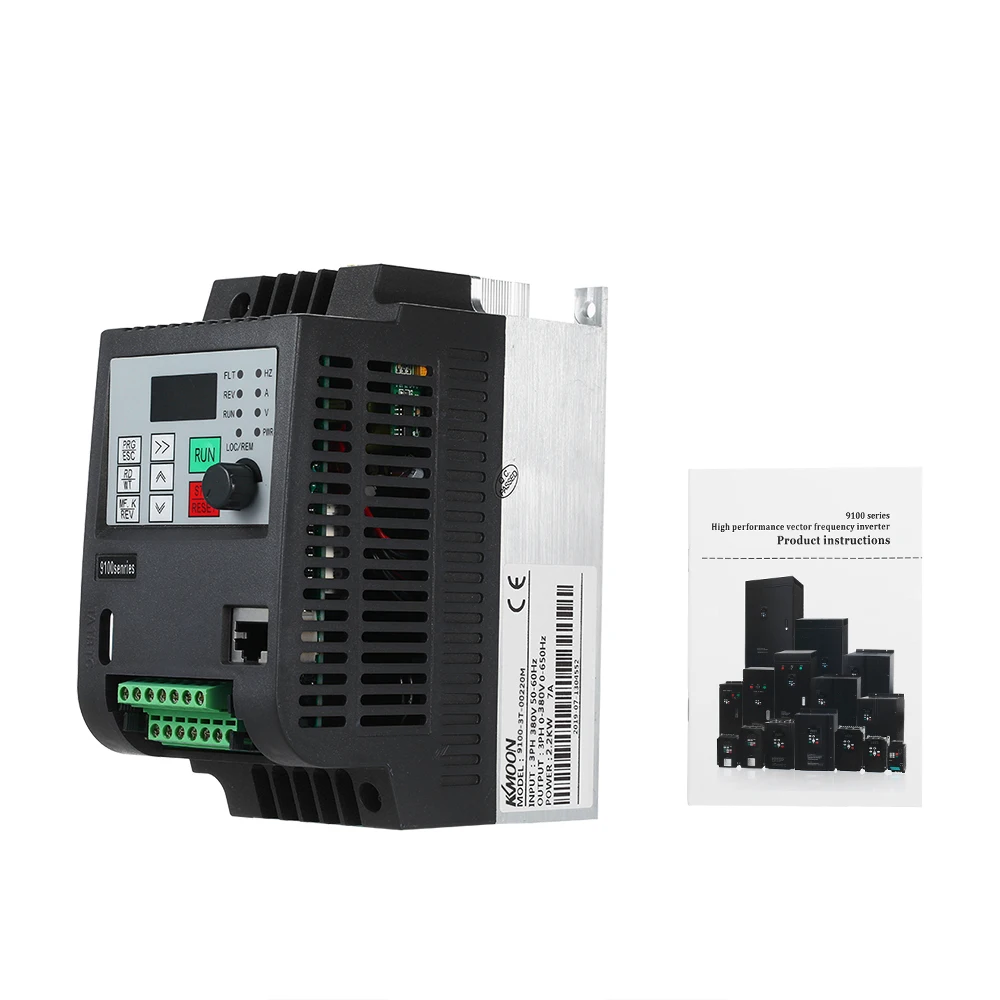

Package List:
1 * Frequency Converter
1 * Manual
