High Speed Micro Mini 1020 Coreless Motor 10mm*20mm DC 3V 3.7V 4.2V CW CCW Strong Magnetic Large Torque DIY RC Drone Quadcopter - купить

Купить High Speed Micro Mini 1020 Coreless Motor 10mm*20mm DC 3V 3.7V 4.2V CW CCW Strong Magnetic Large Torque DIY RC Drone Quadcopter |

Tips: If you need large quantity, we can provide wholesales for you. Thanks

Tips:This Motor have two color wire : black&white / red&blue, we will send it in random.

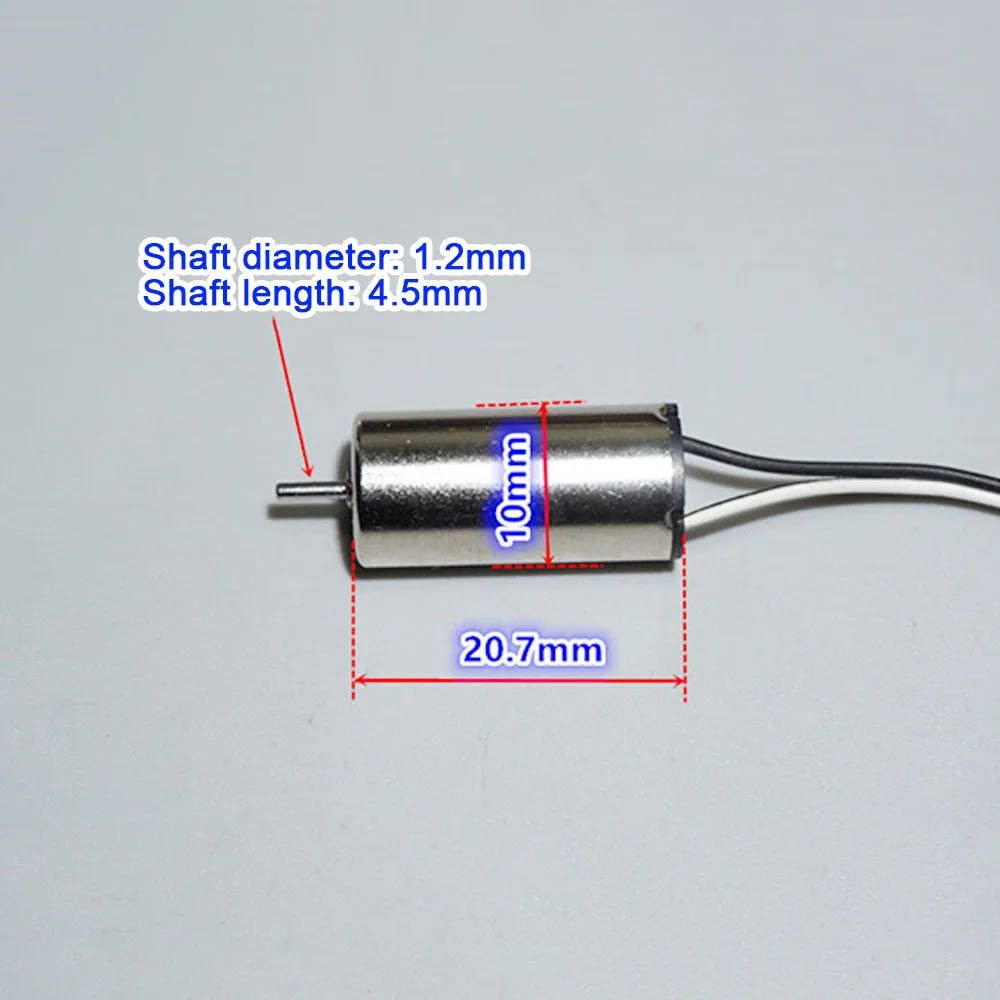

Specification

Model: 1020

Output Shaft Diameter: 1.2mm

Output Shaft Length: 4.5mm

Weight: 7.8g

Voltage: 3.0V-4.2V

Test data:

Voltage: 3.0V   No-load Speed: 32900RPM  No-load Current: 150mA

Voltage: 3.7V   No-load Speed: 41400RPM  No-load Current: 160mA

Voltage: 4.2V   No-load Speed: 46700RPM  No-load Current: 180mA

Note:

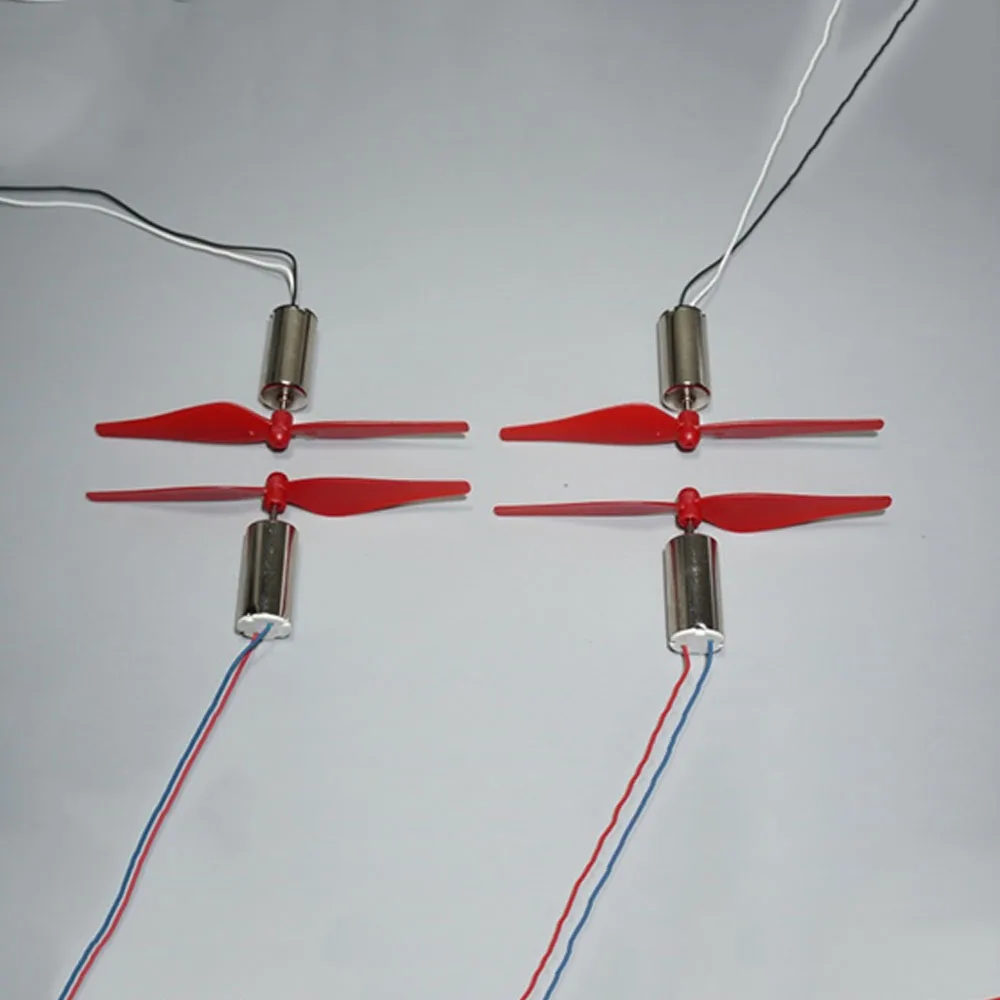

The paddle leaf is equipped with a 1020 motor, and the paddle leaf color is red and black. A set of 4 propellers, two propellers forward and two propellers reverse, sold in sets. The blades are red and black. No random shipment is required.

Package Include:

Motor x 1 PCS
