Description:

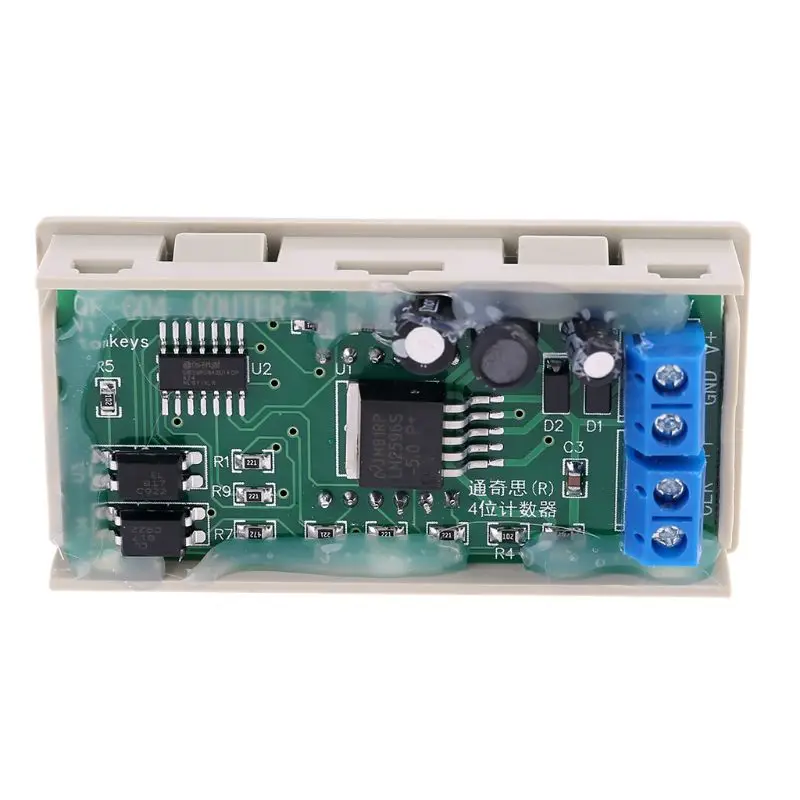

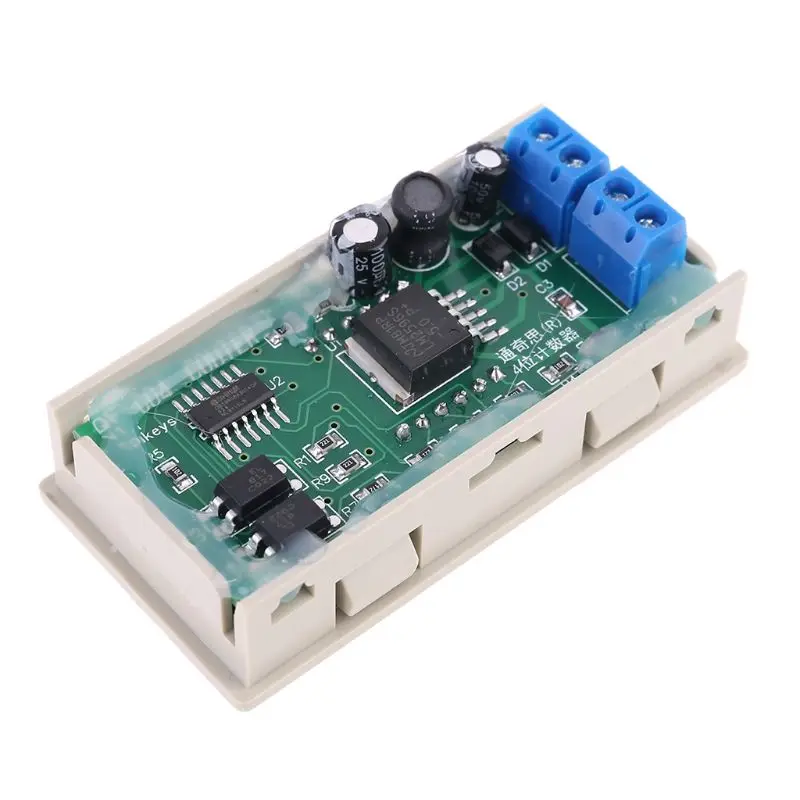

QF-C04 is a trigger counter. Each time input a trigger signal, the calculator adds one. Returns 0 when press Clear button.

Feature:
1>.Wide voltage input
2>.4Bit Red digital tube display
3>.Low level signal trigger

Parameters:
1>.Item Name:QF-C04 Trigger Counter Module
2>.Model:QF-C04
3>.Work voltage:DC 4.0V-40V
4>.Work mode:Trigger mode
5>.Trigger signal:Low level trigger(<2V)

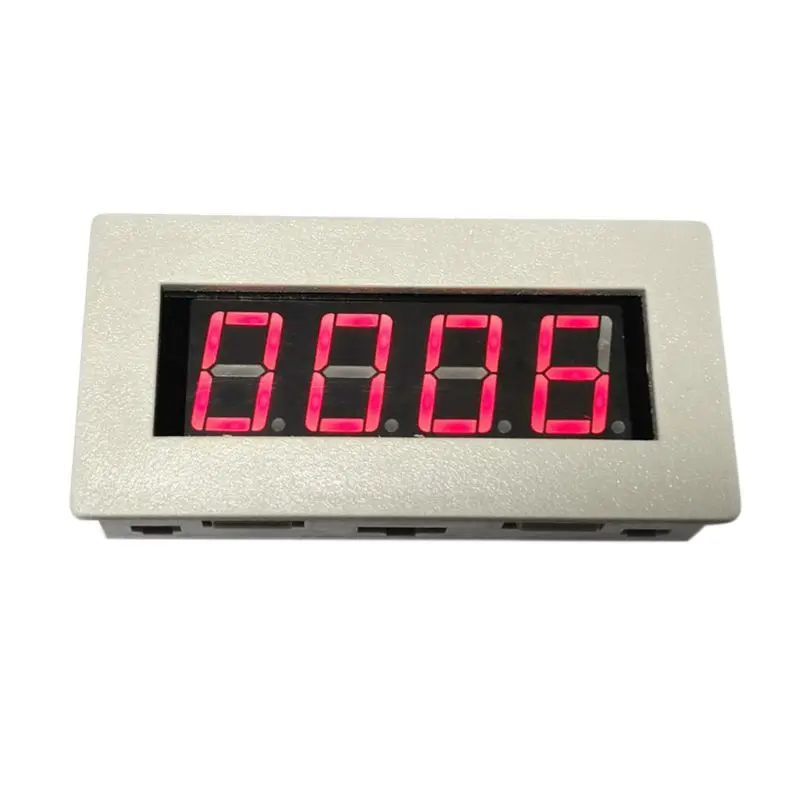

5>.Display:0.56" 4bit Red
6>.Work Temperature:-25℃~85℃
7>.Work Humidity:0%~95%RH

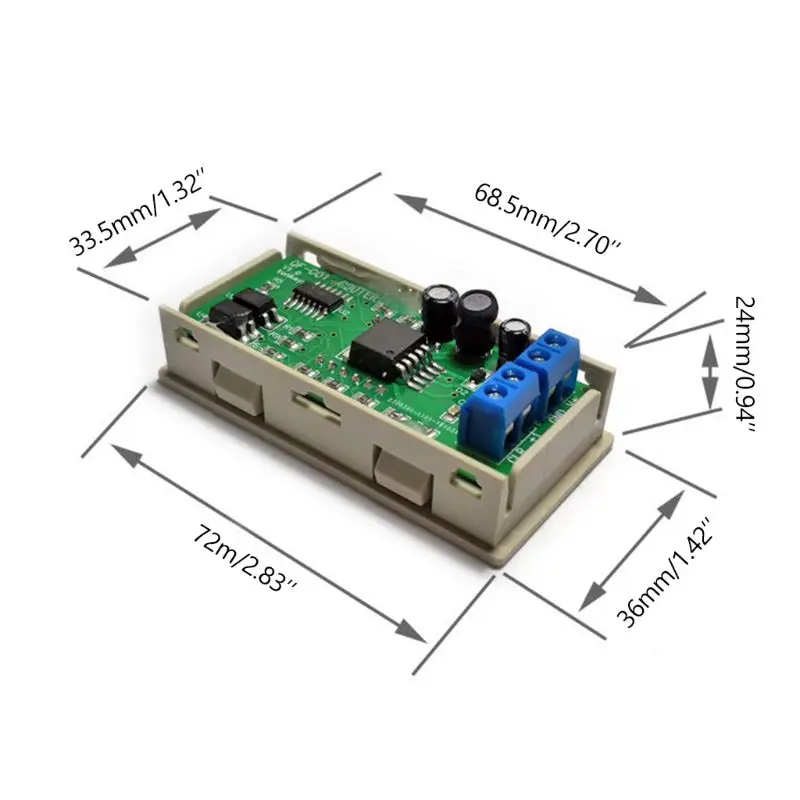

8>.Size:65*29*19mm

Function:
1>.Each time input a trigger signal, the calculator adds one
2>.Returns 0 when press Clear button.

Application:
1>.Trigger counter
2>.Industrial control
3>.Equipment inspection

Note:

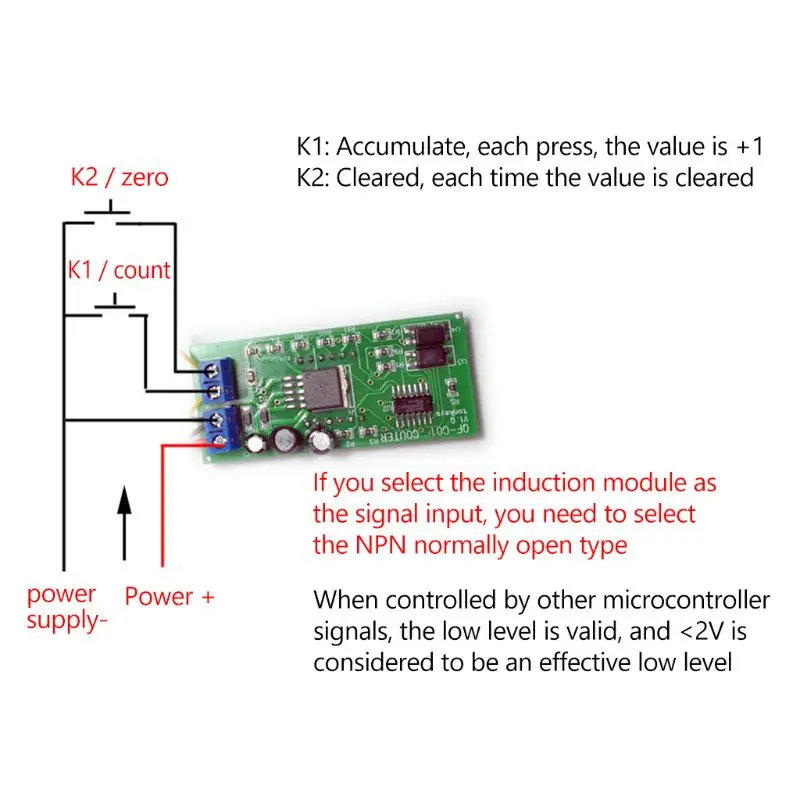

If you select the induction module as the signal input, you need to select the NPN normally open type
When controlled by other microcontroller signals, the low level is valid, and <2V is considered to be an effective low level

Package:
1pcs QF-C04 Trigger Counter Module
